Plan 69680AM: Expanded Classic Craftsman House Plan

Plan 69680AM

Expanded Classic Craftsman House Plan

Heated S.F.

2,801

Beds

4 - 5

Baths

3.5

Stories

Cars

Floor Plan

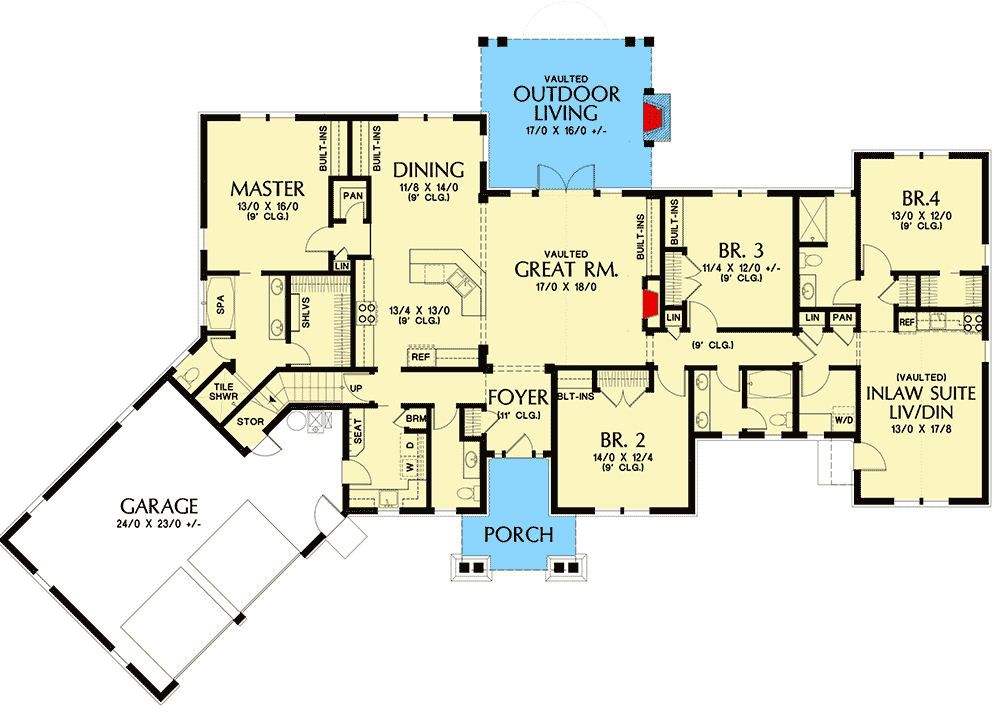

Main Level

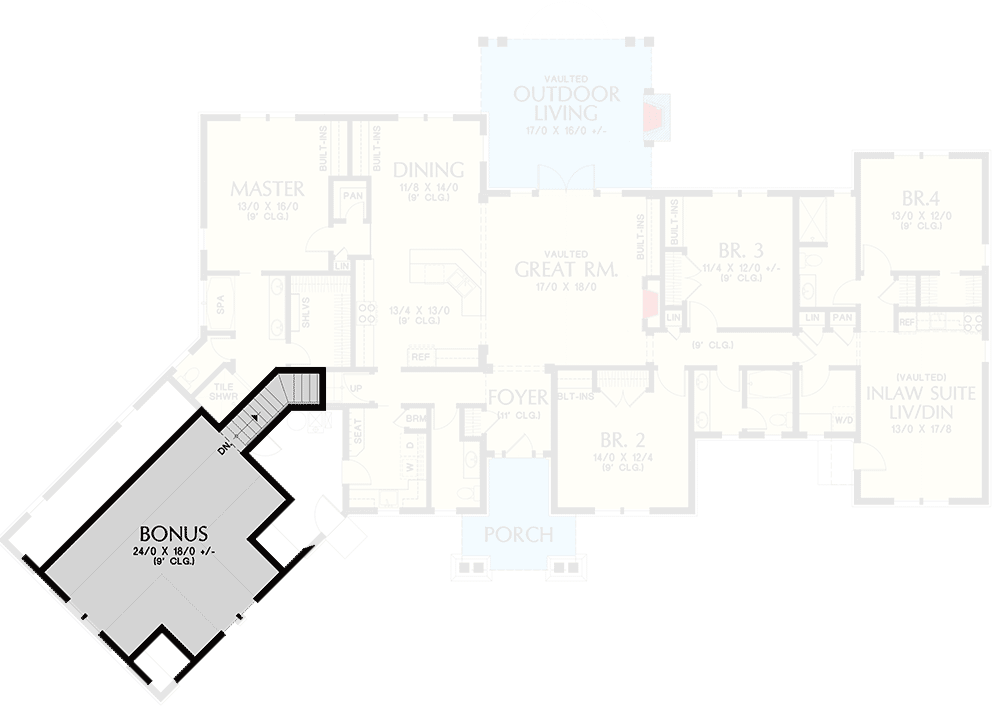

Bonus

Plan Details

We took a favorite, 69533AM, and created this expanded version. Like the smaller original, decorative wood trim enhance this 4+-bedroom beautiful Craftsman home plan.
Inside, a well-laid out floor plan has room for four bedrooms plus a flex room.
The open floor plan lets the kitchen take advantage of views in both the dining room and vaulted great room.
The outdoor living area has a vaulted ceiling as well as a fireplace to warm those chilly nights.
The master suite has great privacy in this split bedroom layout of the home. And you'll enjoy the large walk-in closet.
Bonus space above the garage is quite spacious and can be made into whatever you want.
Related Plans: Downsize with house plan 69533AM (2 car garage) and 69578AM (3-car garage) both 2,233 sq. ft.

What's Included

Exterior Elevations: In addition to the front exterior, your drawing set will include drawings of the rear and sides of your house as well. These drawings give notes on exterior materials and finishes. Particular attention is given to cornice detail, brick and stone accents, or other finish items that make your home unique.
Foundation Plan: The foundation page dimensions, concrete walls, footings, pads, posts, beams, bearing walls, and any stepped foundation information along with any retaining wall info (schematic only). A typical wall section for the home is also usually included on this page (if not, it is elsewhere in your plan set, as space allows). If your plan features a poured concrete slab rather than a basement or crawlspace, the foundation page shows footings and details for the slab, and includes plumbing locations.
Floor Plan(s): Exterior and interior wall framing, and windows/doors are dimensioned. Room sizes are indicated and any beams, posts and structural bearing points are called out. The floor plans include an electrical legend, and electrical fittings, lights and outlets are shown. Floor Plans will also indicate cross–section details (provided on the sections page) and show any special framing details applicable to the design. Cabinet elevations are included for kitchen and bathrooms; some designs feature cabinet elevations for design–related built–ins too.
Building Sections: Building sections show changes in floor, ceiling, or roof height, and the relationship of one level to another. Our section pages also show how the stairs are calculated (if there are some!) and depict roof and foundation members. We try and draw sections to show the most useful information — choosing locations where there are elements you or your contractor might need clarification on.
IMPORTANT NOTE: Sections and elevations depict the standard foundation only.
Roof Plan: Roof framing or truss directions are shown, slope directions are indicated and structural members are sized and called out if applicable. The gravity loads used to calculate the rafters, beams and posts are indicated , and we also show gutters, downspouts, and any roof venting required for your home.
Notes and Details Page(s): Your home comes detailed to meet the requirements of the latest adopted version of the ‘International Residential Code’, and our notes and details pages outline all the elements applicable to the design of your home. Compliance with further standards may need to be incorporated into your plan set, depending on the requirements of your building department — these are usually done locally.

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required
