Expanded New American House Plan with Flex Room - 2300 Sq Ft
Heated S.F.
2,300
Beds
3 - 4
Baths
3.5
Stories
1
Cars
2
Floor Plan

Plan 420135WNT

Main Level
slide image 0

Plan 420135WNT

1-800-854-7852

1-262-521-4596

Main Level
floor plan image Main Level
Plan Details

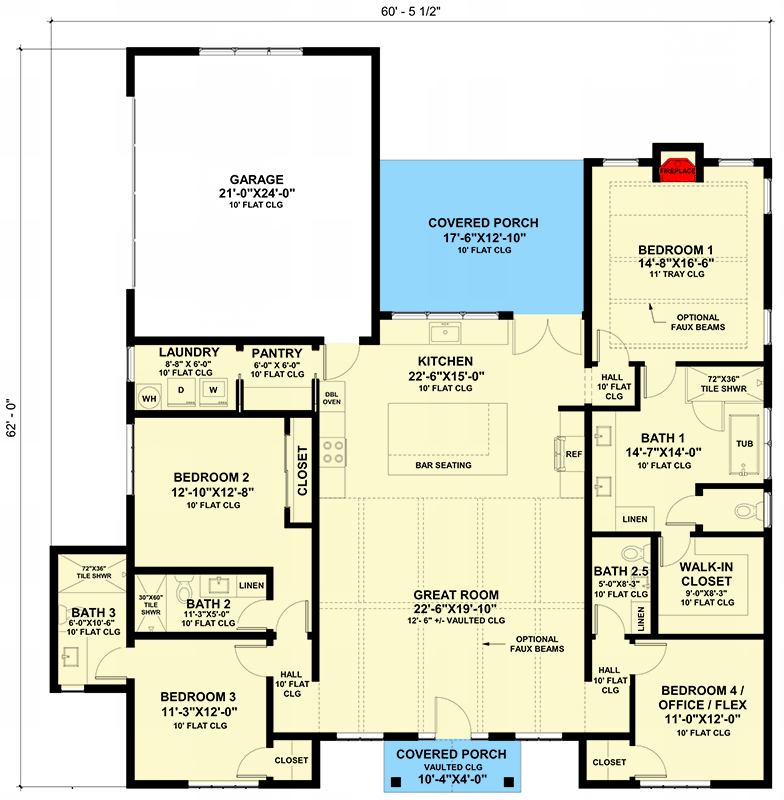

  • Two matching gables with similar six-over-six windows to either side of the covered entry combine to give this one-story New American house plan a balanced and attractive façade. Inside, the home plan gives you 2,300 square feet of heated living with 3 beds plus a flex room and 3.5 baths.
  • You enter the home in the vaulted great room. It is up to you to add faux beams. If you did, we think it would look great! The great room is open to the island kitchen with a sink set below windows looking out across the covered porch.
  • The master bedroom is in the back-right corner and has a fireplace on the back wall and a roomy walk-in closet. To the right of the entry, a flex room can be used as a home office or as fourth bedroom. To the left, two bedrooms share a hall bath.
  • The side-entry 2-car garage is set in the back-right side of the home and accesses the home by the kitchen.
  • Related Plans: Get a smaller version with house plans 420143WNT (2,250 sq. ft.) and 420111WNT (2,098 sq. ft.).
  • NOTE: Please allow 3 to 5 business days for delivery.
What's Included
  • Foundation Plan - Footing sizes, slab thickness, floor framing sizes/layout, etc.
  • Floor Plan(s) - Detailed dimensions, window/door details, plumbing fixture type/locations, etc. for each level of the home.
  • Electrical Layout Plan - Locations of electrical panels, lights, switches, outlets, etc.
  • Roof Plan - Roof framing sizes/layout, roof pitch, attic venting, overhangs, roof finish materials, etc.

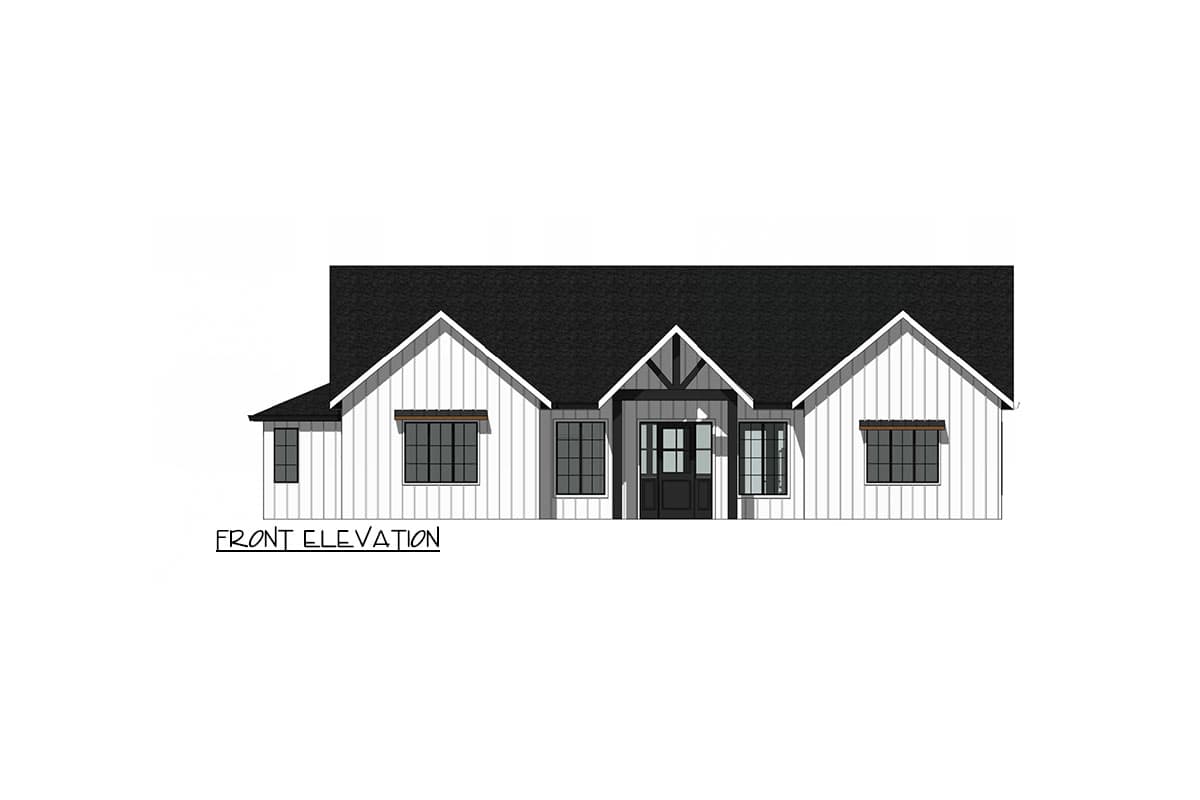

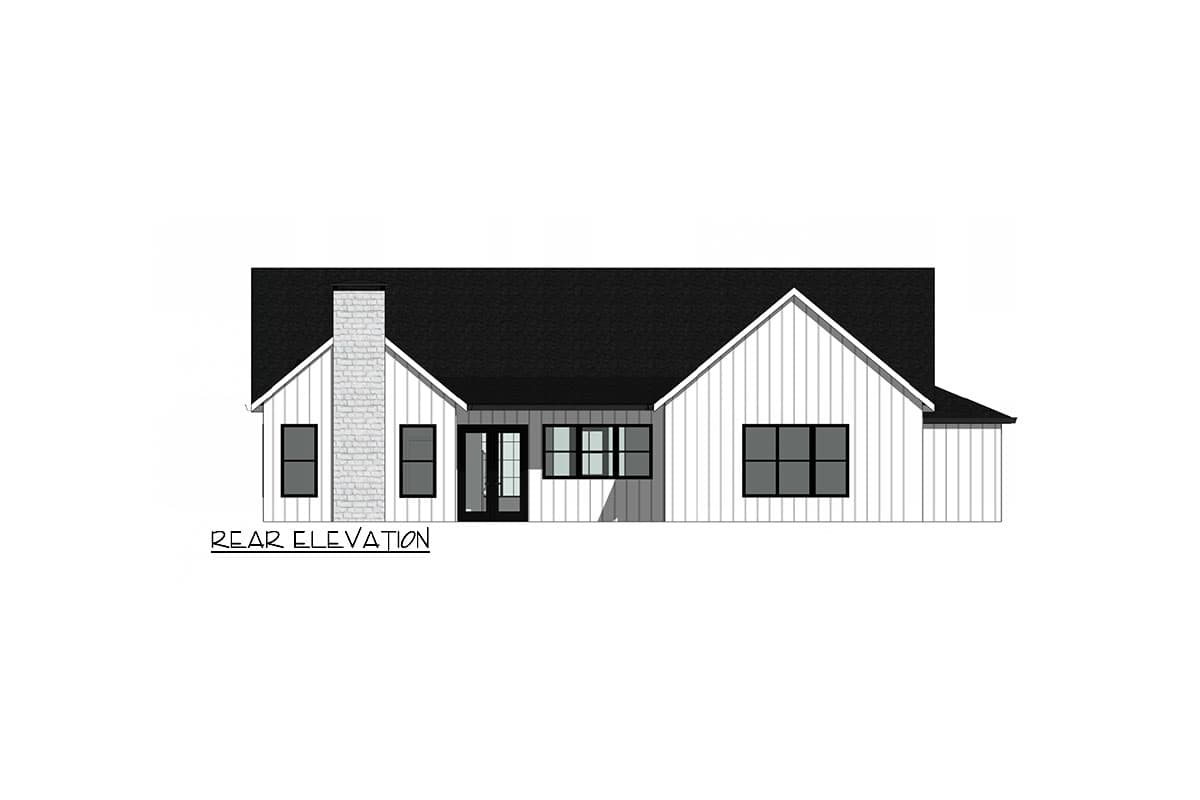

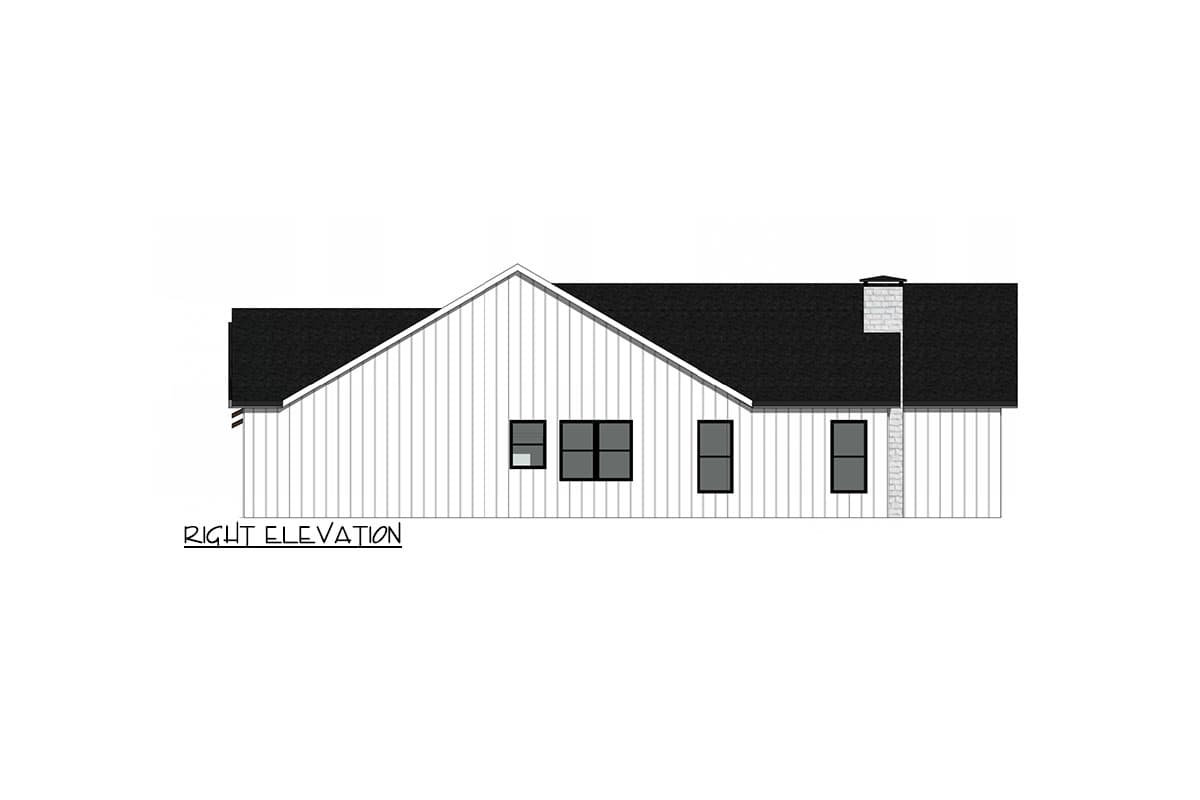

  • Exterior Elevations - Views of the front, rear, and sides of home detailing exterior finish work.
  • Building Cross Section - View that depicts a vertical slice through the building.
  • Details and notes - Dissected drawings of foundation/footings, typical wall section, floor framing, door framing, window framing, roof framing, roof venting, insulation information etc.
View Sample Plan
What's Not Included
  • Architectural or Engineering Stamp
  • Mechanical Drawings (Drawings for HVAC duct sizes/locations) Typically provided by your HVAC subcontractor
  • Plumbing Drawings (Drawings for plumbing pipe sizes/locations) Typically provided by your Plumbing Subcontractor
  • Energy Calculations (Property specific energy efficiency calculations) Typically provided by local Energy Consultant
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

2,300 sq. ft.

1st Floor

2,300 sq. ft.

Porch, Front

42 sq. ft.

Porch, Rear

226 sq. ft.

Porch, Combined

268 sq. ft.

Beds/Baths

Bedrooms

3 or 4

Full bathrooms

3

Half bathrooms

1

Foundation Type

Standard Foundations

Monolithic Slab, Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

60' 6"

Depth

62' 0"

Max Ridge Height

20' 11"

Garage

Type

Attached

Area

504 sq. ft.

Count

2 Cars

Entry Location

Side

Ceiling Heights

First Floor

10'

Room

Ceiling Type

Height

Great Room

Vaulted

12' 6''

Bedroom 1

Tray

11' 0''

Roof Details

Primary Pitch

7 on 12

Secondary Pitch

10 on 12

Framing Type

Stick And Truss

Architectural Style

Contemporary

Hill Country

Modern Farmhouse

New American

Ranch

Special Features

Bedrooms - Clustered

Butler Walk-in Pantry

Flex Room

Home Office

Laundry - Main Level

Master Suite - 1st Floor

Two Story Great Room

Plan Collections

Exclusive

Home Office

Square Footage Breakdown

Total Heated Area

2,300 sq. ft.

1st Floor

2,300 sq. ft.

Porch, Front

42 sq. ft.

Porch, Rear

226 sq. ft.

Porch, Combined

268 sq. ft.

Beds/Baths

Bedrooms

3 or 4

Full bathrooms

3

Half bathrooms

1

Foundation Type

Standard Foundations

Monolithic Slab, Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

60' 6"

Depth

62' 0"

Max Ridge Height

20' 11"

Garage

Type

Attached

Area

504 sq. ft.

Count

2 Cars

Entry Location

Side

Ceiling Heights

First Floor

10'

Room

Ceiling Type

Height

Great Room

Vaulted

12' 6''

Bedroom 1

Tray

11' 0''

Roof Details

Primary Pitch

7 on 12

Secondary Pitch

10 on 12

Framing Type

Stick And Truss

Architectural Style

Contemporary

Hill Country

Modern Farmhouse

New American

Ranch

Special Features

Bedrooms - Clustered

Butler Walk-in Pantry

Flex Room

Home Office

Laundry - Main Level

Master Suite - 1st Floor

Two Story Great Room

Plan Collections

Exclusive

Home Office
