Name: Plan 12973KN: Expanded Rustic Retreat with Covered Patio and Lower Level Bunk Room
SKU: 12973KN
Price: 1338.75 USD
Availability: InStock

Plan 12973KN

Expanded Rustic Retreat with Covered Patio and Lower Level Bunk Room

Heated S.F.

1,755

Beds

3 - 4

Baths

Stories

Floor Plan

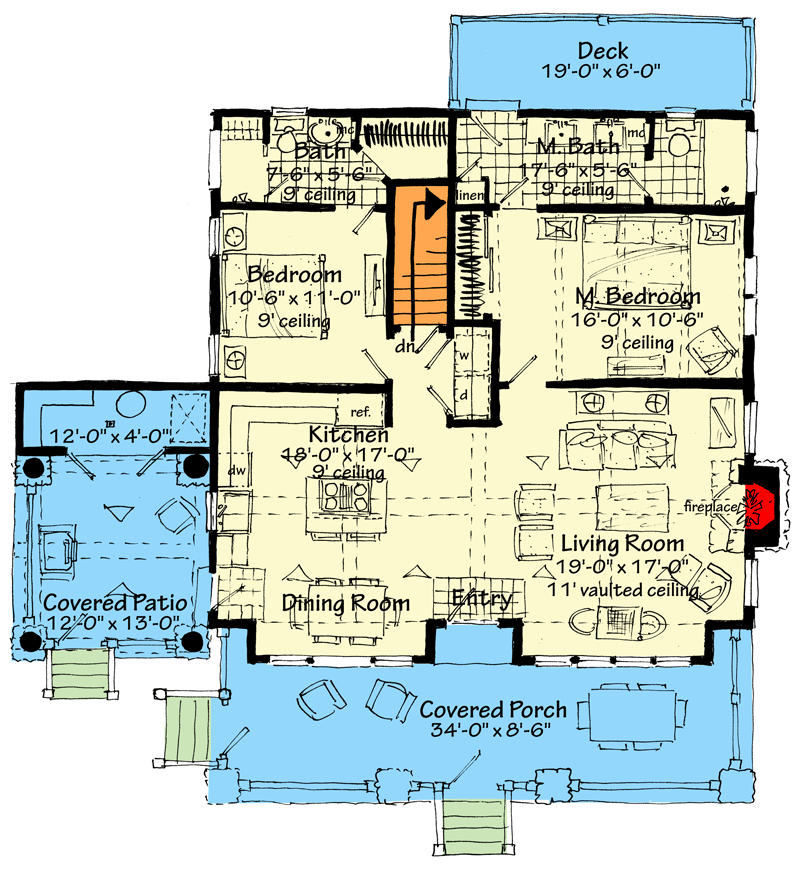

Main Level

Lower Level

Plan Details

This rustic house plan is an expanded version of house plan 12964KN and gives you 3 beds plus a bunk room, 3 baths and 1,755 square feet of heated living space spread across the main floor and the finished lower level.
On the left, a vaulted covered patio (with storage space) extends your living to the outdoors (as do decks on the back of both floors and the front covered porch).
The home is vaulted with the vault centered on the fireplace in the living room.
Two bedrooms line the back of the home, each with its own bath. The master bedroom has private access to 6'-deep covered deck.

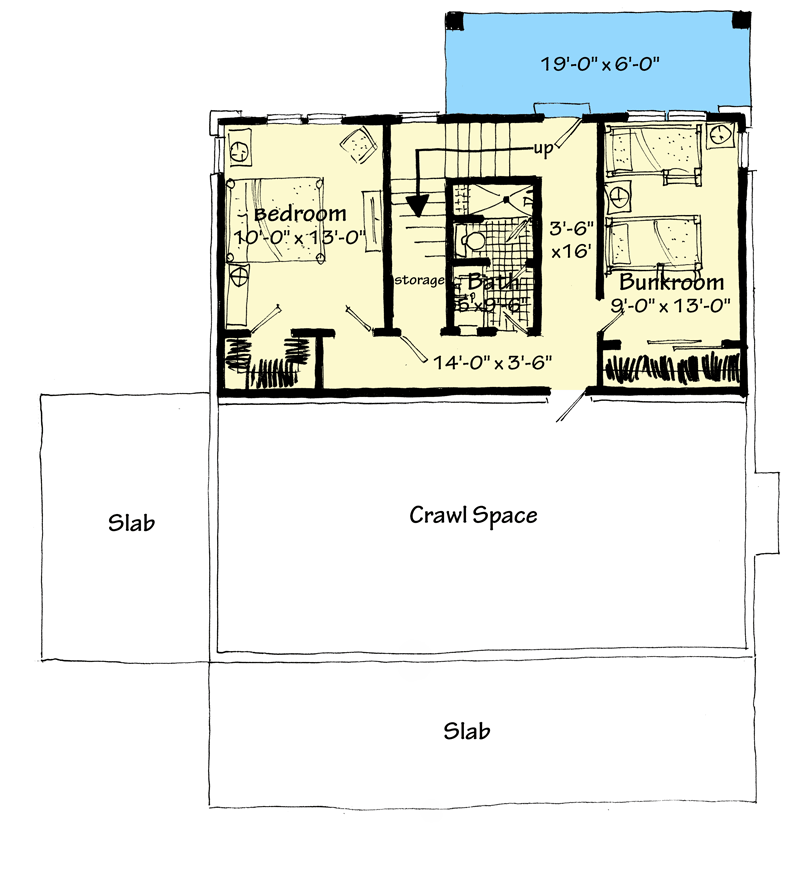

Downstairs, a third bedroom and a bunkroom share a central bath. There's storage as well as outdoor access.
Related Plans: Get smaller versions without the lower level with house plans 12964KN and 11529KN.

What's Included

Floor plans at ¼" scale

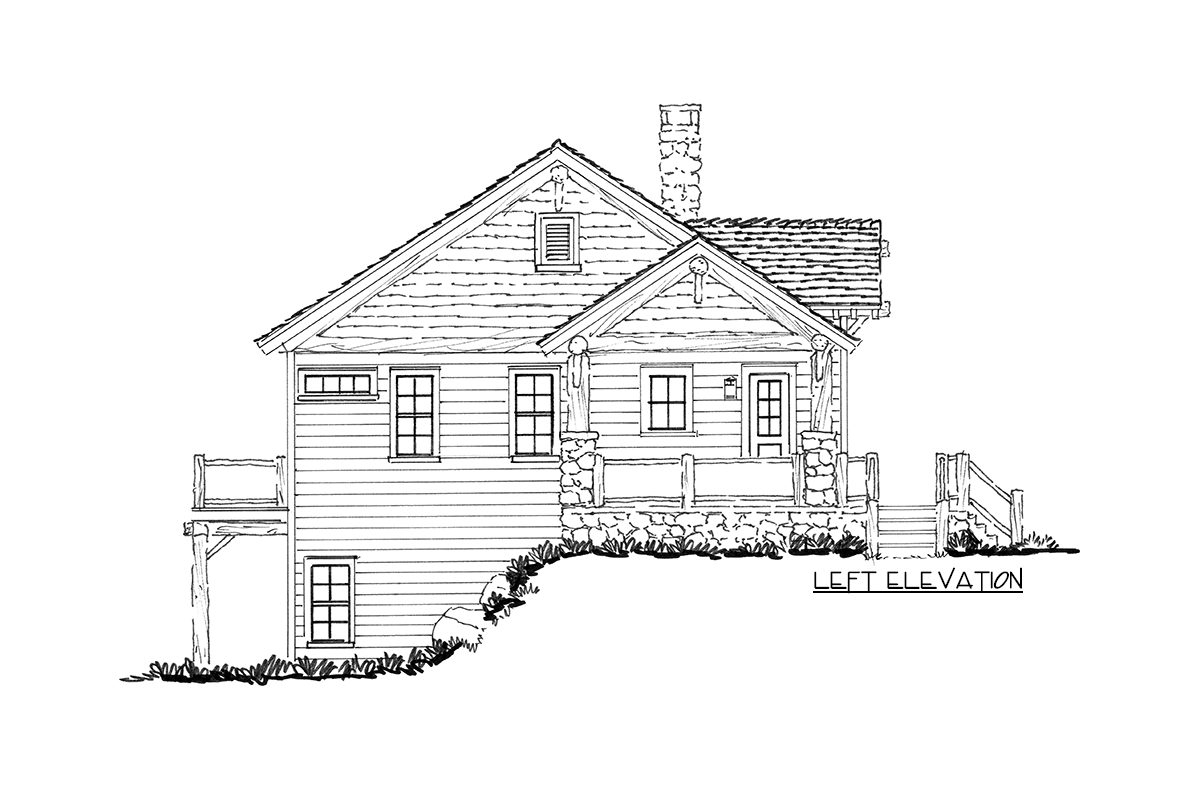

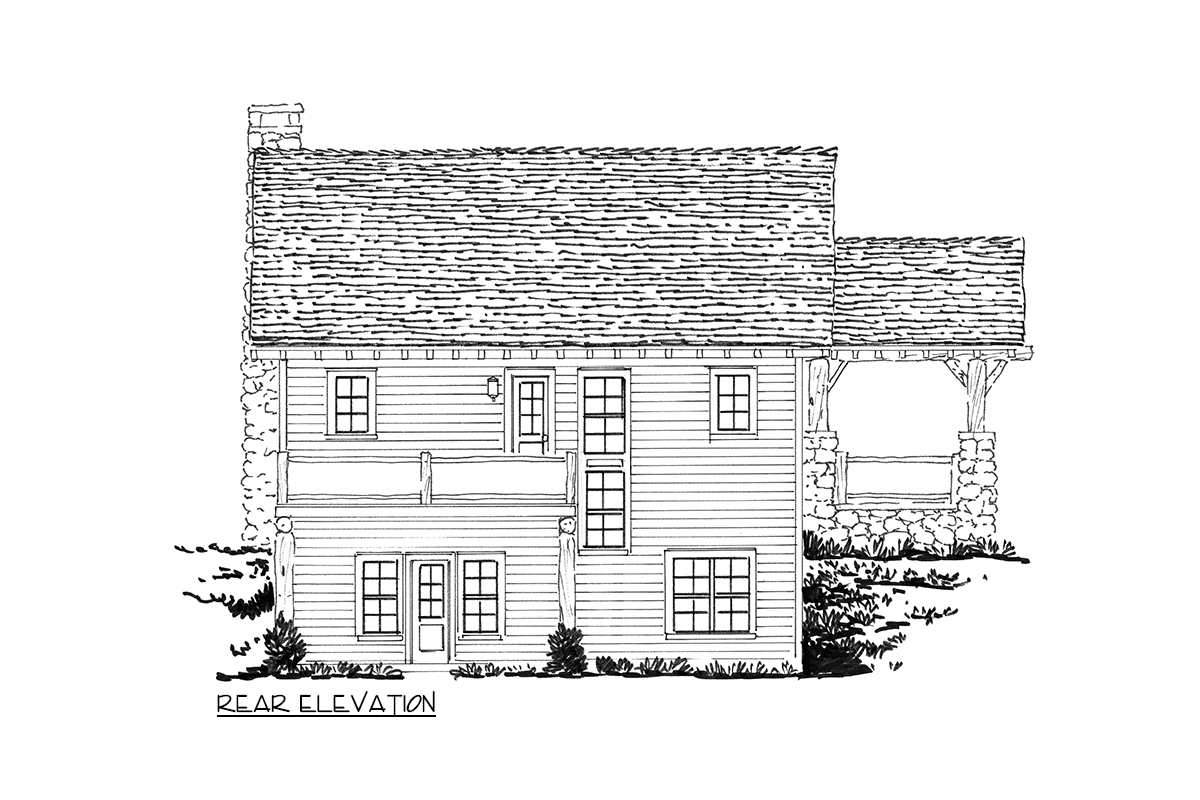

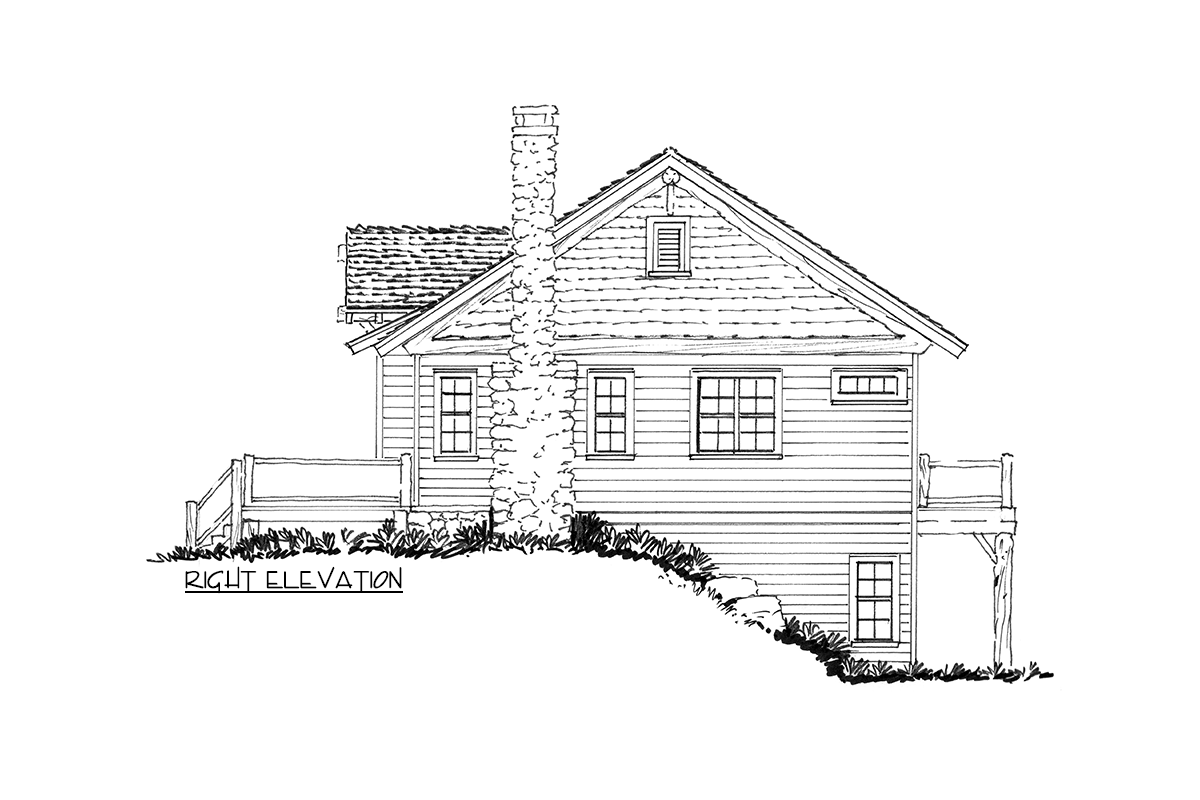

All exterior elevations at ¼" scale
Roof plan at ¼" scale
Building sections at ¼" scale
Completed foundation plan at ¼" scale
Completed floor/roof framing plan at ¼" scale
Building height profiles at ¼" scale
Door and window schedules
General construction notes and building schedules
Exterior finish schedule
Architectural details
Construction details for cabinets, interior built-ins and stairs
Designations for all floor, wall and ceiling surfaces
Details and specifications for all ceiling treatments
All square footage calculations

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required
