Plan 70540MK
Eye-Catching Craftsman House Plan
Heated S.F.
2,410
Beds
3 - 4
Baths
3.5 - 4.5
Stories
1-2
Cars
3
Floor Plan

Plan 70540MK

Main Level
slide image 0
Bonus
slide image 1
Basement Stairs Location
slide image 2

Plan 70540MK

1-800-854-7852

1-262-521-4596

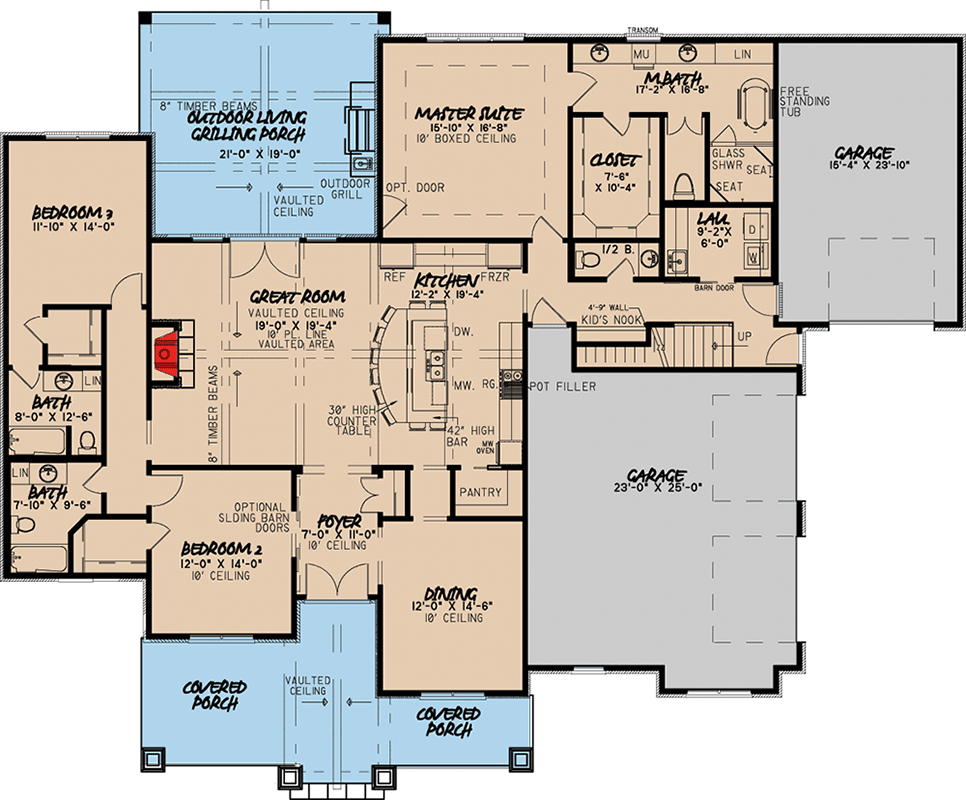

Main Level
floor plan image Main Level

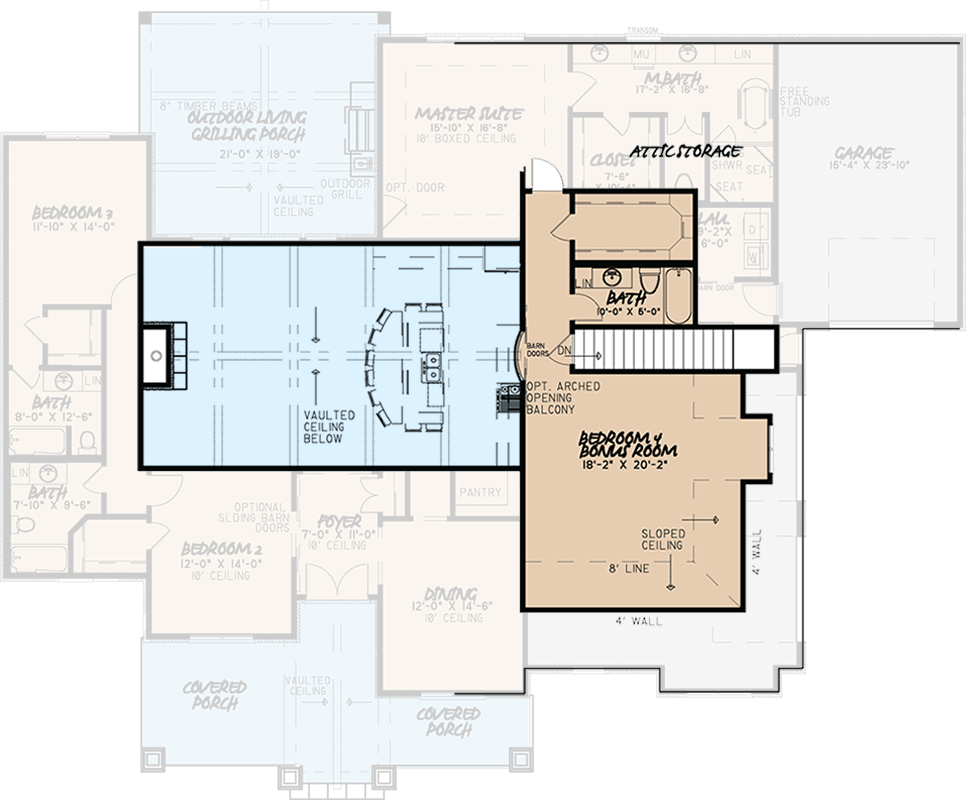

Bonus
floor plan image Bonus

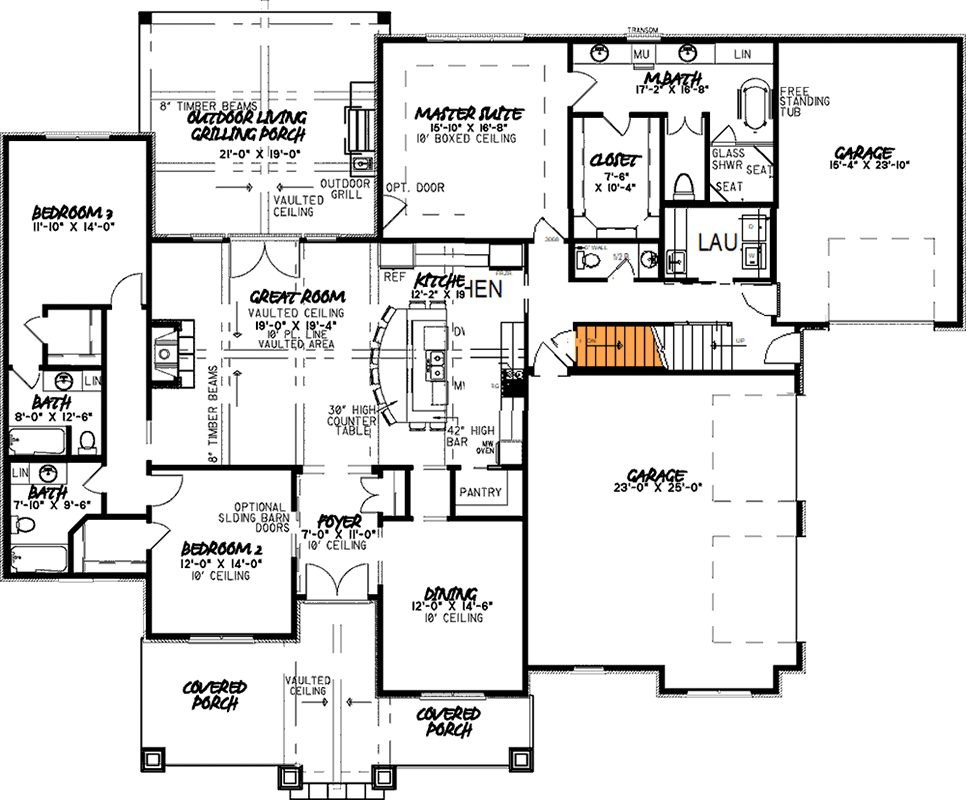

Basement Stairs Location
floor plan image Basement Stairs Location
Plan Details

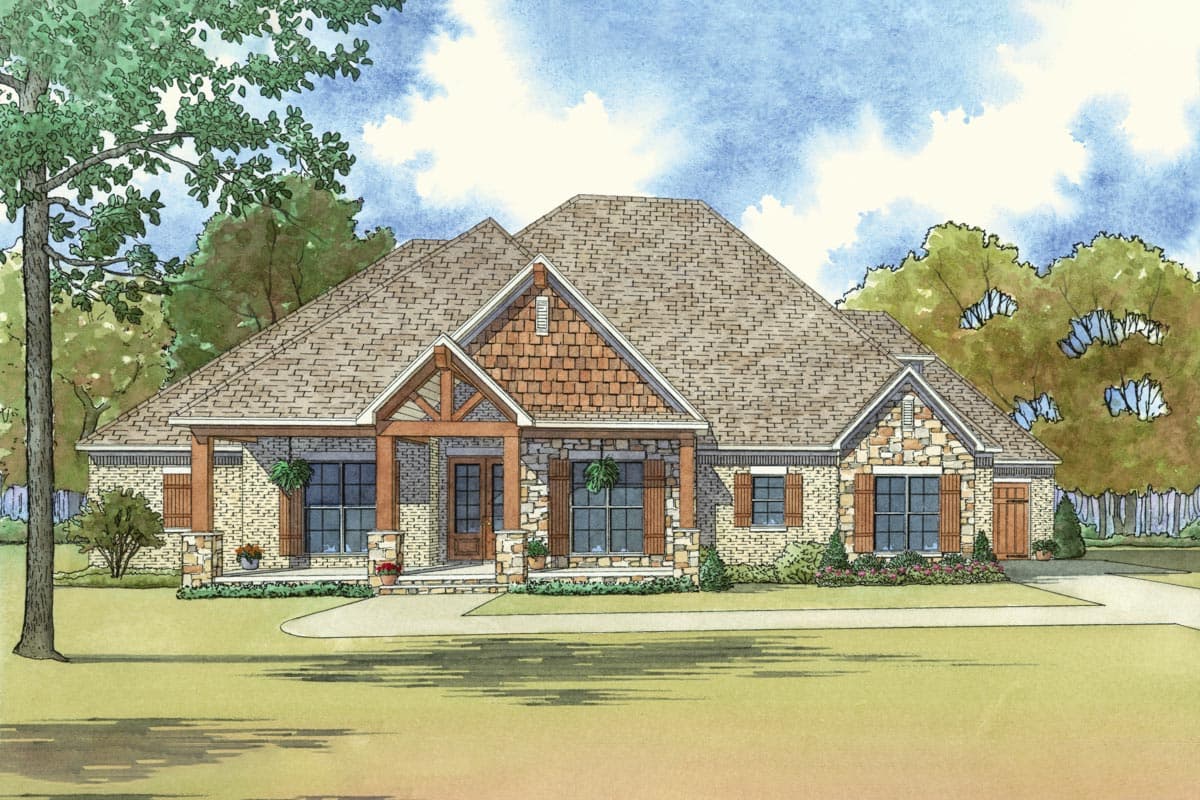

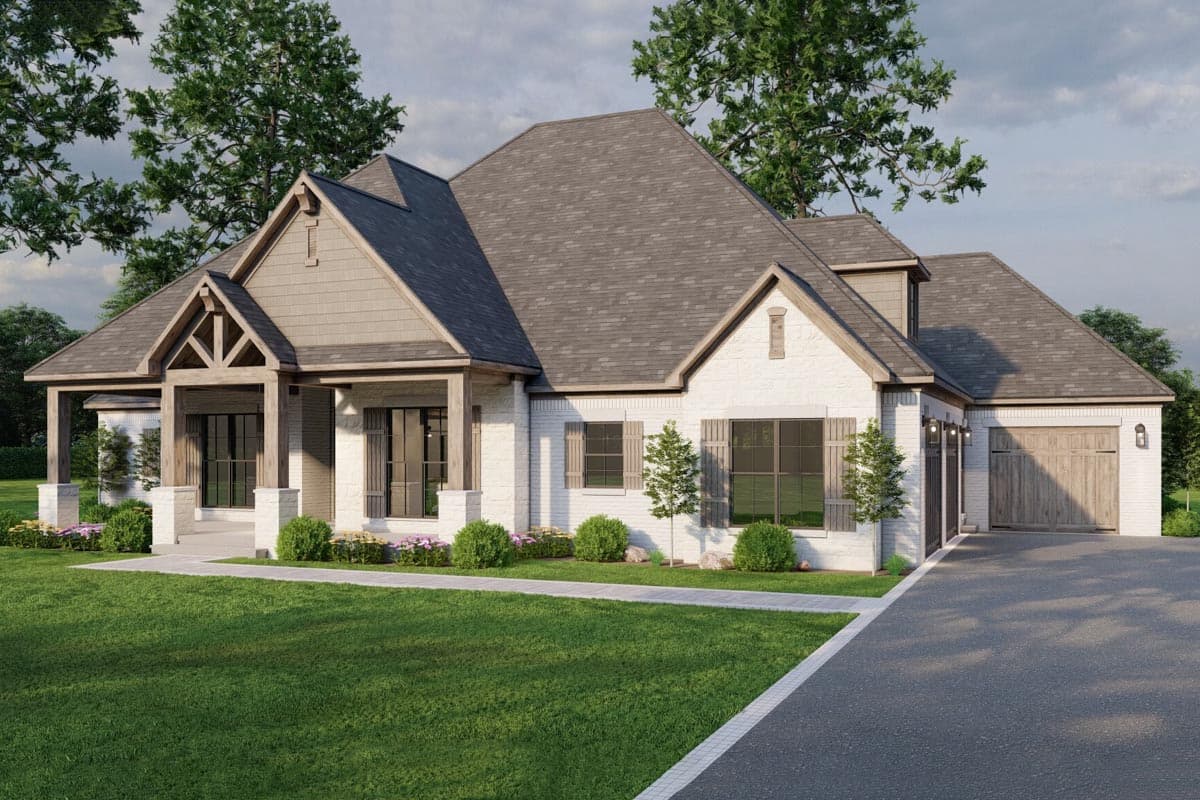

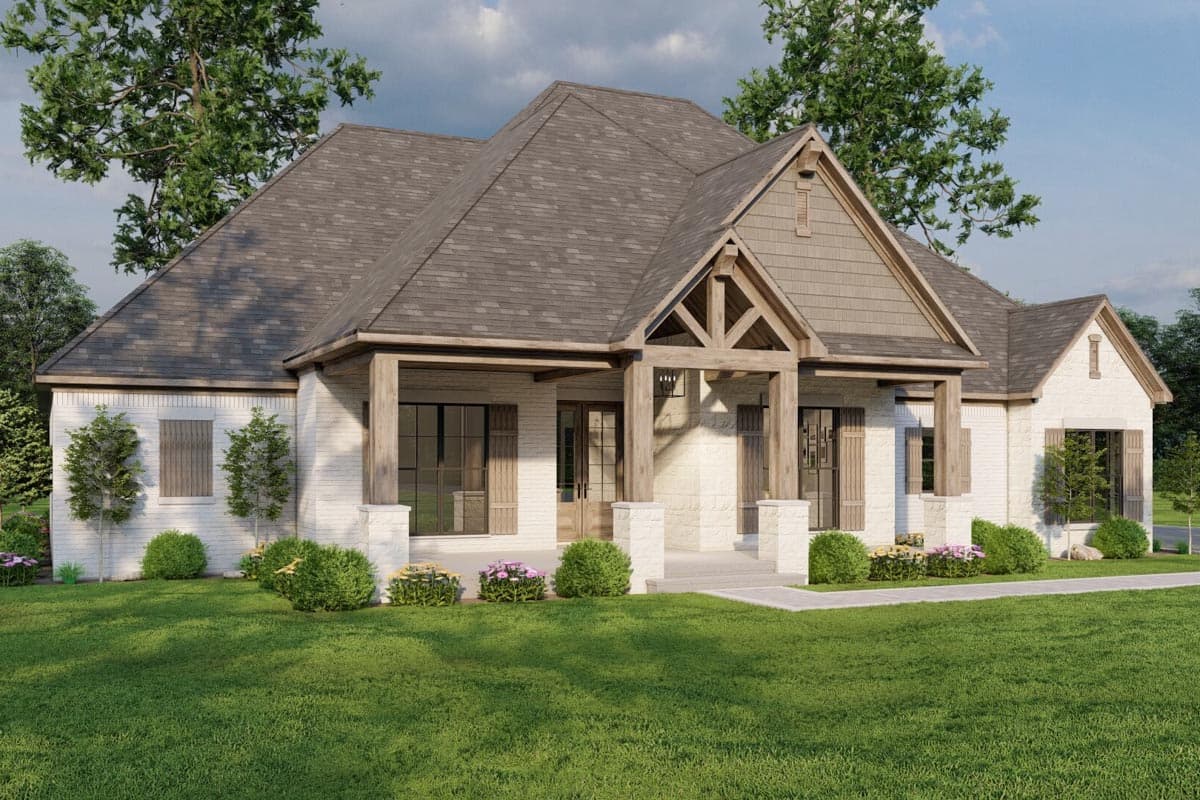

  • A beautiful blend of brick, stone and shake siding is complemented by stone based columns and wood shutters in this stunning house plan.

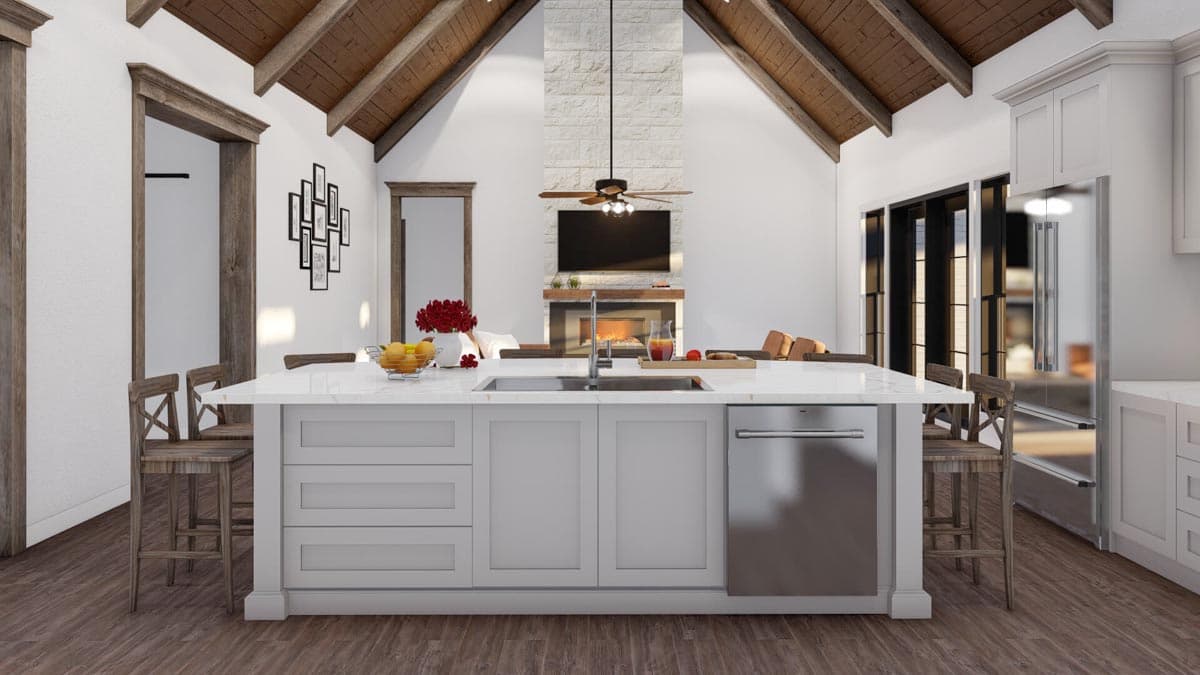

  • The open floor plan is perfect for family gatherings, letting everyone enjoy time together, and during fair weather take the party outside to the outdoor living space.
  • The split bedroom designs allows privacy to the master suite and peace and quiet in the mornings while the kids are getting ready for school.
  • The upstairs bonus room is the perfect place for a media room or extra bedroom giving you plenty of space.
  • Related Plans: Get alternate versions with house plans 60631ND, 70528MK and 70530MK.
What's Included
  • Foundation Plan (1/4″ or 1/2″ = 1′)
  • Floor Plans (1/4″= 1′)
  • Set of Elevations (1/4″= 1′)
  • Miscellaneous Details (3/4″ = 1′)
  • Roof Overview Plan (1/4"=1")
  • An electrical diagram showing a Birdseye view of rooms with lights, fans to switches
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

2,410 sq. ft.

1st Floor

2,410 sq. ft.

Bonus

599 sq. ft.

Porch, Front

308 sq. ft.

Porch, Rear

399 sq. ft.

Beds/Baths

Bedrooms

3 or 4

Full bathrooms

3 or 4

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

81' 6"

Depth

65' 5"

Max Ridge Height

32' 0"

Garage

Type

Attached

Area

1009 sq. ft.

Count

3 Cars

Entry Location

Front, Side

Ceiling Heights

First Floor

9'

Second Floor

8'

Room

Ceiling Type

Height

Great Room

Vaulted

0' 0''

Kitchen

Vaulted

0' 0''

Dining Room

Flat

10' 0''

Master Bedroom

Boxed

9' 0''

Bedroom 2

Flat

10' 0''

Roof Details

Primary Pitch

12 on 12

Framing Type

Stick

Architectural Style

Craftsman

Northwest

Special Features

Bedrooms - Split

Bonus Room

Butler Walk-in Pantry

Formal Dining

Laundry - Main Level

Master Suite - 1st Floor

Media Room

Two Story Great Room
