Plan 910004WHD

Exclusive

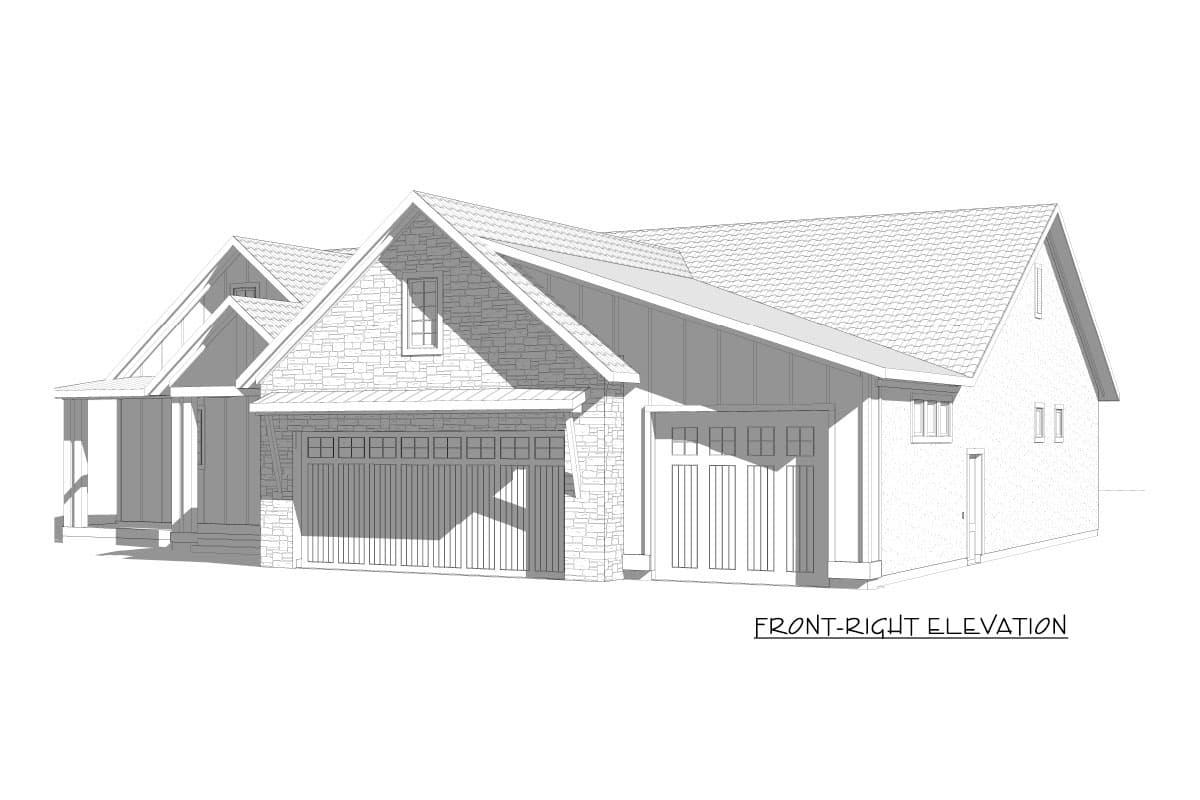

Eye-catching New American House Plan with Bonus Room above Garage
Heated S.F.
2,135
Beds
2 - 5
Baths
2.5 - 4.5
Stories
1
Cars
3
Floor Plan

Plan 910004WHD

Main Level
slide image 0
Bonus
slide image 1
Optional Finished Lower Level
slide image 2

Plan 910004WHD

1-800-854-7852

1-262-521-4596

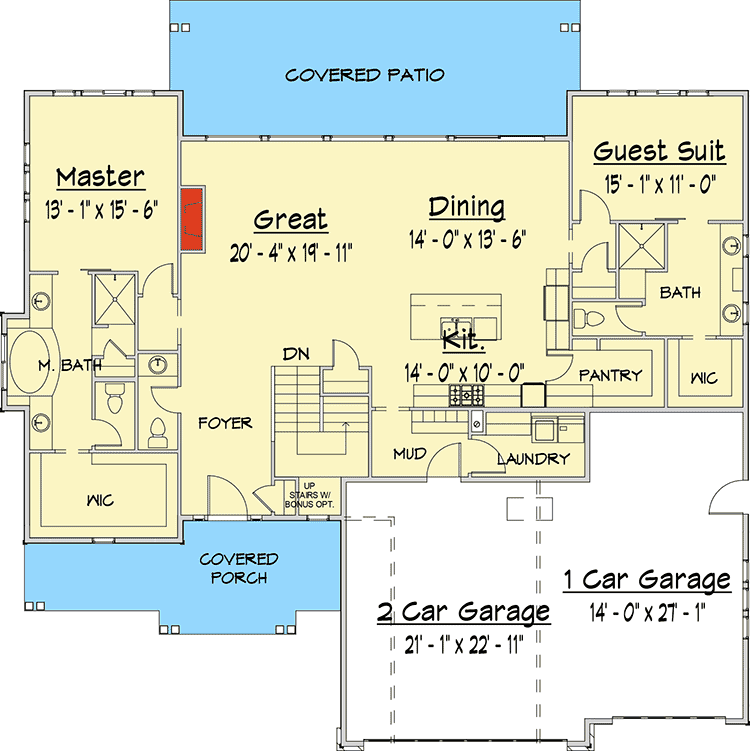

Main Level
floor plan image Main Level

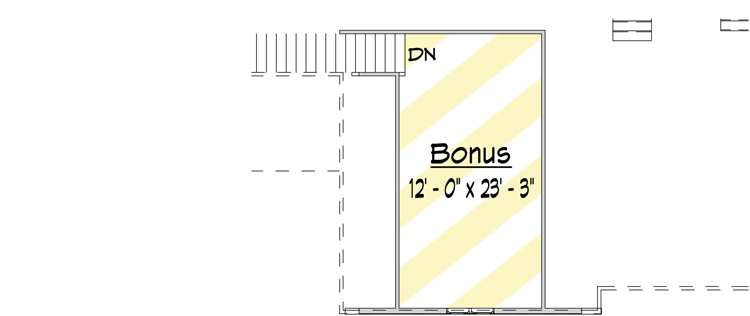

Bonus
floor plan image Bonus
Optional Finished Lower Level
floor plan image Optional Finished Lower Level
Plan Details
  • Craftsman detailing adorns the exterior of this New American house plan, exclusive to Architectural Designs, and features a thoughtful interior, complete with a bonus room above the 3-car garage.
  • The combined great room, dining area, and kitchen boasts a wall of windows, which allows natural light to flood the interior and provides rearward views. A large, prep island anchors the living space.
  • The master bedroom is privately situated on the left side of the home, and includes a lavish en suite with dual vanities, a walk-in shower, and commode room. A guest suite on the opposite side provides a 4-fixture bath behind a barn door.

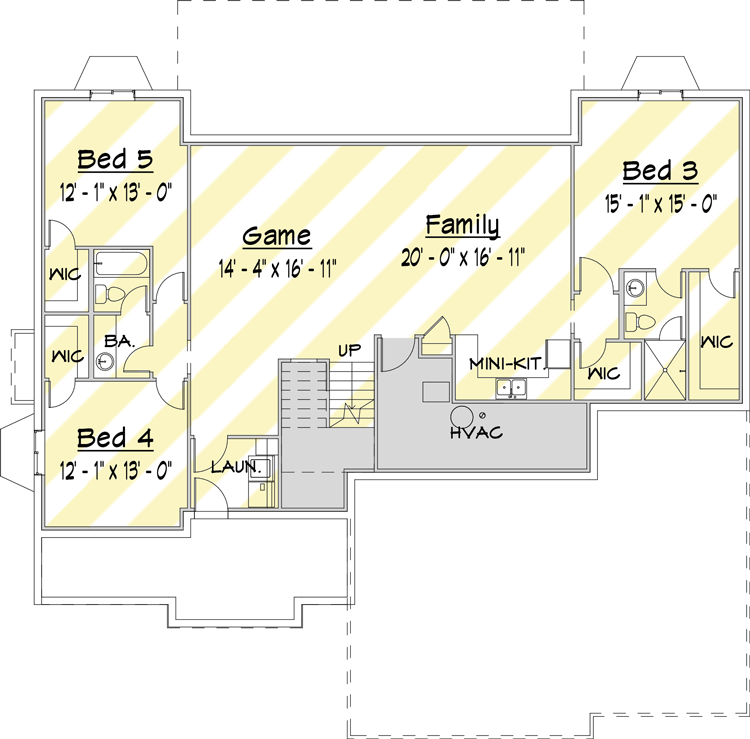

  • Finish the lower level as designed and gain three bedrooms, a sprawling recreation room with a mini-kitchen, and a second laundry room.
  • The 3-car garage opens into a mudroom with built-in lockers, and neighbors the laundry room.
What's Included
  • General notes
  • Detailed floor plans
  • Elevations
  • Roof plan
  • Cross section
  • Electrical plan
  • Window and door schedules
  • Architectural details
  • Structural notes
  • Foundation plan
  • Floor framing
  • Roof framing
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

2,135 sq. ft.

1st Floor

2,135 sq. ft.

Optional Lower Level

1,992 sq. ft.

Bonus

300 sq. ft.

Porch, Front

219 sq. ft.

Porch, Rear

424 sq. ft.

Beds/Baths

Bedrooms

2, 3, 4, or 5

Full bathrooms

2, 3, or 4

Half bathrooms

1

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

66' 0"

Depth

64' 0"

Max Ridge Height

23' 5"

Garage

Type

Attached

Area

898 sq. ft.

Count

3 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Basement

9' 0''

Roof Details

Primary Pitch

7 on 12

Secondary Pitch

10 on 12

Framing Type

Stick And Truss

Architectural Style

Craftsman

New American

Special Features

Bedrooms - Split

Bonus Room

Butler Walk-in Pantry

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Plan Collections

Exclusive

Photo Gallery

Square Footage Breakdown

Total Heated Area

2,135 sq. ft.

1st Floor

2,135 sq. ft.

Optional Lower Level

1,992 sq. ft.

Bonus

300 sq. ft.

Porch, Front

219 sq. ft.

Porch, Rear

424 sq. ft.

Beds/Baths

Bedrooms

2, 3, 4, or 5

Full bathrooms

2, 3, or 4

Half bathrooms

1

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

66' 0"

Depth

64' 0"

Max Ridge Height

23' 5"

Garage

Type

Attached

Area

898 sq. ft.

Count

3 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Basement

9' 0''

Roof Details

Primary Pitch

7 on 12

Secondary Pitch

10 on 12

Framing Type

Stick And Truss

Architectural Style

Craftsman

New American

Special Features

Bedrooms - Split

Bonus Room

Butler Walk-in Pantry

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Plan Collections

Exclusive

Photo Gallery
