Plan 80852PM
Eye-Catching Northwest House Plan
Heated S.F.
3,095
Beds
3
Baths
2.5+
Stories
2
Cars
2
Floor Plan

Plan 80852PM

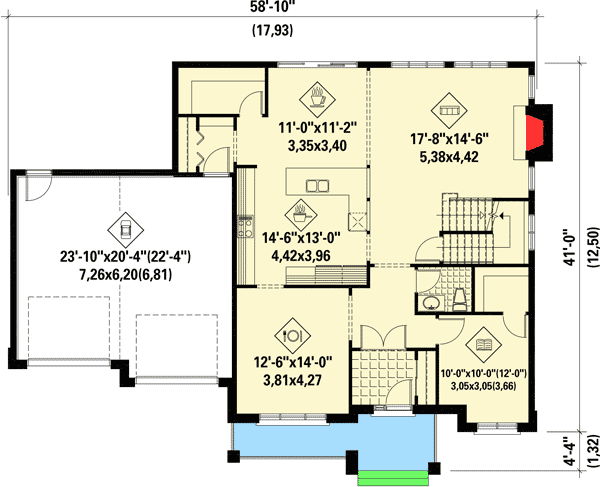

Main Level
slide image 0

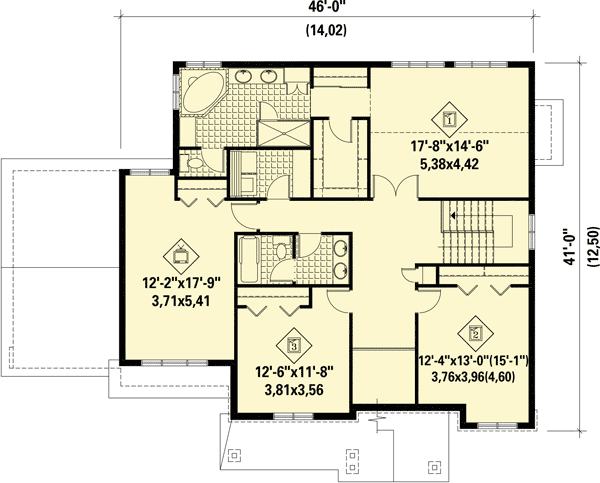

2nd Floor
slide image 1

Plan 80852PM

1-800-854-7852

1-262-521-4596

Main Level
floor plan image Main Level
2nd Floor
floor plan image 2nd Floor
Plan Details
  • The irregular roof line and interesting mix of exterior materials combine to give you an eye-catching Northwest house plan.
  • An air lock entry foyer keeps the cold air out and has a big coat closet right at your fingertips.
  • Step into the interior foyer that is flanked by the formal dining room and a study.
  • The open layout in back offers wonderful sightlines from room to room.
  • Note the huge walk-in pantry, fireplace and sliding glass doors to your backyard.
  • On the second floor, the large master suite gets a vaulted ceiling and two closets - one linear and one walk-in.
  • Throw a load of laundry in on your way to the media room that has a storage closet for games and toys.



What's Included
Please note this plan is designed to the National Building Code of Canada.
  • Exterior Elevations – Four detailed exterior elevations views showing the final appearance of each side of the house.
  • Foundation Plans – Different isometric views with dimensions as well as relevant information to build the foundation.
  • Floor Plans – A drawing of each floor of the house. They are fully dimensioned showing the size of rooms and the location and size of windows, doors and staircases.
  • Cross-Section View – Vertical section of the house showing the structure, insulation, typical wall configuration as well as other details
  • The plans include the 4 elevations views, foundation plans, floor plans, cross section, staircase section, materials specifications and various construction details which aid in the house's construction.
  • The plan views, cross sections and front elevations are drawn to the scale of 1/4" = 1'-0"; the side and rear elevations are 1/8" = 1'-0" and some details are 1/2" = 1'-0".
  • Lintel, beam, post, footing sizes, etc. are calculated (may require local architect/ engineer stamp) and the plans are available in metric.

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

3,095 sq. ft.

1st Floor

1,424 sq. ft.

2nd Floor

1,671 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1 or 2

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

58' 0"

Depth

41' 0"

Max Ridge Height

34' 11"

Garage

Type

Attached

Area

560 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

8 on 12

Secondary Pitch

12 on 12

Framing Type

Truss

Architectural Style

Craftsman

Northwest

Special Features

Butler Walk-in Pantry

Formal Dining

Library/Study

Master Suite - 2nd Floor

Media Room

Plan Collections

Canadian House Plans

Metric
