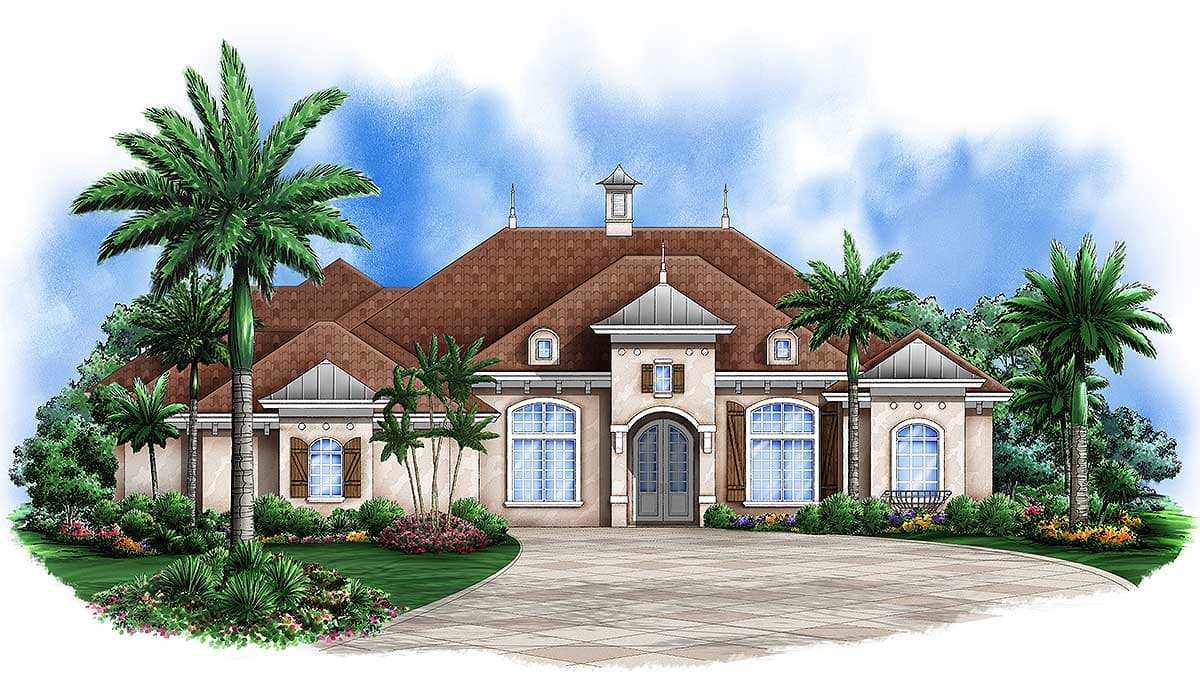

Plan 65600BS
Fabulous Mediterranean Home Plan
Heated S.F.
3,638
Beds
3
Baths
3.5
Stories
1
Cars
2
Floor Plan

Plan 65600BS

Main Level
slide image 0

Plan 65600BS

1-800-854-7852

1-262-521-4596

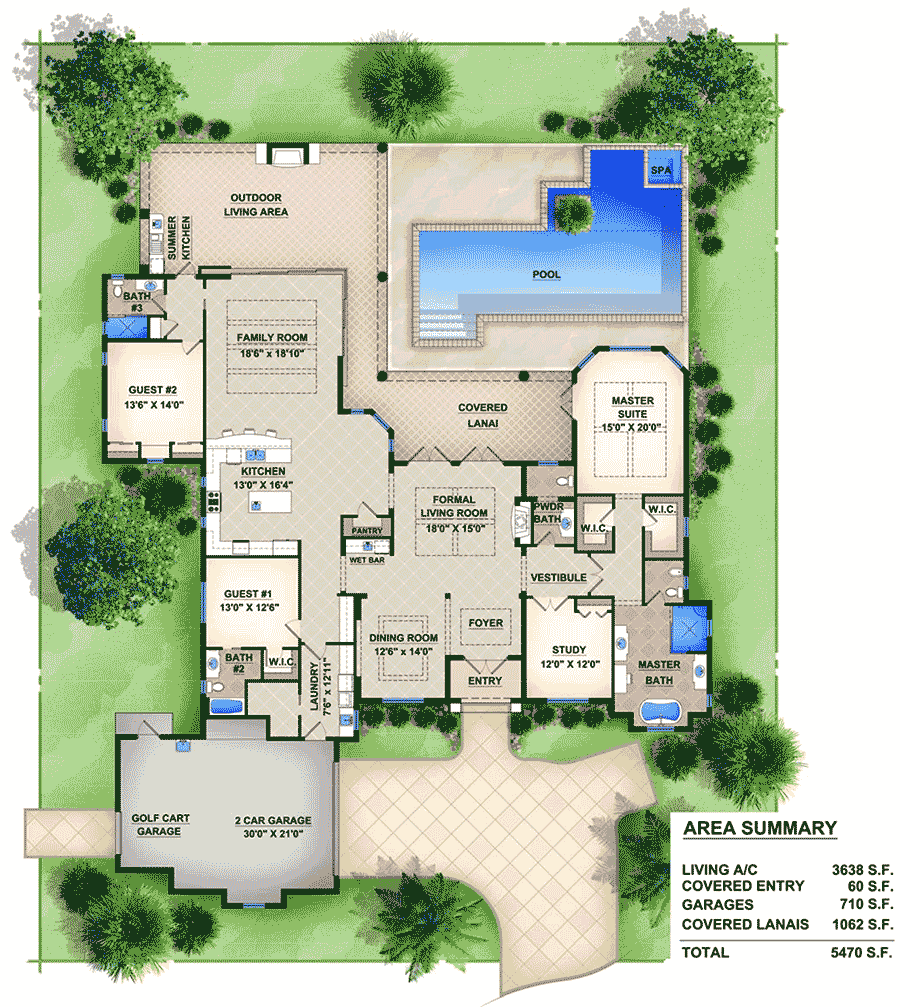

Main Level
floor plan image Main Level
Plan Details
  • Artfully done with an over-sized shutter in front, this fabulous Mediterranean home plan has a well-laid out floor plan.
  • Amenities such as special ceiling treatments and a large wet bar make this an impressive home.
  • The open floor plan encourages easy movement from room to room and either double doors or sliding glass doors lead to the spacious covered lanai in the rear.
  • A bay window in the deluxe master suite carves out a cozy sitting area.
  • The master bath is huge and luxurious with both an enormous walk-in shower and a soaking tub.
  • The kitchen has tons of counter space and an eating bar where friends can sit and chat while you are cooking.
  • Golf cart storage in the two car garage is built right in.
  • BUILDING RESTRICTION: Restrictions may apply if building in Lee and Collier Counties, Florida as well as Sarasota, Florida. Please contact us with your site address to confirm.

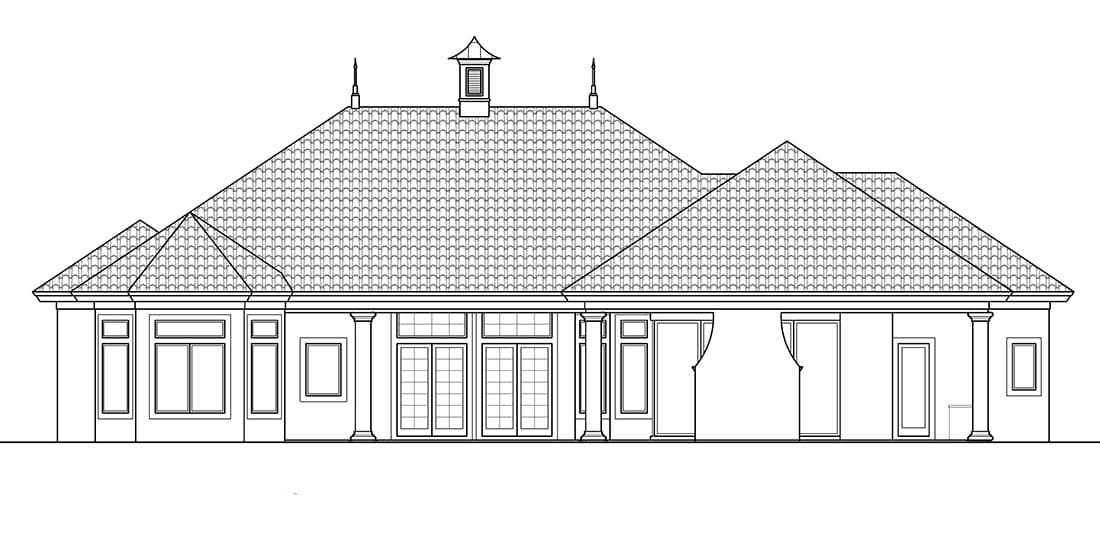

What's Included
Elevations: - Drawn at 1/8″ to 1/4″ = 1’0″ Scale and Includes:
  • Material Labels
  • Floor-To-Floor Heights
  • Roof Slope Indicators

Floor Plans: - Drawn at 1/8″ to 1/4″ = 1’0″ Scale and Includes:
  • Door and Window Sizes
  • Completely Dimensioned Floor Plan
  • Room Labels and Interior Room Sizes

Electrical Layouts:
  • Building Section Markers
  • All Electrical Outlets, Fixtures and Switching

Foundation or Slab Plan: - Drawn at 1/8″ to 1/4″ = 1’0″ Scale and Includes:
  • Floor and Deck Joist Sizes, Spacing and Direction
  • Electrical Locations

Roof Design Plan: - Drawn to 1/8″ to 1/4″ = 1’0″ Scale and Includes:
  • All Beam and Header Heights and Locations
  • All Hips, Gables, Ridges and Valley
  • Building Section Markers

Building Sections: - Drawn to 1/8″ to 1/4″ = 1’0″ Scale and Includes:
  • Floor-To-Floor Heights
  • Non-Typical Plate Heights Indicated

Typical Wall Sections: - Drawn at 1/8″ to 1/2″ = 1’0″ Scale and Includes:
  • All Labels Indicating Wall Construction
  • Foundation Wall Thickness
  • Insulation Type and Thickness

Miscellaneous Notes and Details:
  • Miscellaneous General Notes
  • Stairway Details (if applicable)
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
IMPORTANT NOTE: Structural drawings, as well as heating and plumbing details, will not be included in your plan sets due to a variety of factors which include local codes, installation methods, personal preference, etc. Your building professional (contractor/builder/supplier) can, without difficulty, supply these details and specifications on your behalf.
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

3,638 sq. ft.

1st Floor

3,638 sq. ft.

Entry

60 sq. ft.

Covered Patio

1,062 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

3

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

Block / CMU (main floor)

Optional Type(s)

2x6

Dimensions

Width

85' 5"

Depth

107' 3"

Max Ridge Height

28' 5"

Garage

Type

Attached

Area

1420 sq. ft.

Count

2 Cars

Entry Location

Courtyard

Ceiling Heights

First Floor

12'

Roof Details

Primary Pitch

8 on 12

Framing Type

Truss

Architectural Style

European

Plan Collections

Square Footage Breakdown

Total Heated Area

3,638 sq. ft.

1st Floor

3,638 sq. ft.

Entry

60 sq. ft.

Covered Patio

1,062 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

3

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

Block / CMU (main floor)

Optional Type(s)

2x6

Dimensions

Width

85' 5"

Depth

107' 3"

Max Ridge Height

28' 5"

Garage

Type

Attached

Area

1420 sq. ft.

Count

2 Cars

Entry Location

Courtyard

Ceiling Heights

First Floor

12'

Roof Details

Primary Pitch

8 on 12

Framing Type

Truss

Architectural Style

Plan Collections
