Plan 42302DB
Family Home with Open Layout
Heated S.F.
2,326
Beds
3 - 4
Baths
2.5
Stories
2
Cars
3
Floor Plan

Plan 42302DB

Main Level
slide image 0
2nd Floor
slide image 1

Plan 42302DB

1-800-854-7852

1-262-521-4596

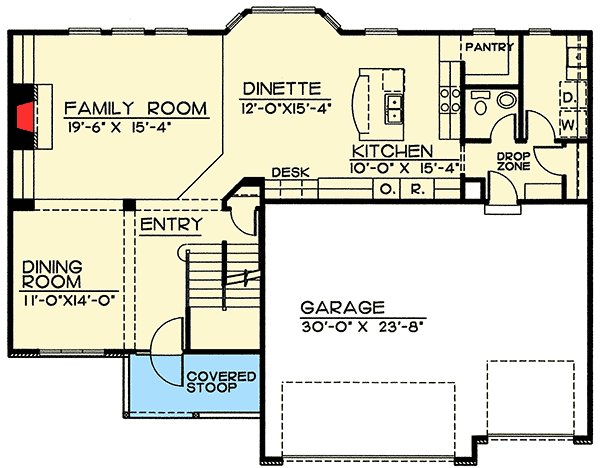

Main Level
floor plan image Main Level

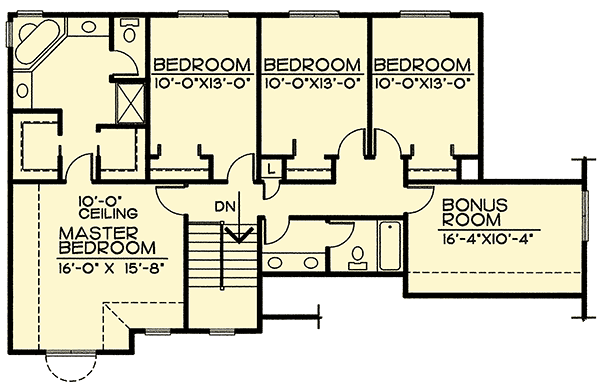

2nd Floor
floor plan image 2nd Floor
Plan Details
  • The open floor plan of this lovely Traditional house plan makes it especially appealing to families.
  • An interior column preserves the sightlines from the dining room right into the family room where you have a big fireplace flanked by built-ins.
  • The kitchen benefits from a walk-in pantry and a big work island positioned so you can see through the dinette into the family room.
  • Four bedrooms are up on the second floor along with a bonus room over the garage.

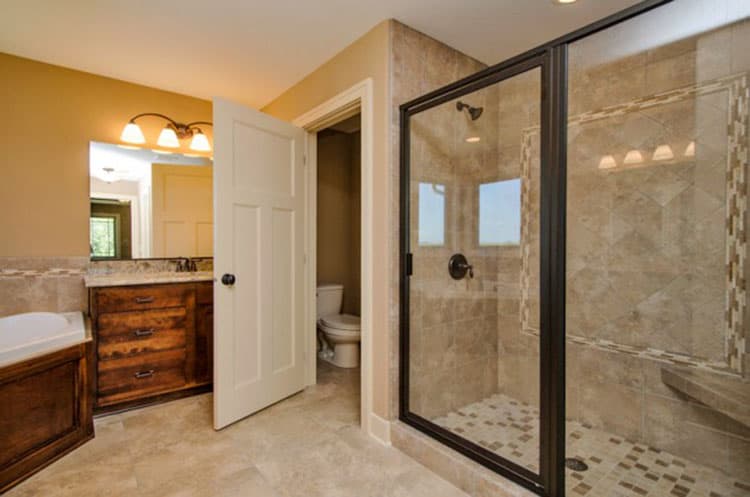

  • A spacious master suite includes two walk-in closets and a big bathroom.
What's Included
  • General Notes
  • Front, Rear, Left, Right Elevations
  • Roof Plan - Birds Eye View
  • Foundation plan, Wall Section, Stair Section
  • Main Level Floor Plan
  • Second Level Floor Plan (if applicable)
  • Electrical Plan (showing fixtures, switches, outlets)
  • *Some plans include cabinet elevations. Please contact us for more information.
View Sample Plan
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

2,326 sq. ft.

1st Floor

1,213 sq. ft.

2nd Floor

1,113 sq. ft.

Beds/Baths

Bedrooms

3 or 4

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

54' 0"

Depth

42' 0"

Max Ridge Height

28' 7"

Garage

Type

Attached

Area

708 sq. ft.

Count

3 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Second Floor

8'

Architectural Style

Northwest

Traditional

Special Features

Bonus Room

Butler Walk-in Pantry

Master Suite - 2nd Floor

Mudroom
