Name: Plan 6527RF: Farmhouse Plan with Wrap-Around Porch - 2198 Sq Ft
SKU: 6527RF
Price: 1200.0 USD
Availability: InStock

Plan 6527RF

Farmhouse Plan with Wrap-Around Porch - 2198 Sq Ft

Heated S.F.

2,198

Beds

3 - 4

Baths

2.5

Stories

Cars

Floor Plan

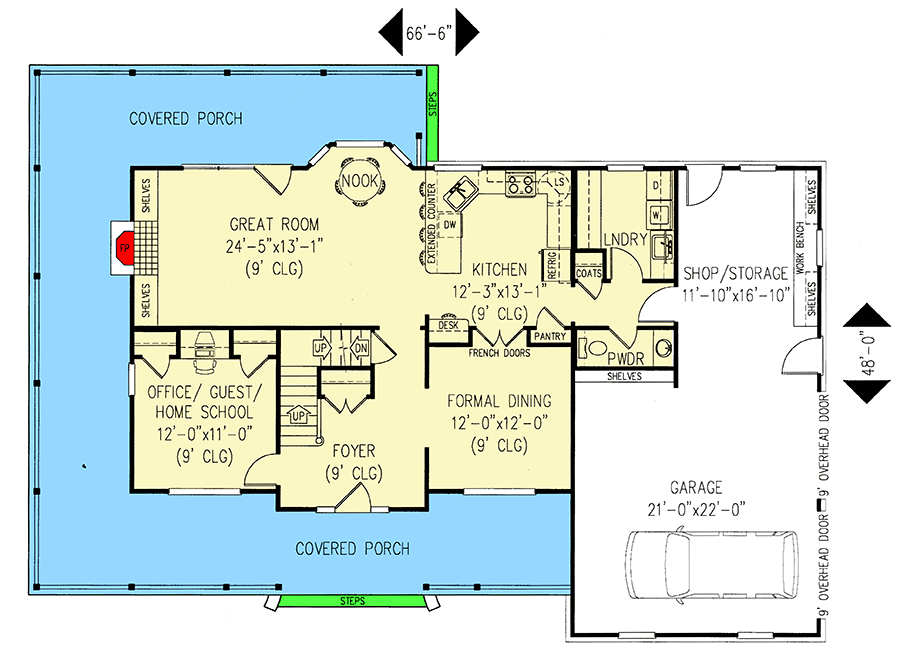

Main Level

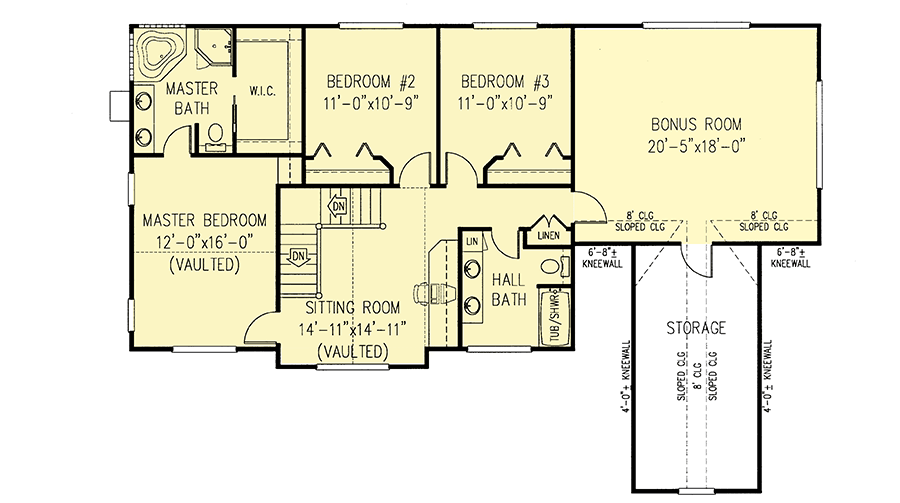

2nd Floor

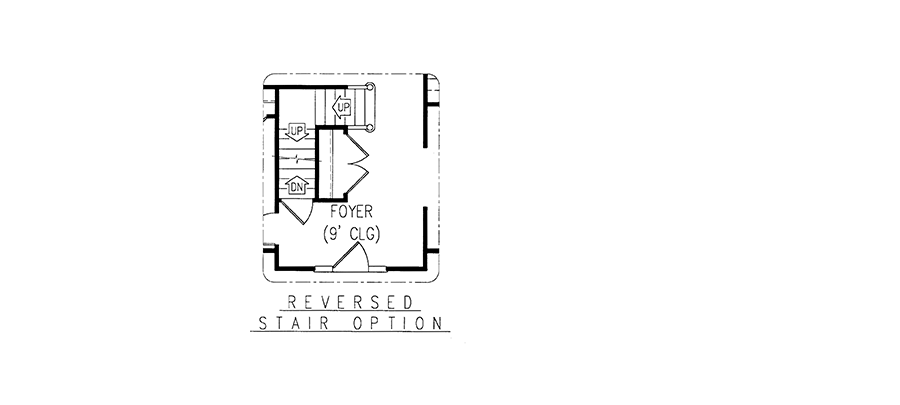

Optional

Plan Details

A nicely detailed covered porch wraps around three sides of this farmhouse design extending the living area to the outdoors. The two-car side-entry garage includes a roomy workshop and/or storage area with large bonus and storage rooms above.
The formal dining room is accessed either from the foyer or, through French doors, from the kitchen with its desk, pantry closet and peninsula snack bar. The bayed nook and the great room are open to the kitchen.
Complete with two closets and a computer center, the office to the left of the foyer could also be used as a guest or home-schooling room.
Upstairs, vaulted ceilings top the open sitting room and the master bedroom. A bonus room and storage over the garage add to the possibilities.

What's Included

1/4" Scale Foundation Plans. All foundation types included with sets of house plans.
1/4" Scale Floor Plans. Include Electrical Schematics (placement of outlets, fixtures, switches, etc.)
1/4" Scale Front Elevation. Sides and Rear Elevations at 1/8" Scale. Includes 1/8" Scale Roof Plan.
1/2" Scale Full Stair Section (if applicable).
1/2" Scale Fireplace Details and Sections (if applicable).
1/2" Scale Full Cabinet Elevations.
1/4" Scale Full Cross Sections.
1/2" Scale Full Foundation Sections.
Full Wall Section detailing all components.
No HVAC or Plumbing diagrams or schematics included. Your local HVAC and Plumbing subcontractor should be able to supply drawings if needed.

What's Not Included

Document

Architectural or Engineering Stamp
Site Plan
Mechanical Drawings (location of heating and air equipment and duct work)
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations)
Framing layouts with beam sizes and locations
Energy calculations
Materials list - MAY be available as a purchasable option under the "Options" tab
