Name: Plan 36677TX: Farmhouse-Style Ranch Home with Study and Split-Bed Layout - 2294 Sq Ft
SKU: 36677TX
Price: 1015.0 USD
Availability: InStock

Plan 36677TX

Farmhouse-Style Ranch Home with Study and Split-Bed Layout - 2294 Sq Ft

Heated S.F.

2,294

Beds

Baths

3.5

Stories

Cars

Floor Plan

Main Level

Plan Details

The timber-framed front porch catches your eye on the exterior of this Farmhouse-style Ranch home plan that delivers 2,294 square feet of living space.
The kitchen is open to the family room and dining area and hosts an island with an eating bar. Easily move into the outdoor lounge when entertaining, or the study for peace and quiet.
The privately situated master suite is crowned by a tray ceiling. In the ensuite, a freestanding tub is tucked into a bay window and serves as the focal point, and the wardrobe provides a shortcut to the laundry room.
Two bedrooms suites line the right side of the design, each with a walk-in closet.
The side-entry double garage keeps curb appeal in mind and a built-in bench just inside serves as a drop zone.

What's Included

Cover sheet
Foundation Plan - schematic only

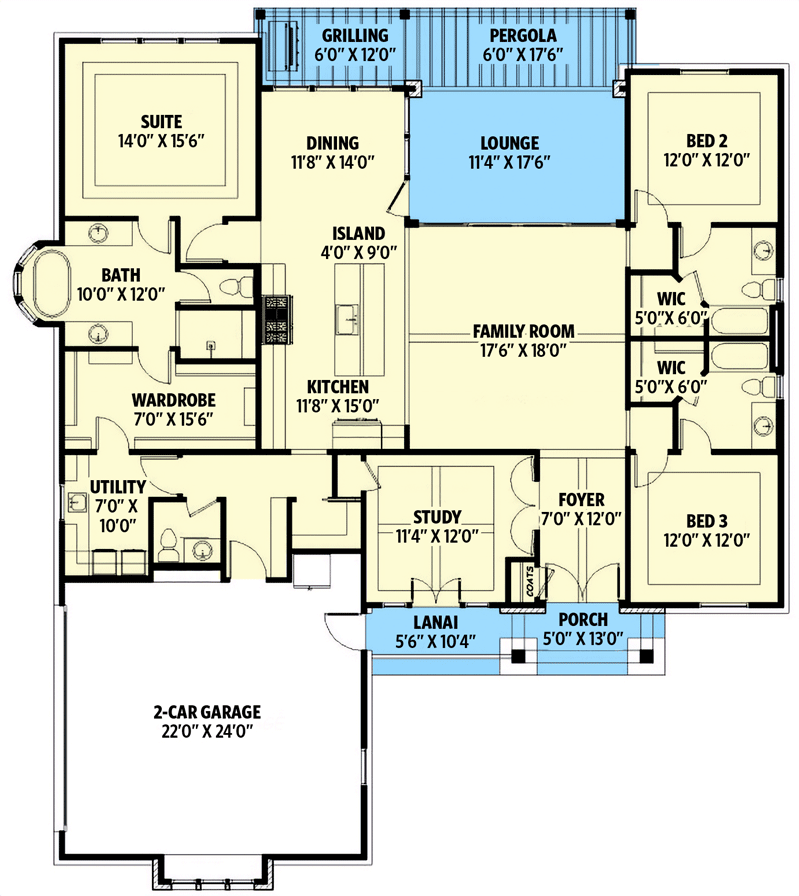

First floor fully dimensioned floor plan with notes - All requisite aspects of the floor plan are precise, though the details of flooring material and non-structural aesthetics are left to the discretion of the buyer.
Second floor fully dimensioned floor plan with notes - Exact flooring materials, appliance selection and non-structural aesthetics are left to the discretion of the buyer.
First floor lighting and electrical plan - On this sheet you have a schematic of the lights, electrical plugs, phone locations, and code items such as smoke detectors.
Second floor lighting and electrical plan - On this sheet you have a schematic of the lights, electrical plugs, phone locations, and code items such as smoke detectors.

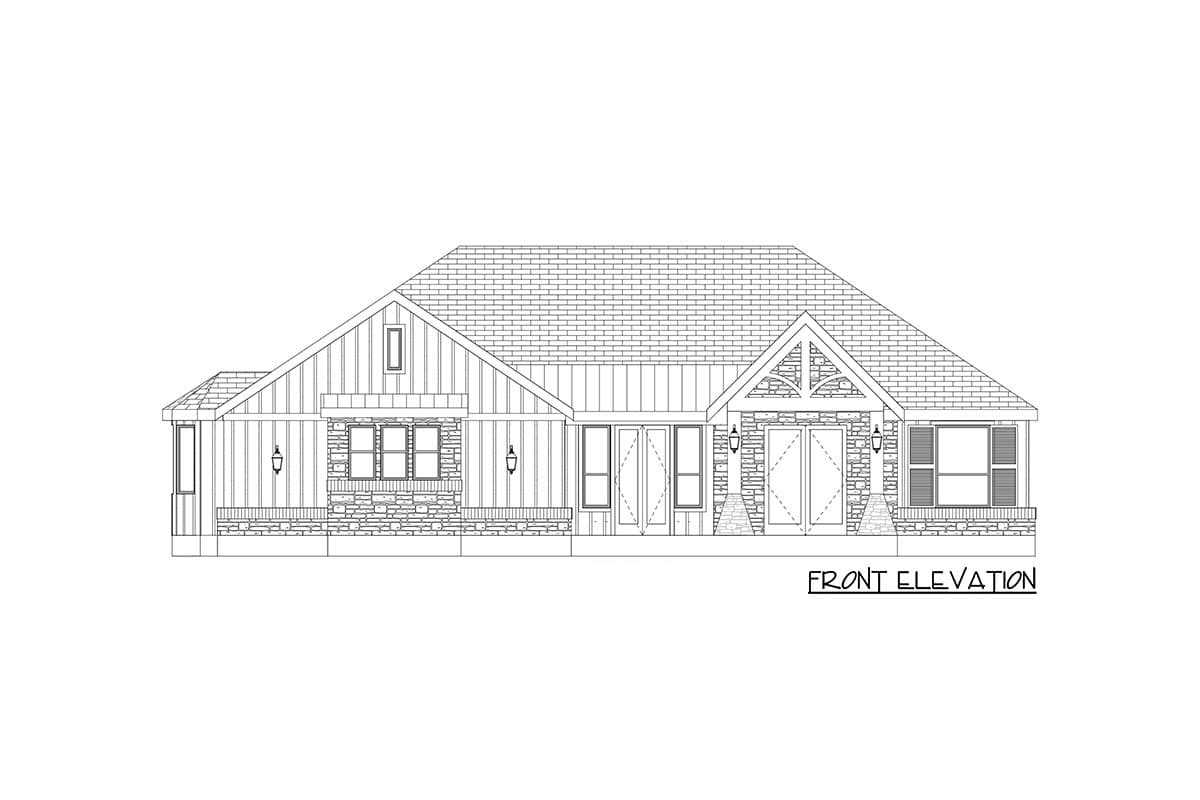

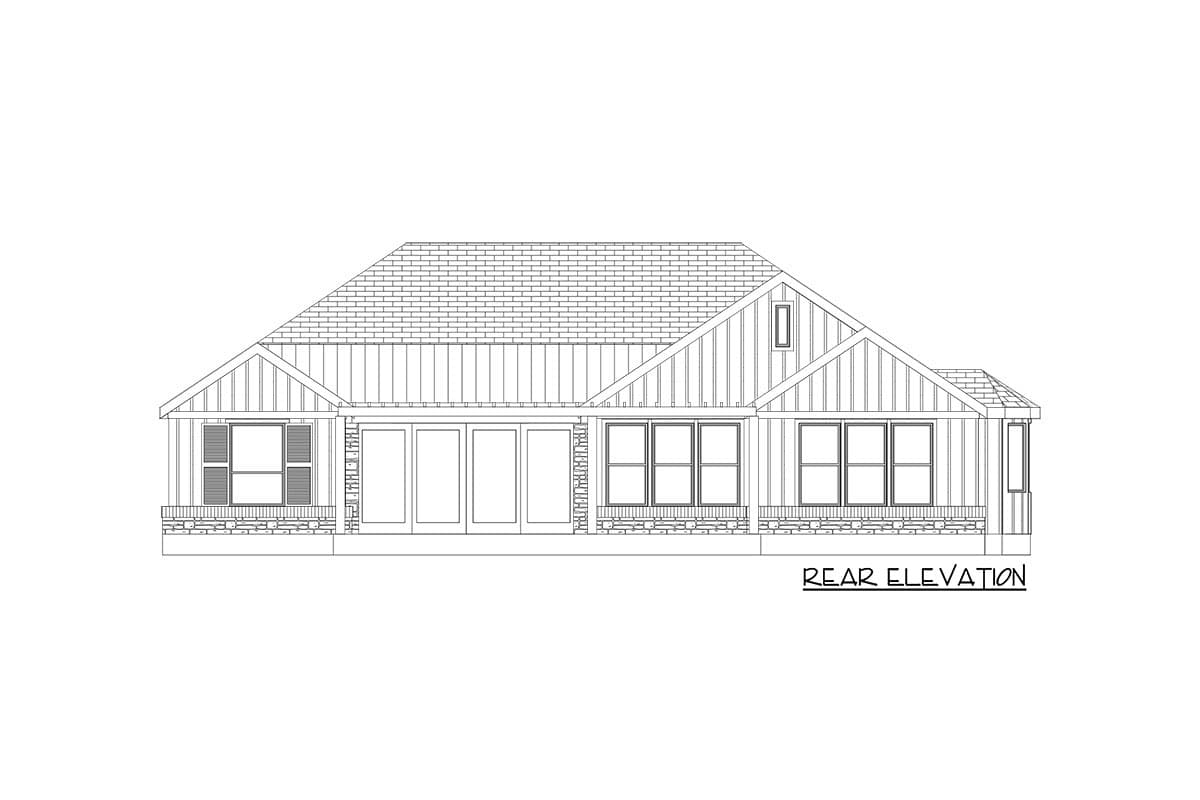

Front & rear elevations with notes-detailed drawings of the left and right sides of the home along with any notes and exterior dimensions that may be required to complete construction. The elevations show the contractor's exterior materials, general architectural design intent, types of openings and other details. All of our elevations are drawn to ¼ scale.

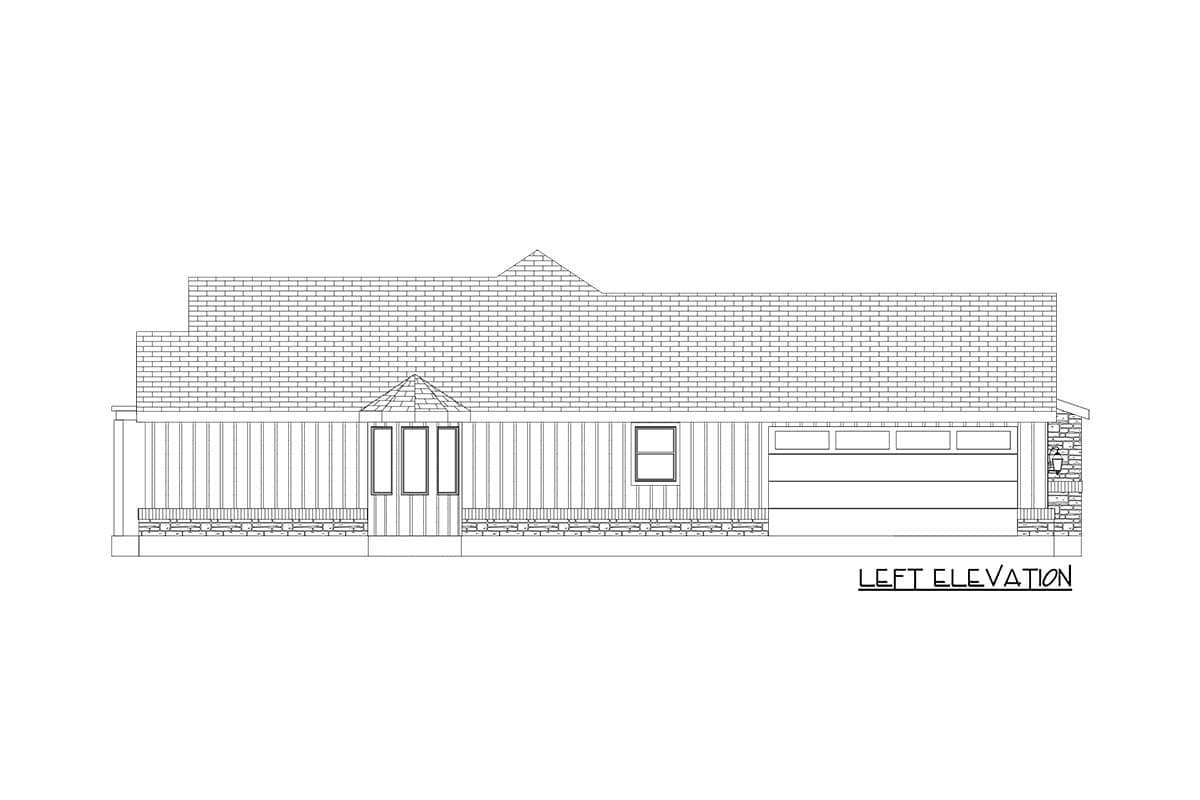

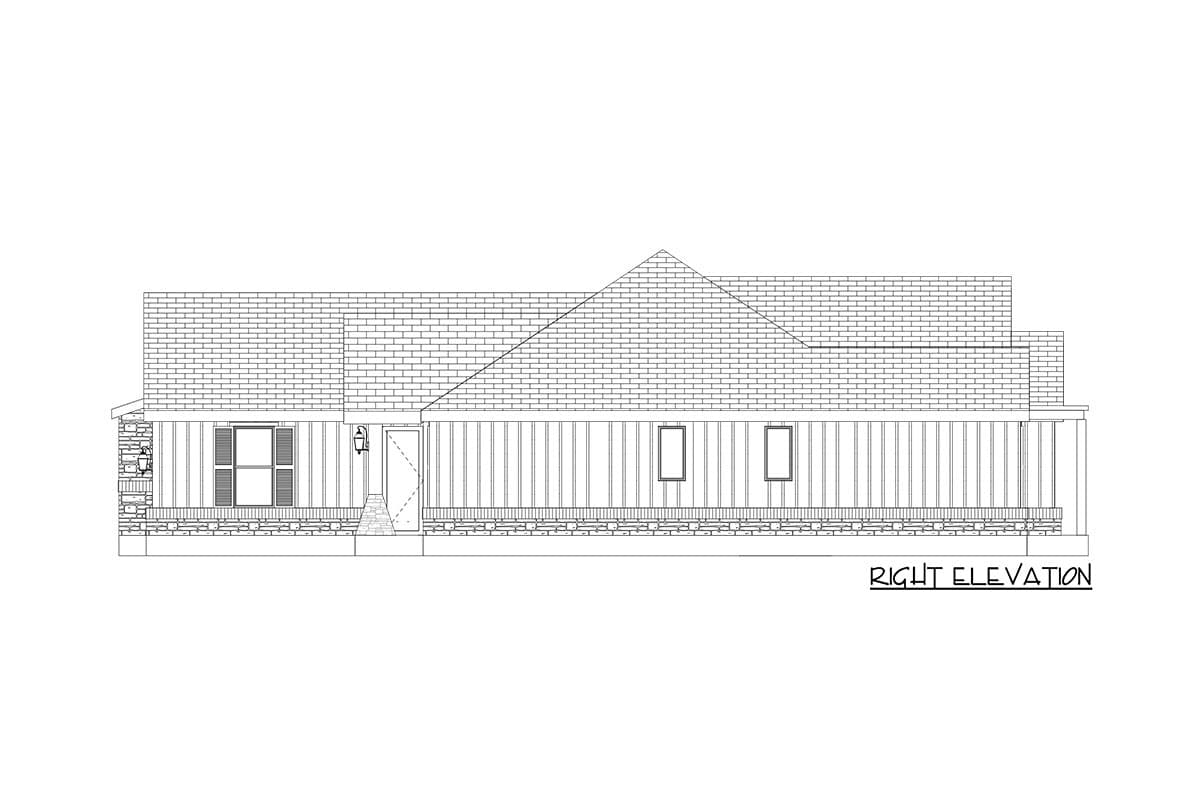

Left and right elevations with notes - detailed drawings of the left and right sides of the home along with any notes and exterior dimensions that may be required to complete construction. The elevations show the contractor's exterior materials, general architectural design intent, types of openings and other details. All of our elevations are drawn to ¼ scale.
Roof plan - This sheet roof plan is an integral piece of a well-designed set of elevations. Roof cuts are shown to demonstrate how the architectural design is intended to make the elevation aesthetically pleasing to the eye.
Sections page
Standard detail sheets on construction. These sheets are used to cover a broad range of many everyday situations that may occur on a construction site. The detail sheets are current and accurate to the area and time of which the house was originally designed.

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required
