Plan 77616FB

Exclusive

Five Bedroom Brick Traditional House Plan
Heated S.F.
3,749
Beds
5
Baths
3.5
Stories
2
Cars
3
Floor Plan

Plan 77616FB

Main Level
slide image 0
2nd Floor
slide image 1
Lower Level
slide image 2

Plan 77616FB

1-800-854-7852

1-262-521-4596

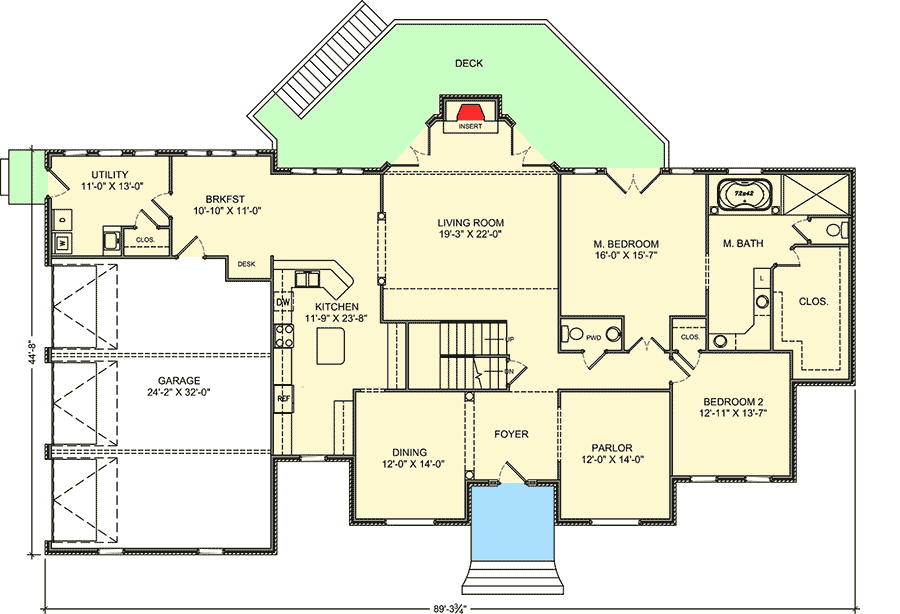

Main Level
floor plan image Main Level

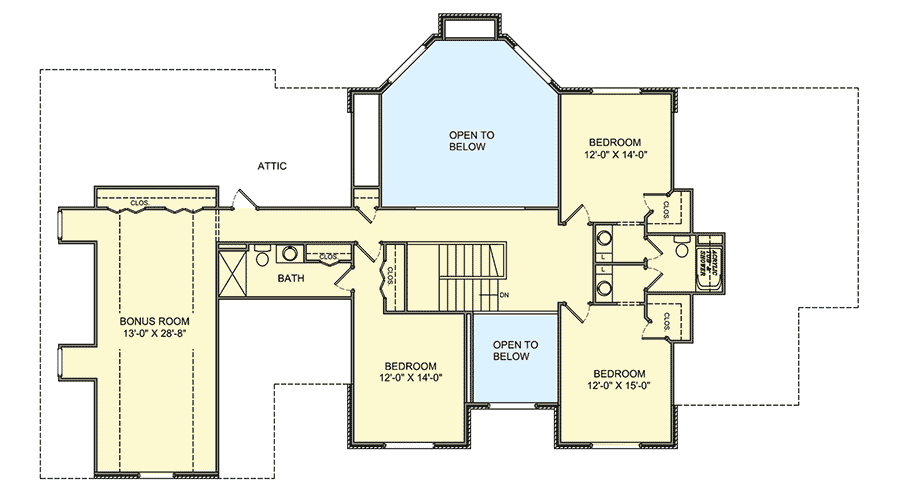

2nd Floor
floor plan image 2nd Floor

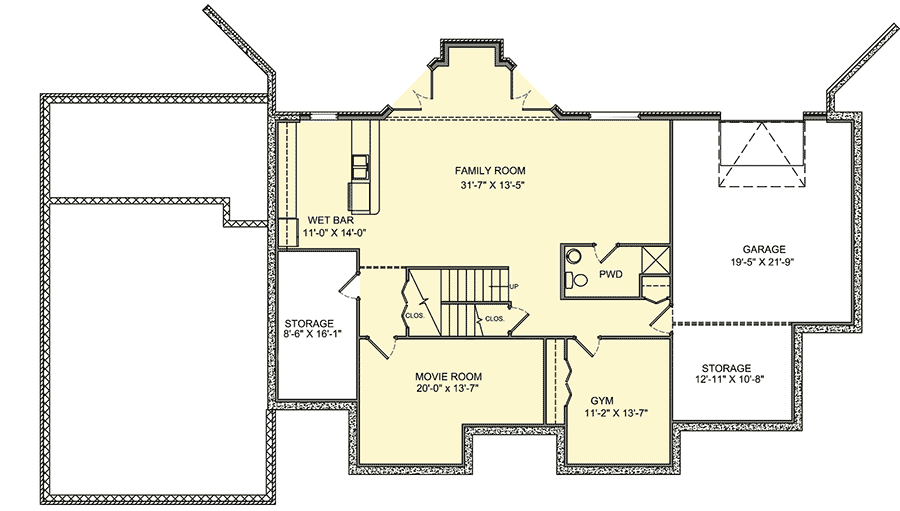

Lower Level
floor plan image Lower Level
Plan Details

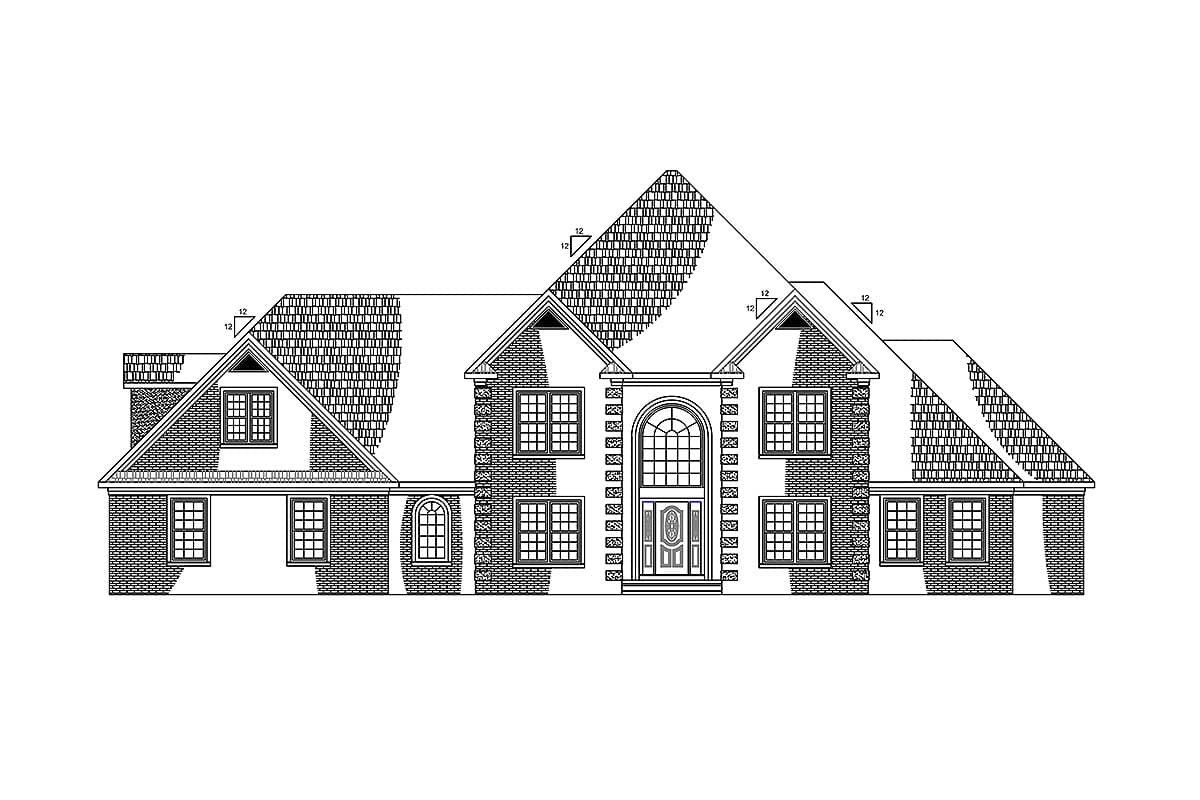

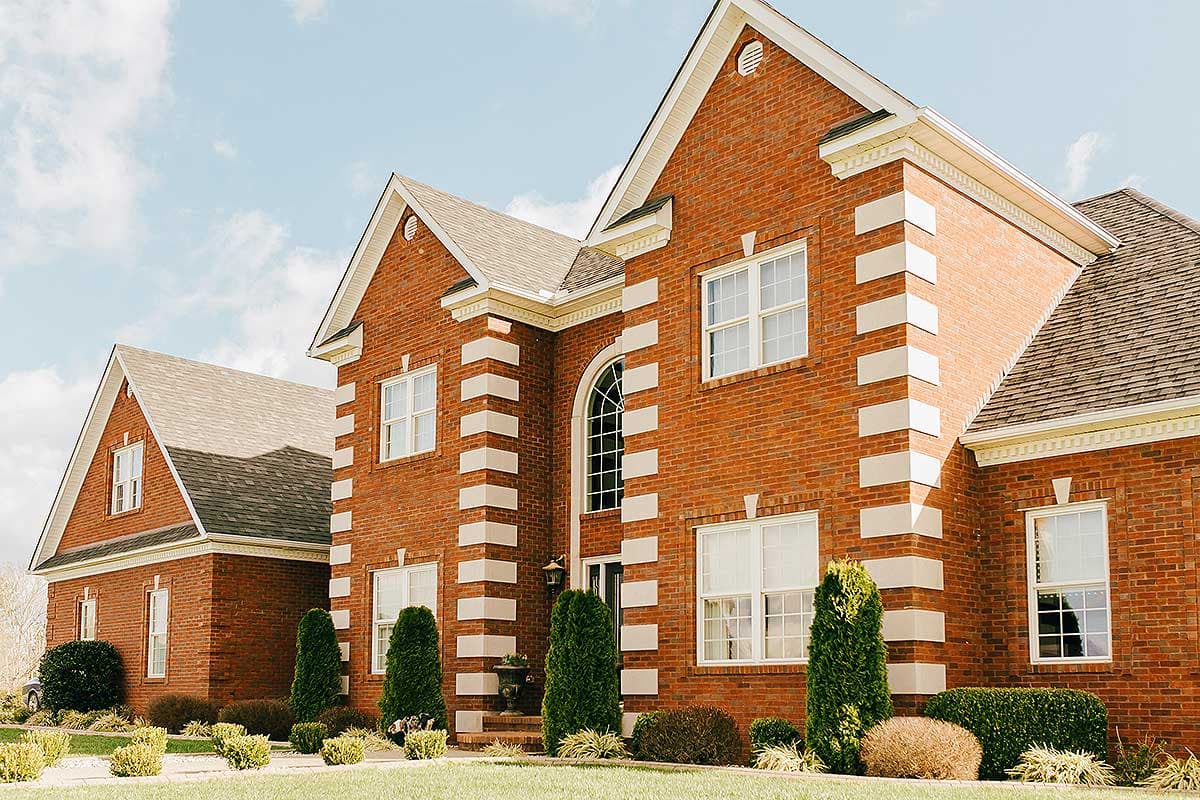

  • Twin gables set off the elegant hip roof of this stately Traditional house plan.

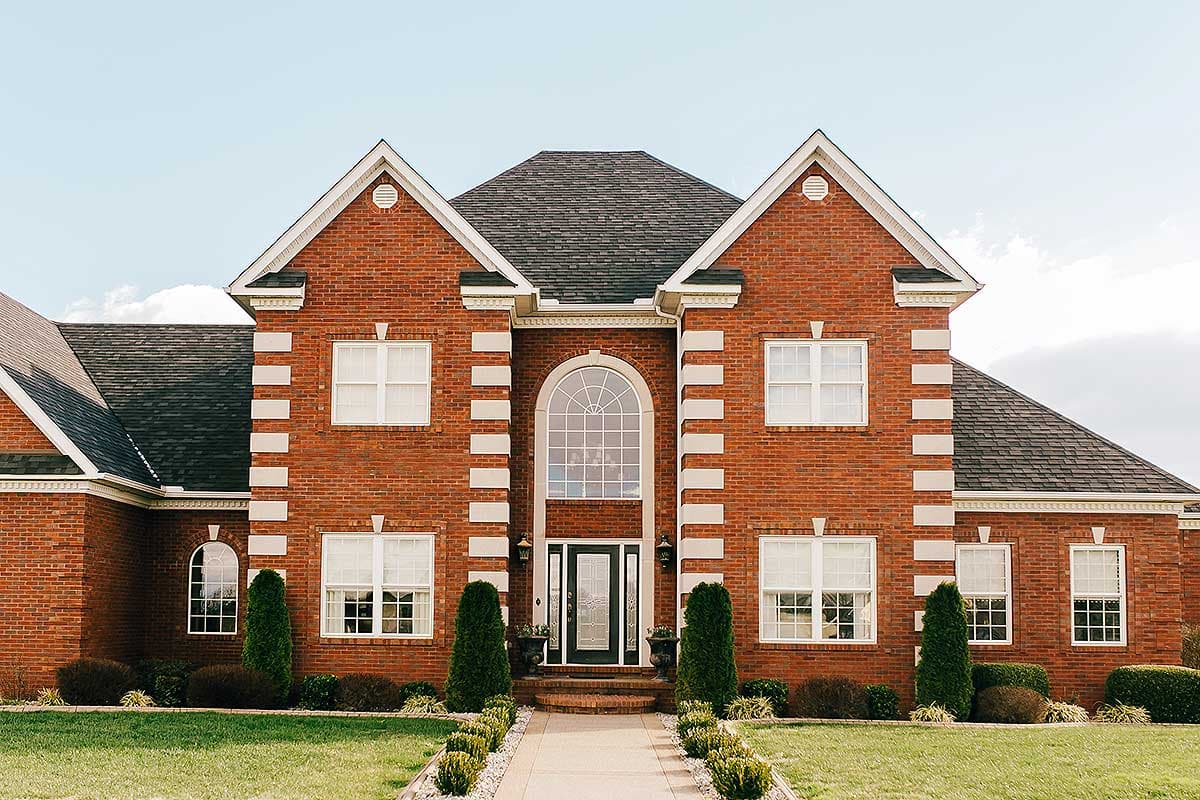

  • A huge arched window over the front door makes a grand statement.
  • Interior columns set off the formal dining room to the left of the two-story foyer.
  • In back, a huge living room is also two-story, with a big fireplace at one end.

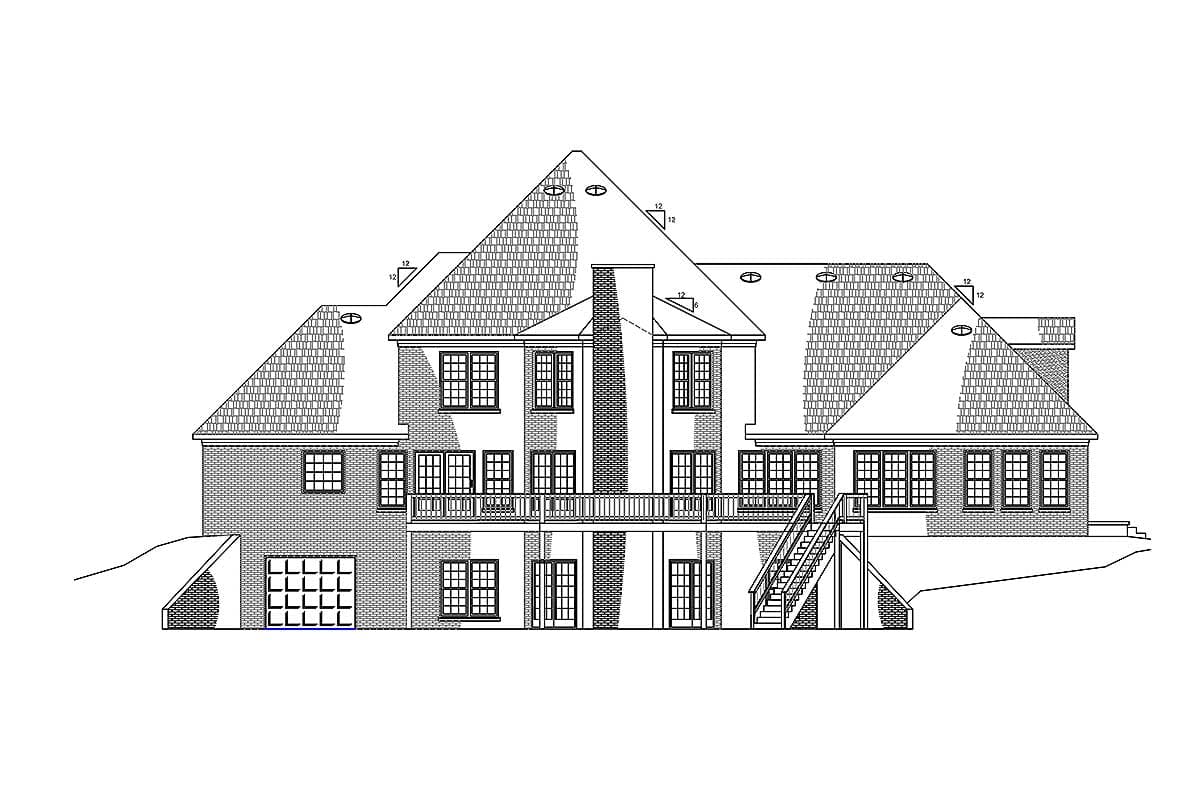

  • Two sets of double doors take you out to the rear deck, big enough for lots of entertaining.
  • The master suite gets a huge bathroom and walk-in closet with lots of wall space in the bedroom for furniture placement.
  • On the upper floor, an open rail balcony has views on both sides, with three bedrooms close by.
  • Finish off the bonus room and gain an extra 442 square feet of living space.
  • And there's even more space should you finish off the spacious lower level with 2,222 square feet.
What's Included

  • Cover page
  • Foundation plan
  • Floor Plan
  • Elevations
  • Section View
  • Construction details
  • Electrical Layout
  • Roof Plan (if needed)
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

3,749 sq. ft.

1st Floor

2,593 sq. ft.

2nd Floor

1,156 sq. ft.

Bonus

442 sq. ft.

Beds/Baths

Bedrooms

5

Full bathrooms

3

Half bathrooms

1

Foundation Type

Standard Foundations

Basement, Daylight, Walkout

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

89' 4"

Depth

44' 8"

Max Ridge Height

38' 10"

Garage

Type

Attached

Area

762 sq. ft.

Count

3 Cars

Entry Location

Side

Ceiling Heights

First Floor

9'

Second Floor

9'

Room

Ceiling Type

Height

Living Room

Vaulted

0' 0''

Roof Details

Primary Pitch

12 on 12

Framing Type

Stick And Truss

Architectural Style

Traditional

Special Features

Bonus Room

Breakfast Nook

Formal Dining

Jack & Jill Bath

Master Suite - 1st Floor

Mudroom

Two Story Great Room

Wet Bar
