Plan 290077IY
Five Bedroom Northwest House Plan
Heated S.F.
2,933
Beds
5
Baths
2.5+
Stories
2
Cars
2
Floor Plan

Plan 290077IY

Main Level
slide image 0
2nd Floor
slide image 1
Optional Lower Level
slide image 2

Plan 290077IY

1-800-854-7852

1-262-521-4596

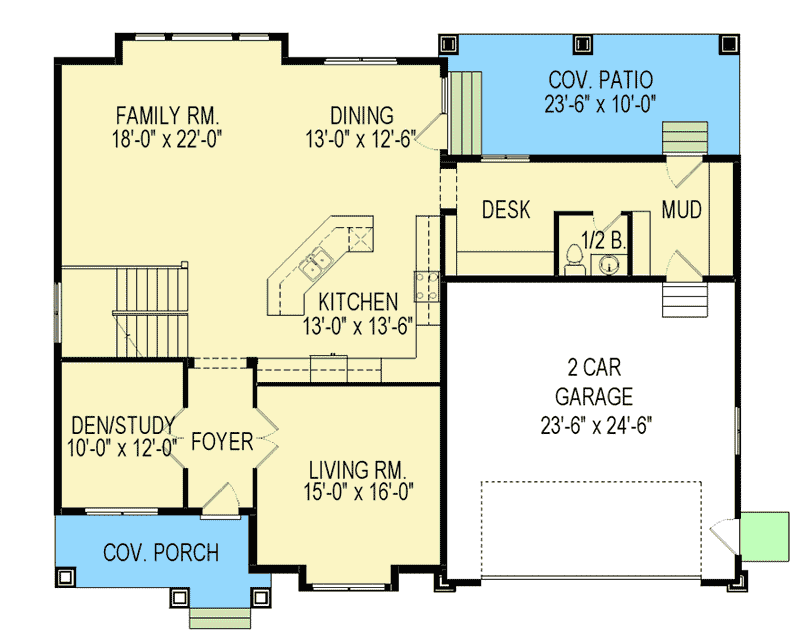

Main Level
floor plan image Main Level

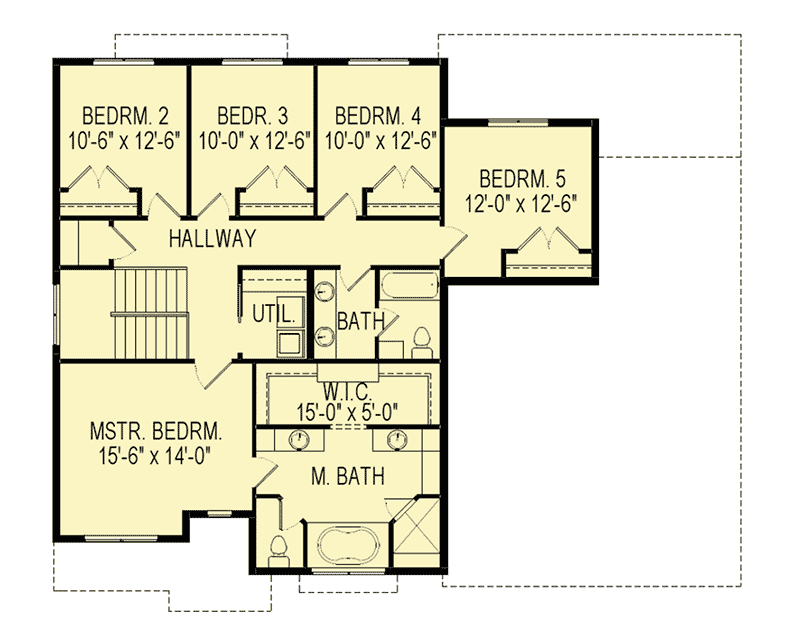

2nd Floor
floor plan image 2nd Floor

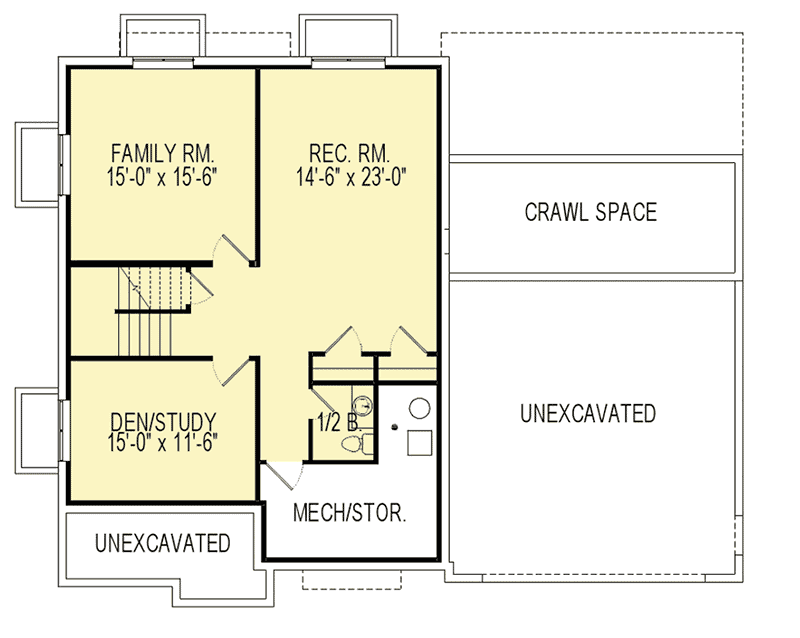

Optional Lower Level
floor plan image Optional Lower Level
Plan Details
  • Board and battan siding and stone work accent the exterior of this Northwest house plan.
  • The open layout inside is ideal for promoting family togetherness yet there is a den and formal living room should you want some alone time.
  • A built-in desk near the kitchen works well as a homework space or for projects.
  • In addition to the five bedrooms, a handy second floor laundry room makes life easier.
  • The hall bathroom has a compartmented section with two sinks to keep things moving in the mornings.
  • The home also comes with an optional finished lower level to add even more space.
What's Included
  • Cover sheet (with rendering)
  • Notes page
  • Complete schedule page
  • Foundation plan
  • Floor plans
  • Dimension plans
  • Elevations
  • Sections
  • Architectural details
  • 3D perspective views (not included with all plans)
  • Floor finish plans
  • Roof plan
  • Lighting plans, and power plans.

Note: Contact us if building in Utah as these plans may not be available for construction in certain areas in that state.
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

2,933 sq. ft.

1st Floor

1,557 sq. ft.

2nd Floor

1,376 sq. ft.

Optional Lower Level

1,024 sq. ft.

Beds/Baths

Bedrooms

5

Full bathrooms

2

Half bathrooms

1 or 2

Foundation Type

Standard Foundations

Basement, Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

56' 0"

Depth

47' 0"

Max Ridge Height

29' 0"

Garage

Type

Attached

Area

592 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

Lower Level

8'

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

6 on 12

Architectural Style

Craftsman

Northwest

Special Features

Den

Laundry - Upstairs

Master Suite - 2nd Floor

Square Footage Breakdown

Total Heated Area

2,933 sq. ft.

1st Floor

1,557 sq. ft.

2nd Floor

1,376 sq. ft.

Optional Lower Level

1,024 sq. ft.

Beds/Baths

Bedrooms

5

Full bathrooms

2

Half bathrooms

1 or 2

Foundation Type

Standard Foundations

Basement, Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

56' 0"

Depth

47' 0"

Max Ridge Height

29' 0"

Garage

Type

Attached

Area

592 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

Lower Level

8'

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

6 on 12

Architectural Style

Craftsman

Northwest

Special Features

Den

Laundry - Upstairs

Master Suite - 2nd Floor
