Plan 60545ND
Flex Space Options
Heated S.F.
3,783
Beds
4
Baths
3
Stories
2
Cars
3
Floor Plan

Plan 60545ND

Main Level
slide image 0
2nd Floor
slide image 1

Plan 60545ND

1-800-854-7852

1-262-521-4596

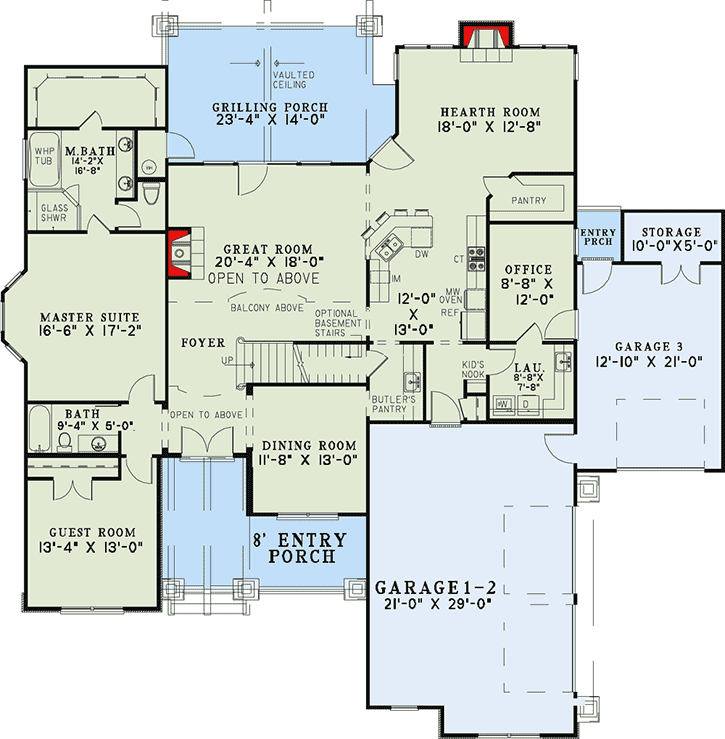

Main Level
floor plan image Main Level

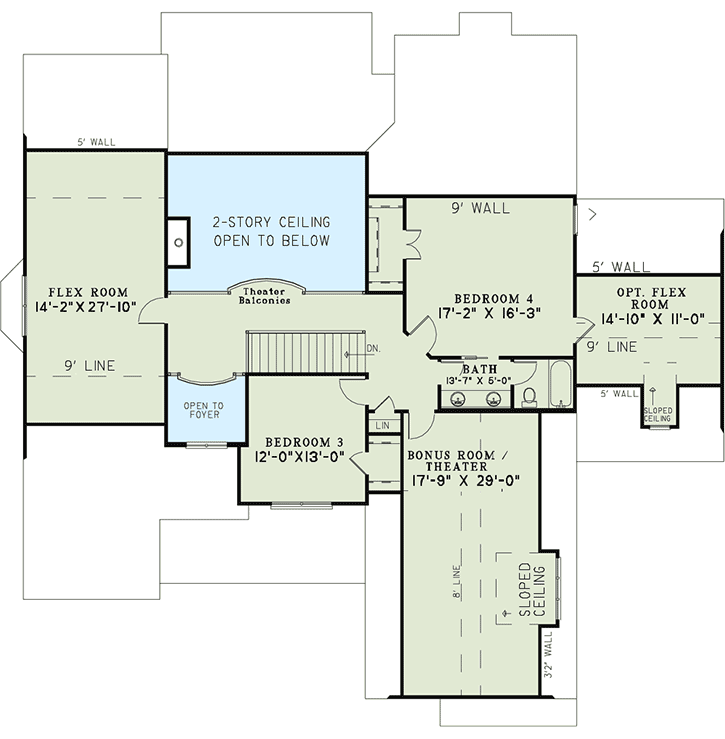

2nd Floor
floor plan image 2nd Floor
Plan Details
  • A rugged exterior of stone and wood shakes gives this Mountain home plan its appeal.
  • Inside, an open floor plan combines the main living areas for wonderful views.
  • Fireplaces in both the hearth room and great room add a welcoming feel.
  • The large rear grilling porch has a vaulted ceiling.
  • Two bedrooms, including the master suite, lie on the first floor with two more bedrooms on the upper level.
  • A theater balcony opens to both the foyer and great room below for a dramatic view.
  • Should you need extra space, a bonus room and flex room can be adapted by your builder to suit your needs.
What's Included
  • Foundation Plan (1/4″ or 1/2″ = 1′)
  • Floor Plans (1/4″= 1′)
  • Set of Elevations (1/4″= 1′)
  • Miscellaneous Details (3/4″ = 1′)
  • An electrical diagram showing a bird's-eye view of rooms with lights, fans to switches
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

3,783 sq. ft.

1st Floor

2,338 sq. ft.

2nd Floor

1,445 sq. ft.

Bonus

437 sq. ft.

Porch, Combined

566 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

3

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

74' 4"

Depth

73' 4"

Max Ridge Height

32' 8"

Garage

Type

Attached

Area

1057 sq. ft.

Count

3 Cars

Entry Location

Front, Side

Ceiling Heights

First Floor

9'

Second Floor

9'

Roof Details

Primary Pitch

12 on 12

Framing Type

Stick

Architectural Style

Craftsman

Mountain

Northwest

Rustic

Special Features

Bonus Room

Butler Walk-in Pantry

Flex Room

Master Suite - 1st Floor

Master Suite - Sitting Area
