Plan 23541JD
Flex Space Plus a Bonus Room
Heated S.F.
2,916
Beds
4
Baths
2.5
Stories
2
Cars
2
Photos
Floor Plan

Plan 23541JD

Main Level
slide image 0
2nd Floor
slide image 1

Plan 23541JD

1-800-854-7852

1-262-521-4596

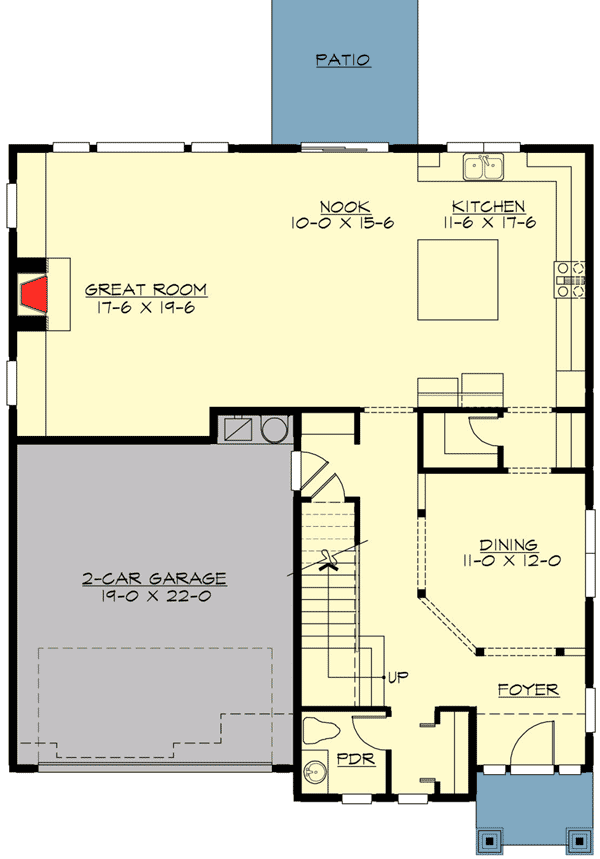

Main Level
floor plan image Main Level

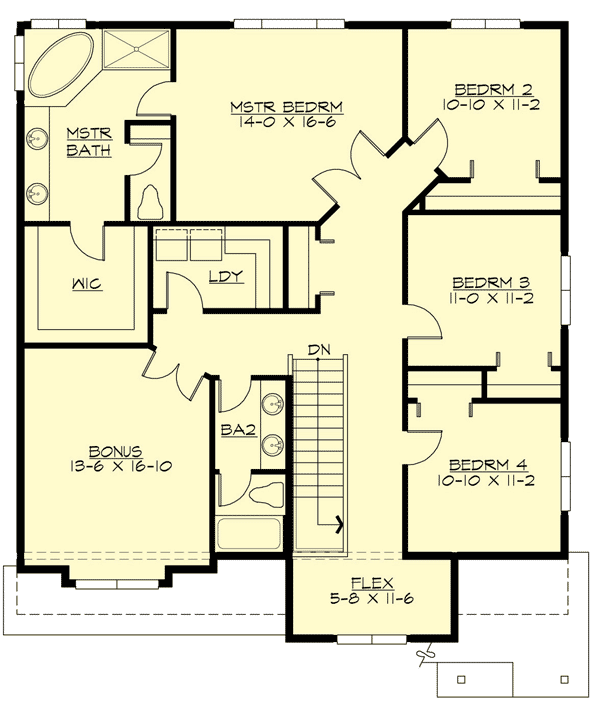

2nd Floor
floor plan image 2nd Floor
Plan Details
  • Beautiful decorative wood trim adorns the exterior of this Craftsman home plan that offers both flex space and a bonus room.
  • The open layout on the main floor is a delight, with views that flow from room to room.
  • Columns are used to define the dining room space giving you separation from the foyer and hall while making the dining room feel larger.
  • In back, a great big fireplace has built-ins on either side giving you storage or display options.
  • The second floor is huge, with four bedrooms plus a convenient second floor laundry room.
  • Use the front-facing flex room as a cozy study or reading nook.
  • The large bonus space sits over the garage so noise won't bother any rooms below.
  • NOTE: Additional fees apply when building in the State of Washington. Contact us for more information.
Build Gallery
See and hear from existing customers with real photos, videos, and reviews.
build gallery item - House Plan 23541JD comes to life in North Carolina!

House Plan 23541JD comes to life in North Carolina!

16

Photos

What's Included
  • Cover Sheet - The cover sheet includes the general notes and building code information, design standards and structural materials specifications required to construct your home.
  • Schedule Sheet - The schedule sheet includes the roof and foundation ventilation schedules, insulation and vapor barrier specifications, and exhaust fan ventilation schedule.
  • Detail Sheet - The detail sheet shows building components at large scale as required to explain construction of footings, foundation walls, concrete slabs, framed floors and walls, posts, beams, insulation, eaves, roofs, vents, stairs, skylights, and connections.
  • Foundation Plan Sheet - The foundation plan sheet shows the layout of the crawl space, walk-out basement or slab foundation. The foundation plan includes all necessary notes, dimensions, concrete walls, footing pads, posts, beams, bearing walls, crawlspace vents, footing schedule, steel reinforcing, and structural information. If you require a different foundation type, please contact us for modifications to your plan.
  • Floor Plan Sheet - Floor plans are horizontal cuts through each floor level of the home, usually at 5' above the floor. The floor plan shows the location of interior and exterior walls, doors, windows, stairs, closets, cabinets, flooring, appliances, plumbing fixtures, fireplaces, posts and beams. Floor plans also indicate vaulted, coffered, or box beam ceilings, cased openings and areas with ceiling soffits.
  • Roof Framing Plan Sheet - The roof framing plan shows the geometry of the hips, ridges, valleys, dormers, roof pitches, wall and plate heights, and overhangs. The plan also shows all individual roof framing members, trusses, rafters, beams, skylights, roof vents, gutters, downspouts, skylights, bearing walls under framing members, and point loads.

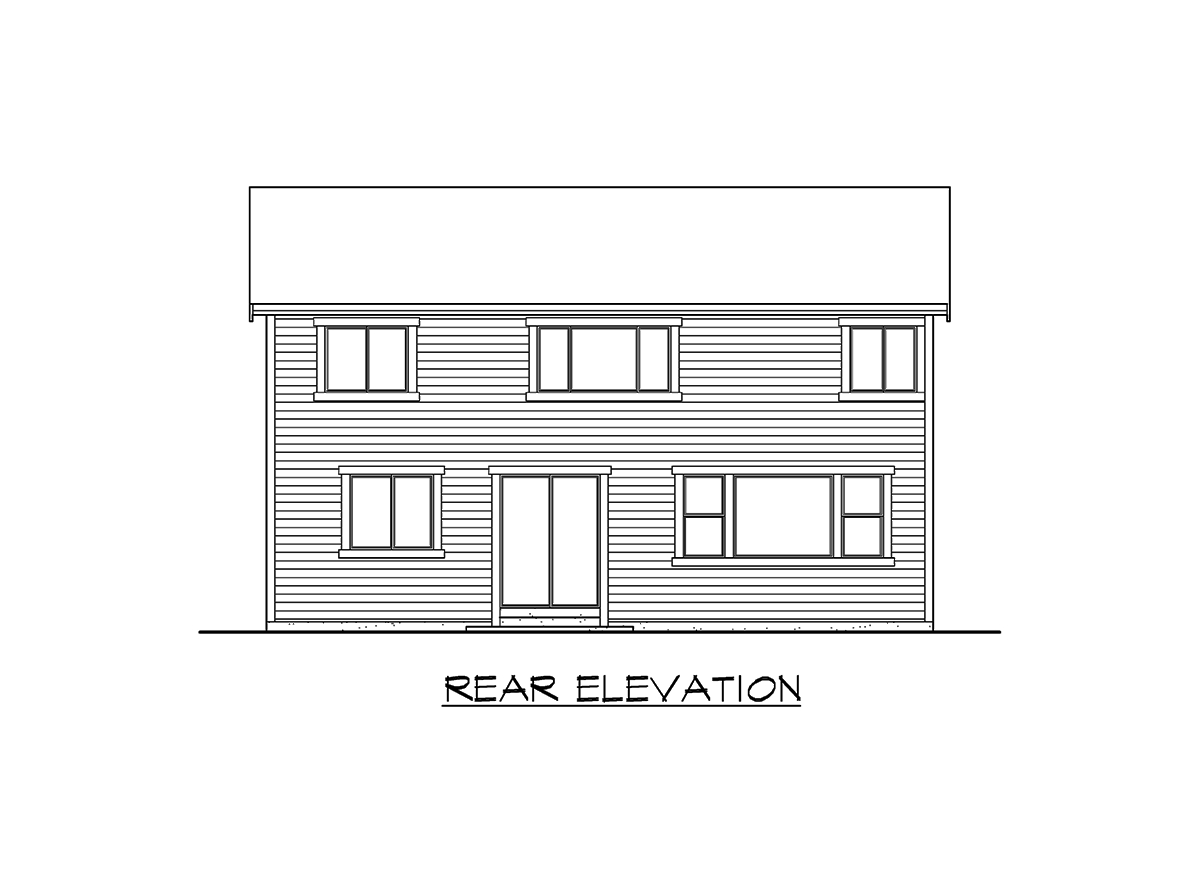

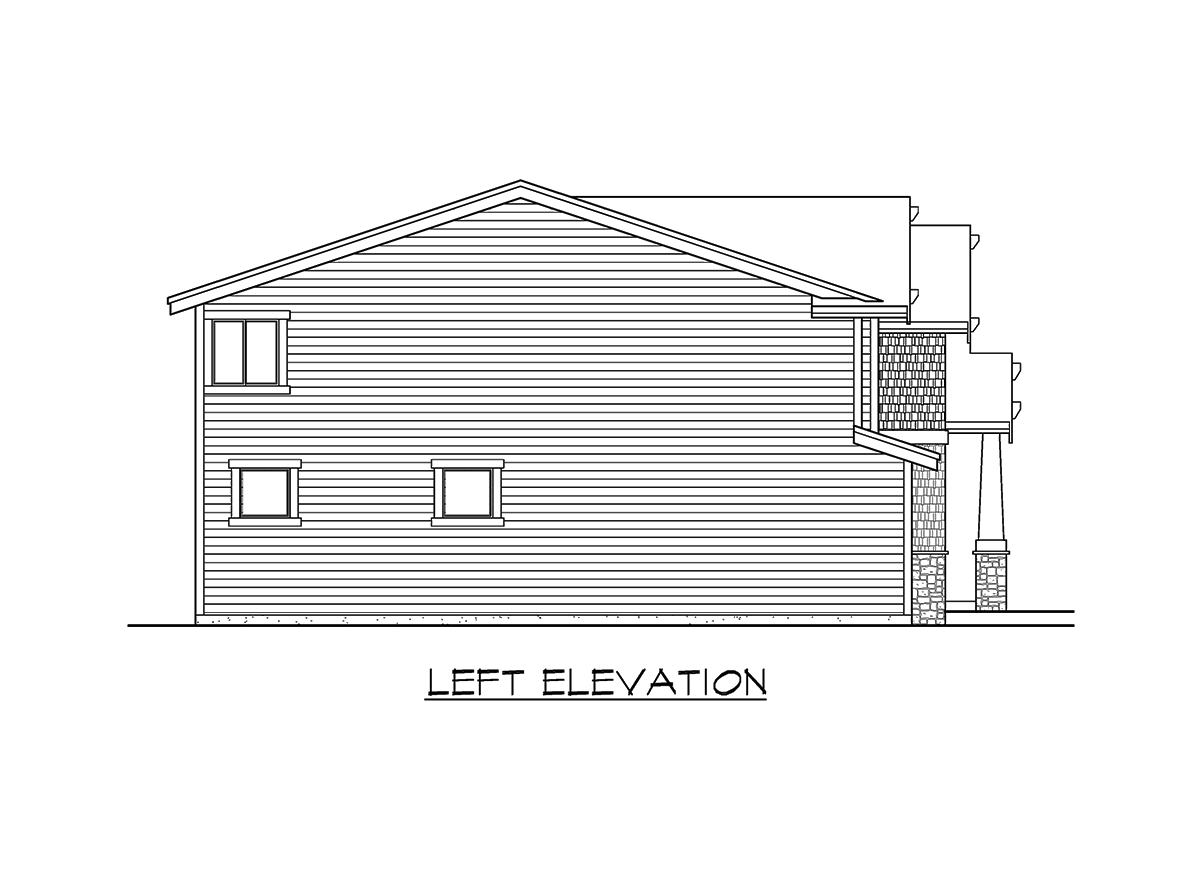

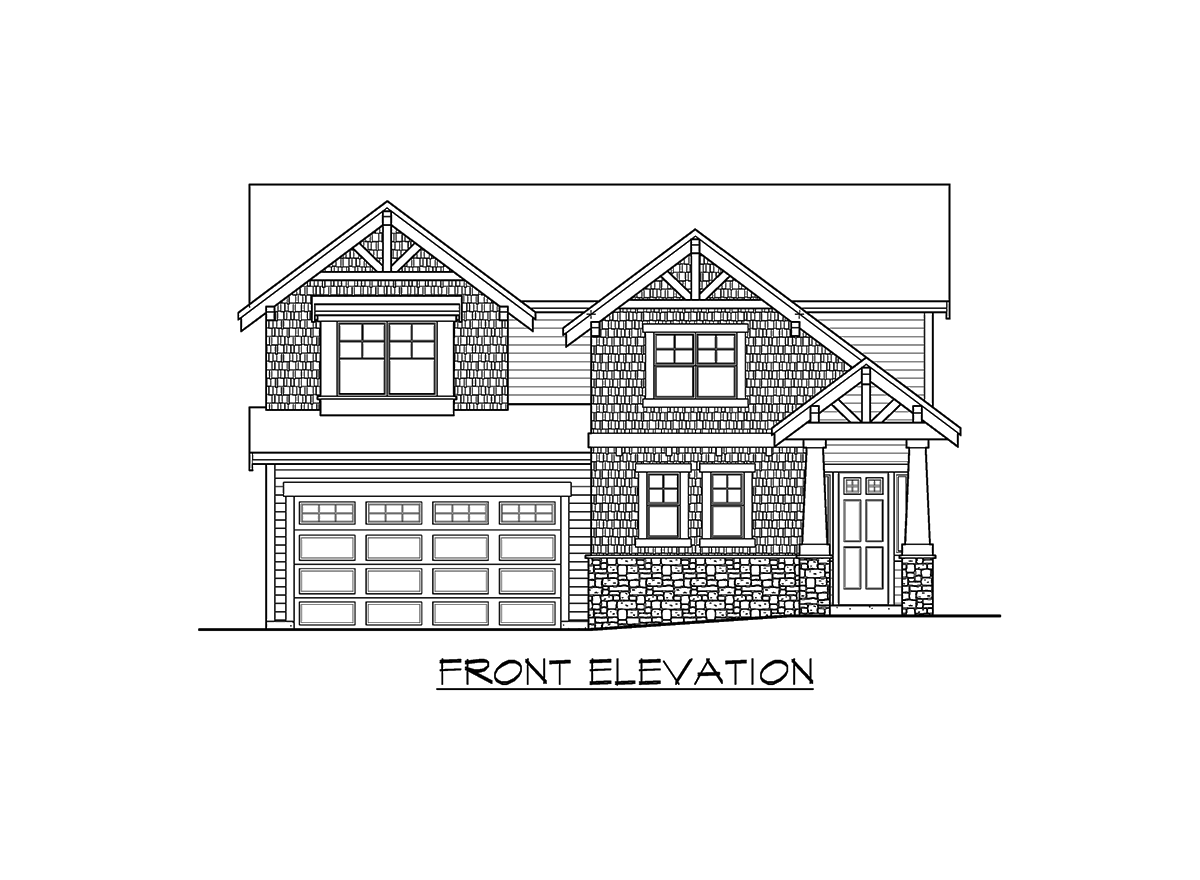

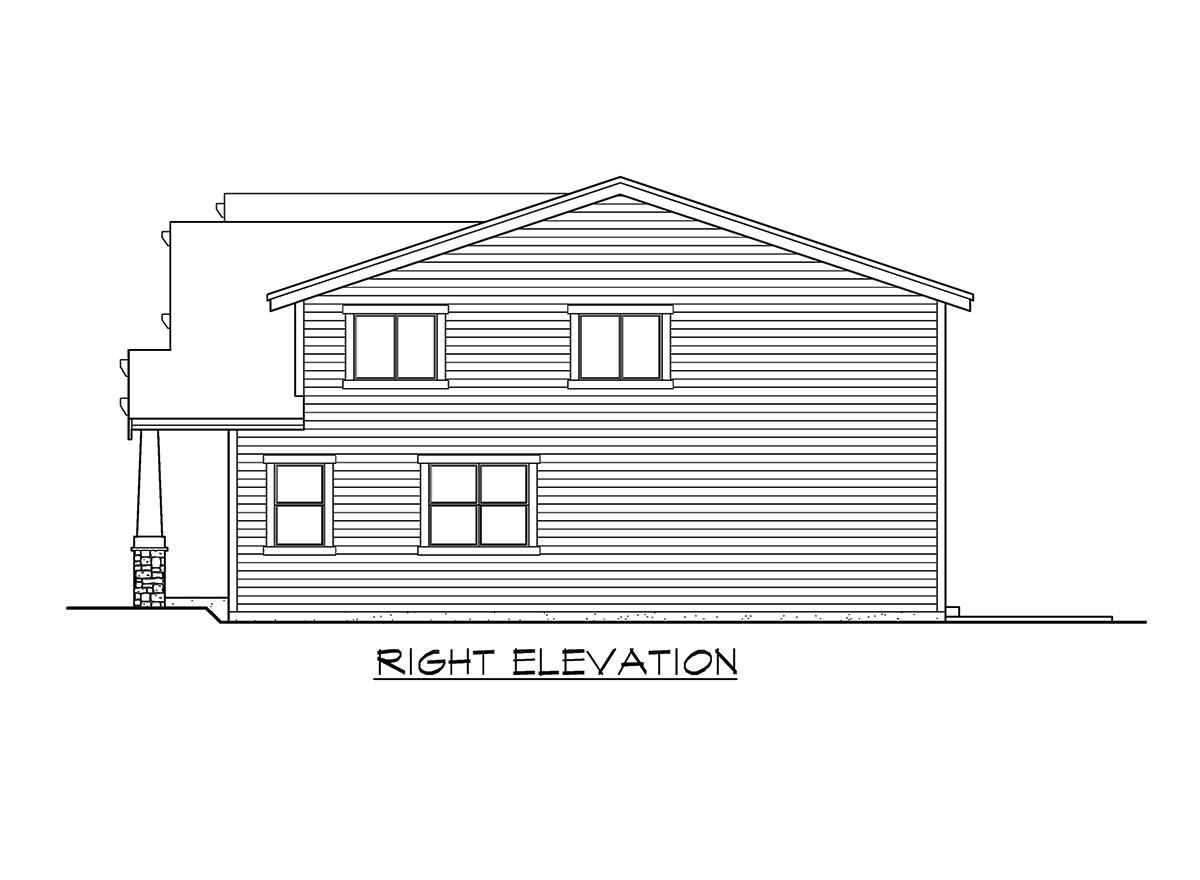

  • Elevation Sheet - Exterior elevations show all four sides of the house, describing the roofing, siding, and trim materials, doors, windows, roof pitches, skylights, gutters, chimneys, wall heights, finish grade and overall building height.
  • Building Section Sheet - Building sections are vertical cuts through the house from the roof to the foundation. The sections illustrate the construction sequence from bottom to top starting with excavation, proceeding up through the foundation, drainage, wall and floor framing, stair framing, roof framing, windows, doors, venting, and exterior and interior finishes. Wall plate heights for each floor are also delineated.
What's Not Included
  • Electrical Plan - handled by your subcontractor to match your individual needs
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

2,916 sq. ft.

1st Floor

1,296 sq. ft.

2nd Floor

1,620 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

40' 0"

Depth

48' 6"

Max Ridge Height

25' 0"

Garage

Type

Attached

Area

449 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

4 on 12

Secondary Pitch

9 on 12

Framing Type

Truss

Architectural Style

Craftsman

Northwest

Special Features

Bonus Room

Breakfast Nook

Butler Walk-in Pantry

Flex Room

Laundry - Main Level

Library/Study

Master Suite - 2nd Floor
