Plan 56333SM
Flexible Acadian House Plan with optional Bonus Room - 2759 Sq Ft
Heated S.F.
2,759
Beds
3 - 4
Baths
4.5
Stories
1
Cars
3
Floor Plan

Plan 56333SM

Main Level
slide image 0
2nd Floor
slide image 1

Plan 56333SM

1-800-854-7852

1-262-521-4596

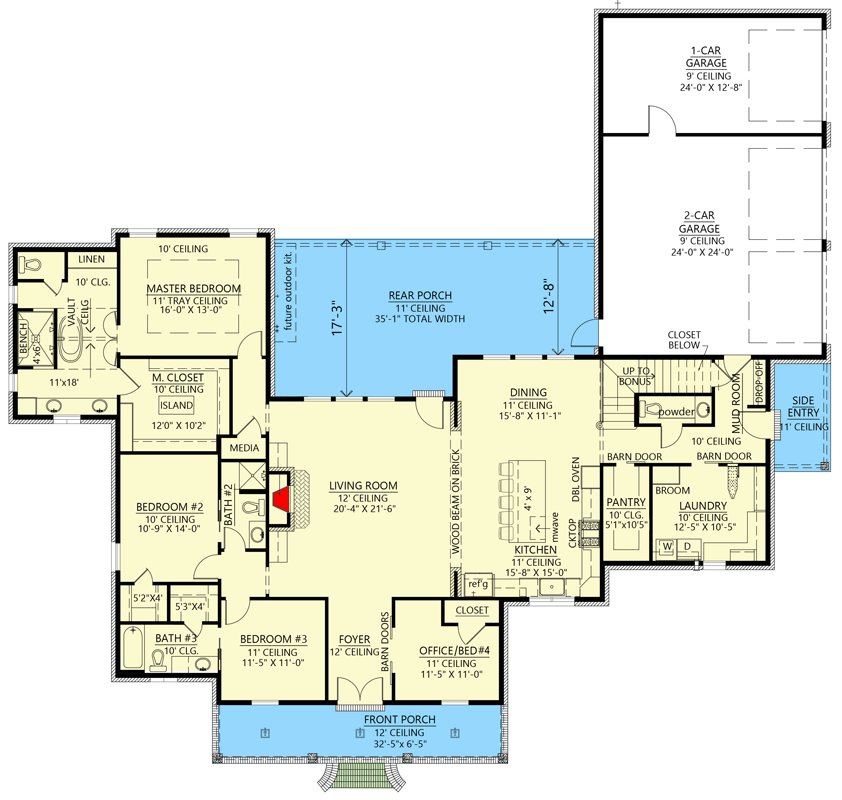

Main Level
floor plan image Main Level

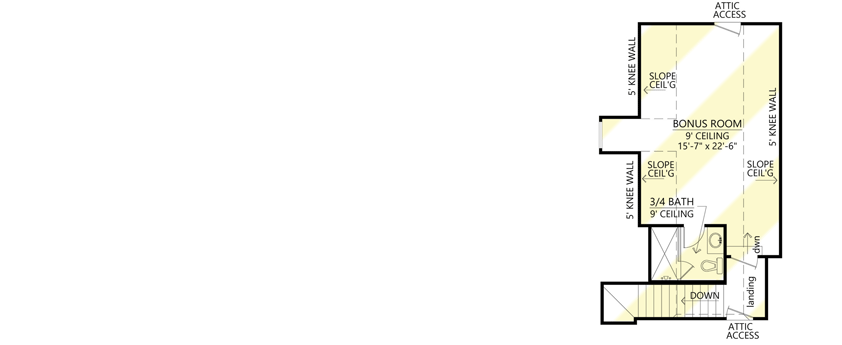

2nd Floor
floor plan image 2nd Floor
Plan Details
  • This Acadian house plan delivers a flexible floor plan with the option of utilizing the fourth bedroom as a home office. The rear porch provides a shaded spot outdoors when relaxing with family or entertaining friends.
  • The light-filled living room flows into the eat-in kitchen, which hosts a prep island with an eating bar, double ovens, and a nearby walk-in pantry.
  • Retreat to the master bedroom and discover the deluxe 5-fixture ensuite with a dresser island in the walk-in closet.
  • The 3-car garage is attached to the back of the home with entry from the side. A mudroom with a drop zone resides just inside, next to a sizable laundry room concealed by a barn door.
  • Gain 508 square feet of versatile space when you finish the second-level bonus room.
What's Included
  • FLOOR PLAN: Showing all dimensions, window & door locations, laminated beams, columns, floor materials, ceiling heights, fireplace size, window & door schedules and specifications
  • DOOR, WINDOW AND ROOF FINISH SCHEDULES: Window & Door schedules as well as room finish schedules showing flooring specs, crown molding, cabinets, countertop materials, & ceiling heights.
  • FOUNDATION PLAN AND CEILING JOISTS LAYOUT: Dimensioned plan detailing the location and size of footings, slabs, brick shelves reinforcing steel, direction and size of ceiling joists, Laminate beam locations, specifications covering soil pressure, concrete strength, and requirements for the contractor to follow accepted practices.
  • ELECTRICAL PLAN: Specifications, notes, schedules, and plan defining the location of panels, service, lighting fixtures, switches, outlets, smoke detectors, cable TV and telephones.
  • FRONT AND REAR ELEVATIONS: The front and rear elevation of the house as drawn. Shows placement of doors & windows on exterior of house, as well as roof pitches, and locations of chimney, exterior vents, etc. and also includes any necessary details.
  • SIDE ELEVATIONS, ROOF PLANS, WALL SECTIONS AND FRAMING DETAILS: Side views of house, and necessary framing and roofing details. Also included are wall sections, and any other necessary details for your framer or other subcontractors.
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

2,759 sq. ft.

1st Floor

2,759 sq. ft.

Bonus

508 sq. ft.

Porch, Combined

815 sq. ft.

Beds/Baths

Bedrooms

3 or 4

Full bathrooms

4

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

90' 2"

Depth

82' 9"

Max Ridge Height

29' 1"

Garage

Type

Attached

Area

990 sq. ft.

Count

3 Cars

Entry Location

Side

Ceiling Heights

First Floor

10'

Garage

9' 0''

Room

Ceiling Type

Height

Master Bedroom

Tray

11' 0''

Living Room

Flat

12' 0''

Roof Details

Primary Pitch

9 on 12

Secondary Pitch

12 on 12

Framing Type

Stick

Architectural Style

Acadian

Louisiana

Southern

Southern Traditional

Special Features

Bonus Room

Butler Walk-in Pantry

Home Office

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Outdoor Kitchen

Square Footage Breakdown

Total Heated Area

2,759 sq. ft.

1st Floor

2,759 sq. ft.

Bonus

508 sq. ft.

Porch, Combined

815 sq. ft.

Beds/Baths

Bedrooms

3 or 4

Full bathrooms

4

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

90' 2"

Depth

82' 9"

Max Ridge Height

29' 1"

Garage

Type

Attached

Area

990 sq. ft.

Count

3 Cars

Entry Location

Side

Ceiling Heights

First Floor

10'

Garage

9' 0''

Room

Ceiling Type

Height

Master Bedroom

Tray

11' 0''

Living Room

Flat

12' 0''

Roof Details

Primary Pitch

9 on 12

Secondary Pitch

12 on 12

Framing Type

Stick

Architectural Style

Acadian

Louisiana

Southern

Southern Traditional

Special Features

Bonus Room

Butler Walk-in Pantry

Home Office

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Outdoor Kitchen
