Plan 51711HZ
Flexible Country Home with Bonus Room - 2420 Sq Ft
Heated S.F.
2,420
Beds
3 - 4
Baths
2.5 - 3.5
Stories
1
Cars
3
Floor Plan

Plan 51711HZ

Main Level
slide image 0
Optional
slide image 1
Bonus
slide image 2

Plan 51711HZ

1-800-854-7852

1-262-521-4596

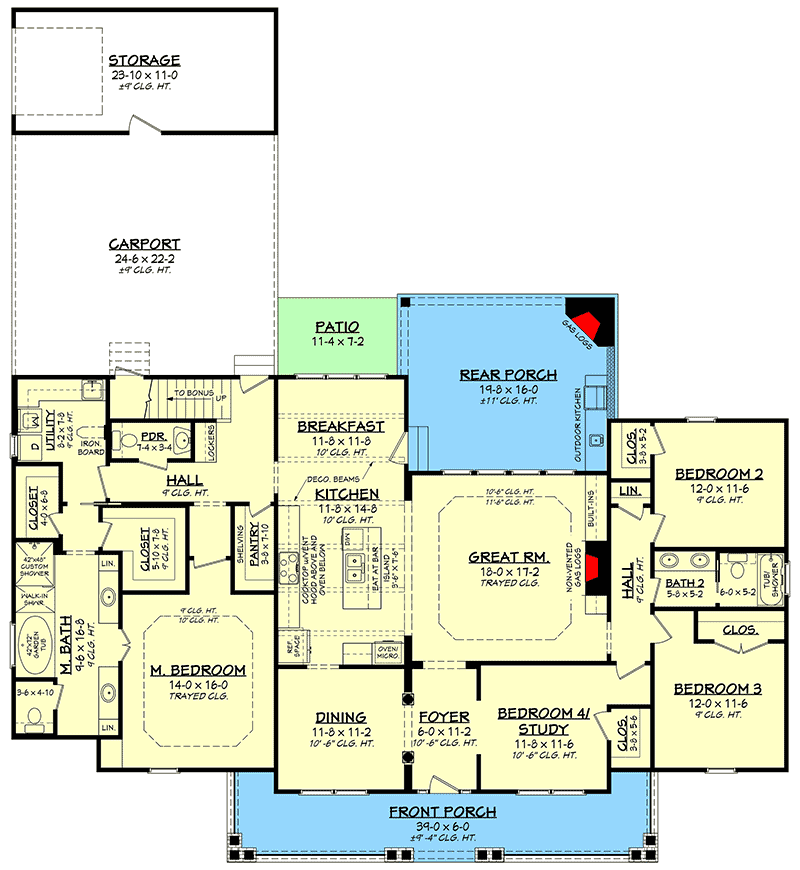

Main Level
floor plan image Main Level

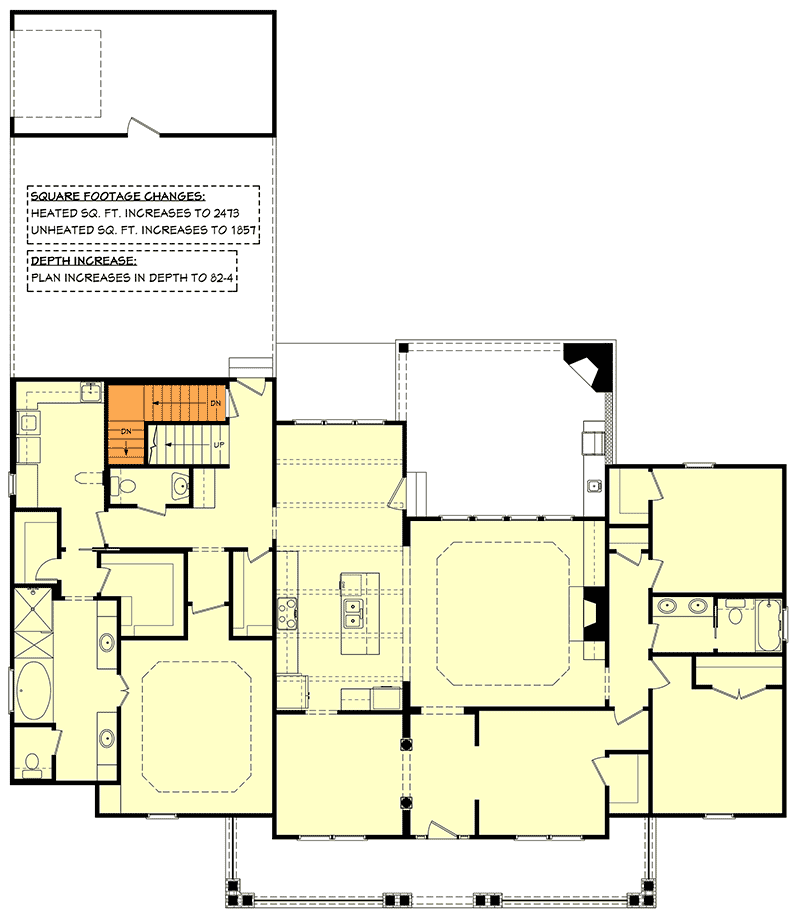

Optional
floor plan image Optional

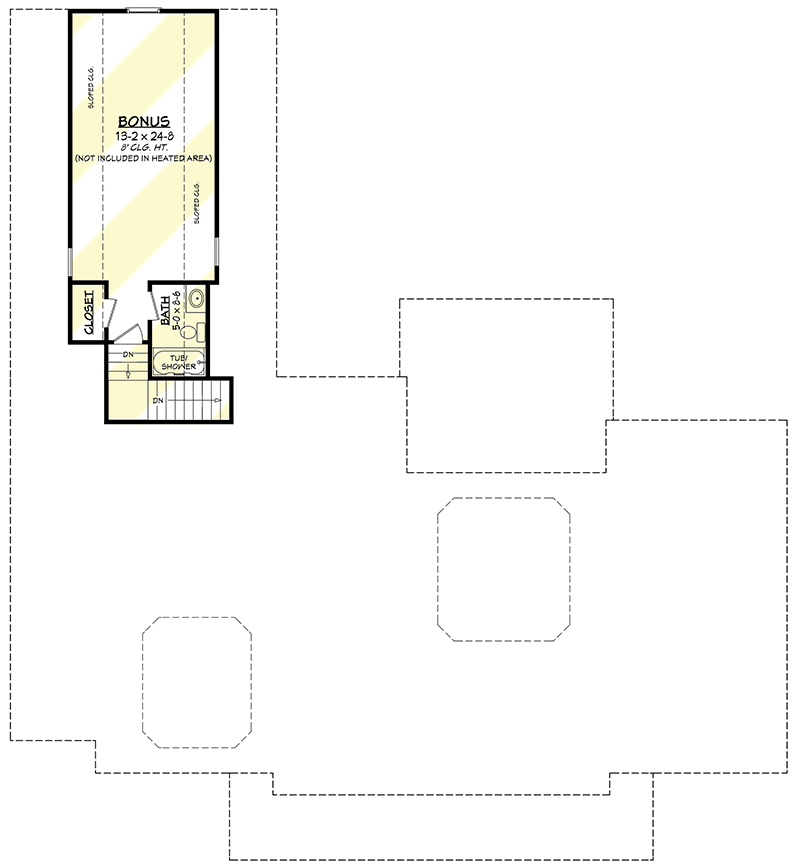

Bonus
floor plan image Bonus
Plan Details

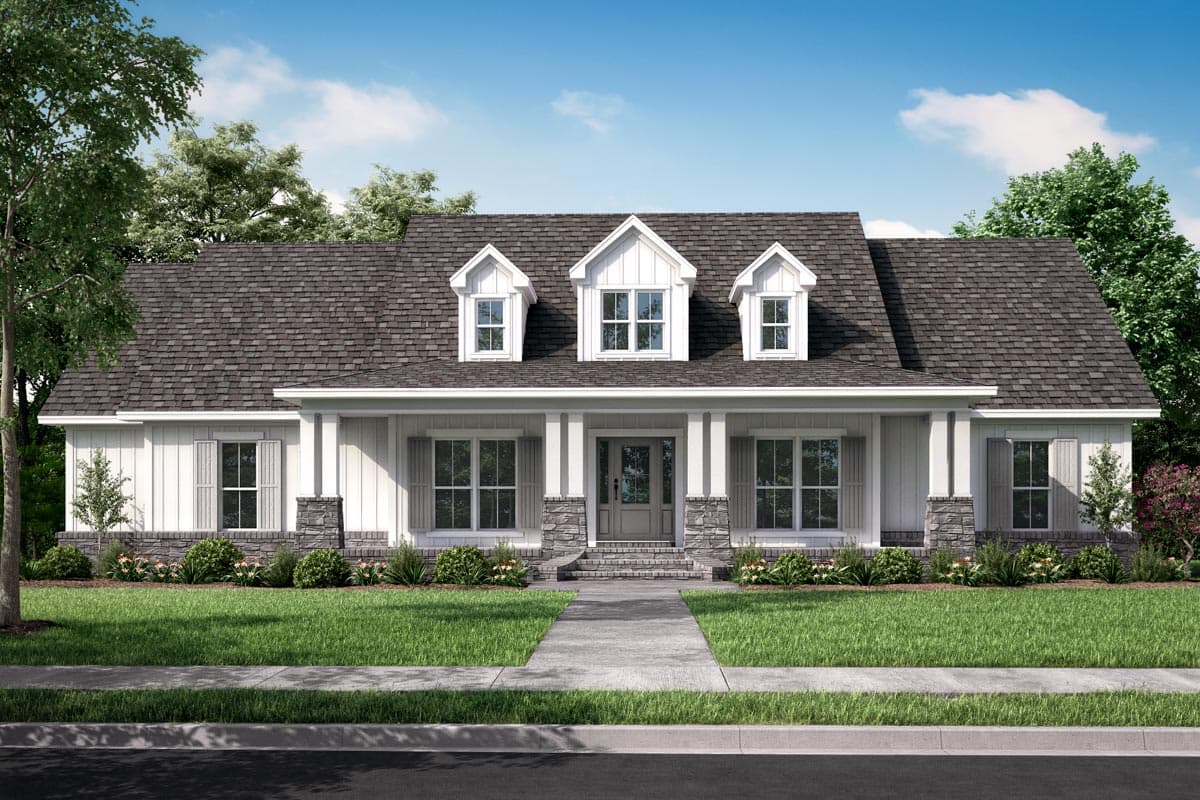

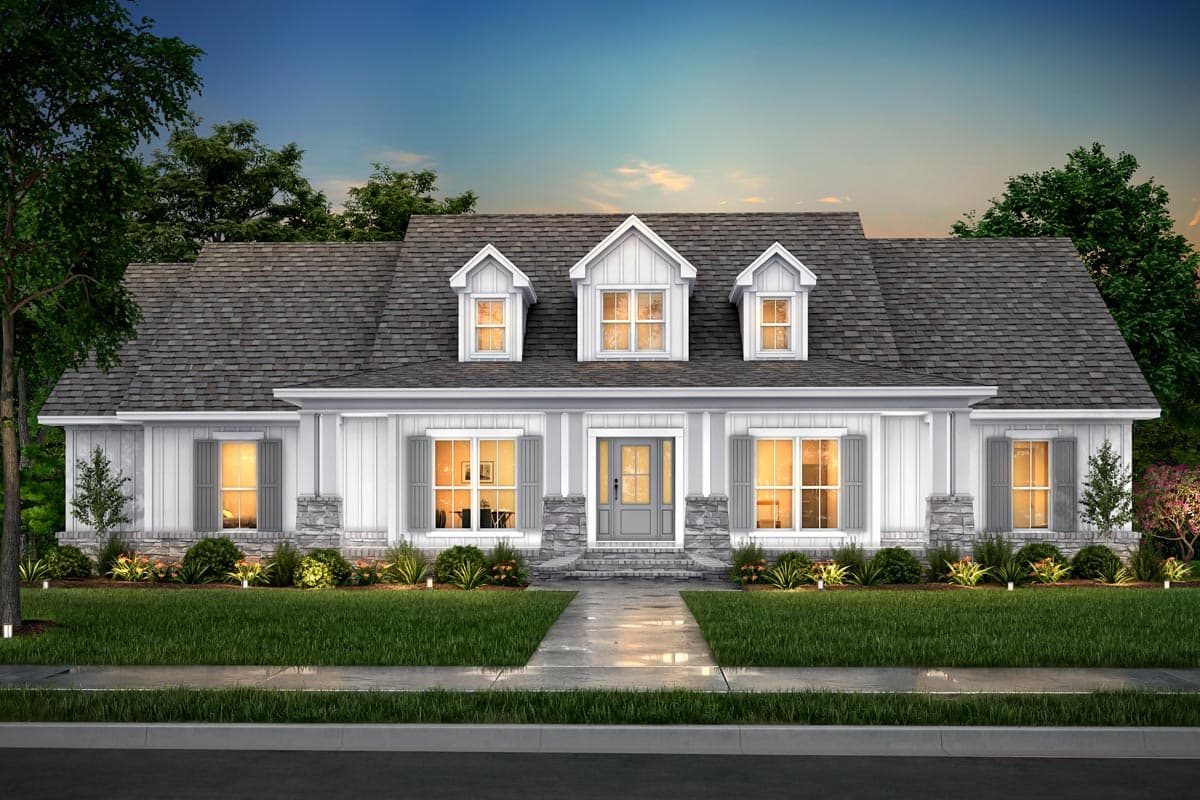

  • This attractive country-style house plan with wide front porch and deep back porch a homeowner's delight.
  • The kitchen is large and inviting with a raised bar for seating, double ovens, large cooktop, and lots of cabinets for storage.
  • A bank of three windows in the breakfast nook brings light into the kitchen with its raised eating bar and the formal dining room is close to the kitchen for convenience.
  • The open great room has a gas fireplace, raised ceilings, built-in entertainment center and views to the rear.
  • The master suite offers raised ceilings, dual sinks, large jet tub, separate shower and large his and hers walk-in closets.
  • This plan has a bonus room that could be used as an extra bedroom or game room.
  • The basement version extends the master suite back to fit the stairs going down as shown.
  • The main roof pitch is 10:12 and the secondary pitch is 12:12.
  • Related Plan: Slide the garage forward with house plan 11747HZ.
What's Included
  • Cover Sheet with abbreviations, rendering, sheet index
  • Foundation plan with details
  • Detailed floor plan (includes window sizes, ceiling joist directions, plumbing fixture locations, etc.)

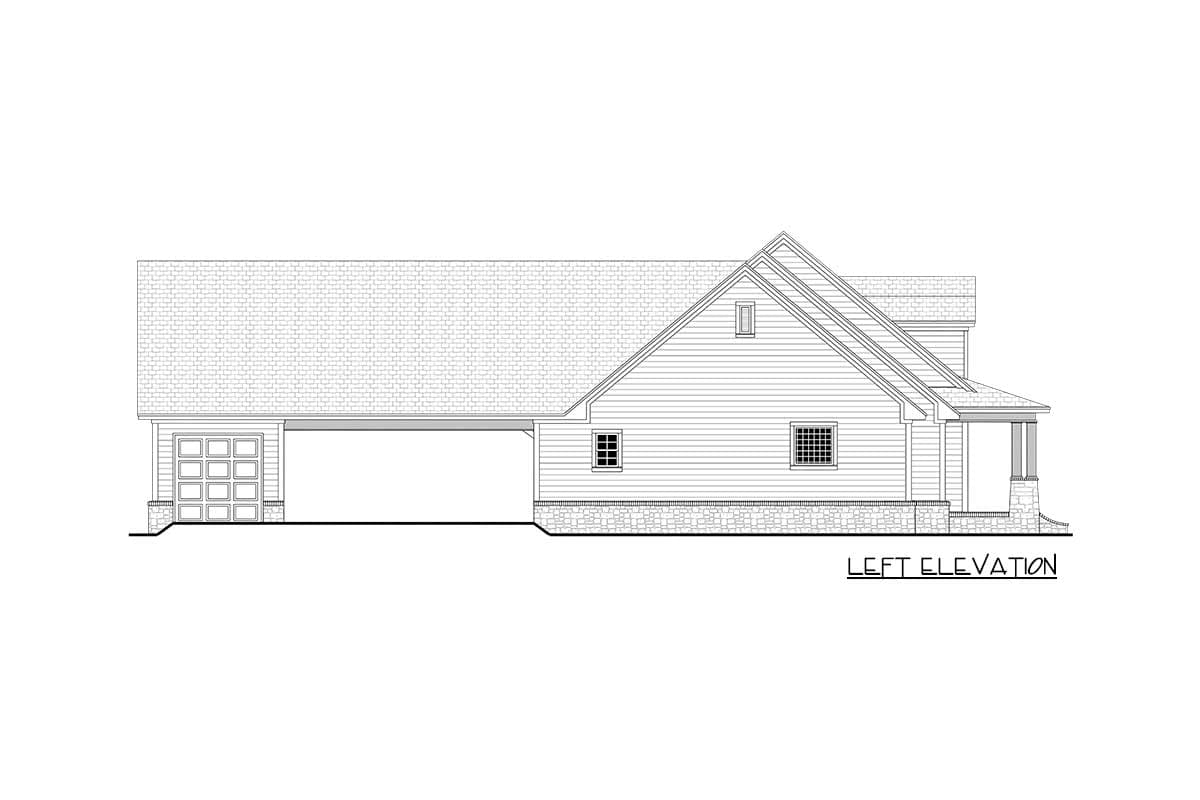

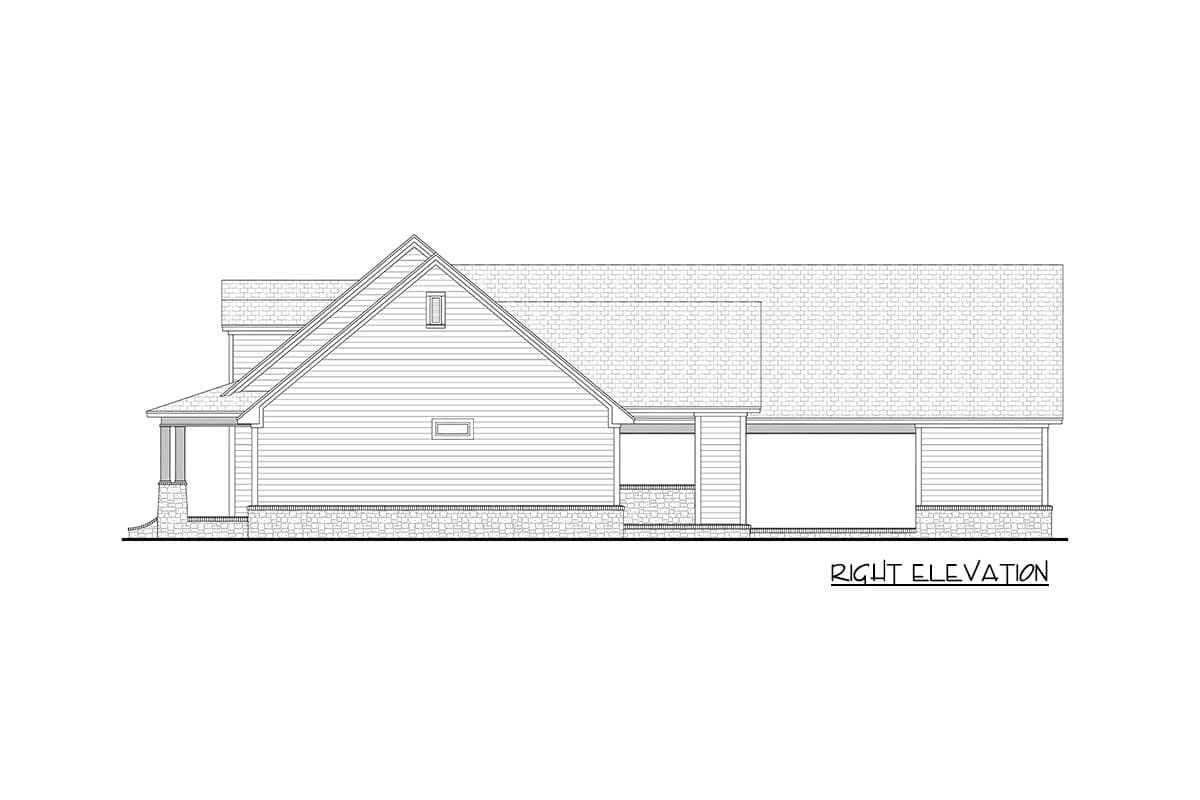

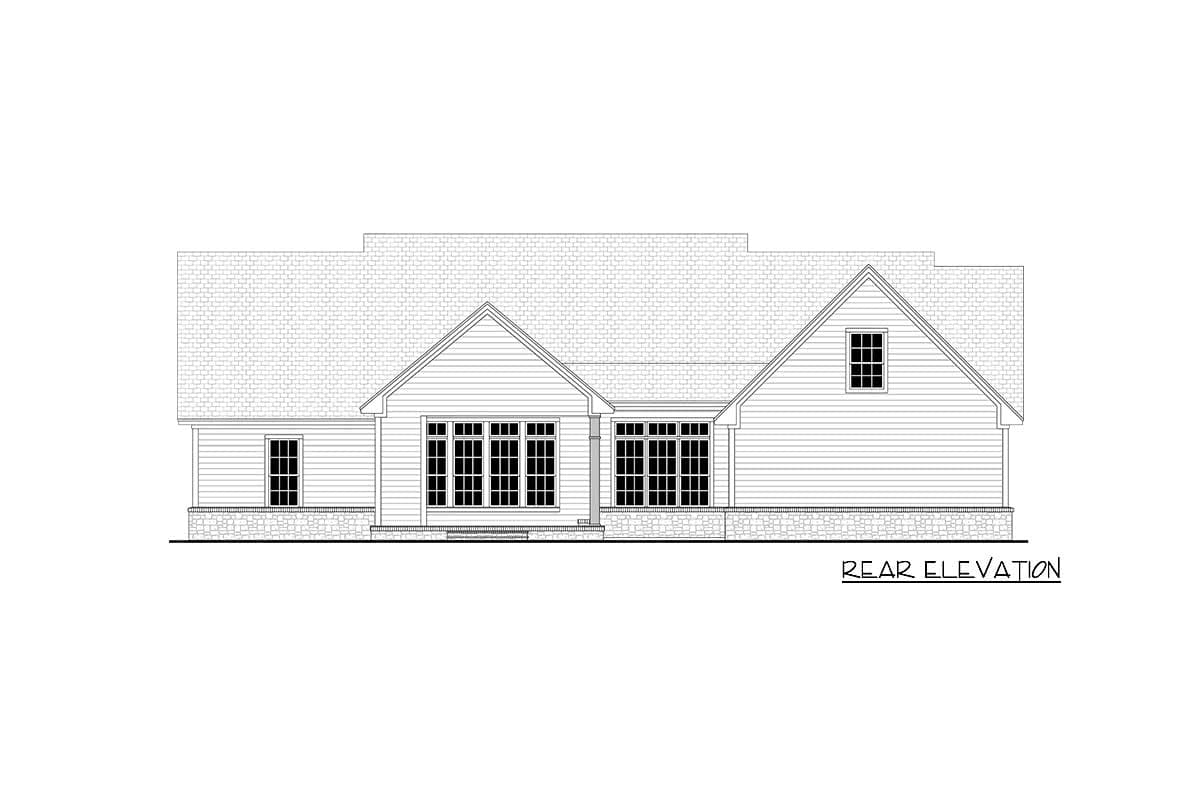

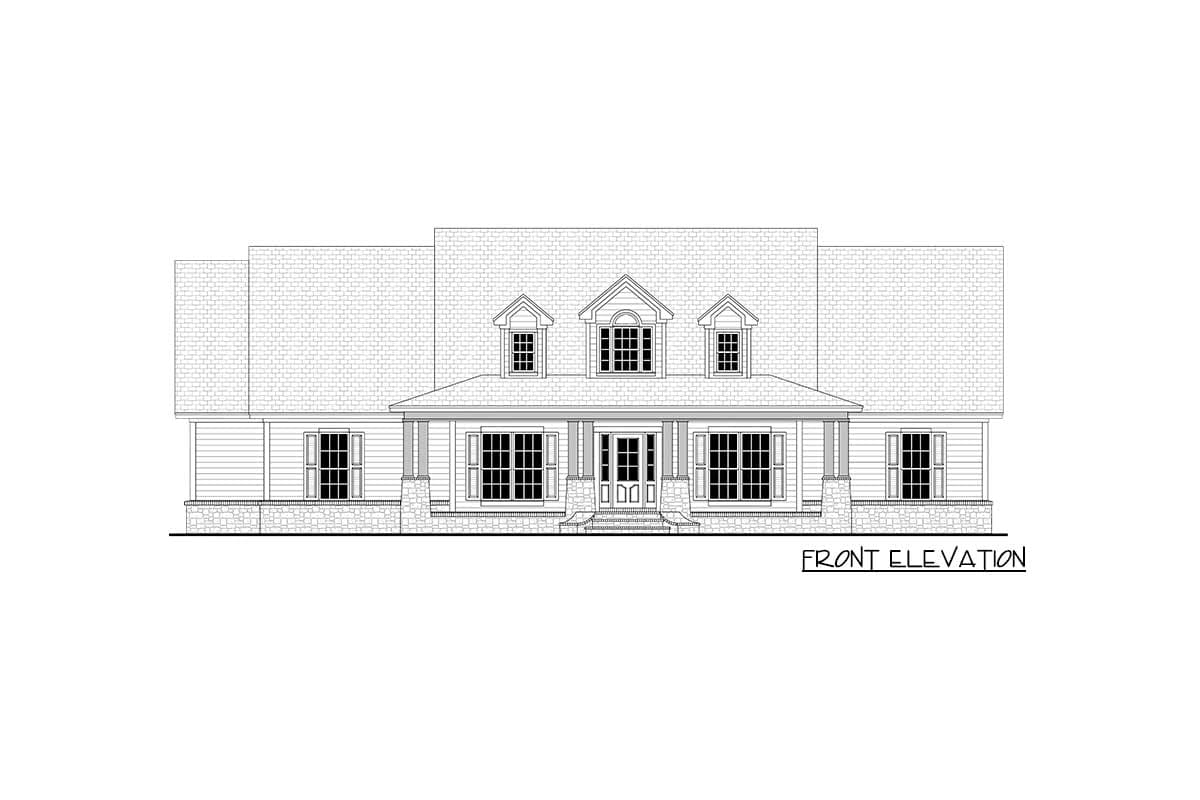

  • Four exterior views (front, rear, right, left)
  • Roof plan (birds eye view of roof)
  • Building section
  • Kitchen cabinet views
  • Electrical plan
  • Span charts and other misc details

View Sample Plan
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • REScheck or other energy related calculations are NOT included.
  • Wind load or seismic calculations are NOT included.
  • Framing plans or beam sizes are NOT included.
  • Other specific drawings that your local permit office may require
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.

Square Footage Breakdown

Total Heated Area

2,420 sq. ft.

1st Floor

2,420 sq. ft.

Bonus

440 sq. ft.

Porch, Front

250 sq. ft.

Porch, Rear

306 sq. ft.

Storage

278 sq. ft.

Beds/Baths

Bedrooms

3 or 4

Full bathrooms

2 or 3

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

71' 6"

Depth

78' 4"

Max Ridge Height

24' 8"

Garage

Type

Carport, Attached

Area

551 sq. ft.

Count

3 Cars

Entry Location

Rear, Side

Ceiling Heights

Lower Level

9' 4"

First Floor

10'

Roof Details

Primary Pitch

10 on 12

Secondary Pitch

12 on 12

Framing Type

Stick

Architectural Style

Country

Southern

Special Features

Bedrooms - Split

Bonus Room

Breakfast Nook

Butler Walk-in Pantry

Formal Dining

Game/Rec Room

Laundry Access from Master Suite

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Plan Collections

USDA Approved
