Plan 50179PH
Flexible Craftsman Bungalow with 3 or 4 Beds
Heated S.F.
2,268
Beds
4
Baths
3
Stories
2
Floor Plan

Plan 50179PH

Main Level
slide image 0
2nd Floor
slide image 1

Plan 50179PH

1-800-854-7852

1-262-521-4596

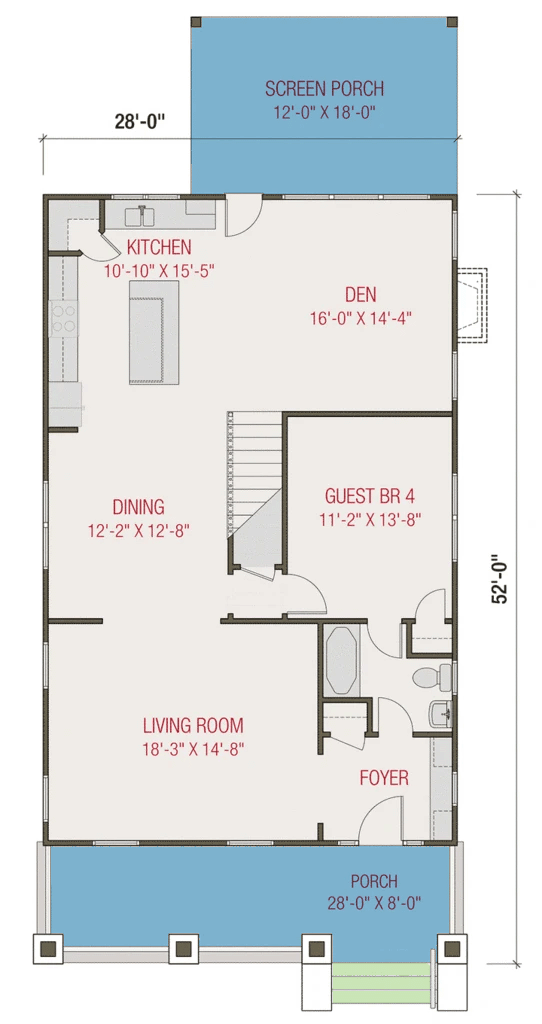

Main Level
floor plan image Main Level

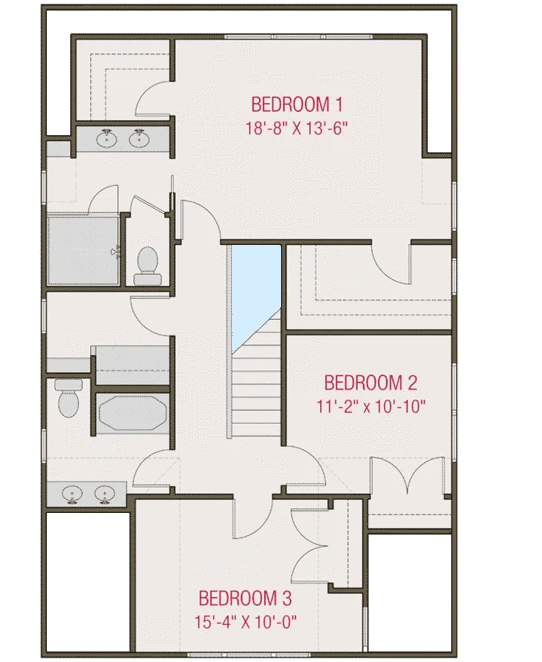

2nd Floor
floor plan image 2nd Floor
Plan Details

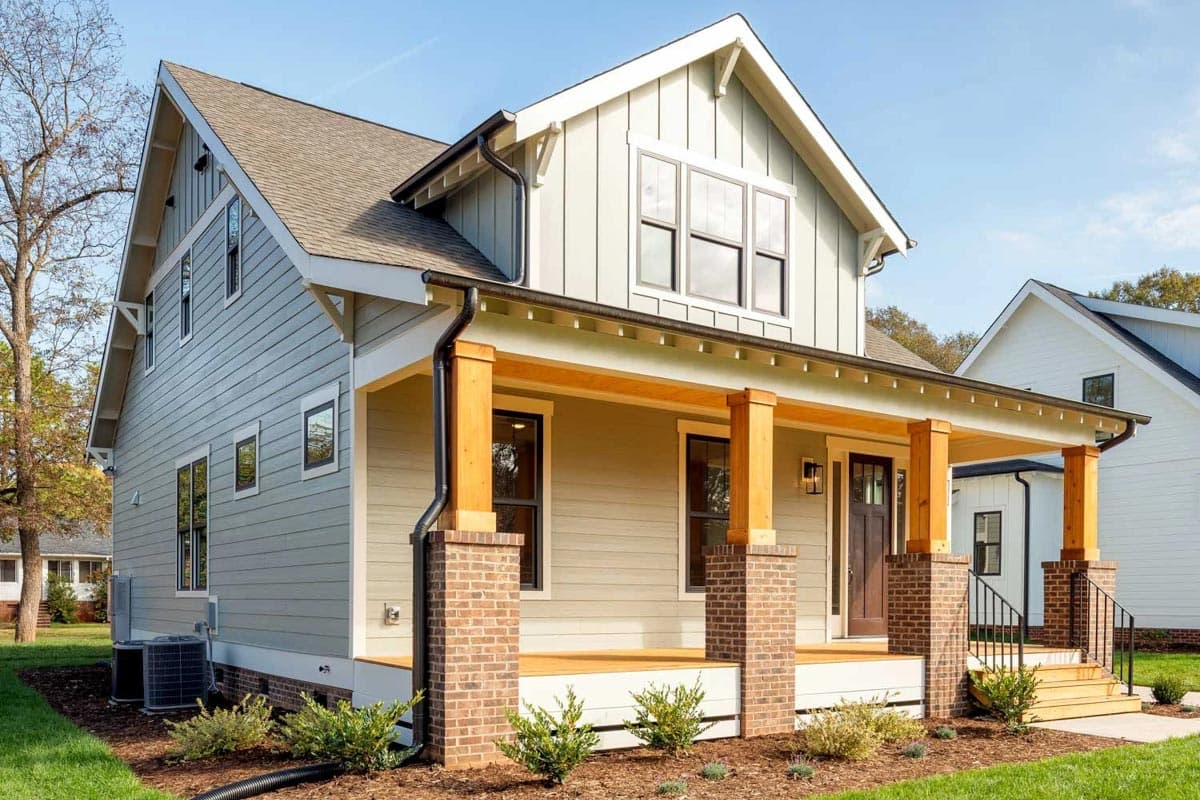

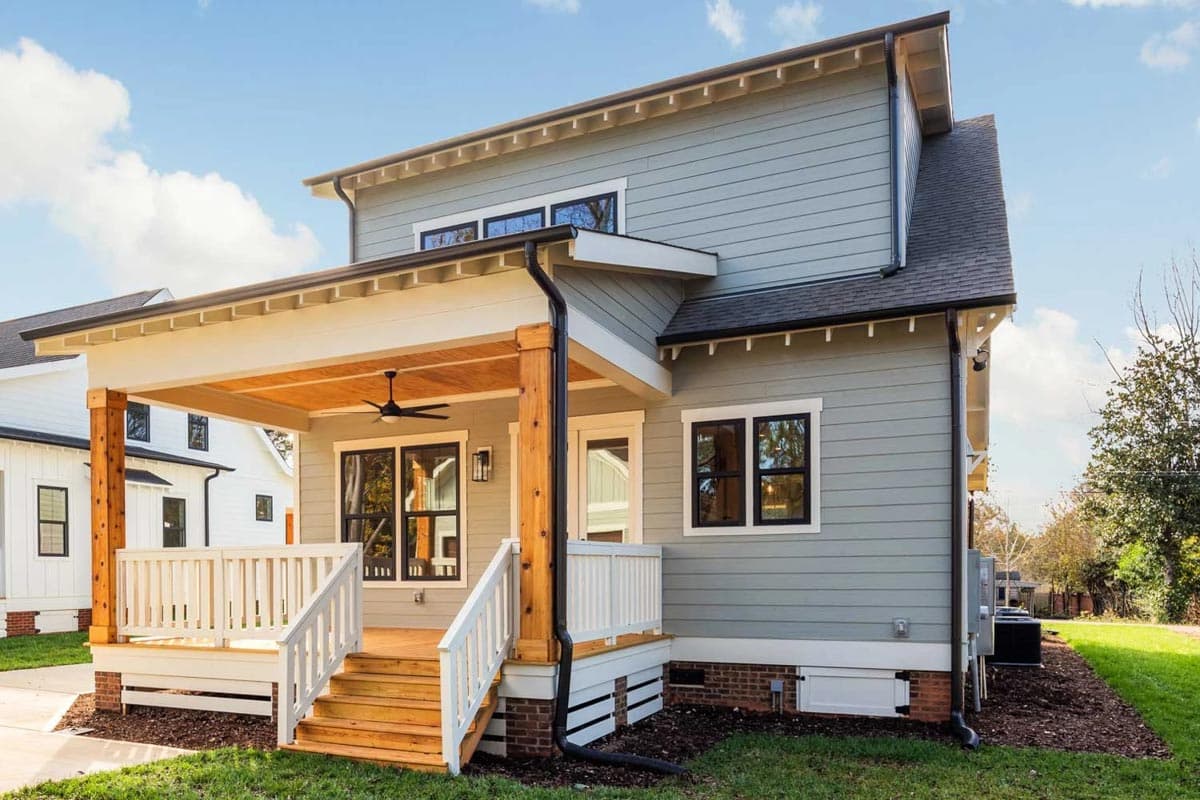

  • This classic Craftsman bungalow cottage is both beautiful and cost efficient. A front porch with a large gable give it great curb appeal.
  • A simple roofline and rectangular foundation shape keeps costs down so you can put the savings into things like energy-efficient appliances and extra insulation.
  • The well-functioning living space means less energy is needed over the life of the home.

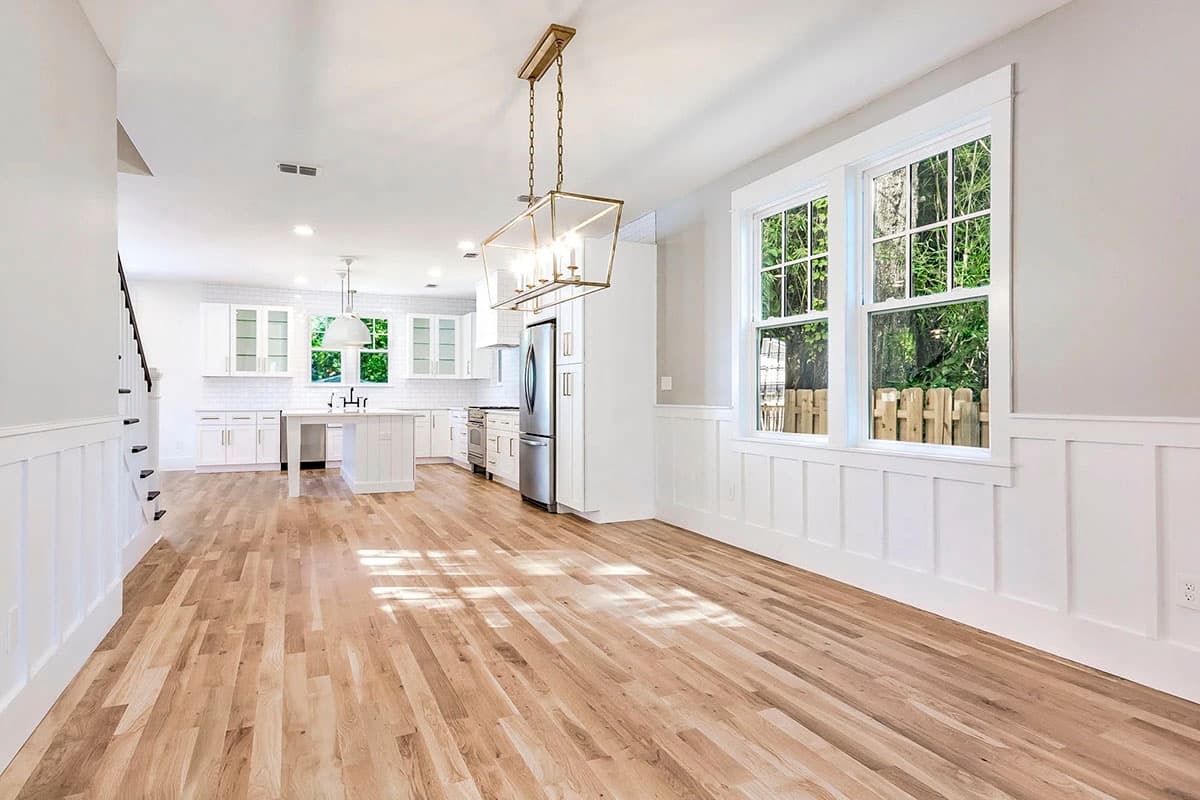

  • An open floor plan and flex space that can be used differently by each homeowner are added bonuses.
  • Upstairs, three bedrooms and two baths complete the home.
  • Related Plans: Get alternate versions with house plans 50102PH (2,095 sq. ft.), 50116PH and 50146PH (2,175 sq. ft.), 50147PH (2,268 sq. ft.), 50151PH (2,580 sq. ft.), 50187PH (2,590 sq. ft.) and 50123PH (3,570 sq. ft. with a finished lower level).
What's Included
  • Foundation Plan: Includes detailed information about the foundation layout including concrete walls, footings, pads, posts, beams, bearing walls, and foundation notes. If the home features a basement, the first-floor framing details may also be included on this plan. If your plan features slab construction rather than a basement, the plan shows footings and details for a monolithic slab. This page, or another in the set, may include a sample plot plan for locating your house on a building site. Additional sheets focus on foundation cross-sections and other details. In some instances a designer may only provide what is commonly referred to as a foundation schematic or plumbing plan. These types of drawings only show the footprint of the foundation and do not include foundation construction details.
  • Floor Plans: Show the layout of each floor of the house. Rooms and interior spaces are carefully dimensioned and include locations of doors and windows. Plans will also include and markers indicating cross-section details provided elsewhere in the plans if applicable.
  • Building Sections: Building sections show changes in floor, ceiling, or roof height, and / or the relationship of one level to another. These sections show how the various parts of the house fit together and are valuable during construction.
  • Electrical Plans: The electrical plan offers suggested locations with notes for all lighting, outlets, switches, and some other electrical appliances. A layout is provided for each level, as well as basements, garages, or other structures. This plan does not contain diagrams detailing how all wiring should be run, or how circuits should be engineered. These details should be designed by your electrician.
  • Exterior Elevations: In addition to the front exterior, your drawing set will include drawings of the rear and sides of your house as well. These drawings give notes on exterior materials and finishes. Particular attention is given to cornice detail, brick and stone accents, or other finish items that make your home unique.
  • Construction Details: Most drawings sets include typical construction details. These details may include the foundation, interior walls, exterior walls, floors, stairways, and / or roof details. NOTE: A majority of our plans include construction details but some do not.
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Framing Plans
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

2,268 sq. ft.

1st Floor

1,232 sq. ft.

2nd Floor

1,036 sq. ft.

Porch, Combined

224 sq. ft.

Deck

216 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

3

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

28' 0"

Depth

52' 0"

Max Ridge Height

25' 0"

Ceiling Heights

First Floor

10'

Second Floor

9'

Roof Details

Framing Type

Stick

Architectural Style

Bungalow

Cottage

Craftsman

Special Features

Den

Flex Room

Laundry - Upstairs

Master Suite - 2nd Floor
