Flexible Craftsman Carriage House Plan with Double Garage - 887 Sq Ft
Heated S.F.
887
Beds
1
Baths
1
Stories
2
Cars
2
Floor Plan

Plan 765035TWN

Main Level
slide image 0

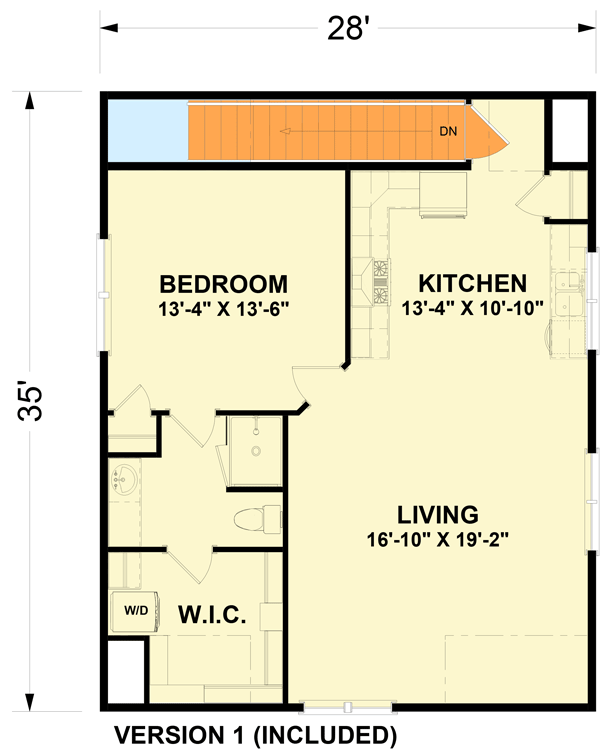

2nd Floor
slide image 1
Bathroom Option 2
slide image 2
Bathroom Option 3
slide image 3

Plan 765035TWN

1-800-854-7852

1-262-521-4596

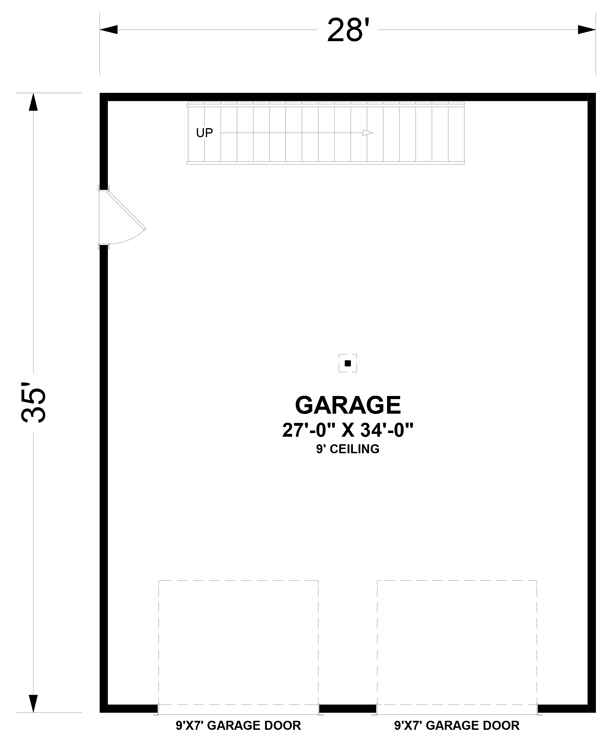

Main Level
floor plan image Main Level
2nd Floor
floor plan image 2nd Floor

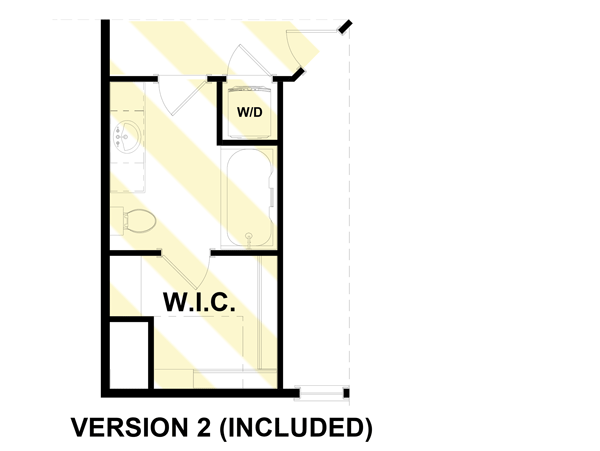

Bathroom Option 2
floor plan image Bathroom Option 2

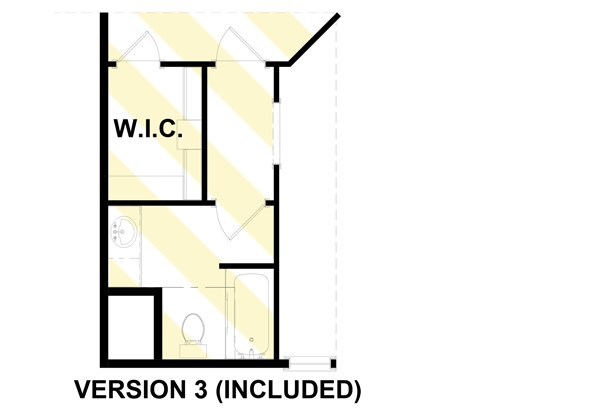

Bathroom Option 3
floor plan image Bathroom Option 3
Plan Details
  • Craftsman details on the exterior of this Carriage house plan lend curb appeal and character to the design.
  • The rectangular footprint creates an extra-deep double garage on the main level with a man door on the left elevation.
  • Access the 1-bedroom apartment from the staircase towards the rear of the garage.
  • Inside, the living, dining, and kitchen areas are open to one another. U-shaped cabinetry defines the kitchen and provides plenty of workspace.
  • The flexible floor plan offers a variety of layout options for the 4-fixture bathroom and walk-in closet / laundry combo.
  • Related Plans: Move the stairs outside and get a little more living space with with carriage house plan 765034TWN and 765010TWN (25' deep).
  • DELIVERY NOTE: Please allow 10 to 15 days for delivery if it includes readable reverse.
What's Included
  • Cover sheet with general notes
  • Foundation page
  • Detailed floor plans
  • Roof plan
  • Electrical plans
  • Elevations
  • Typical wall section and cross section
  • General details
  • Cabinet elevations
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

887 sq. ft.

2nd Floor

887 sq. ft.

Beds/Baths

Bedrooms

1

Full bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

28' 0"

Depth

35' 0"

Max Ridge Height

26' 11"

Garage

Area

980 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Second Floor

9'

Roof Details

Primary Pitch

10 on 12

Architectural Style

Carriage

Cottage

Country

Craftsman

Traditional

Special Features

Laundry Access from Master Suite

Laundry - Upstairs

Master Suite - 2nd Floor

Plan Collections

ADU

Exclusive

Square Footage Breakdown

Total Heated Area

887 sq. ft.

2nd Floor

887 sq. ft.

Beds/Baths

Bedrooms

1

Full bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

28' 0"

Depth

35' 0"

Max Ridge Height

26' 11"

Garage

Area

980 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Second Floor

9'

Roof Details

Primary Pitch

10 on 12

Architectural Style

Carriage

Cottage

Country

Craftsman

Traditional

Special Features

Laundry Access from Master Suite

Laundry - Upstairs

Master Suite - 2nd Floor

Plan Collections

ADU

Exclusive
