Plan 22115SL
Flexible Garage Apartment
Heated S.F.
511
Beds
1
Baths
1
Stories
2
Cars
2
Floor Plan

Plan 22115SL

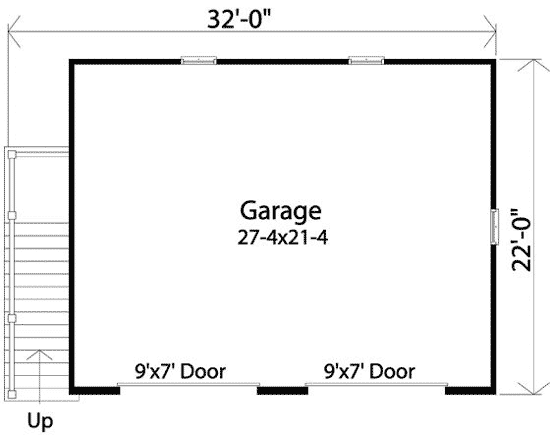

Main Level
slide image 0

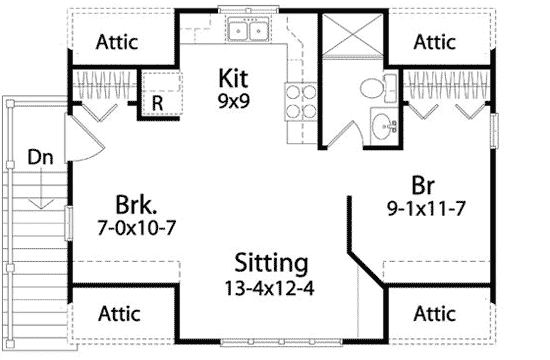

2nd Floor
slide image 1

Plan 22115SL

1-800-854-7852

1-262-521-4596

Main Level
floor plan image Main Level
2nd Floor
floor plan image 2nd Floor
Plan Details
  • Ideal for extra parking with room for visitors or your college student, this two-car garage plan hosts a comfortable one bedroom apartment above.
  • Two 9'x7' over head doors open to the garage area featuring 583 square feet of parking area or storage.
  • Exterior stairs lead to the upstairs apartment providing an open floor plan with compact kitchen and flexible living area.
  • One bedroom and one bath will accommodate your guest's needs.
  • Increase your living and parking space with this garage apartment plan.
  • Related Plans: Get a shed dormer with plan 22074SL.
  • Finish the upper floor later with plan 22078SL.
What's Included
  • Foundation plan
  • Fully dimensioned floor plans

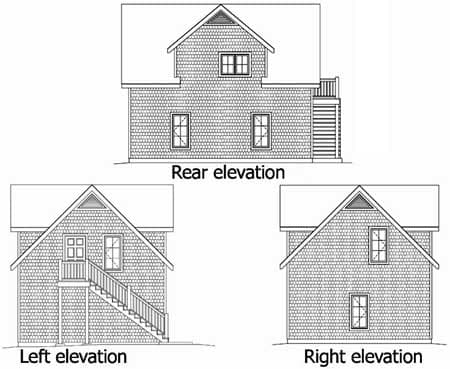

  • Exterior elevations
  • Roof plan
  • Electrical plan
  • Cabinet elevations
  • Building section
  • Typical stair and wall sections and other related details
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

511 sq. ft.

1st Floor

511 sq. ft.

Beds/Baths

Bedrooms

1

Full bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

28' 0"

Depth

22' 0"

Max Ridge Height

24' 2"

Garage

Type

Detached

Area

583 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

8'

Second Floor

8'

Roof Details

Primary Pitch

14 on 12

Secondary Pitch

12 on 12

Framing Type

Truss

Architectural Style

Carriage

Special Features

Master Suite - 2nd Floor
