Plan 710043BTZ
Flexible House Plan with Possible Upstairs Children's Retreat
Heated S.F.
3,954
Beds
3 - 5
Baths
5.5
Stories
2
Cars
3
Floor Plan

Plan 710043BTZ

Main Level
slide image 0
2nd Floor
slide image 1

Plan 710043BTZ

1-800-854-7852

1-262-521-4596

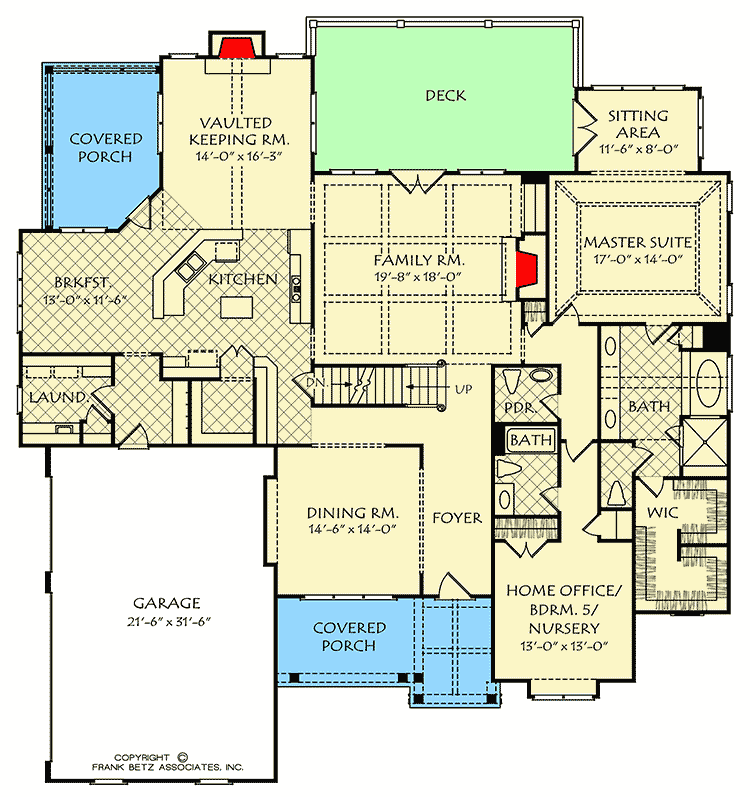

Main Level
floor plan image Main Level

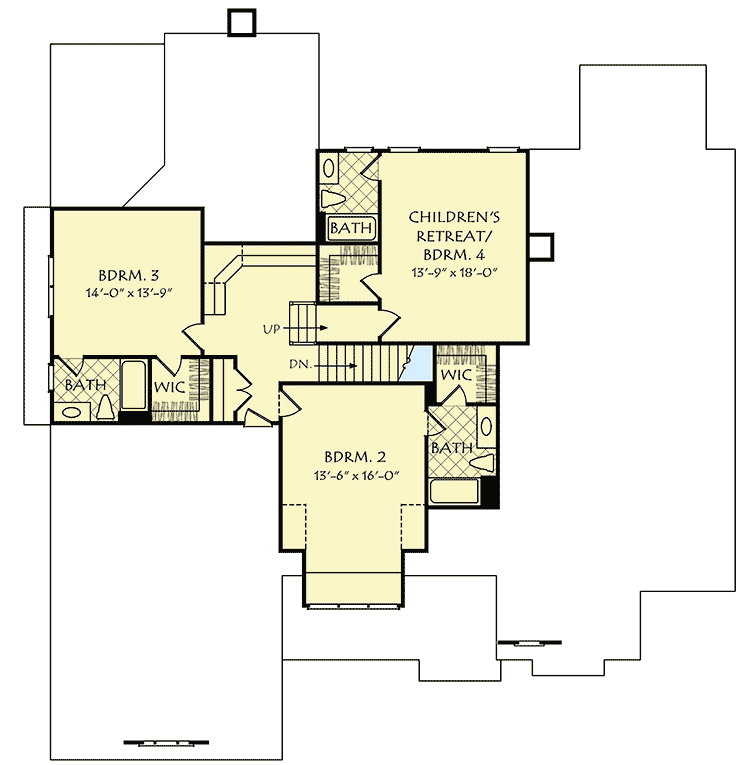

2nd Floor
floor plan image 2nd Floor
Plan Details

  • Rustic brick and dark features encompass the front of this attractive house plan, while an abundance of windows allow for plenty of natural light to be let in. Depending on how you use the rooms you can get anywhere from three to five bedrooms.
  • The large kitchen and breakfast area are found off the three-car garage, with the laundry room conveniently located nearby. A lovely covered porch and vaulted keeping room with a fireplace are just a few steps away. The family room opens up to the spacious back deck, perfect for warm summer nights spent with the family.
  • The right wing of the main floor is where the master suite resides, which includes a sitting area, bath with his-and-her sinks and a sizable walk-in closet.
  • Upstairs, a work area for the children is at the top of the landing. Two more bedrooms with their own personal baths as well as a large children's retreat are found on this floor.
  • Related Plans: Get alternate exteriors with house plans 710042BTZ and 710044BTZ.

What's Included
  • Elevations -  at 1/4" or 3/16" and the side and rear elevations at 1/8" scale. The elevations show and note the exterior finished materials of the house.
  • Foundation - every plan is available with a walkout style basement (three masonry walls and one wood framed rear wall with windows and doors).  The basement plans are a 1/4" or 3/16" scale layout of unfinished spaces showing only the necessary 2 x 6 wood framed load bearing walls.  These plans are completed with dimensions, door/window sizes.  Crawlspace and/or slab on grade foundations are available for some plans.
  • Floor plan - each plan consists of 1/4" or 3/16" scale layouts showing the location of 2 x 4 walls, doors, windows, plumbing fixtures, cabinetry, stairs and decorative ceilings. These plans are complete with dimensions, notes, door/window sizes and a schematic electrical layout.
  • Building sections - Take vertical cuts throughout the house and the stairs showing floor, ceiling and roof height information.
  • Floor framing - if included it shows each floor joist indicating the size, spacing and length.  All beams are sized and labeled.  Each framing plan sheet includes any framing details that are needed (tray details, connections details, etc. All framing is designed using conventional 2 x 10 floor joist or wood I-joist, depending on the span conditions of each home. FRAMING PLANS ARE NOT AVAILABLE for all home so please follow up with us for availability.
  • Ceiling framing - if included, it shows each ceiling joist indicating the size, spacing and length.  All beams are sized and labeled.  All of the joists are counted and coordinated with the material list.  FRAMING PLANS ARE NOT AVAILABLE for all home so please follow up with us for availability.
  • Roof framing - if included, shows each rafter, valley, hip and ridge indicating size, spacing and length.  All beams are sized and labeled.  All of the joists are counted and coordinated with the material list.  FRAMING PLANS ARE NOT AVAILABLE for all home so please follow up with us for availability.
  • Details sheets - shows foundation details, typical wall section and other framing details.  Also included are miscellaneous interior trim and fireplace details that can be used to customize the home.
What's Not Included
  • Architectural or Engineering Stamp
  • Site Plan
  • Mechanical Drawings (location of heating and air equipment and duct work)
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations)
  • Energy calculations
  • Windows and Doors Schedules

Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

3,954 sq. ft.

1st Floor

2,721 sq. ft.

2nd Floor

1,233 sq. ft.

Basement Unfinished

2,721 sq. ft.

Beds/Baths

Bedrooms

3, 4, or 5

Full bathrooms

5

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl, Slab, Walkout

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

67' 6"

Depth

71' 4"

Max Ridge Height

30' 0"

Garage

Type

Attached

Area

688 sq. ft.

Count

3 Cars

Entry Location

Side

Ceiling Heights

First Floor

10'

Second Floor

9'

Roof Details

Primary Pitch

10 on 12

Framing Type

Stick

Architectural Style

Country

Craftsman

Special Features

Butler Walk-in Pantry

Keeping Room

Laundry - Main Level

Master Suite - 1st Floor

Master Suite - Sitting Area
