Plan 62117V
Flexible Space in Multiple Versions
Heated S.F.
2,280
Beds
3 - 4
Baths
2.5
Stories
1
Cars
2
Floor Plan

Plan 62117V

Main Level
slide image 0
Bonus
slide image 1

Plan 62117V

1-800-854-7852

1-262-521-4596

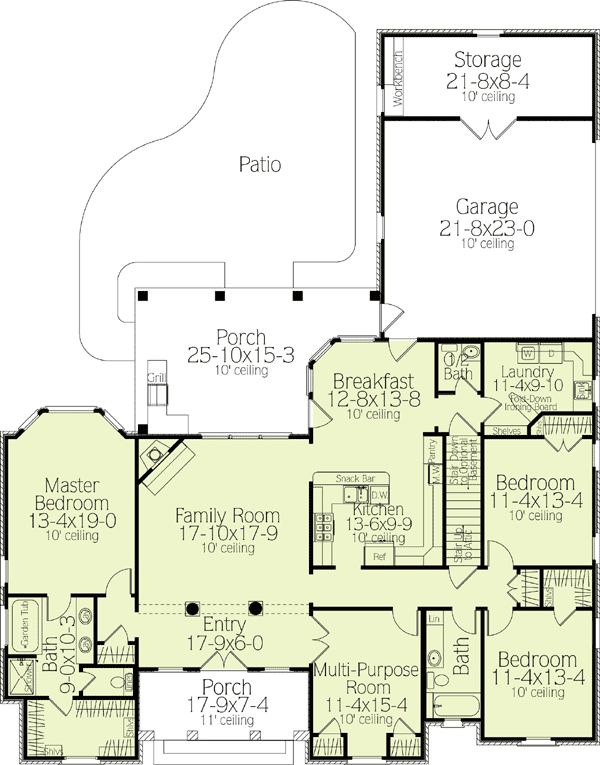

Main Level
floor plan image Main Level

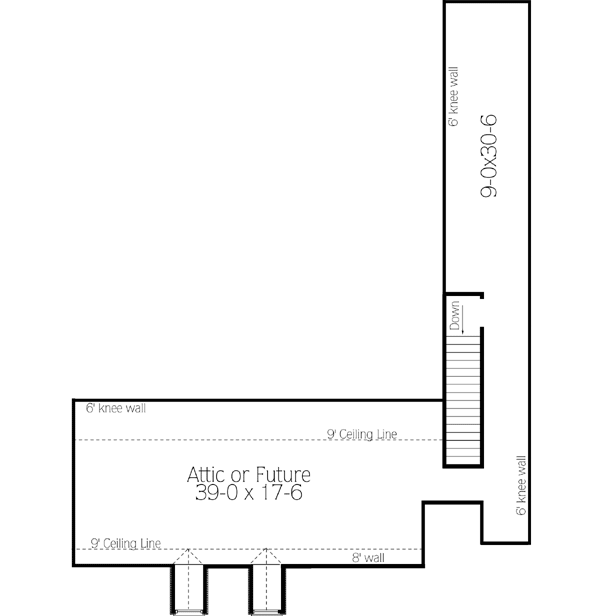

Bonus
floor plan image Bonus
Plan Details
  • A multi-purpose room on the main level and bonus space on the second floor give this home plan an abundance of possibilities for each owner.
  • Double doors off the porch lead to an entry that is open to the family room with fireplace and windows to the rear covered porch.
  • Imagine informal meals in your bright nook with porch access and the spacious kitchen nearby.
  • A split-bedroom floor plan locates the master suite with bayed sitting area opposite the two family bedrooms.
  • Related Plans: Building in reverse? See house plan 62126V. For an alternate layout, see 62116V.
What's Included
  • Covers sheet with construction notes
  • All elevations
  • Foundation
  • Fully dimensioned floor plan
  • Detail and section page
  • Cabinet elevations
  • Roof plan
  • Electrical plan
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

2,280 sq. ft.

1st Floor

2,280 sq. ft.

Bonus

1,166 sq. ft.

Porch, Front

130 sq. ft.

Porch, Rear

308 sq. ft.

Beds/Baths

Bedrooms

3 or 4

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

62' 11"

Depth

77' 1"

Max Ridge Height

30' 0"

Garage

Type

Attached

Area

757 sq. ft.

Count

2 Cars

Entry Location

Side

Ceiling Heights

First Floor

10'

Roof Details

Secondary Pitch

5 on 12

Framing Type

Stick

Architectural Style

Southern

Traditional

Special Features

Bedrooms - Split

Bonus Room

Breakfast Nook

Flex Room

Laundry - Main Level

Master Suite - 1st Floor

Master Suite - Sitting Area

Outdoor Kitchen

Square Footage Breakdown

Total Heated Area

2,280 sq. ft.

1st Floor

2,280 sq. ft.

Bonus

1,166 sq. ft.

Porch, Front

130 sq. ft.

Porch, Rear

308 sq. ft.

Beds/Baths

Bedrooms

3 or 4

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

62' 11"

Depth

77' 1"

Max Ridge Height

30' 0"

Garage

Type

Attached

Area

757 sq. ft.

Count

2 Cars

Entry Location

Side

Ceiling Heights

First Floor

10'

Roof Details

Secondary Pitch

5 on 12

Framing Type

Stick

Architectural Style

Southern

Traditional

Special Features

Bedrooms - Split

Bonus Room

Breakfast Nook

Flex Room

Laundry - Main Level

Master Suite - 1st Floor

Master Suite - Sitting Area

Outdoor Kitchen
