Plan 40514WM
Flexible Two-Story Cottage House Plan - 1683 Sq Ft
Heated S.F.
1,683
Beds
3
Baths
2.5
Stories
2
Floor Plan

Plan 40514WM

Main Level
slide image 0
2nd Floor
slide image 1

Plan 40514WM

1-800-854-7852

1-262-521-4596

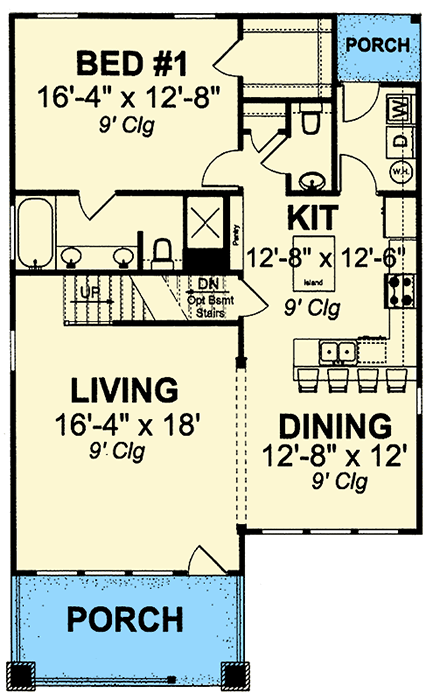

Main Level
floor plan image Main Level

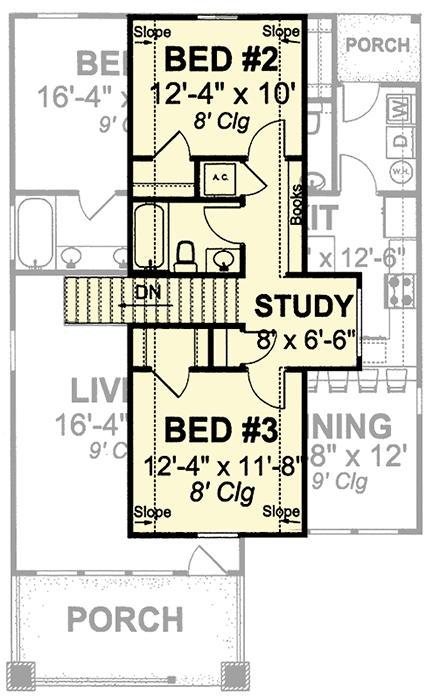

2nd Floor
floor plan image 2nd Floor
Plan Details
  • Designed for a narrow lot, this charming cottage is loaded with features such as an eating bar in the kitchen, a study loft and walk-in closets for each bedroom.
  • The large living room overlooks the front porch and is open to the dining area.
  • A first floor master suite has its own private bath with double sinks.
  • Related Plans: Get an attached garage with house plan 40515DB. Get a one-story version with house plans 40512DB (no garage) and 40513DB (two-car garage).
What's Included
  • Front elevation and construction notes

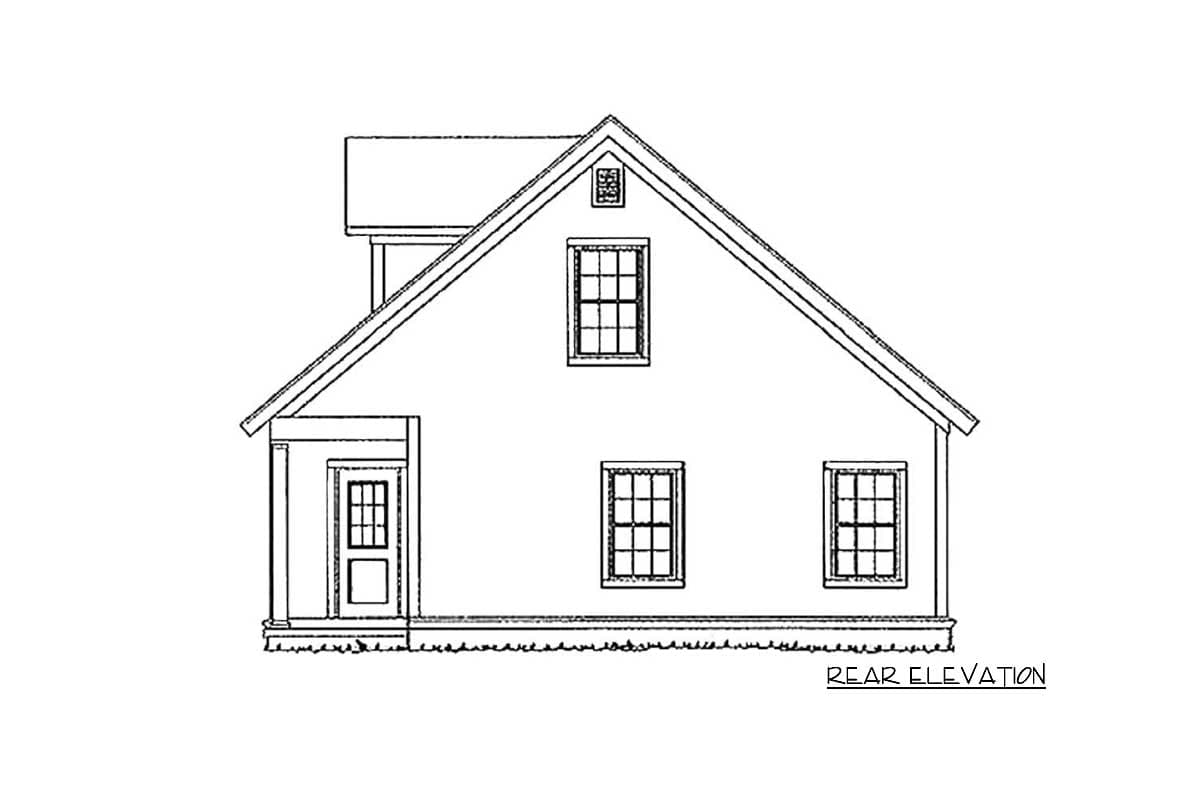

  • Rear and side elevations
  • Floor plan including electrical, window and door sizes, floor joist span direction and ceiling type notes (9' ceiling, vault, etc.)
  • Second floor plan (if applicable) with the same details as the first level floor plan
  • Typical wall section
  • Typical foundation details
  • Roof plan showing roof pitches, ridges and valleys, noted as 2" x 8" rafter or optional roof trusses
  • Foundation plan
  • Full building section
View Sample Plan
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

1,683 sq. ft.

1st Floor

1,160 sq. ft.

2nd Floor

523 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

30' 0"

Depth

49' 0"

Max Ridge Height

23' 0"

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

8 on 12

Secondary Pitch

8 on 12

Architectural Style

Cottage

Country

Special Features

Laundry - Main Level

Library/Study

Loft

Master Suite - 1st Floor

Mudroom

Square Footage Breakdown

Total Heated Area

1,683 sq. ft.

1st Floor

1,160 sq. ft.

2nd Floor

523 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

30' 0"

Depth

49' 0"

Max Ridge Height

23' 0"

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

8 on 12

Secondary Pitch

8 on 12

Architectural Style

Cottage

Country

Special Features

Laundry - Main Level

Library/Study

Loft

Master Suite - 1st Floor

Mudroom
