Plan 31830DN

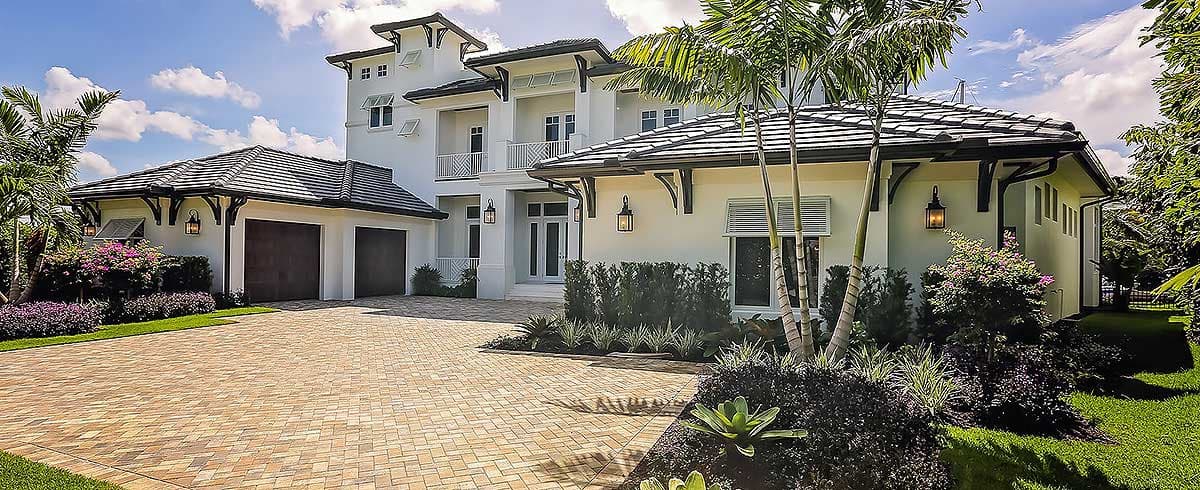

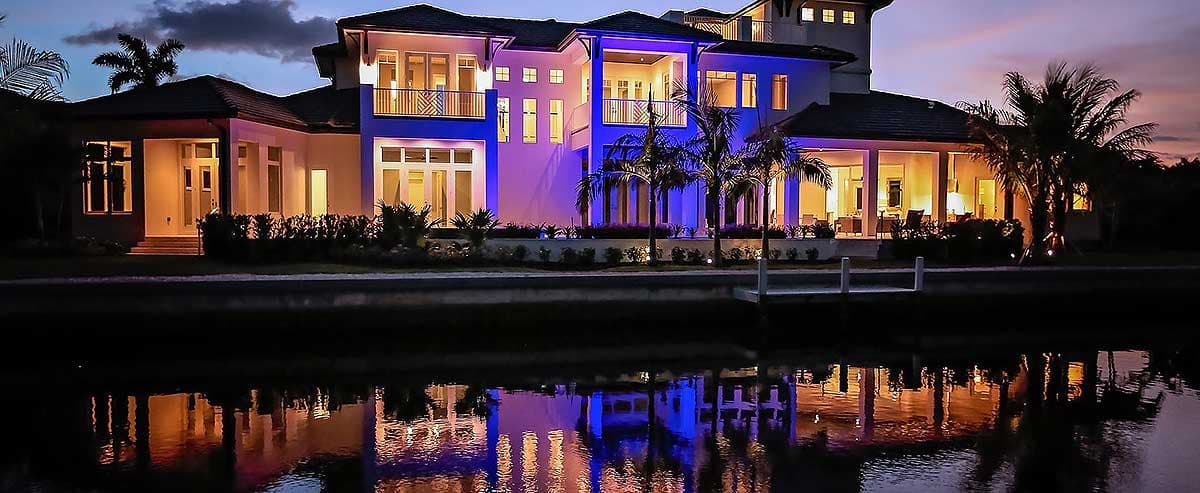

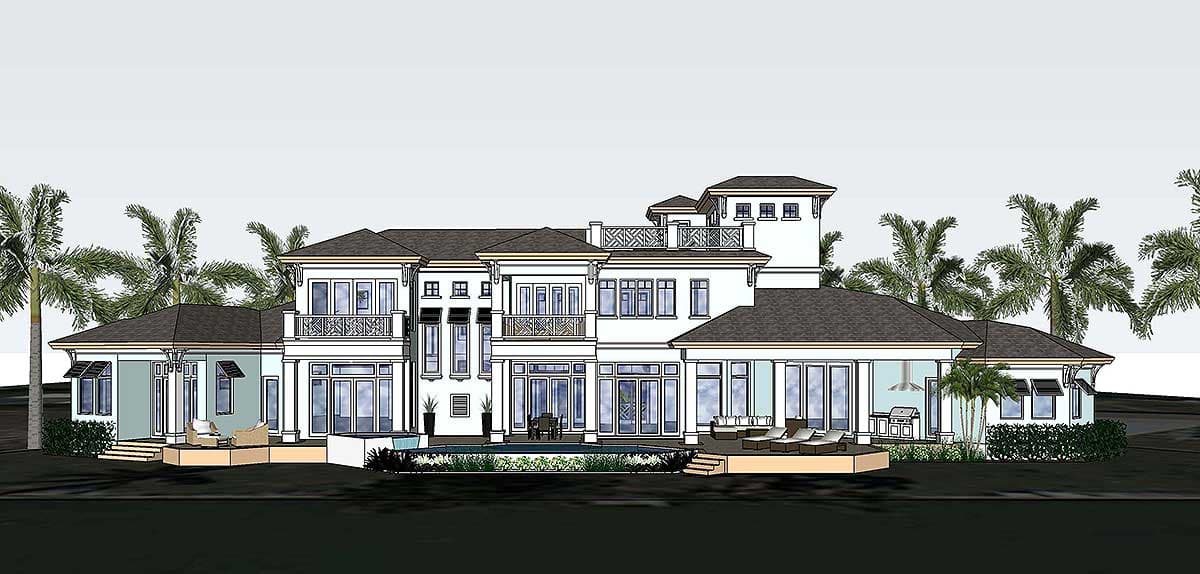

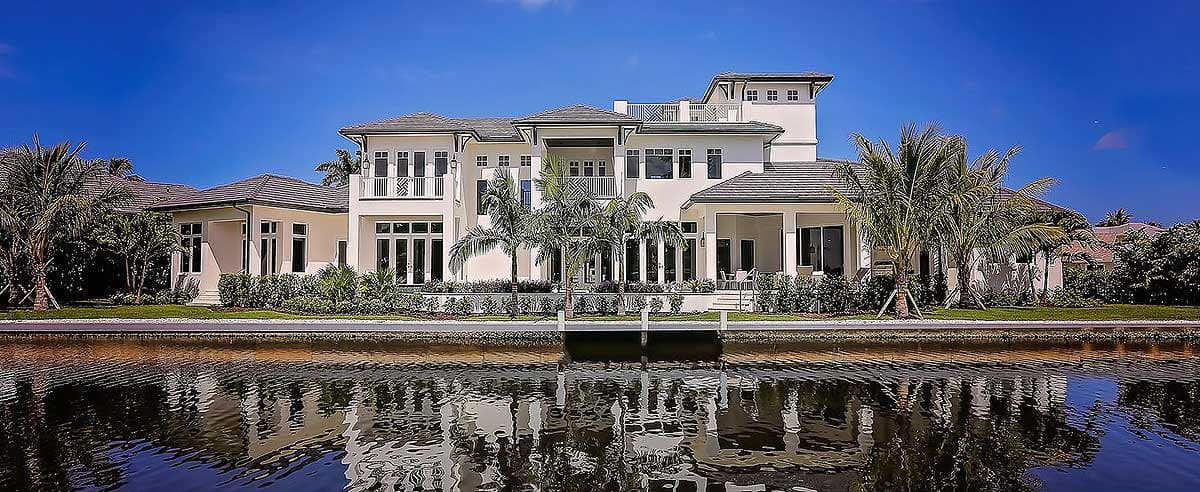

Florida House Plan with Third Floor Tower
Heated S.F.
5,093
Beds
4
Baths
5.5
Stories
2-3
Cars
3
Floor Plan

Plan 31830DN

Main Level
slide image 0
2nd Floor
slide image 1
3rd Floor
slide image 2

Plan 31830DN

1-800-854-7852

1-262-521-4596

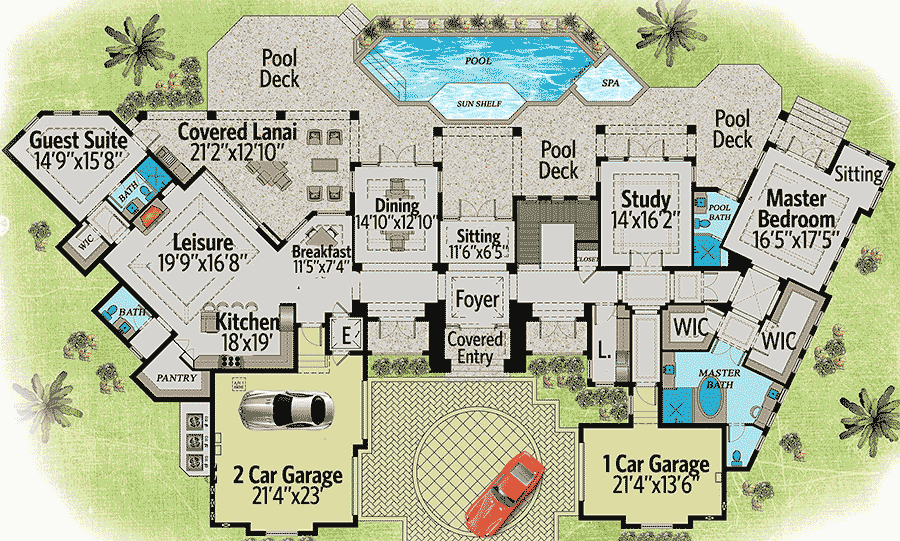

Main Level
floor plan image Main Level

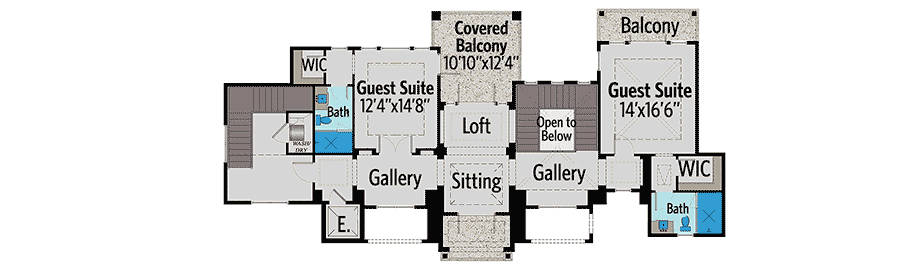

2nd Floor
floor plan image 2nd Floor

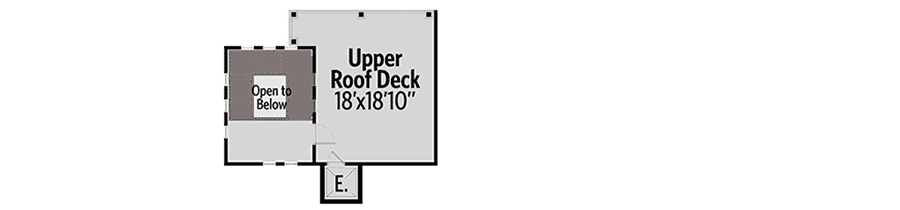

3rd Floor
floor plan image 3rd Floor
Plan Details
  • Panoramic views can be had on the third floor roof deck of this opulent Florida house plan.
  • Don't want to climb stairs? Take the residential elevator that gets you there effortlessly.

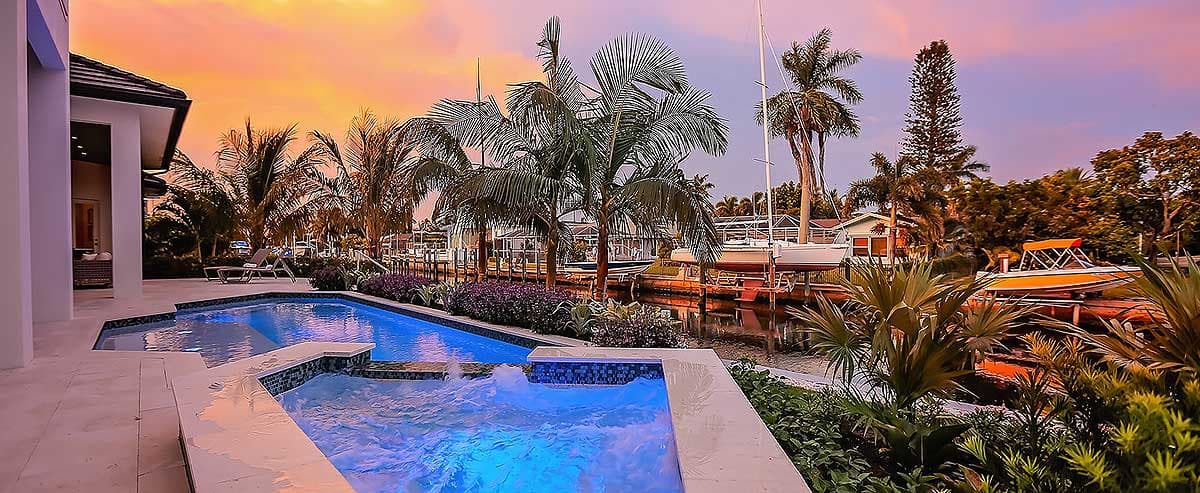

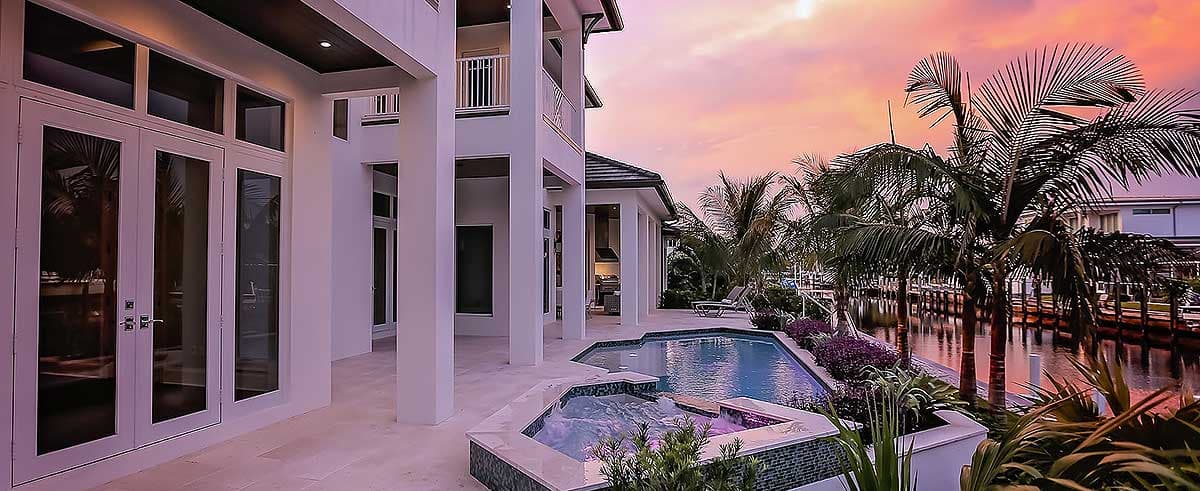

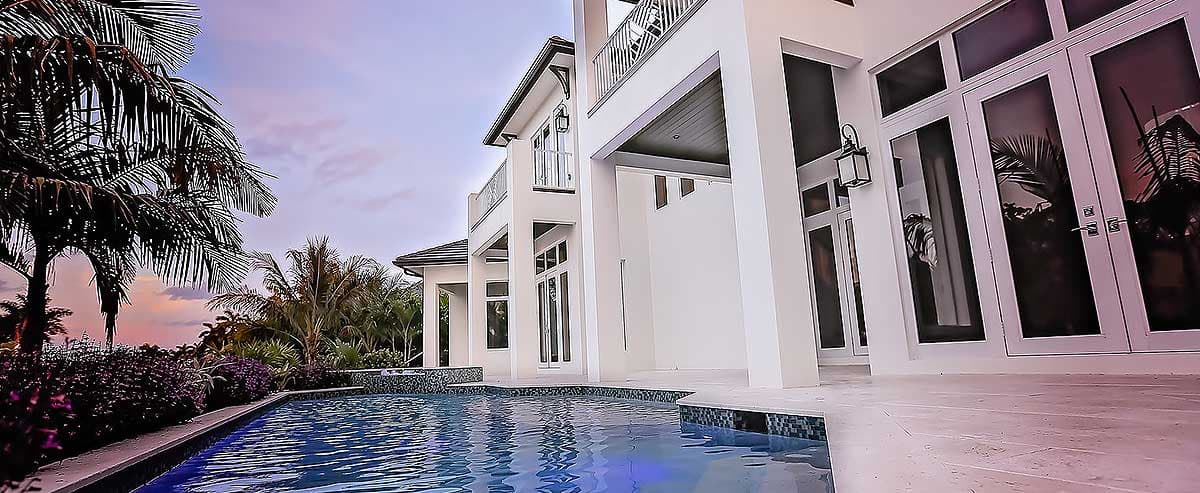

  • As luxurious as the inside of this home is, the outdoor spaces will wow you too.

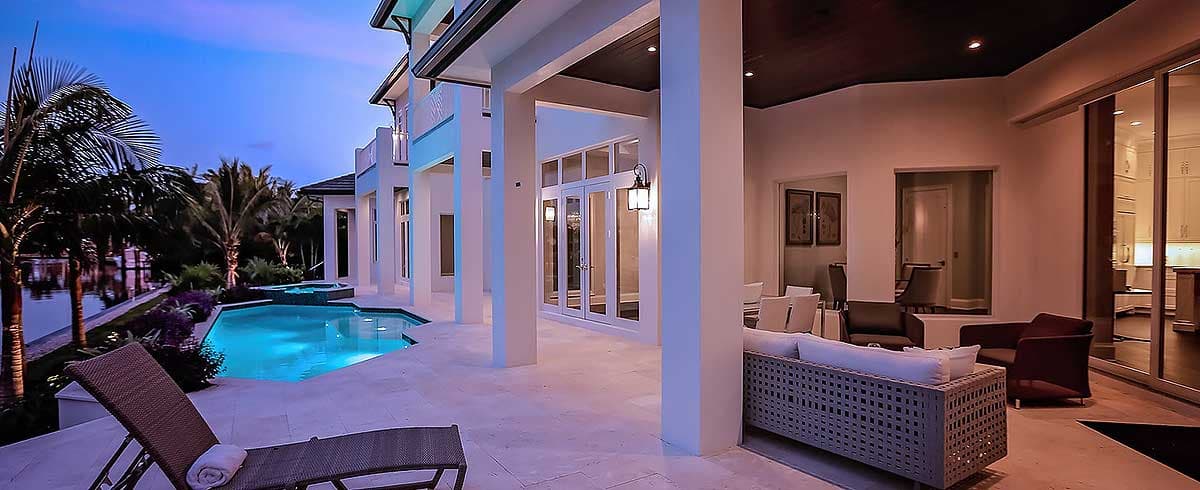

  • Decks, balconies and covered lanais are on every level so you can enjoy the sunshine or shade.

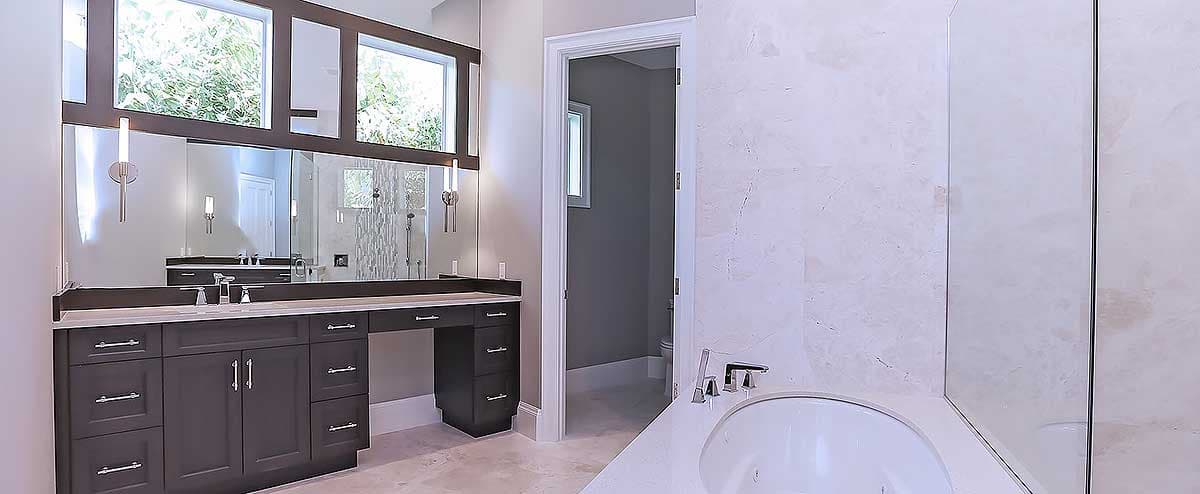

  • The stunning master suite boasts a sitting area flooded with light, two giant walk-in closets and a sumptuous master bathroom.
  • On the opposite side of the home, a private guest suite works well as in-law accommodations.
  • Two big bedroom suites on the upper floor share a sitting room, loft and a large covered balcony.
  • HOUSE PLAN VIDEO: See this house plan from every angle in our YouTube video.
What's Included

  • Slab Plan
  • Floor Plans with Notes and Dimensions
  • Door and Window Schedules
  • Electrical Plans
  • Ceiling Plans

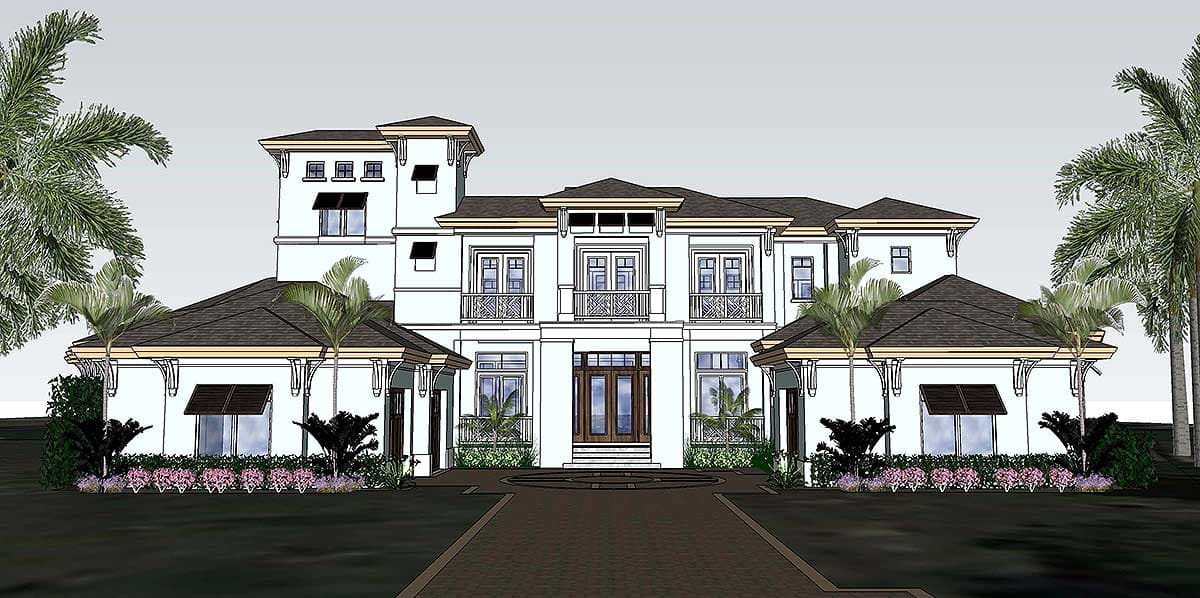

  • Elevations of All Sides
  • Roof Plans
  • Building Sections
  • Wall Sections
  • Fastener Requirements

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

5,093 sq. ft.

1st Floor

3,558 sq. ft.

2nd Floor

1,535 sq. ft.

Entry

49 sq. ft.

Balcony / Veranda

413 sq. ft.

Lanai

610 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

5

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

Block / CMU (main floor)

Dimensions

Width

137' 5"

Depth

65' 2"

Max Ridge Height

35' 0"

Garage

Type

Attached

Area

976 sq. ft.

Count

3 Cars

Entry Location

Front

Ceiling Heights

First Floor

10'

Second Floor

9'

Room

Ceiling Type

Height

Foyer

Vaulted

0' 0''

Dining Room

0' 0''

Study

Tray

0' 0''

Family Room

Tray

0' 0''

Master Bedroom

Tray

0' 0''

Kitchen

Flat

0' 0''

Guest Room

Tray

0' 0''

Roof Details

Primary Pitch

6 on 12

Framing Type

Truss

Architectural Style

Florida

Mediterranean

Special Features

Breakfast Nook

Butler Walk-in Pantry

Courtyard

Den

Elevator

Formal Dining

Home Office

In-Law Suite

Laundry - Upstairs

Library/Study

Loft

Master Suite - 1st Floor

Master Suite - Sitting Area

Outdoor Kitchen

Plan Collections

Luxury
