Plan 86018BS

Florida House Plan with Tray Ceilings and Great Outdoor Living - 2947 Sq Ft

Heated S.F.

2,947

Beds

Baths

4.5

Stories

Cars

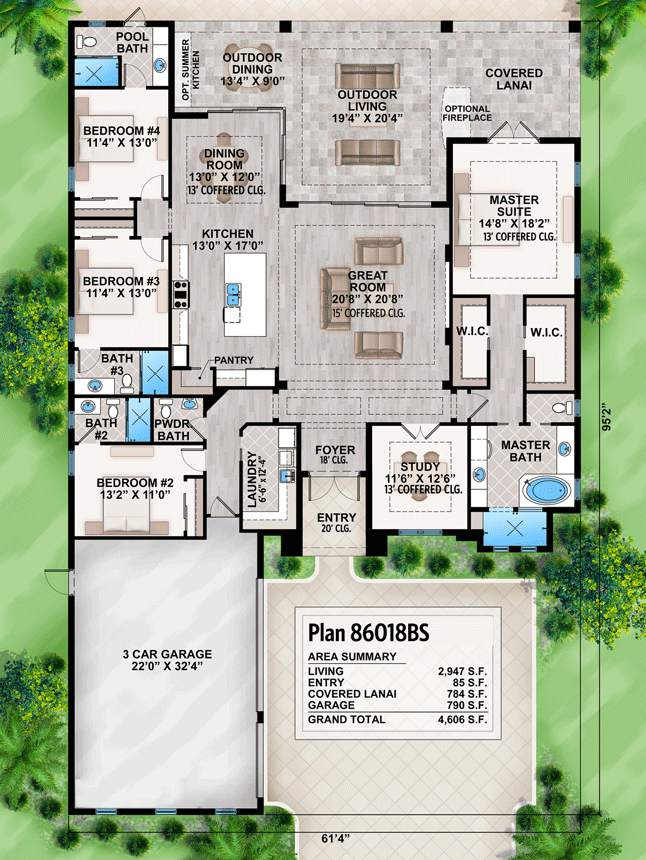

Floor Plan

Main Level

Plan Details

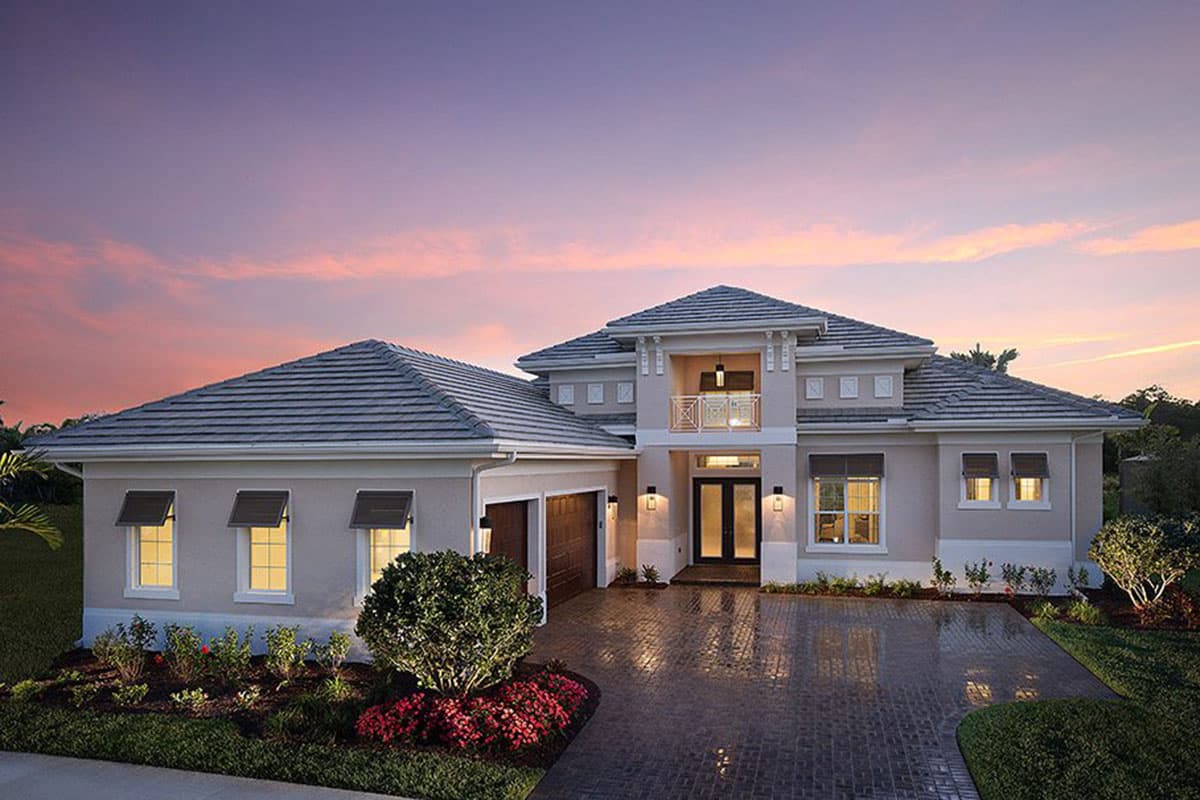

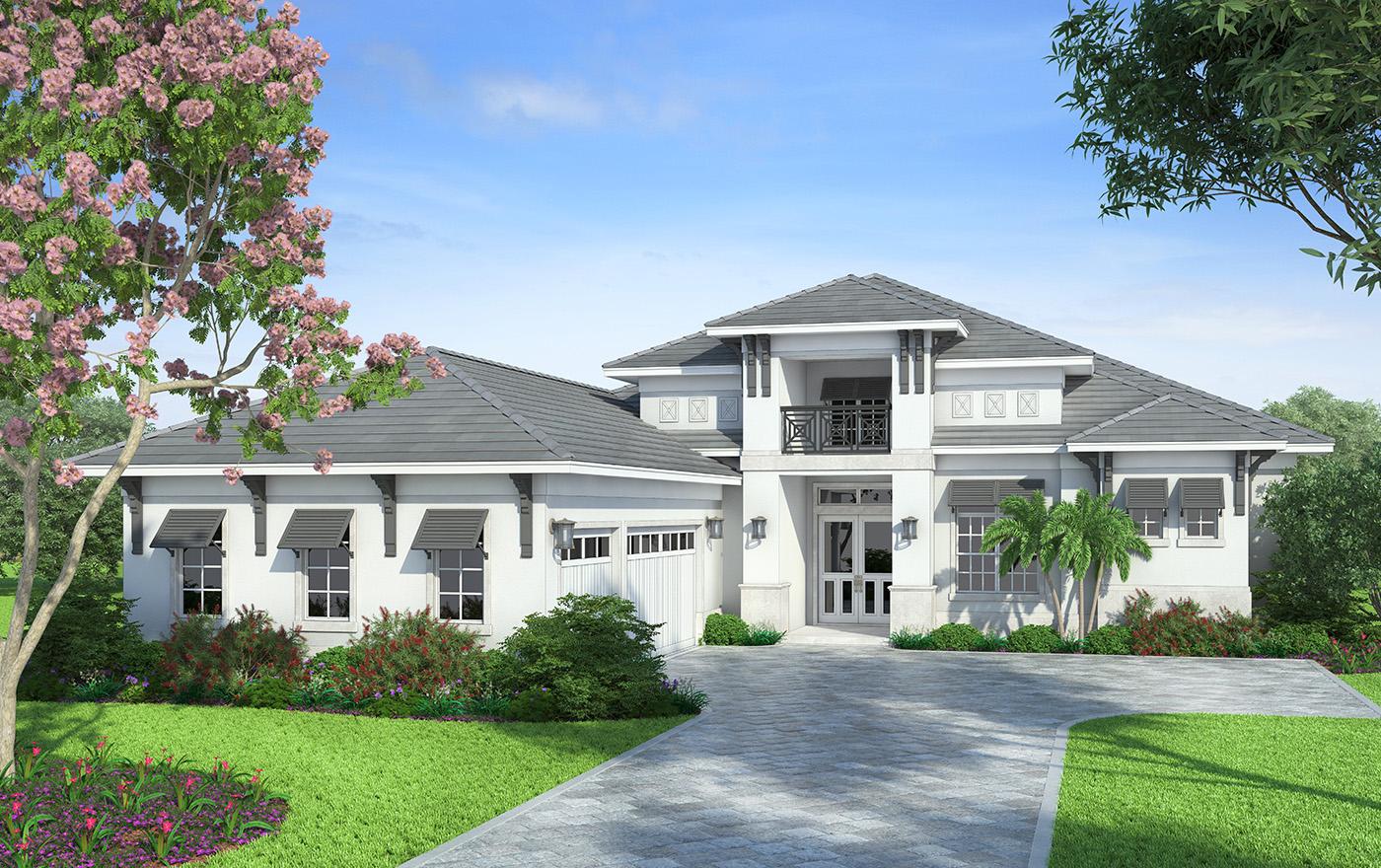

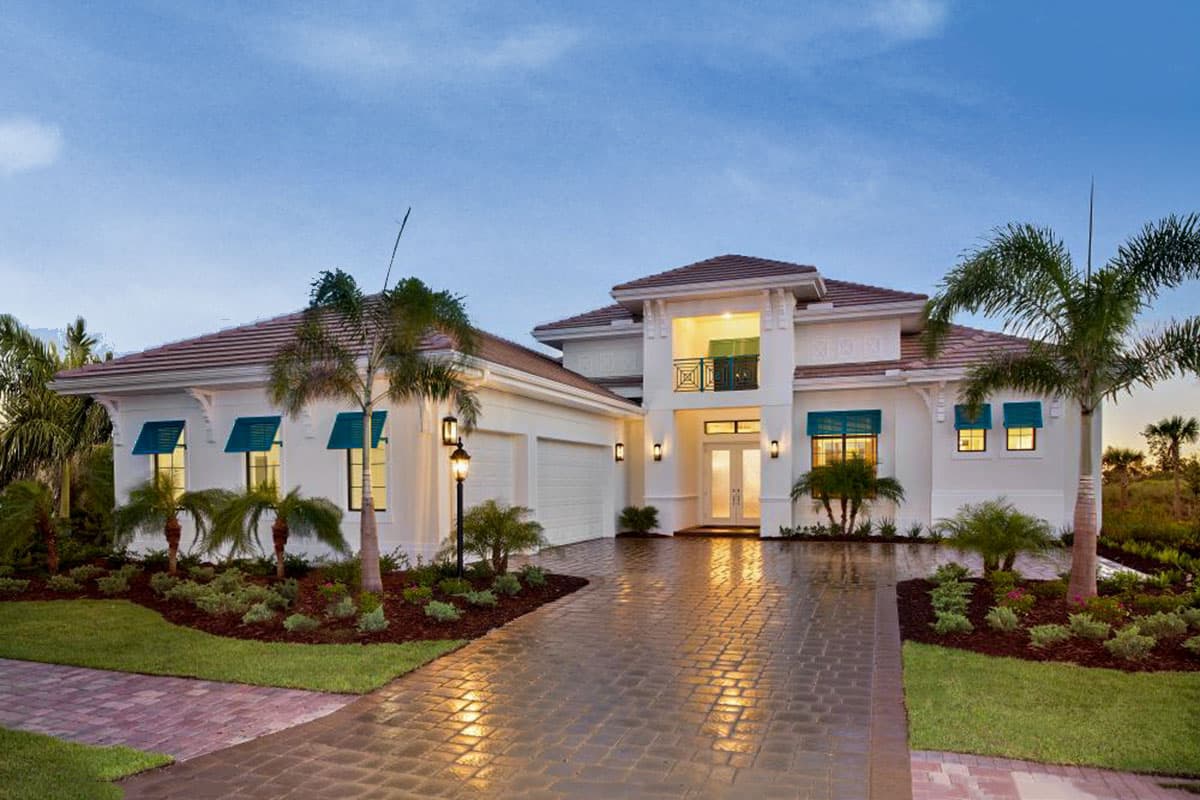

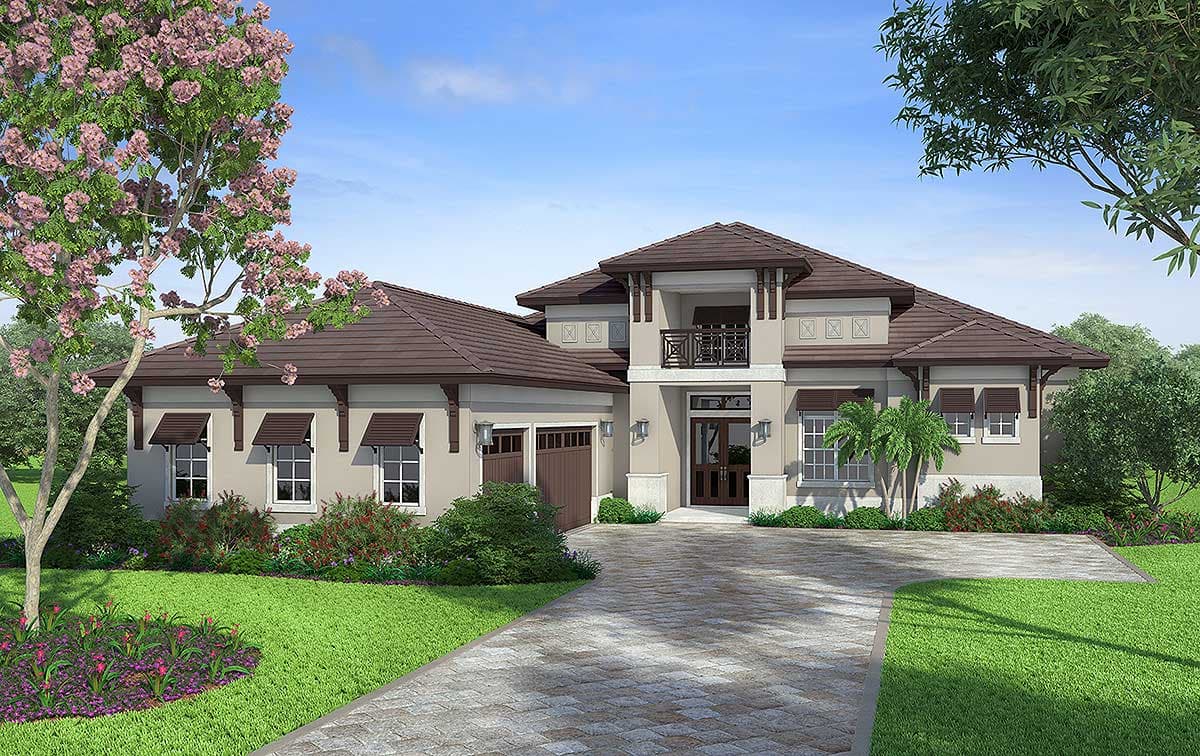

A bold and beautiful exterior amplifies the appeal of this Florida house plan. Inside, it gives you 4 beds, 4.5 baths and 2947 square feet of heated living space.

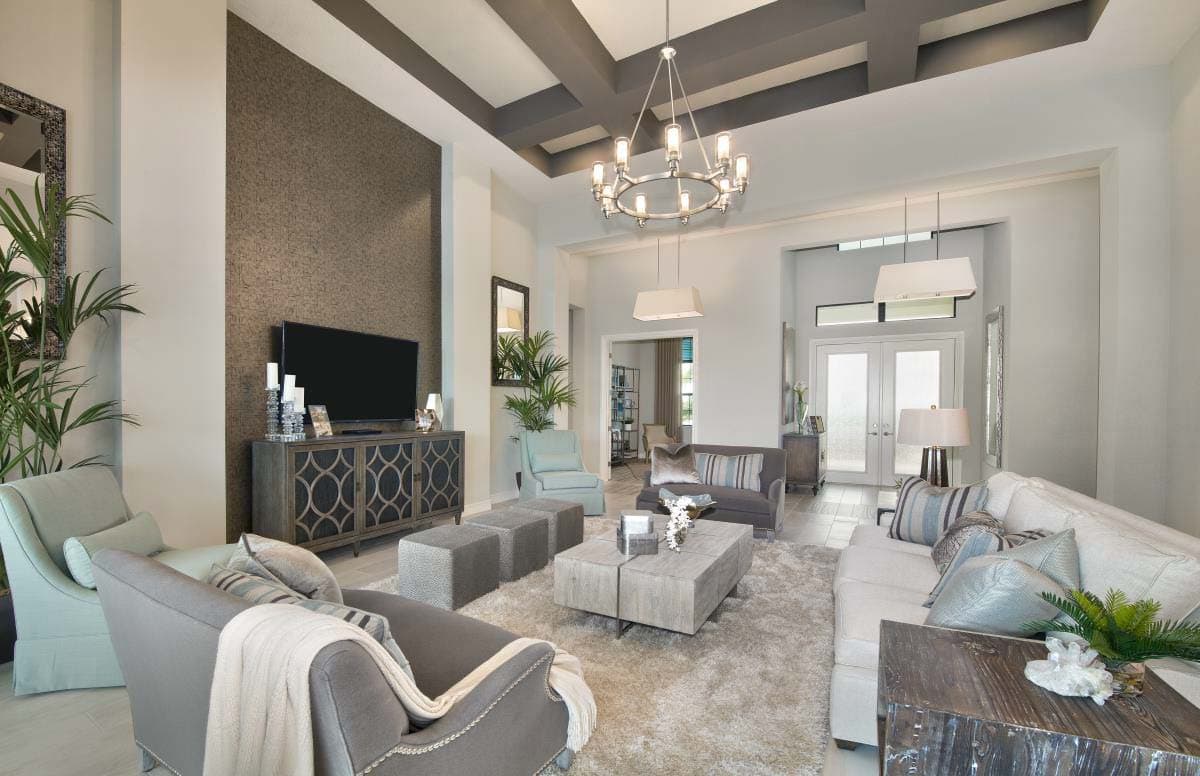

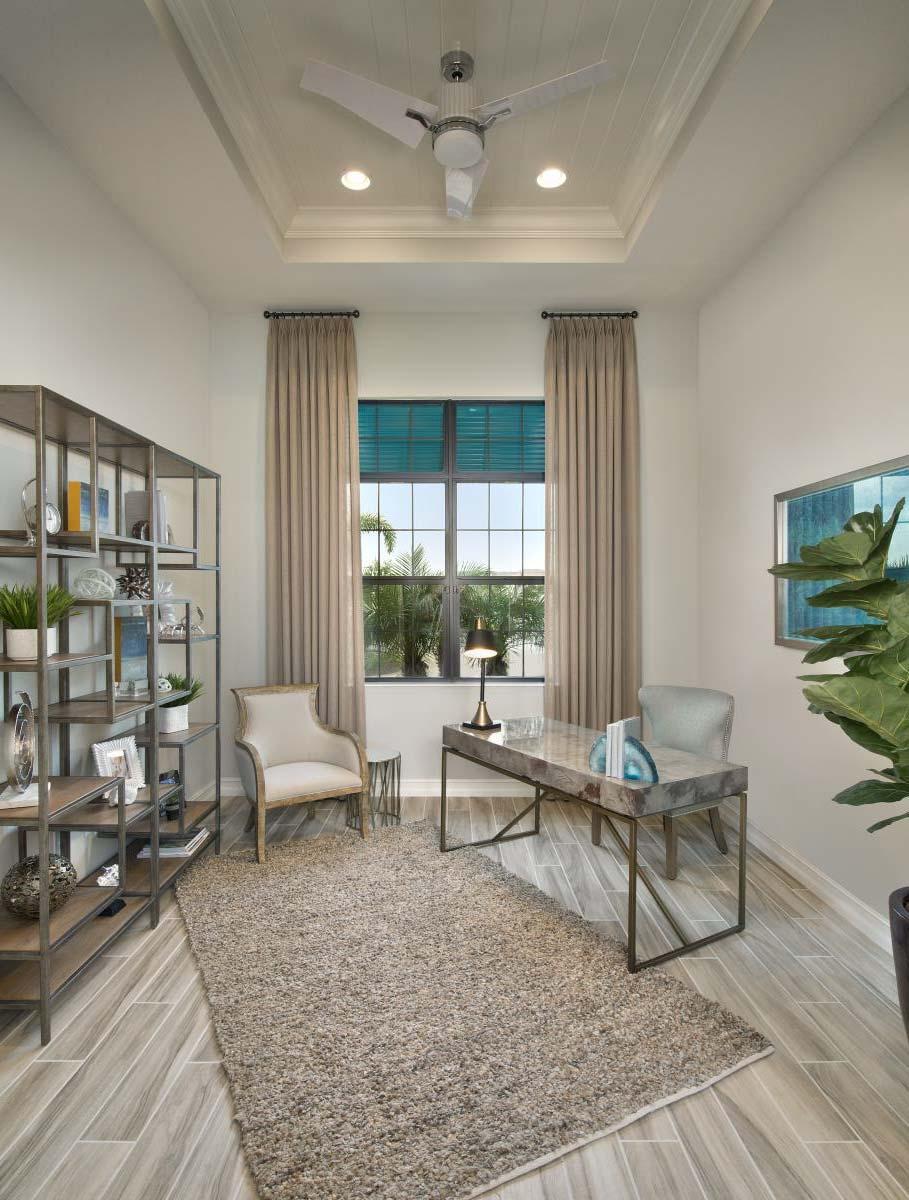

Striking tray ceilings top many of the rooms including the massive great room with its sliding glass doors to the outdoor living area.

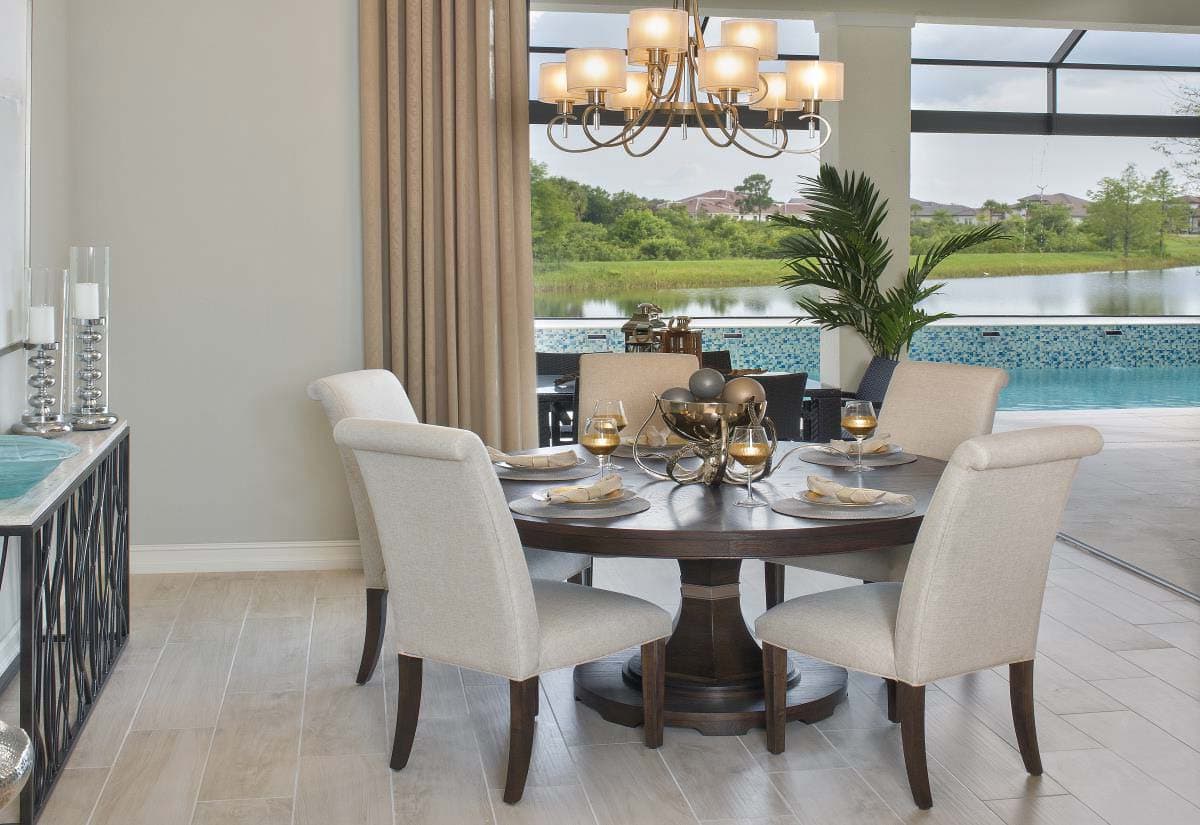

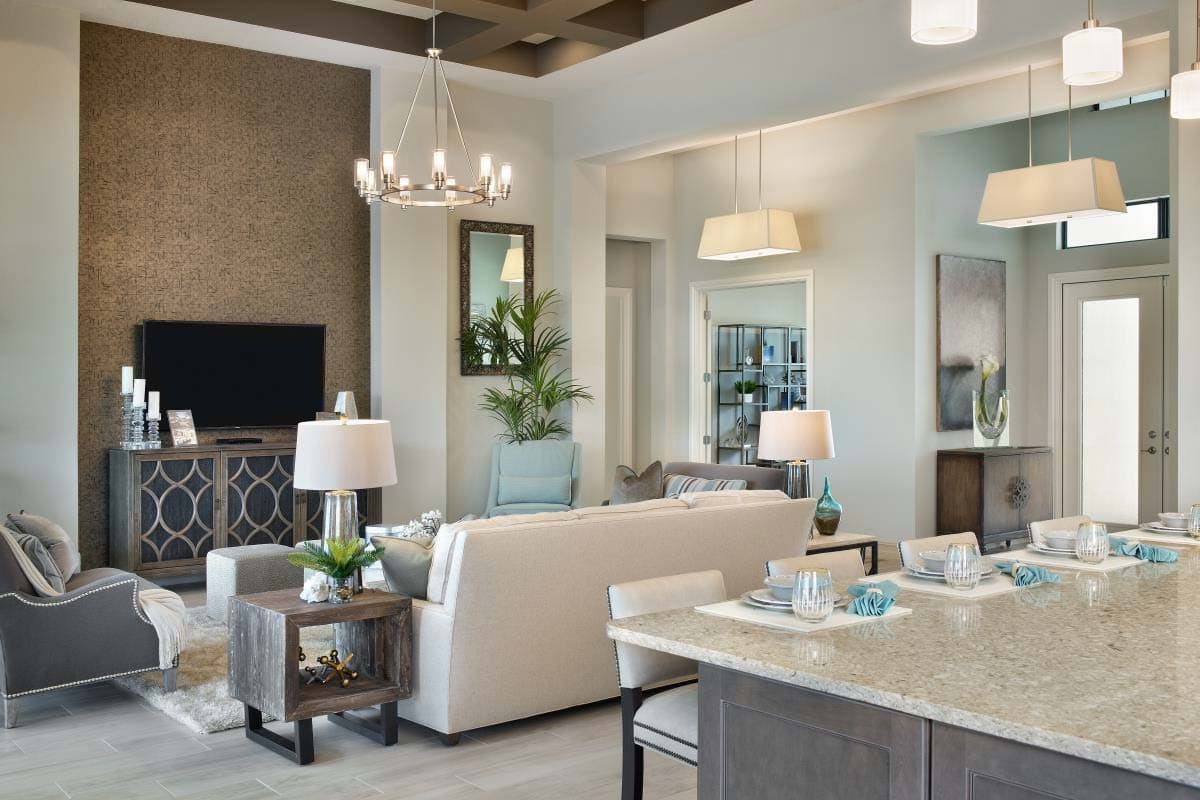

The kitchen is open to both the dining room and the great room and has a large island and a walk-in pantry (5'2" by 3').

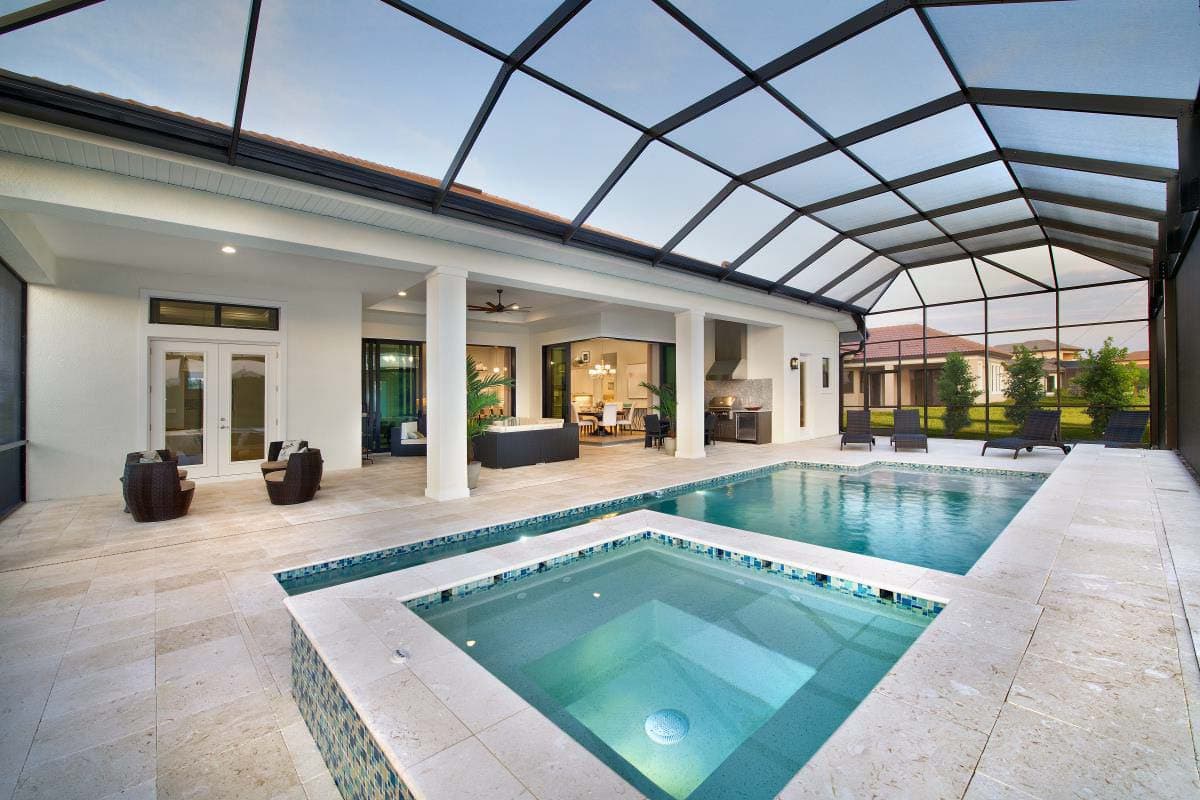

Add an optional fireplace and summer kitchen and you have the perfect outdoor living room to entertain in.

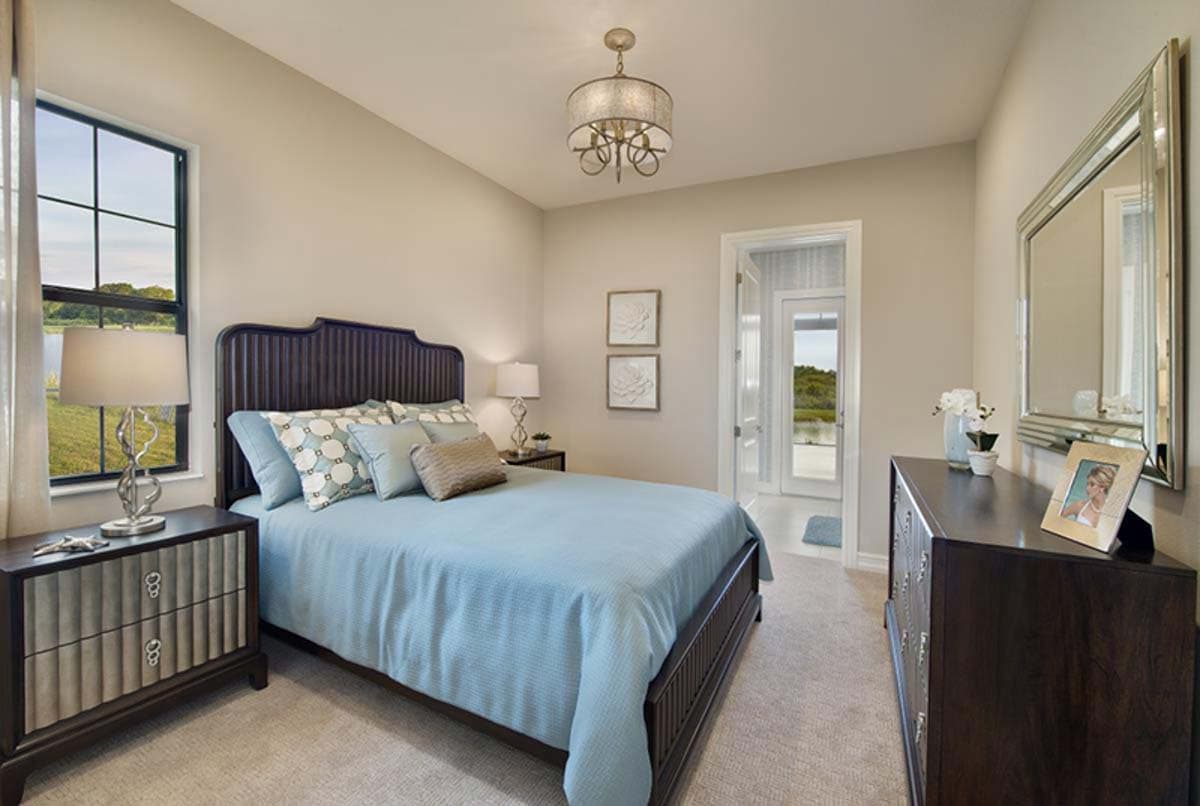

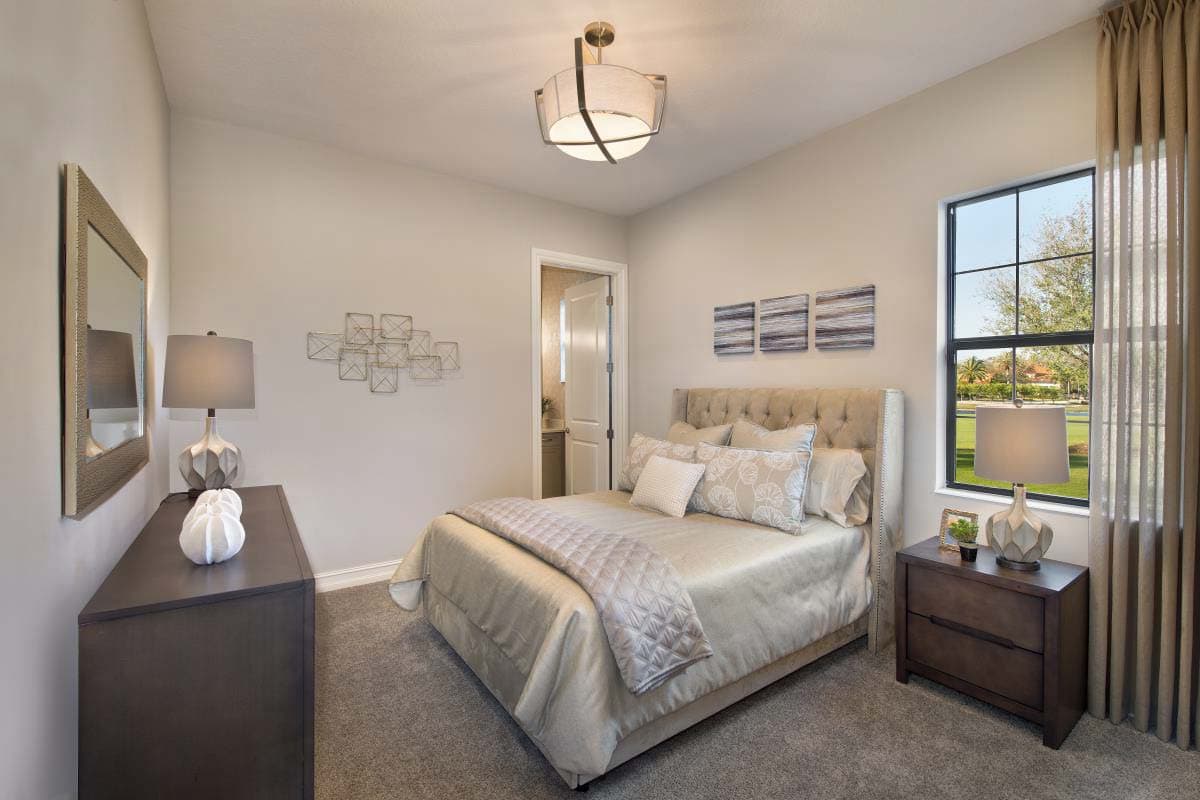

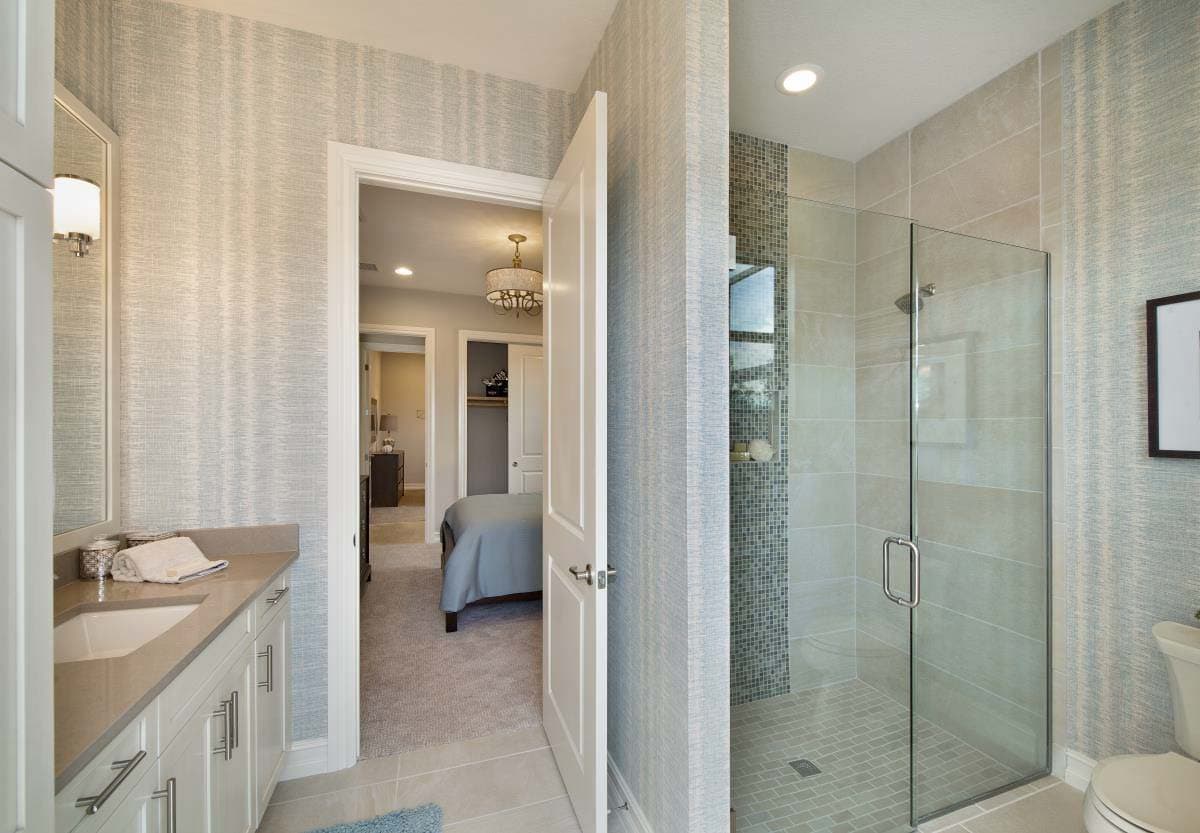

Three family bedrooms are grouped on the left side of the home, each with its own private bathroom.

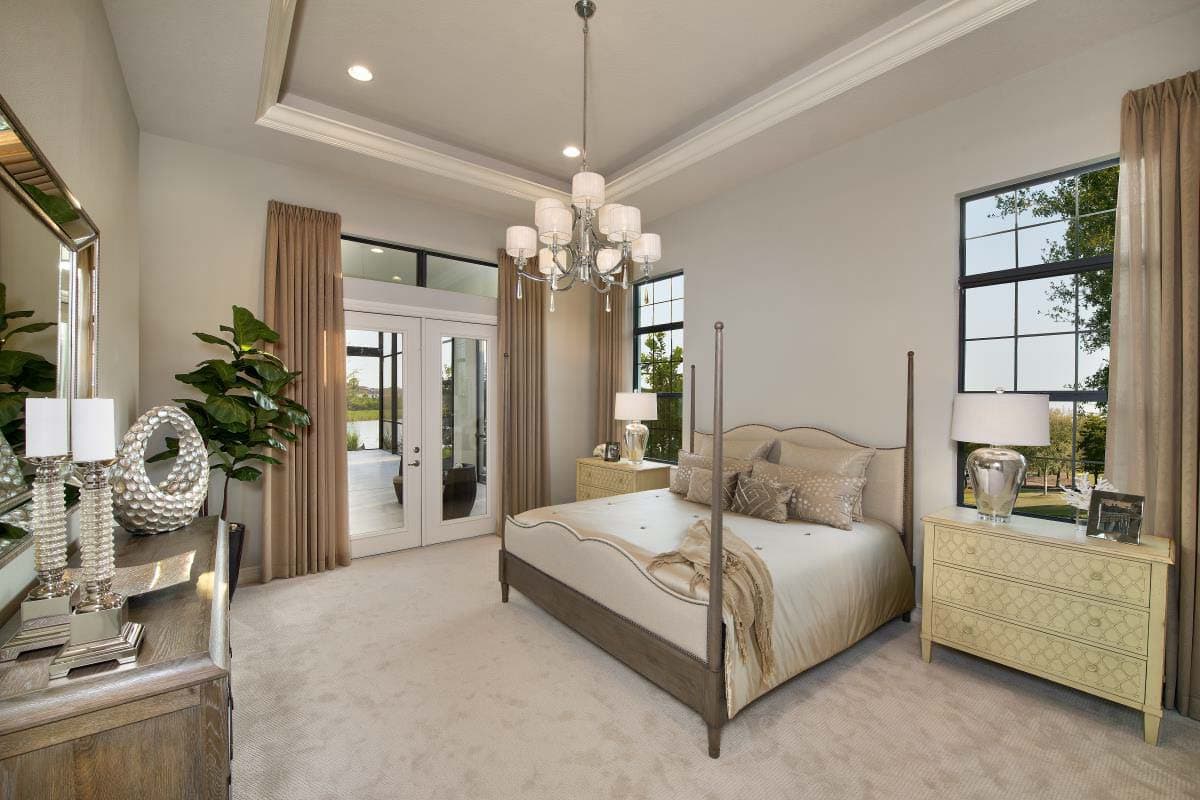

The master suite has double doors for a quick and easy entrance to the covered lanai. Two walk-in closets - 4’ by 10’8” and 5’8” by 11’2” - and a large bathroom complete the secluded suite.
Related Plans: Get alternate versions with house plans 65664BS, 65625BS and 65742BS.
BUILDING RESTRICTION: Restrictions may apply if building in Lee and Collier Counties, Florida as well as Sarasota, Florida. Please contact us with your site address to confirm.

What's Included

Elevations: - Drawn at 1/8″ to 1/4″ = 1’0″ Scale and Includes:

Material Labels
Floor-To-Floor Heights
Roof Slope Indicators

Floor Plans: - Drawn at 1/8″ to 1/4″ = 1’0″ Scale and Includes:

Door and Window Sizes
Completely Dimensioned Floor Plan
Room Labels and Interior Room Sizes

Electrical Layouts:

Building Section Markers
All Electrical Outlets, Fixtures and Switching

Foundation or Slab Plan: - Drawn at 1/8″ to 1/4″ = 1’0″ Scale and Includes:

Floor and Deck Joist Sizes, Spacing and Direction
Electrical Locations

Roof Design Plan: - Drawn to 1/8″ to 1/4″ = 1’0″ Scale and Includes:

All Beam and Header Heights and Locations
All Hips, Gables, Ridges and Valley
Building Section Markers

Building Sections: - Drawn to 1/8″ to 1/4″ = 1’0″ Scale and Includes:

Floor-To-Floor Heights
Non-Typical Plate Heights Indicated

Typical Wall Sections: - Drawn at 1/8″ to 1/2″ = 1’0″ Scale and Includes:

All Labels Indicating Wall Construction
Foundation Wall Thickness
Insulation Type and Thickness

Miscellaneous Notes and Details:

Miscellaneous General Notes
Stairway Details (if applicable)

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required

IMPORTANT NOTE: Structural drawings, as well as heating and plumbing details, will not be included in your plan sets due to a variety of factors which include local codes, installation methods, personal preference, etc. Your building professional (contractor/builder/supplier) can, without difficulty, supply these details and specifications on your behalf.
