Plan 24001BG
Florida Living
Heated S.F.
2,518
Beds
3
Baths
3
Stories
1
Cars
2
Floor Plan

Plan 24001BG

Main Level
slide image 0

Plan 24001BG

1-800-854-7852

1-262-521-4596

Main Level

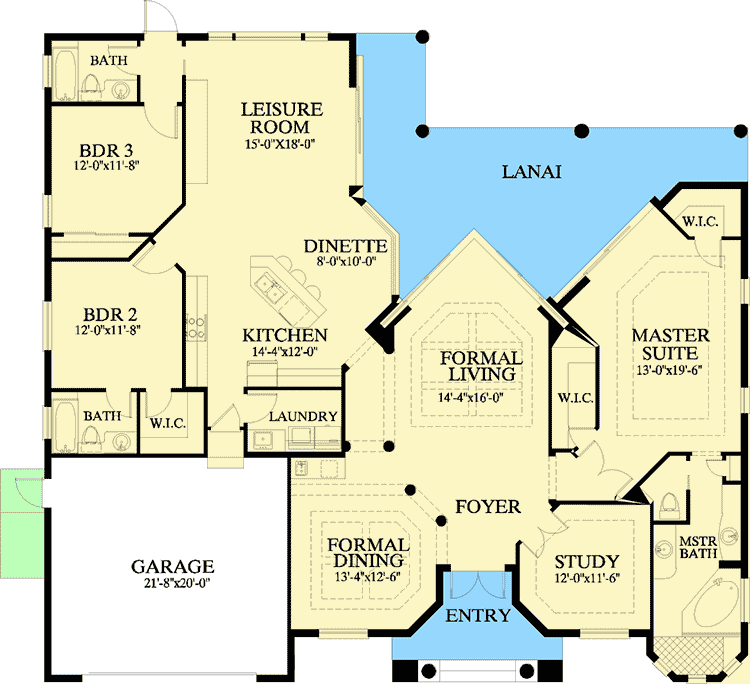

floor plan image Main Level
Plan Details
  • The tile roof and Mediterranean look give this home a tropical feel.
  • Luxury details throughout, such as coffered ceilings and interior columns, pamper the owners.
  • Two walk-in closets, a trayed ceiling and sliding glass doors to the covered lanai make the master suite a comfortable retreat.
  • The kitchen is open to the dinette and leisure room, creating a good traffic flow.
  • Two secondary bedrooms, each with access to a bath, provide room for family or guests.
  • Ceiling heights: 12' in family room, kitchen, dinette and foyer; 9'4" elsewhere.
What's Included
  • Cover page showing front elevation, contents and notes
  • Fully dimensioned floor plans including ceiling heights
  • Roof plan
  • All four exterior elevations
  • Typical cross section
  • Suggested electrical schematic
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Framing - layouts with beam sizes and locations
  • Energy calculations - handled locally when required
  • Roof truss design - to be created by the truss manufacturer in accordance with local code requirements
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

2,518 sq. ft.

1st Floor

2,518 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

3

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

Block / CMU (main floor)

Dimensions

Width

64' 8"

Depth

60' 0"

Max Ridge Height

24' 2"

Garage

Type

Attached

Area

433 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9' 4"

Roof Details

Primary Pitch

6 on 12

Framing Type

Truss

Architectural Style

Florida

Mediterranean

Special Features

Bedrooms - Split

Laundry - Main Level

Master Suite - 1st Floor

Master Suite - Sitting Area

Plan Collections

Luxury

Photo Gallery

Square Footage Breakdown

Total Heated Area

2,518 sq. ft.

1st Floor

2,518 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

3

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

Block / CMU (main floor)

Dimensions

Width

64' 8"

Depth

60' 0"

Max Ridge Height

24' 2"

Garage

Type

Attached

Area

433 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9' 4"

Roof Details

Primary Pitch

6 on 12

Framing Type

Truss

Architectural Style

Florida

Mediterranean

Special Features

Bedrooms - Split

Laundry - Main Level

Master Suite - 1st Floor

Master Suite - Sitting Area

Plan Collections

Luxury

Photo Gallery
