Name: Plan 15701GE: For the Sloping Lot
SKU: 15701GE
Price: 1295.0 USD
Availability: InStock

Plan 15701GE

For the Sloping Lot

Heated S.F.

2,450

Beds

Baths

3.5

Stories

Cars

Floor Plan

Main Level

Basement

Plan Details

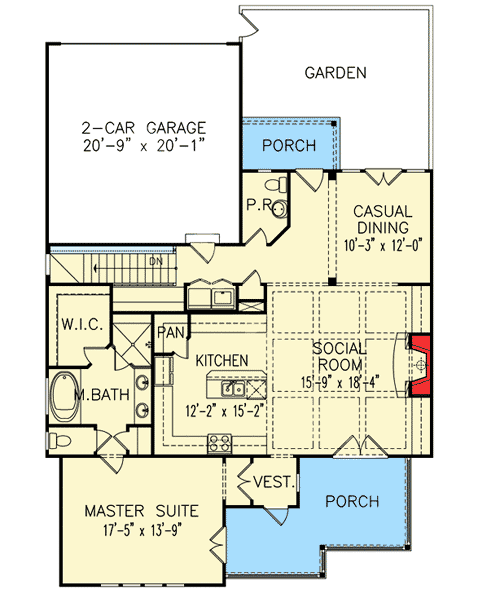

The main level of this European home plan has a wonderful open floor plan that connects the social room with coffered ceiling, dining room and kitchen.
A private vestibule leads to the master suite that has access to the rear covered porch - the perfect place to relax with a book.

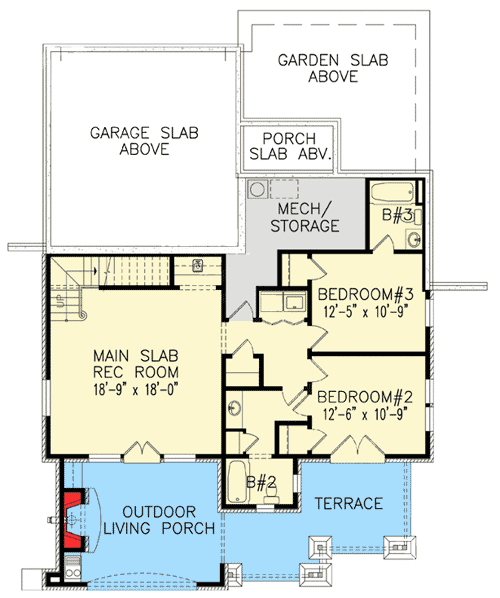

Two family bedrooms on the lower level are close to the spacious rec room with wet bar and outdoor living porch.

What's Included

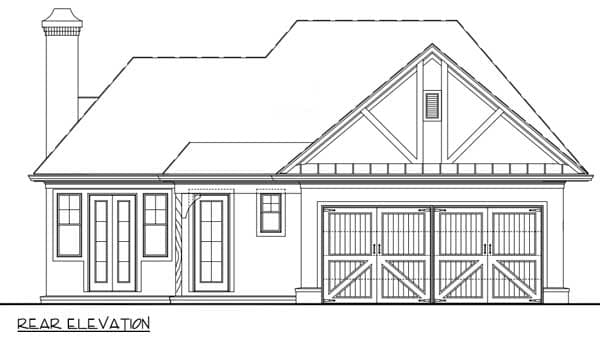

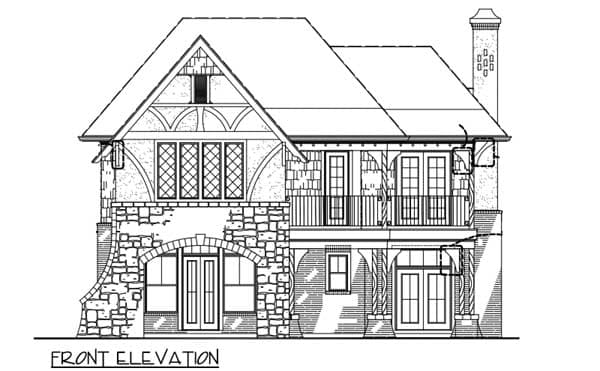

Exterior elevations: Included are front, rear, left and right side views of the exterior of the house. Exterior materials, construction details and measurements are also noted.
Foundation Plan: Includes layout of foundation support walls, plus excavated and unexcavated areas, if applicable.
Detailed Floor Plans: These plans show the layout of each floor of the house, including room dimensions, window and doors sizes and keys for cross section details provided later in the plans. Engineered floor joist, ceiling joist and roof plans are not included in some plans. Local engineers or manufacturing engineers are widely available to supply the services that apply to local geographic conditions.
Interior Details: These drawings show the specific details and design of special interior features.
Roof Plan: Includes the overall layout for roof construction. If trusses are used, we recommend using a local truss manufacturer to ensure compliance with local codes and regulations.
Cross Section Detail: Important changes in floor, ceiling and roof heights or the relationship of one level to another are called out. Exterior details such as railing and banding may also be shown.
Electrical: Electrical floor plan schematics for 1st and 2nd floors.
Plans include wall and cornice sections, general foundation sections and details.

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Framing plans
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required
