Plan 51749HZ
Four Bed French Acadian Home Plan with Optional Bonus Space - 2329 Sq Ft
Heated S.F.
2,329
Beds
4 - 5
Baths
2.5 - 3.5
Stories
1
Cars
2
Floor Plan

Plan 51749HZ

Main Level
slide image 0
Bonus
slide image 1

Plan 51749HZ

1-800-854-7852

1-262-521-4596

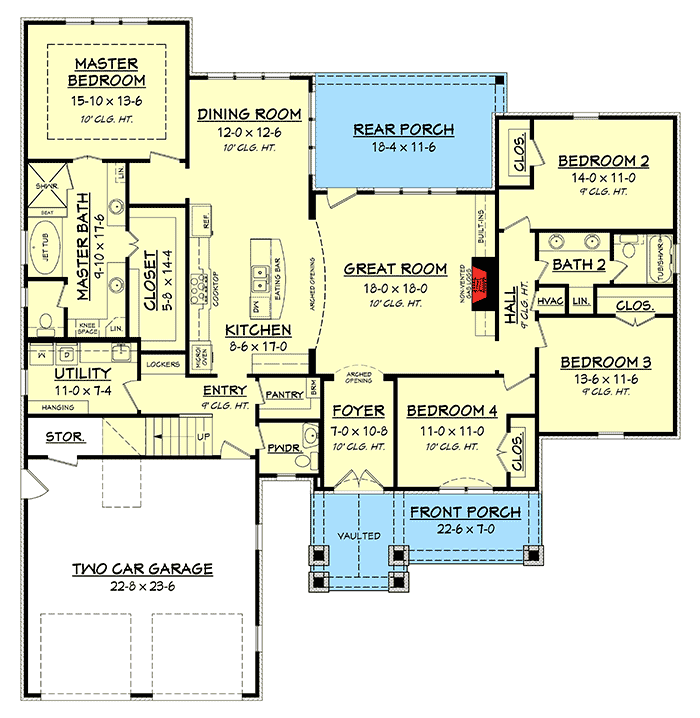

Main Level
floor plan image Main Level

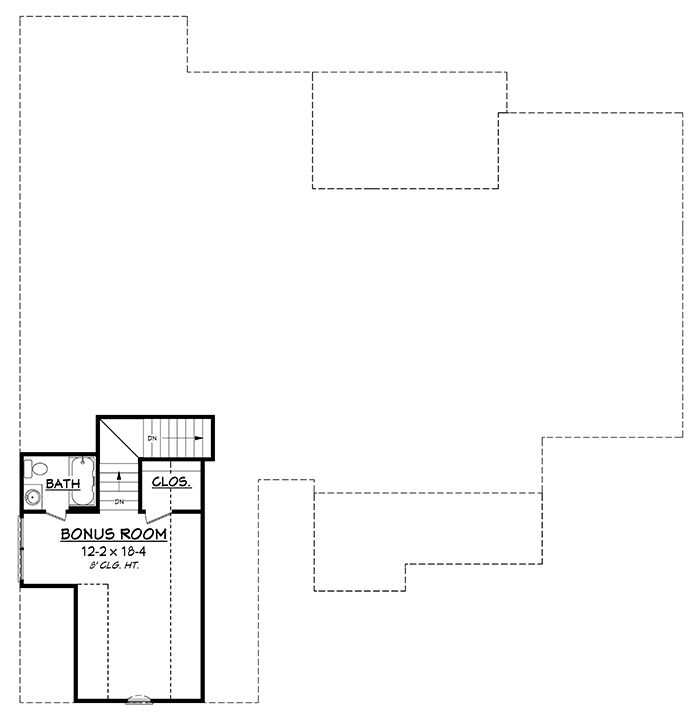

Bonus
floor plan image Bonus
Plan Details
  • This 4 bedroom house plan has open concept living spaces and a flexible bonus room over the garage as well.  The main living spaces also offer raised ceilings and large windows which offer great views to the exterior.
  • The well-equipped kitchen is roomy and has views to the great room, rear porch and dining room. A large island and eating bar give you added flexibility for casual meal prep and snacks.
  • The bedrooms are all well sized and the master suite features dual vanities, large shower, and huge walk-in closet.
  • The bonus space above also adds more flexibility to the design and can be used as an extra bedroom, media room, or office space.
  • Related Plans: Get an alternate exterior in reverse layout with house plan 51750HZ (2,329 sq. ft.). Get an alternate master suite with house plan 51782HZ (2,053 sq. ft.).
What's Included

This plan set includes the following:
  • Page 1  Cover Page
  • Page 2  Foundation Plan and Details
  • Page 3  Floor Plans & Notes
  • Page 4  Exterior Elevations & Wall Sections
  • Page 5  Exterior Elevations & Wall Sections
  • Page 6  Cross Sections & Cabinet Elevations
  • Page 7  Roof Plan & Span Charts
  • Page 8  Electrical Plans & Notes
View Sample Plan
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • REScheck or other energy related calculations are NOT included.
  • Wind load or seismic calculations are NOT included.
  • Framing plans or beam sizes are NOT included.
  • Other specific drawings that your local permit office may require
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

2,329 sq. ft.

1st Floor

2,329 sq. ft.

Bonus

382 sq. ft.

Porch, Front

182 sq. ft.

Porch, Rear

214 sq. ft.

Storage

32 sq. ft.

Beds/Baths

Bedrooms

4 or 5

Full bathrooms

2 or 3

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

65' 4"

Depth

67' 8"

Max Ridge Height

26' 0"

Garage

Type

Attached

Area

559 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

Lower Level

9' 4"

First Floor

9'

Second Floor

8'

Room

Ceiling Type

Height

Great Room

Flat

10' 0''

Dining Room

Flat

10' 0''

Foyer

Flat

10' 0''

Kitchen

Flat

10' 0''

Master Bedroom

Tray

10' 0''

Roof Details

Primary Pitch

10 on 12

Secondary Pitch

3 on 12

Framing Type

Stick

Architectural Style

Acadian

European

French Country

Louisiana

Southern

Traditional

Special Features

Bedrooms - Split

Bonus Room

Butler Walk-in Pantry

Home Office

Laundry - Main Level

Master Suite - 1st Floor

Media Room

Plan Collections

Home Office

USDA Approved
