Plan 21569DR
Four-Season 3 Bedroom Lake House Plan with Drive Under Garage - 1832 Sq Ft
Heated S.F.
1,832
Beds
3
Baths
2
Stories
2
Floor Plan

Plan 21569DR

Main Level
slide image 0
2nd Floor
slide image 1

Plan 21569DR

1-800-854-7852

1-262-521-4596

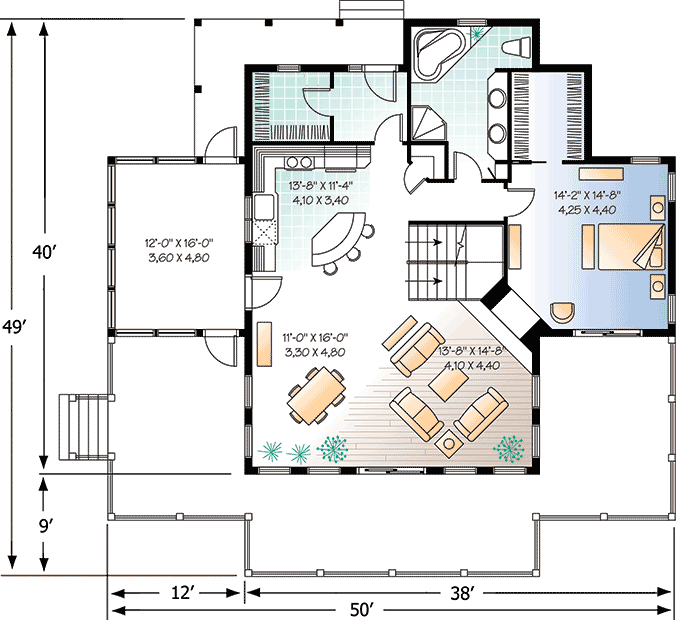

Main Level
floor plan image Main Level

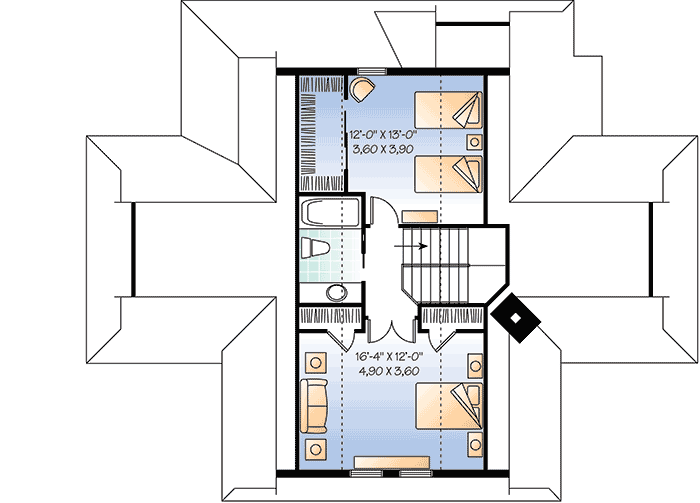

2nd Floor
floor plan image 2nd Floor
Plan Details

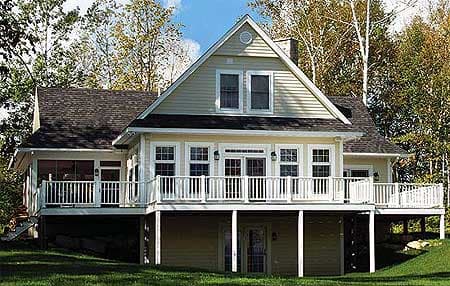

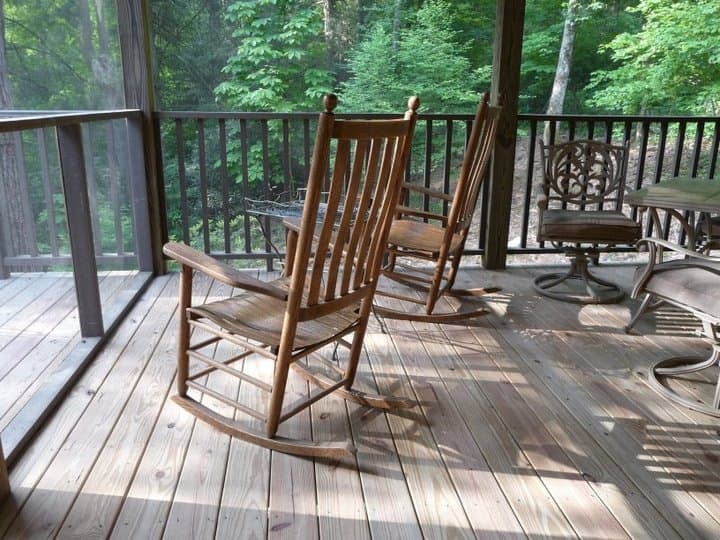

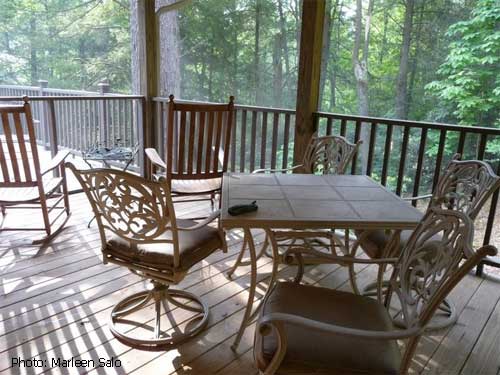

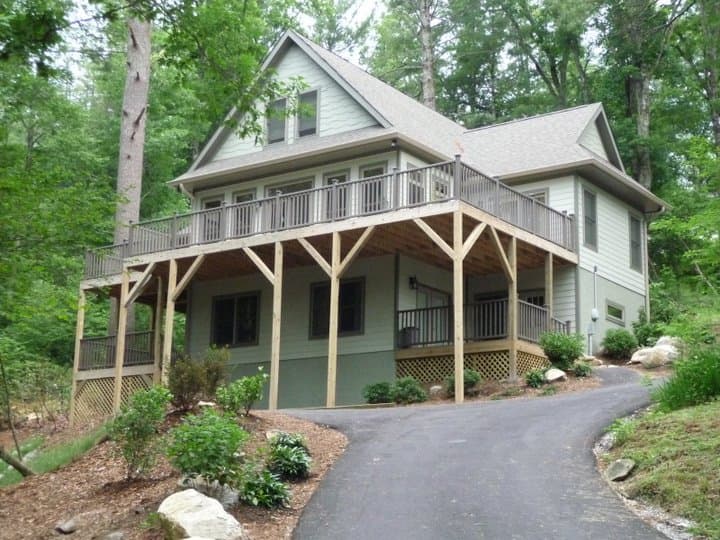

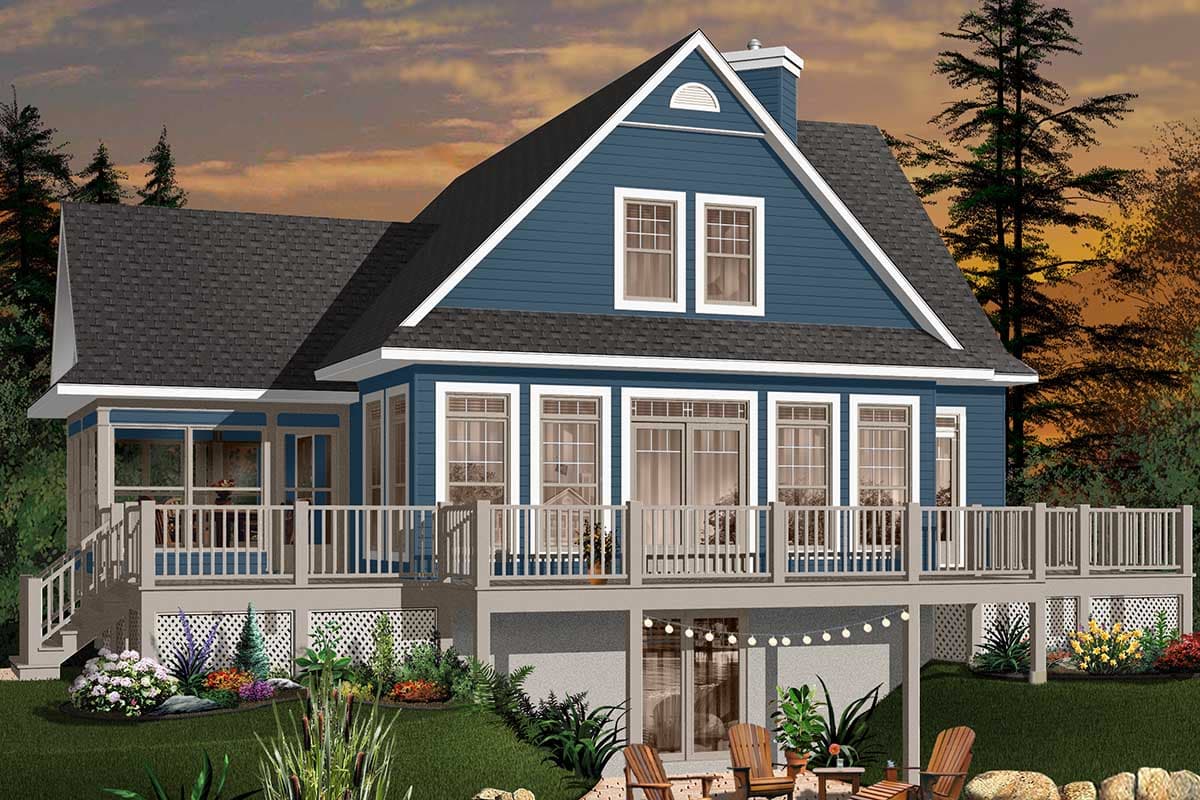

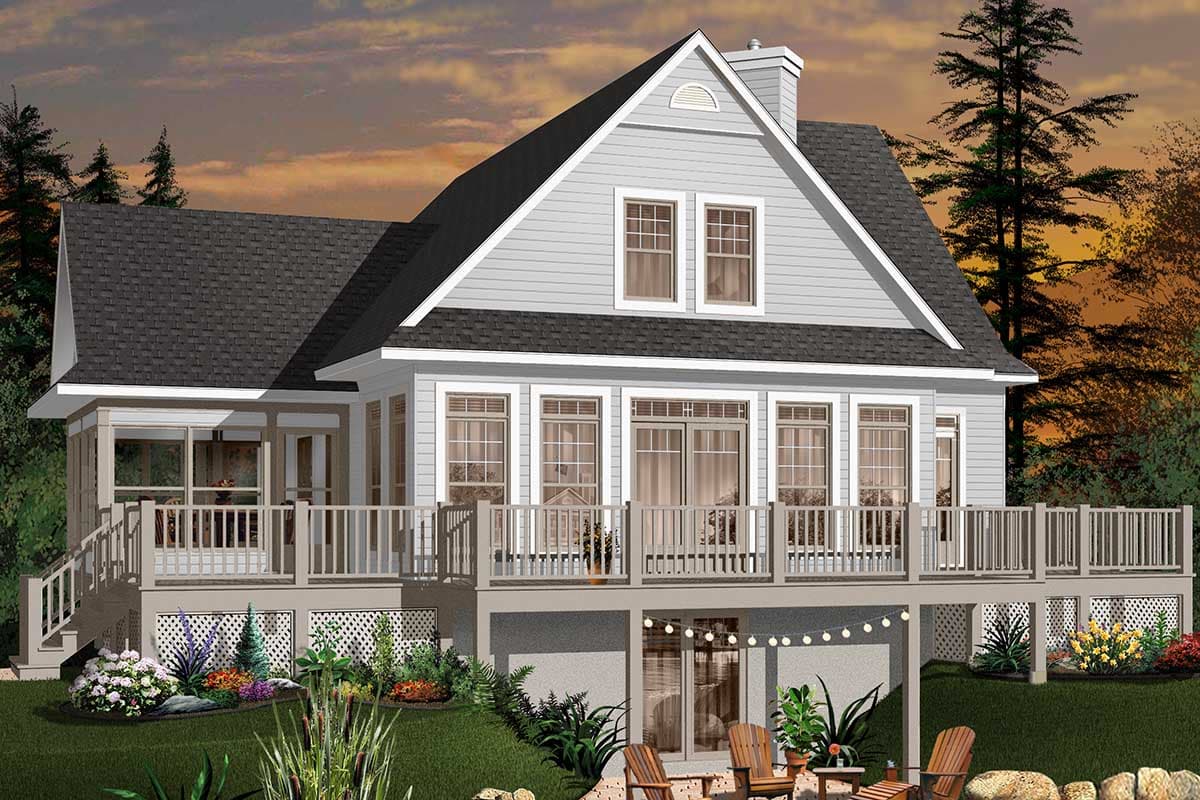

  • A covered wrap-around porch off the entry hall, plus an expansive deck make for glorious outdoor living at this year-round vacation home plan.

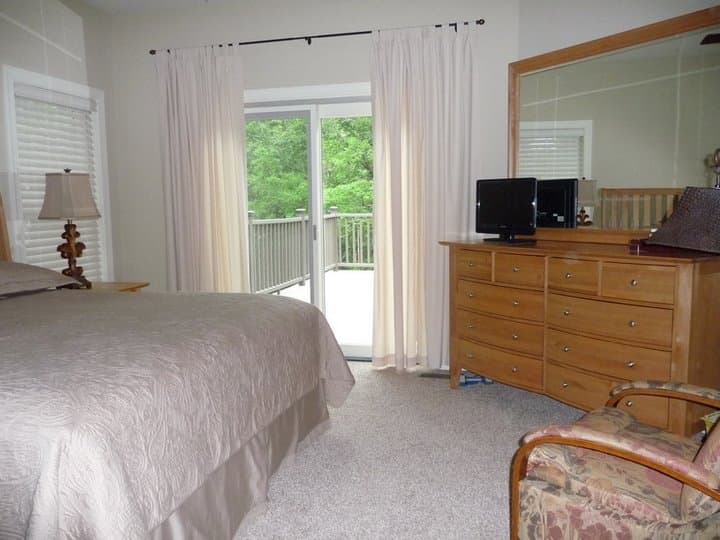

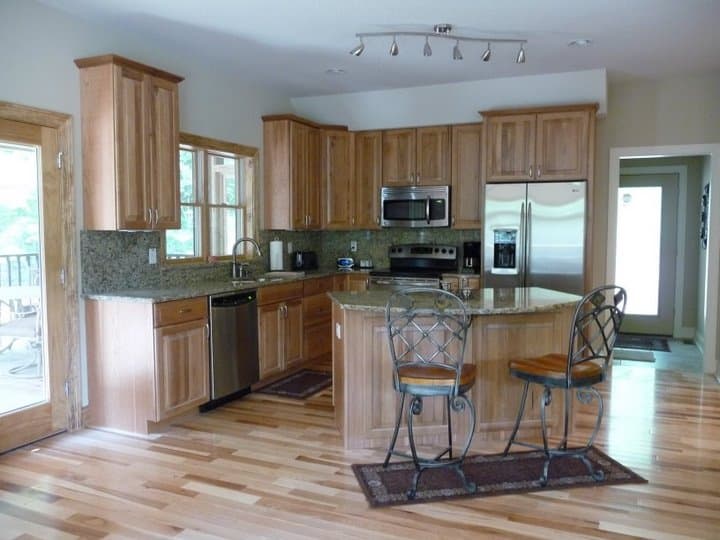

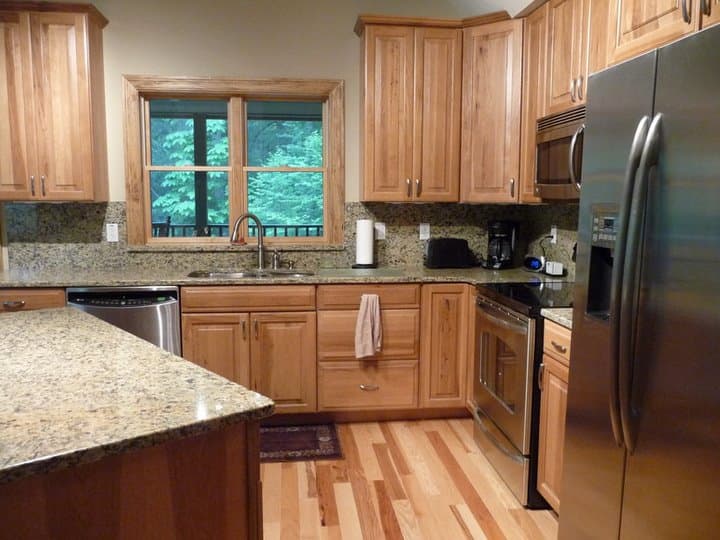

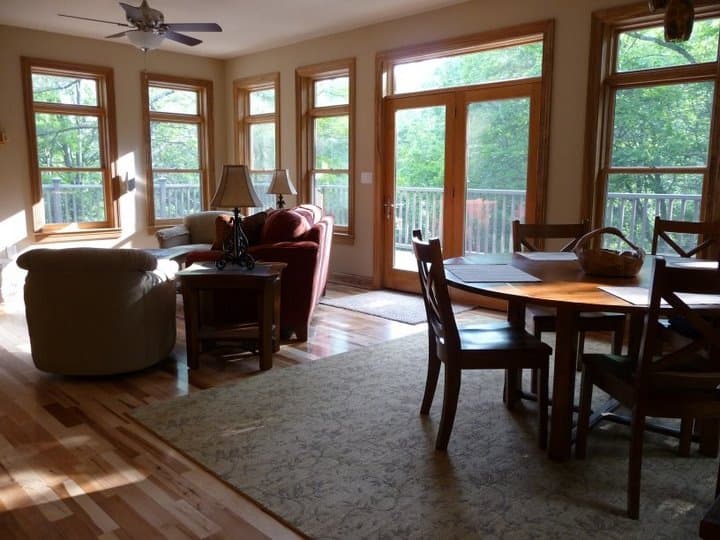

  • The open kitchen includes a curved island with an eating bar. The living-dining room shares a see-through fireplace with the master bedroom.

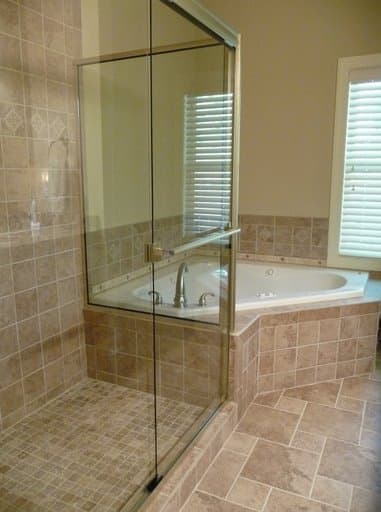

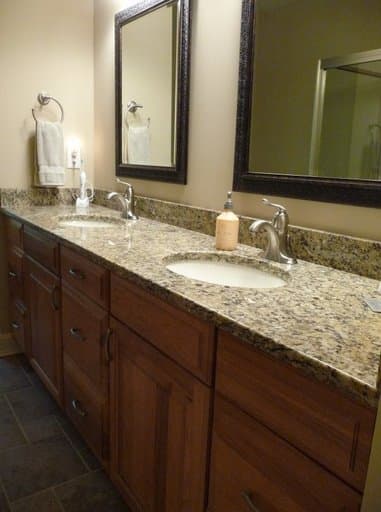

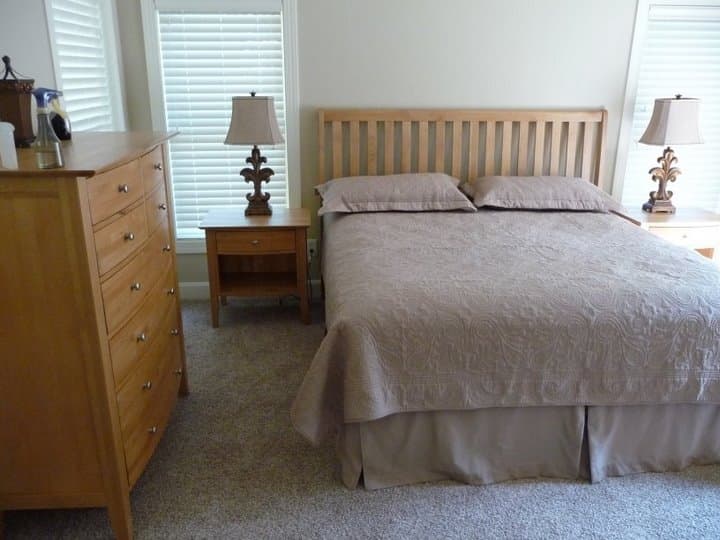

  • The master bedroom is handy to the full bath on this floor, which includes a corner tub and separate shower.
  • Upstairs, two more large bedrooms share the second full bath.
  • NOTE: In the slab and crawlspace versions, the water heater is located where the stairs are and the washer/dryer are in the bathroom where the toilet is. That is then relocated between the shower and the bath.
  • Overall dimensions including decks/porch are 50'w x 49'd.
  • Related Plans: Get alternate versions with house plans 2177DR (1,832 sq. ft.), 2104DR (1,482 sq. ft.), 22310DR (2,102 sq. ft.), 22441DR (2,416 sq. ft.) and 22440DR (2,340 sq. ft.).
What's Included

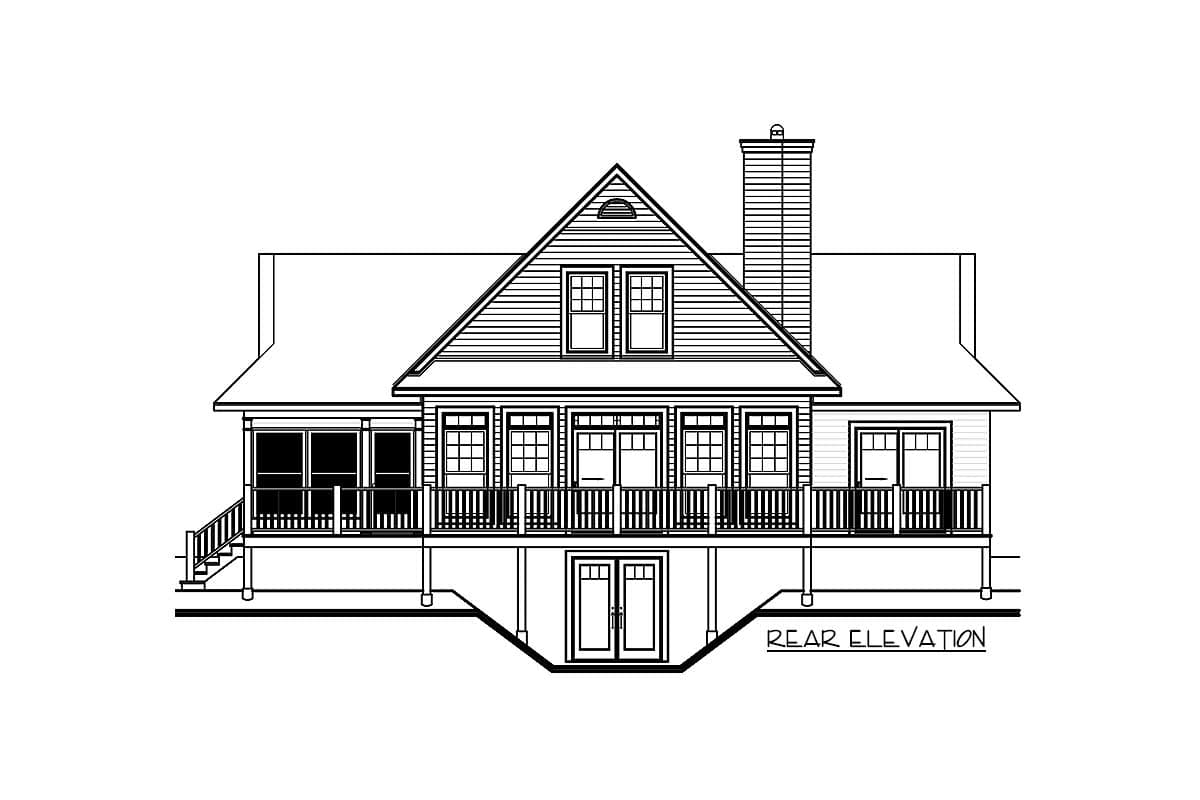

  • Elevations
  • Foundation Plan
  • Main Floor Plan
  • Upper Floor Plans (if applicable)
  • Roof Plan
  • Building Section
  • Construction Details
  • Typical Wall Section
View Sample Plan
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical and Electrical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

1,832 sq. ft.

1st Floor

1,212 sq. ft.

2nd Floor

620 sq. ft.

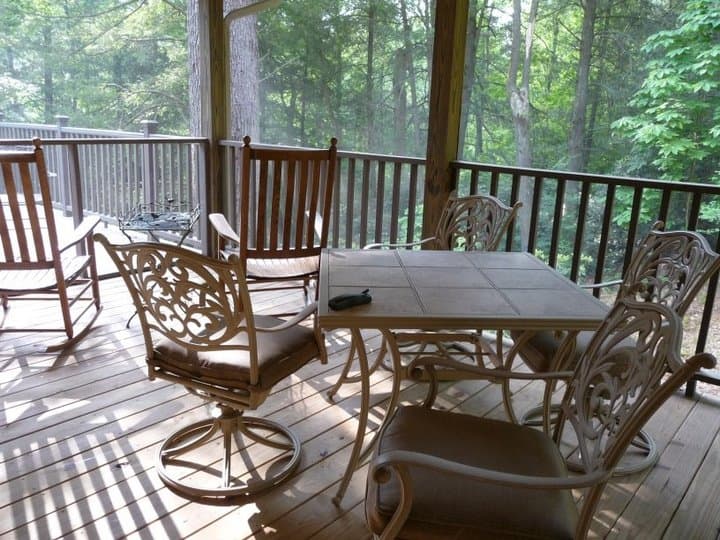

Screened Porch

192 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Walkout

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

38' 0"

Depth

40' 0"

Max Ridge Height

25' 8"

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

12 on 12

Secondary Pitch

12 on 12

Framing Type

Truss

Architectural Style

Cottage

Country

Craftsman

Lake House

Mountain

Traditional

Vacation

Special Features

Laundry - Lower Level

Master Suite - 1st Floor

Wrap Around Porch

Plan Collections

Canadian House Plans

Lake House Plans

Metric

Photo Gallery
