Plan 2177DR

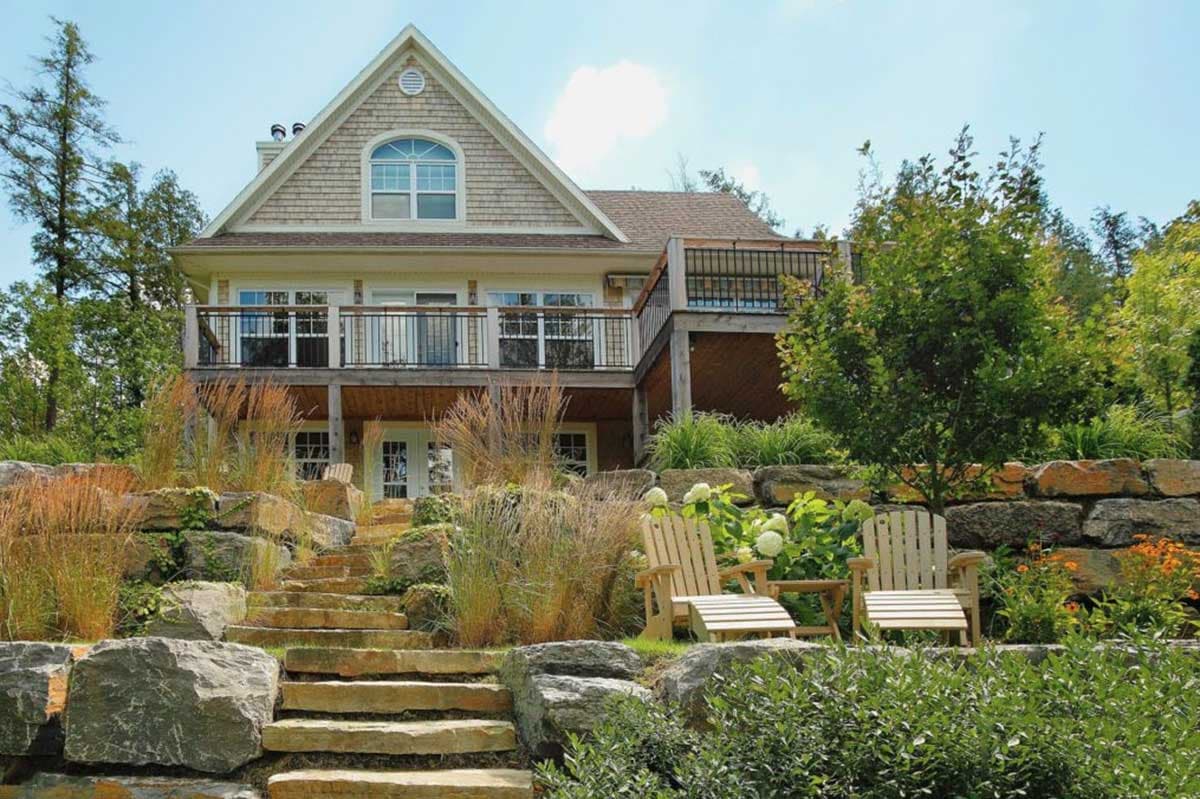

Four-Season Lake House Plan with 3 Bedrooms - 1832 Sq Ft

Heated S.F.

1,832

Beds

3

Baths

2

Stories

2

Floor Plan

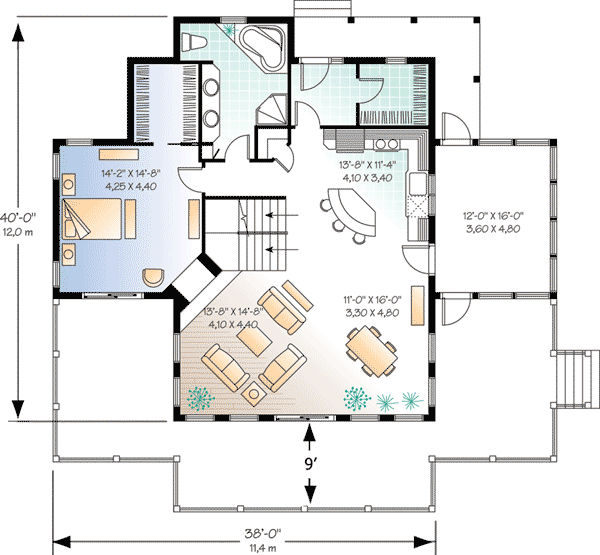

Main Level

floor plan image Main Level

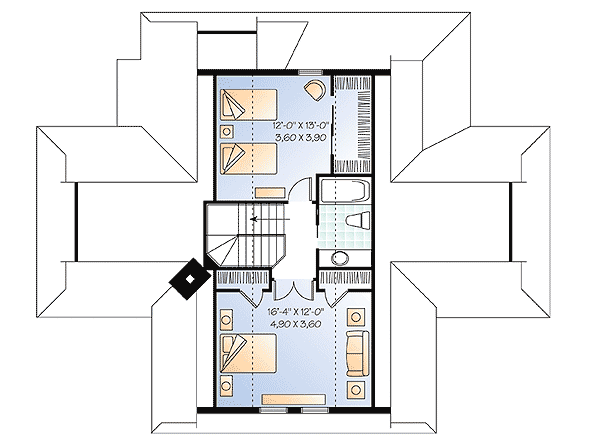

2nd Floor

floor plan image 2nd Floor

Plan Details

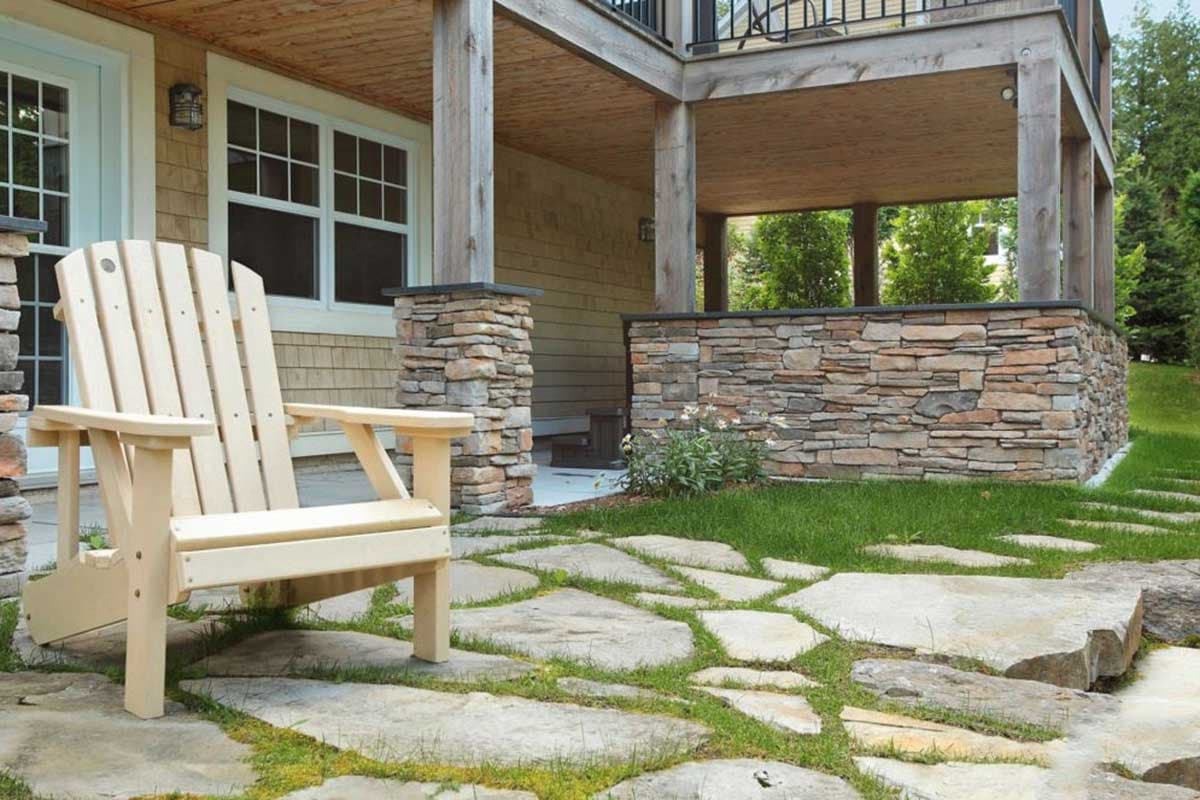

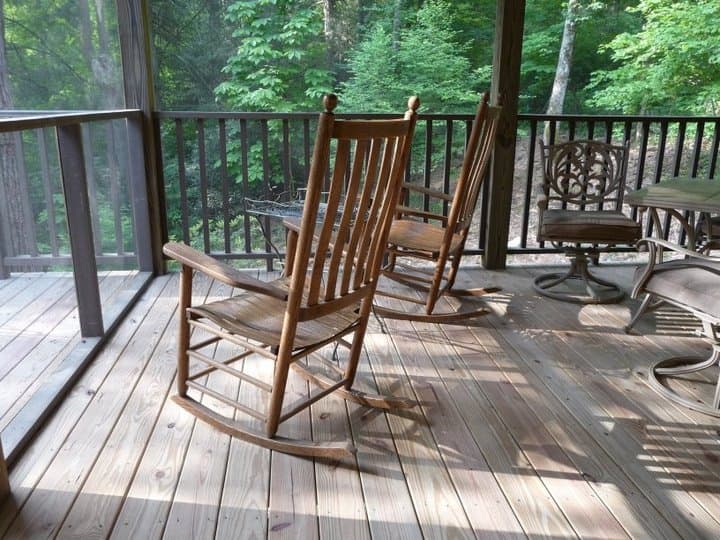

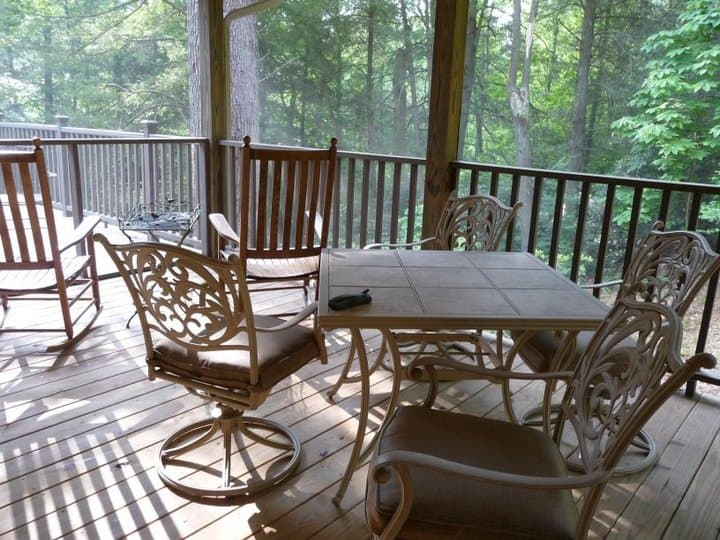

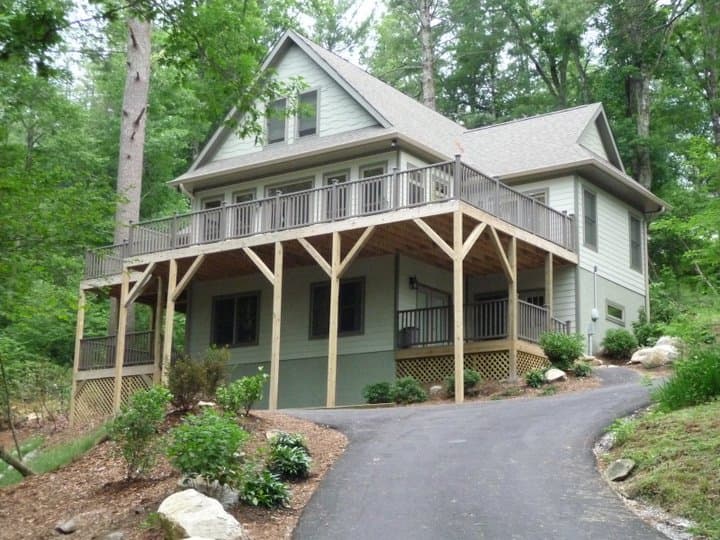

A covered wrap-around porch off the entry hall, plus an expansive deck make for glorious outdoor living at this year-round lake house plan with 3 bedrooms.

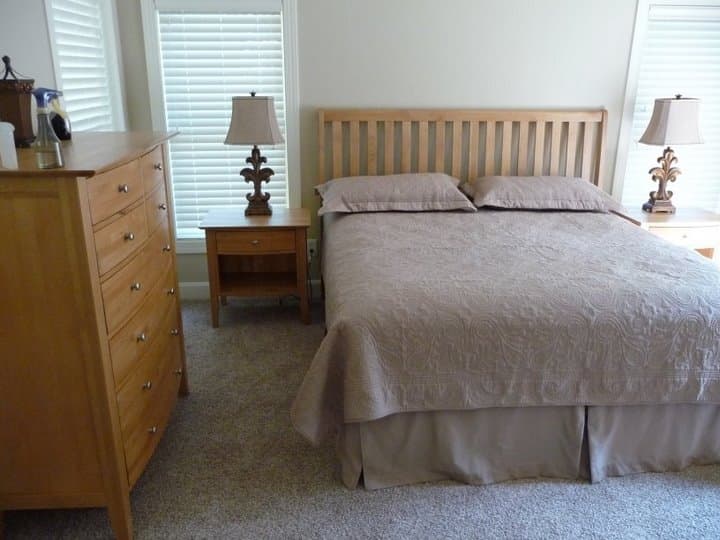

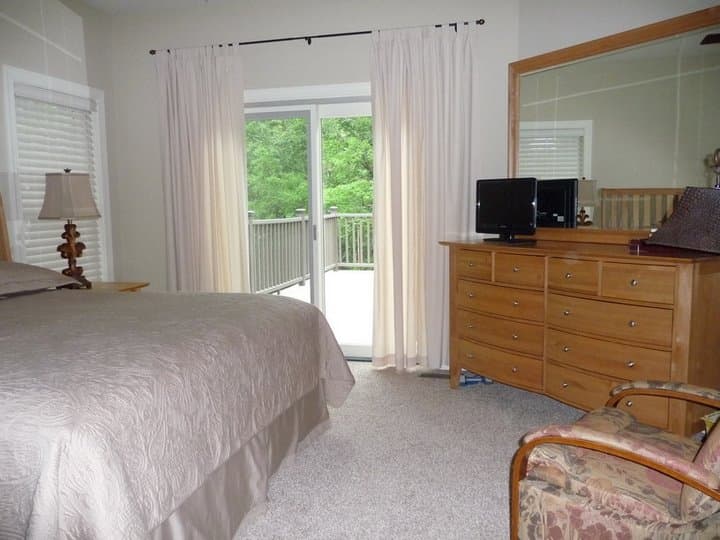

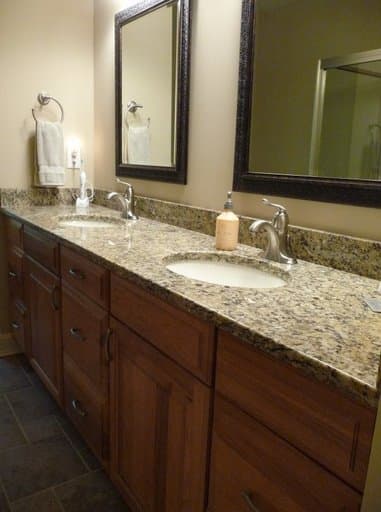

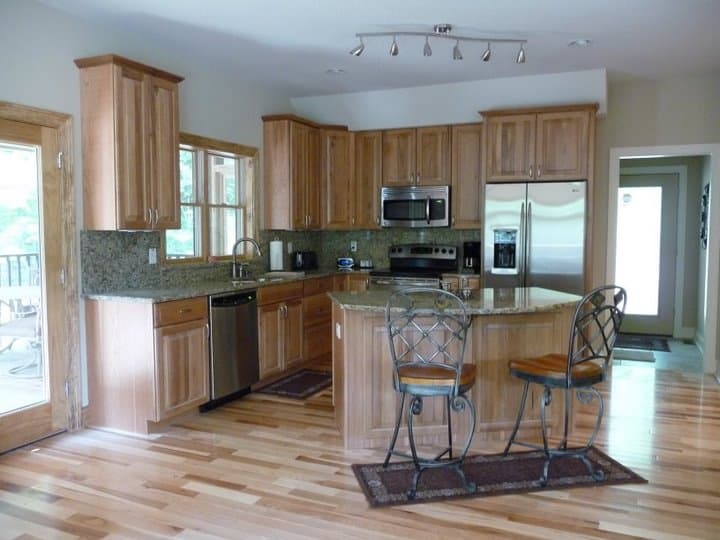

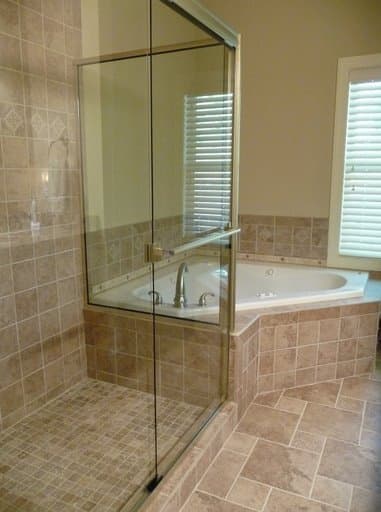

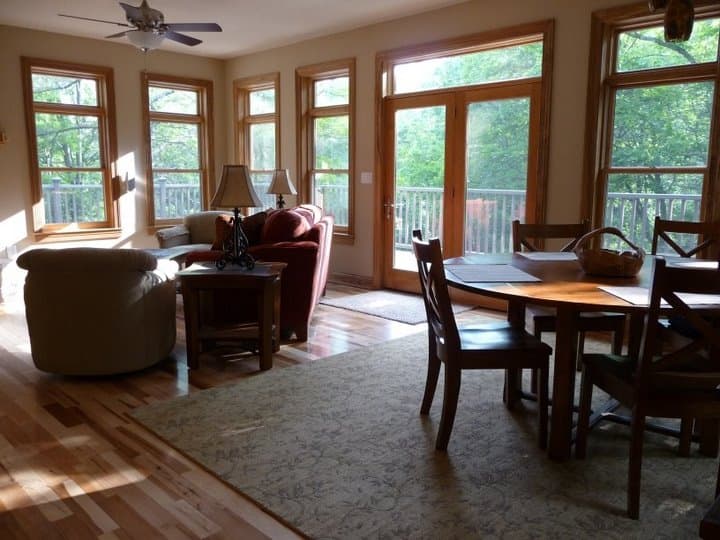

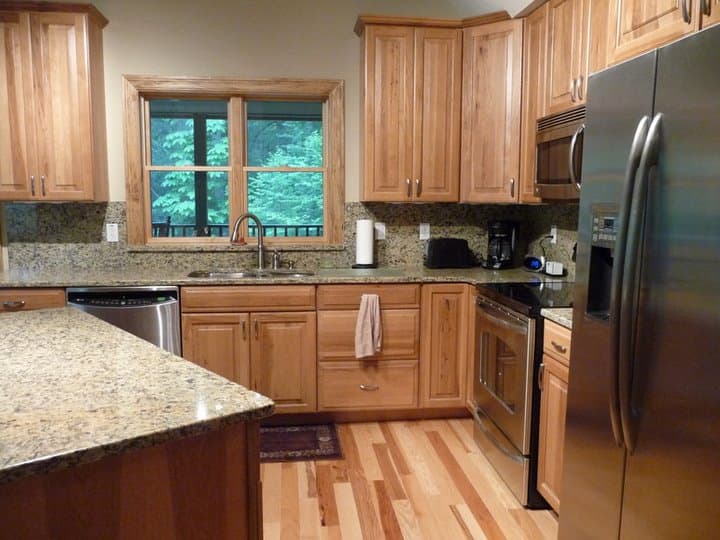

The open kitchen includes a curved island with an eating bar. The living-dining room shares a see-through fireplace with the master bedroom. The master bedroom is handy to the full bath on this floor, which includes a corner tub and separate shower.

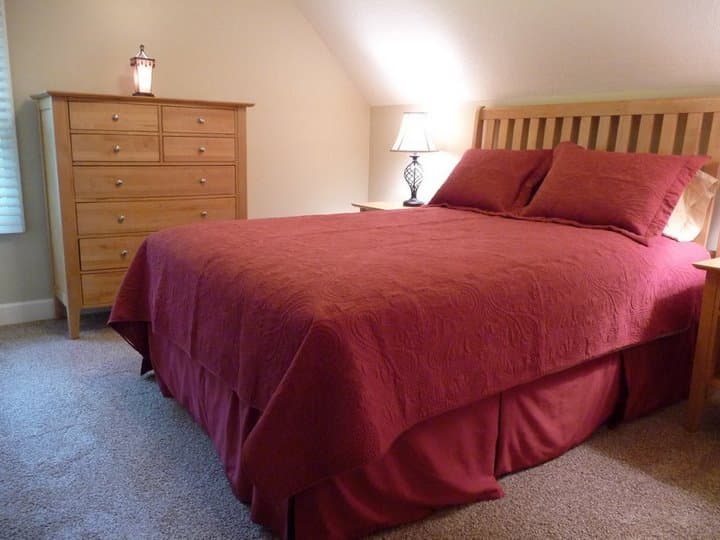

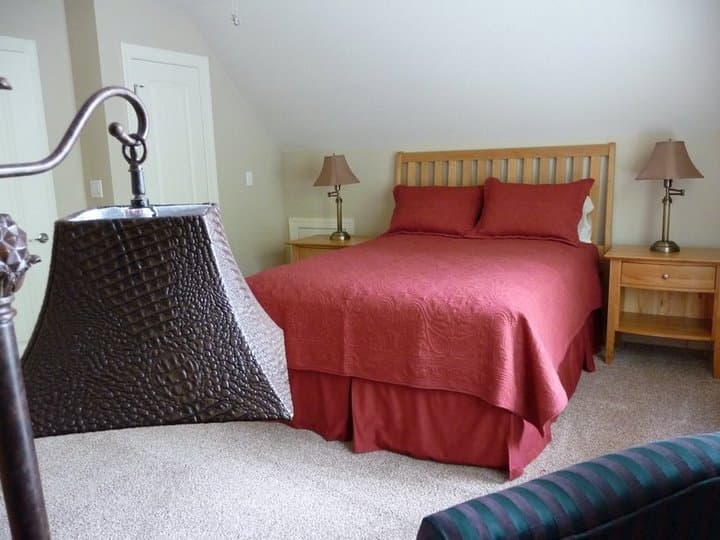

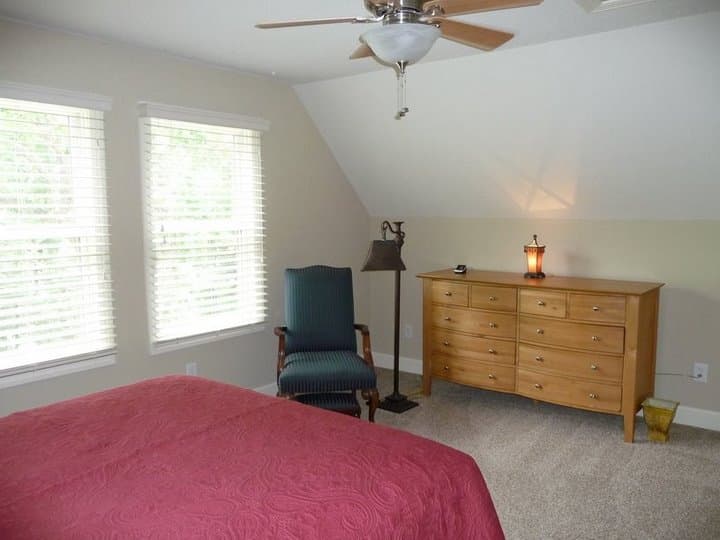

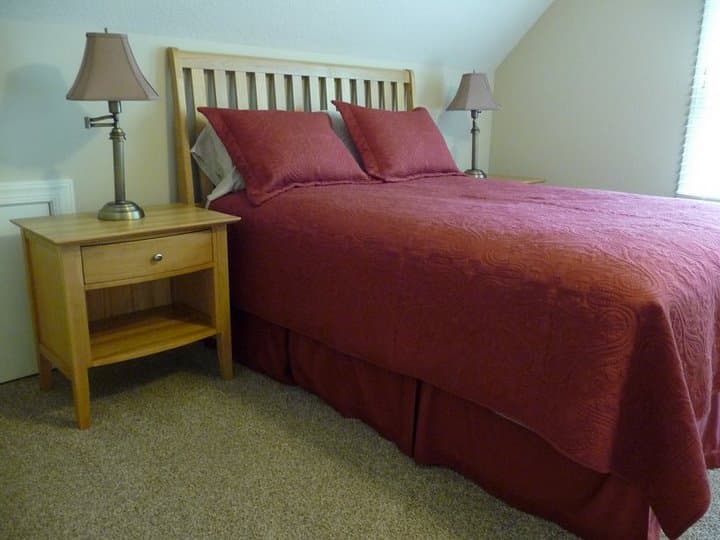

Upstairs, two more large bedrooms share the second full bath.
Ceilings: 8' standard; bedrooms 2 and 3 slope; 2x6 exterior walls.
Related Plans: Get alternate versions with house plans 21569DR (1,832 sq. ft.), 2104DR (1,482 sq. ft.), 22310DR (2,102 sq. ft.), 22441DR (2,416 sq. ft.) and 22440DR (2,340 sq. ft.)..

What's Included

Elevations
Foundation Plan
Main Floor Plan
Upper Floor Plans (if applicable)
Roof Plan
Building Section
Construction Details
Typical Wall Section

View Sample Plan

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical and Electrical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required

Modify This Plan

Need to make changes? We will get you a free price quote within 1 to 3 business days.

Square Footage Breakdown

Total Heated Area

1,832 sq. ft.

1st Floor

1,212 sq. ft.

2nd Floor

620 sq. ft.

Porch, Front

106 sq. ft.

Deck

618 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Walkout

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

38' 0"

Depth

40' 0"

Max Ridge Height

25' 10"

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

12 on 12

Secondary Pitch

12 on 12

Framing Type

Truss

Architectural Style

Special Features

Laundry - Lower Level

Master Suite - 1st Floor

Wrap Around Porch
