Plan 48532FM
French Country Cottage with Outdoor living
Heated S.F.
1,994
Beds
2
Baths
2.5
Stories
1
Cars
2

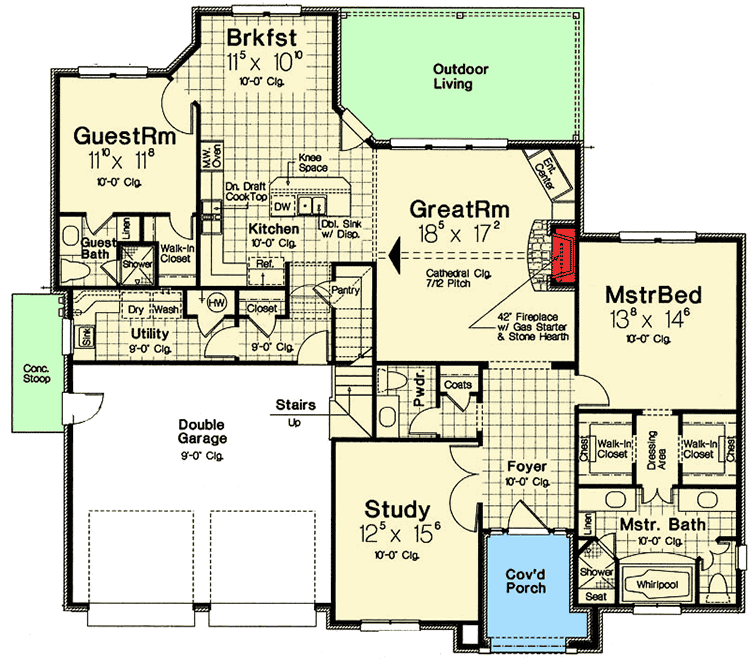

Floor Plan

Plan 48532FM

Main Level
slide image 0

Plan 48532FM

1-800-854-7852

1-262-521-4596

Main Level
floor plan image Main Level
Plan Details
  • An arched entry porch and truly elegant exterior speak well for this French Country house plan.
  • Double doors off the foyer open to reveal a large study that faces front..
  • The open layout of the rest of the home makes it feel even larger.
  • This home skips the wasted space of a formal dining room in favor of an informal dining nook off the kitchen.
  • From the kitchen sink, you can see into the nook, the vaulted great room and the spacious outdoor living area.
  • A walk-in pantry is tucked underneath the stairs leading up to attic space.
  • The two bedrooms lie on opposite side of the home offering privacy for both bedrooms.
  • In the master suite homeowners get twin walk-in closets and a large master bathroom.
What's Included
  • Cover Sheet
  • Floor Plans
  • Electrical Plan
  • Foundation Plan

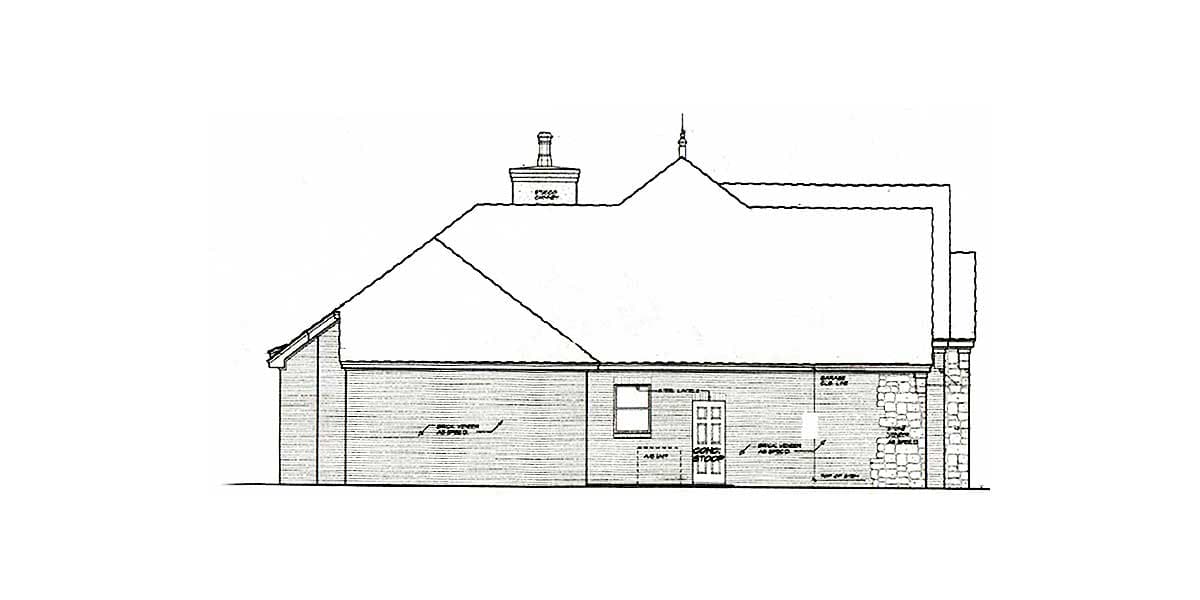

  • Front and Left Elevation

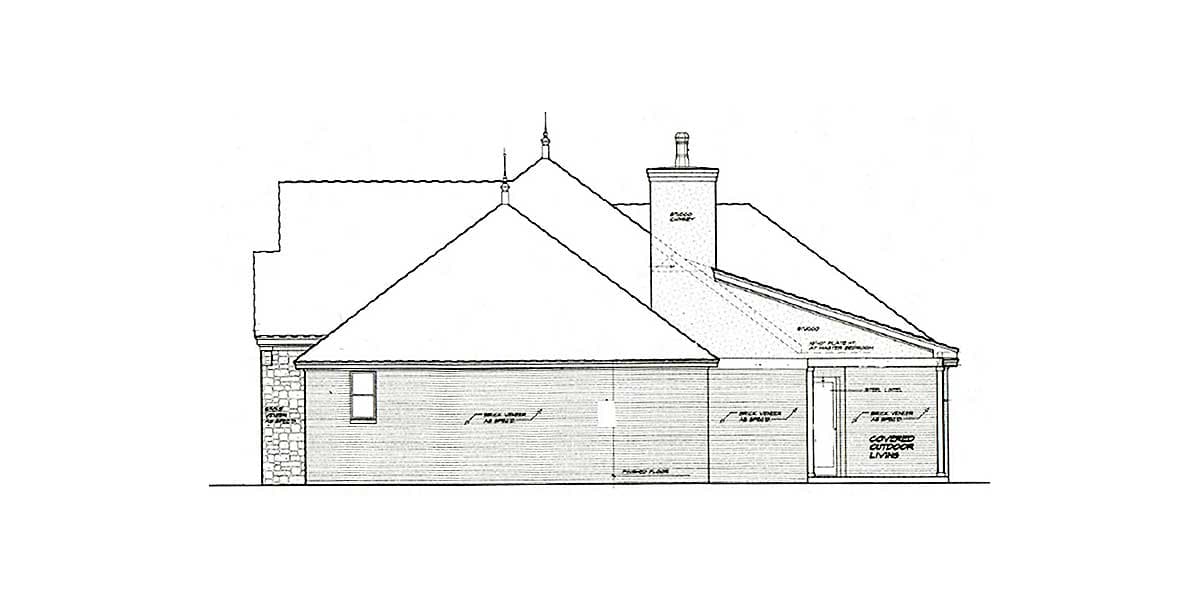

  • Rear and Right Elevation
  • Roof Plan
  • Cabinets and Section
  • Building Section

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

1,994 sq. ft.

1st Floor

1,994 sq. ft.

Porch, Front

80 sq. ft.

Beds/Baths

Bedrooms

2

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

60' 0"

Depth

55' 10"

Max Ridge Height

26' 0"

Garage

Type

Attached

Area

475 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

10'

Roof Details

Primary Pitch

12 on 12

Secondary Pitch

12 on 9

Framing Type

Stick

Architectural Style

Cottage

European

French Country

Special Features

Breakfast Nook

Butler Walk-in Pantry

Formal Dining

Laundry - Main Level

Library/Study

Master Suite - 1st Floor

Square Footage Breakdown

Total Heated Area

1,994 sq. ft.

1st Floor

1,994 sq. ft.

Porch, Front

80 sq. ft.

Beds/Baths

Bedrooms

2

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

60' 0"

Depth

55' 10"

Max Ridge Height

26' 0"

Garage

Type

Attached

Area

475 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

10'

Roof Details

Primary Pitch

12 on 12

Secondary Pitch

12 on 9

Framing Type

Stick

Architectural Style

Cottage

European

French Country

Special Features

Breakfast Nook

Butler Walk-in Pantry

Formal Dining

Laundry - Main Level

Library/Study

Master Suite - 1st Floor
