Plan 48023FM
French Country Elegance - 2590 Sq Ft
Heated S.F.
2,590
Beds
3 - 4
Baths
3.5
Stories
1
Cars
3
Floor Plan

Plan 48023FM

Main Level
slide image 0
Bonus
slide image 1

Plan 48023FM

1-800-854-7852

1-262-521-4596

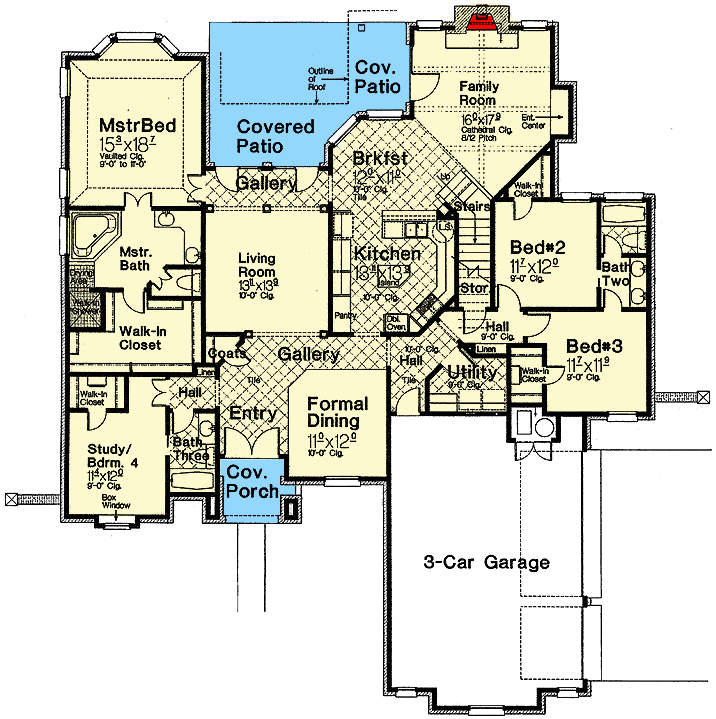

Main Level
floor plan image Main Level

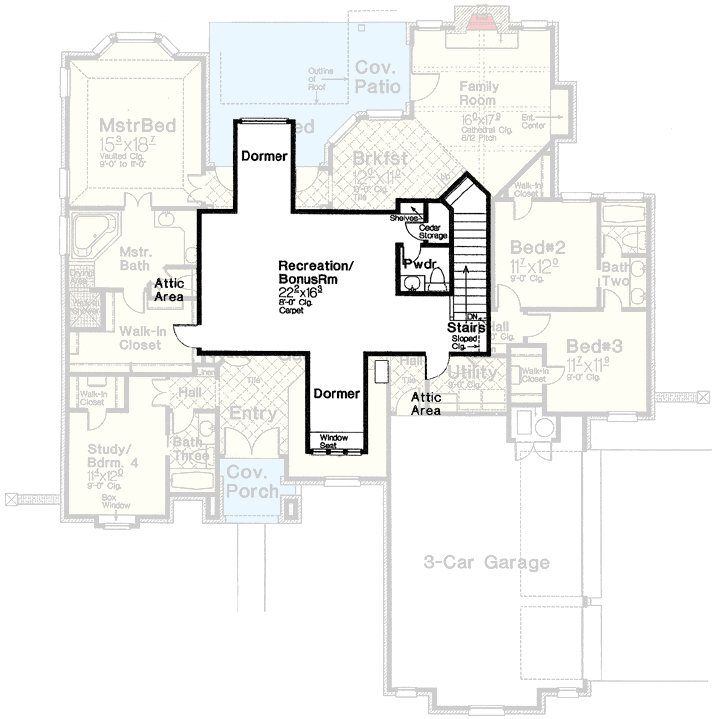

Bonus
floor plan image Bonus
Plan Details
  • A combination of brick and stone accents the exterior of this elegant French Country home plan with a split bedroom floor plan.
  • The study with box bay window could become an additional bedroom since it has a walk-in closet and access to a full bath.
  • Relax in the spacious family room with recessed entertainment center, fireplace and beamed cathedral ceiling. The kitchen and breakfast nook lie close by for a quick snack run.
  • The gallery behind the living room gives you two doors accessing the covered patio which wraps around to the side of the famiy room.
  • Double doors lead to the master bedroom with a bay window and ceiling that vaults from 9' to 11'. A bumpout lets in natural light.
  • Two bedrooms, each with a walk-in closet, share a bath on the opposite side of the house. Both have walk-in closets.
  • A large utility room is tucked behind the garage.
  • The bonus room on the second floor has a charming window seat and a convenient powder room option.
  • Related Plan: For an alternate version without the bonus and family room, see house plan 48071FM.
What's Included
  • Cover Sheet
  • Floor Plans
  • Electrical Plan
  • Foundation Plan
  • Front and Left Elevation

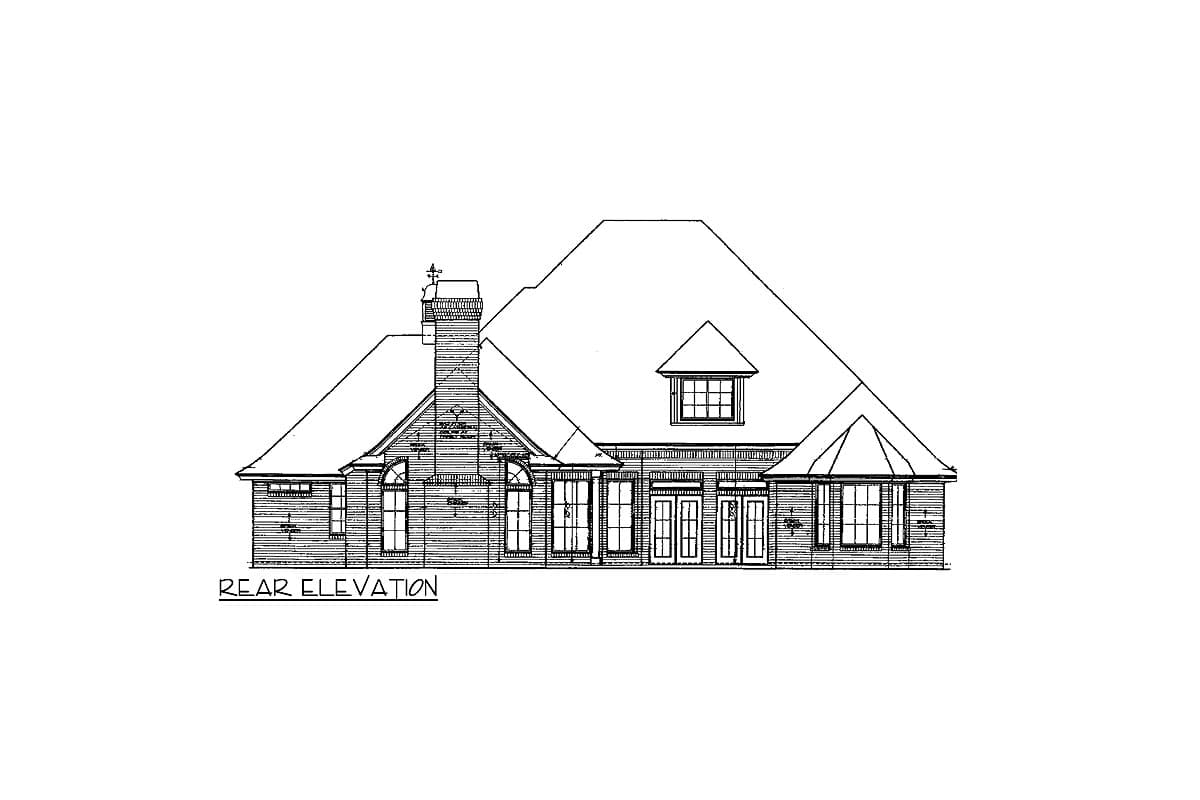

  • Rear and Right Elevation
  • Roof Plan
  • Cabinets and Section
  • Building Section

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

2,590 sq. ft.

1st Floor

2,590 sq. ft.

Bonus

627 sq. ft.

Beds/Baths

Bedrooms

3 or 4

Full bathrooms

3

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

65' 8"

Depth

76' 1"

Max Ridge Height

33' 0"

Garage

Type

Attached

Area

671 sq. ft.

Count

3 Cars

Entry Location

Side

Ceiling Heights

First Floor

9'

Second Floor

8'

Room

Ceiling Type

Height

Living Room

10' 0''

Dining Room

10' 0''

Kitchen

10' 0''

Master Bedroom

Vaulted

11' 0''

Family Room

Cathedral

0' 0''

Roof Details

Primary Pitch

12 on 12

Framing Type

Stick

Architectural Style

European

French Country

Special Features

Bedrooms - Split

Bonus Room

Breakfast Nook

Flex Room

Formal Dining

Jack & Jill Bath

Laundry - Main Level

Library/Study

Master Suite - 1st Floor

Mudroom

Square Footage Breakdown

Total Heated Area

2,590 sq. ft.

1st Floor

2,590 sq. ft.

Bonus

627 sq. ft.

Beds/Baths

Bedrooms

3 or 4

Full bathrooms

3

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

65' 8"

Depth

76' 1"

Max Ridge Height

33' 0"

Garage

Type

Attached

Area

671 sq. ft.

Count

3 Cars

Entry Location

Side

Ceiling Heights

First Floor

9'

Second Floor

8'

Room

Ceiling Type

Height

Living Room

10' 0''

Dining Room

10' 0''

Kitchen

10' 0''

Master Bedroom

Vaulted

11' 0''

Family Room

Cathedral

0' 0''

Roof Details

Primary Pitch

12 on 12

Framing Type

Stick

Architectural Style

European

French Country

Special Features

Bedrooms - Split

Bonus Room

Breakfast Nook

Flex Room

Formal Dining

Jack & Jill Bath

Laundry - Main Level

Library/Study

Master Suite - 1st Floor

Mudroom
