Plan 48414FM

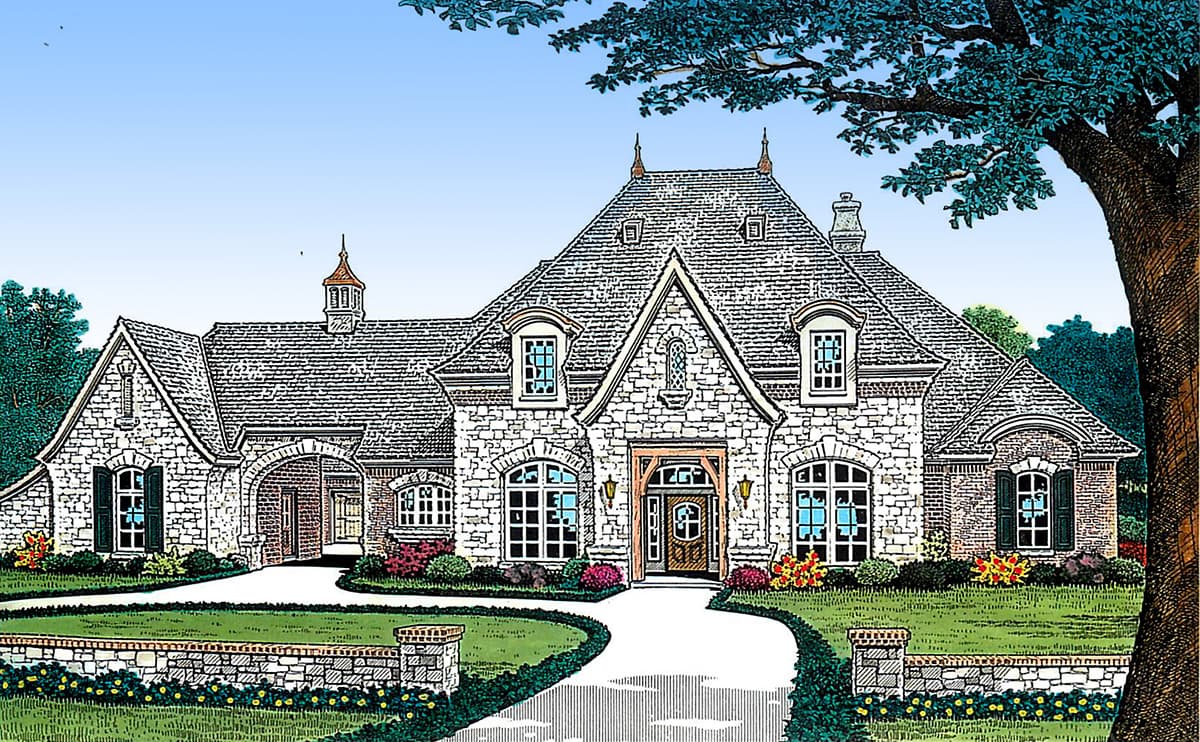

French Country Home Plan with Separate Guest Suite and Porte Cochere
Heated S.F.
4,309
Beds
4
Baths
3.5
Stories
2
Cars
3
Floor Plan

Plan 48414FM

Main Level
slide image 0
2nd Floor
slide image 1

Plan 48414FM

1-800-854-7852

1-262-521-4596

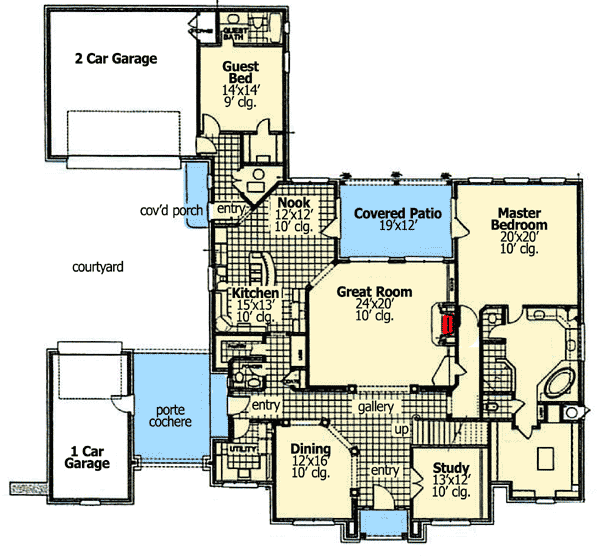

Main Level
floor plan image Main Level

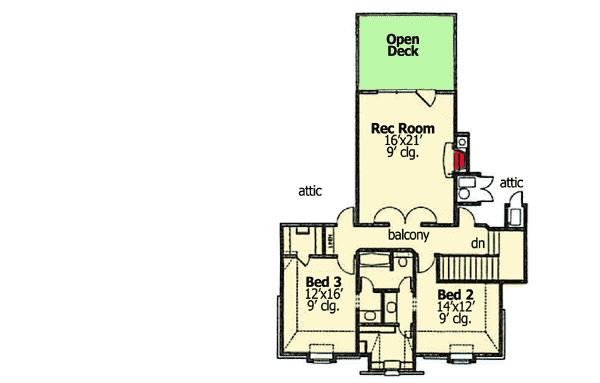

2nd Floor
floor plan image 2nd Floor
Plan Details
  • A private guest suite off by itself has a separate entrance, walk-in closet and would make an ideal in-law suite.
  • The suite connects to the main house through the large kitchen and breakfast nook.
  • Columns delineate the formal dining room while allowing views of the foyer.
  • The huge great room enjoys a cozy fireplace and windows that overlook the rear covered patio.
  • Enter the master suite through a long hall where you find a huge bedroom and large master bathroom.
  • The master walk-in closet has an island and lots of hanging space.
  • Two spacious bedrooms on the second floor each have walk-in closets and a rec room with fireplace opens to its own deck.
  • Related plans: This popular luxury house plan is available in multiple versions including 48014FM (4,182 sq. ft.), 48002FM (3,769 sq. ft.) and 48128FM (3,355 sq. ft.) 48320FM (4,868 sq. ft) and 48211FM (4,276 sq. ft.). When you want to go really big, see 48266FM (6,274 sq. ft.).
What's Included
  • Cover Sheet
  • Floor Plans
  • Electrical Plan
  • Foundation Plan
  • Front and Left Elevation

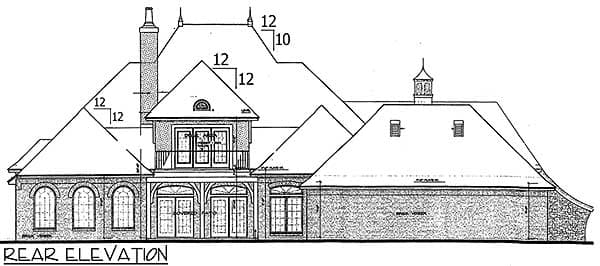

  • Rear and Right Elevation
  • Roof Plan
  • Cabinets and Section
  • Building Section

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

4,309 sq. ft.

1st Floor

3,257 sq. ft.

2nd Floor

1,052 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

3

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

86' 0"

Depth

85' 4"

Max Ridge Height

36' 0"

Garage

Type

Attached

Area

888 sq. ft.

Count

3 Cars

Entry Location

Front, Rear

Ceiling Heights

First Floor

10'

Second Floor

9'

Roof Details

Primary Pitch

12 on 12

Secondary Pitch

18 on 12

Framing Type

Stick

Architectural Style

European

French Country

Traditional

Special Features

Bedrooms - Split

Breakfast Nook

Butler Walk-in Pantry

Formal Dining

Game/Rec Room

In-Law Suite

Jack & Jill Bath

Laundry - Main Level

Library/Study

Master Suite - 1st Floor

Porte Cochere

Plan Collections

Luxury
