Plan 5574BR

French Country House Plan with Closed Floor Plan and Courtyard - 2366 Sq Ft

Heated S.F.

2,366

Beds

3 - 4

Baths

Stories

Cars

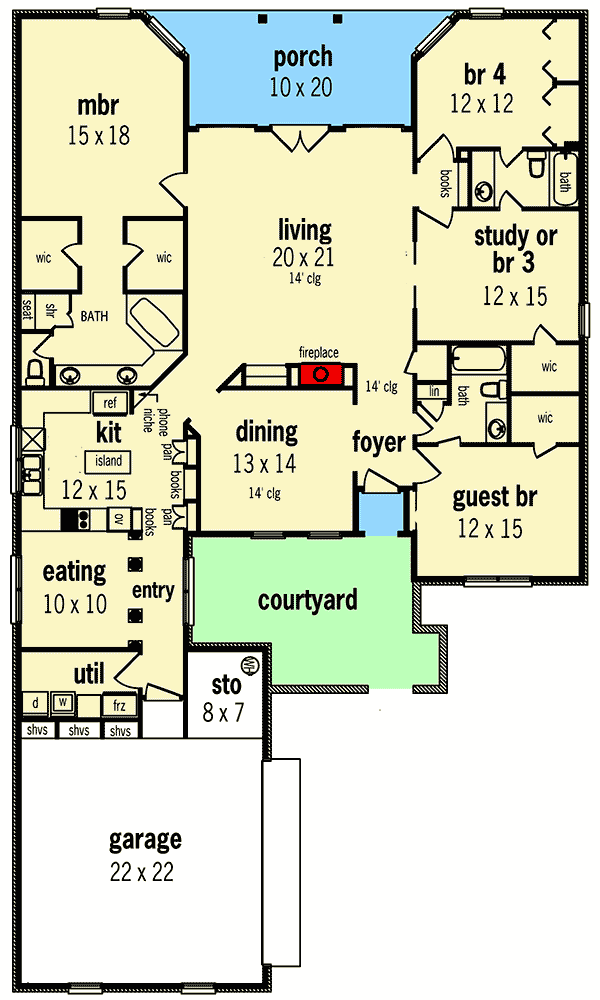

Floor Plan

Main Level

Plan Details

A private courtyard entry greets you in this delightful French Country home plan with a closed floor plan, suitable for a narrow lot.
Both the formal dining room and the informal eating nook share views of the courtyard.
With a built-in entertainment center and double door access to the covered porch, the enormous living room becomes the heart of the home.
The well-equipped kitchen has a work island and a large bank of windows over the sink.
Three bedrooms lie along the right side of the house while the master suite is located on the opposite side for quiet and privacy.

What's Included

Cover Sheet - with general information
Foundation Plan drawn to 1/4" scale - if the foundation is a basement or crawlspace, a floor framing plan will be included indicating the floor joist or trusses.
Foundation Footing - details
Fully Dimensioned Floor Plan which indicates all plumbing fixture locations, cabinet locations, beam locations and sizes, door & window schedules, design load charts and general notes. Also included are tables for all dimensional lumber sizes such as ceiling joist, rafters and floor joists.
Elevations - which call out exterior finish materials
Building Sections, enlarged drawings of the cornice and wall construction at various area of the exterior
Interior Elevations that have built-in cabinets or areas with special wall detail such as a fireplace wall.
Roof Plan indicating planes of the roof and a birds eye view of the roof configuration. Electrical plan indication location of all wall outlets, lighting and switch locations along with a schedule of electrical symbols.
Construction Details - schedules for the interior finish, exterior finish, electrical schedule

View Sample Plan

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required
