Plan 11742HZ
French Elegance
Heated S.F.
1,750
Beds
3
Baths
2
Stories
1-2
Cars
2
Floor Plan

Plan 11742HZ

Main Level
slide image 0
Bonus
slide image 1

Plan 11742HZ

1-800-854-7852

1-262-521-4596

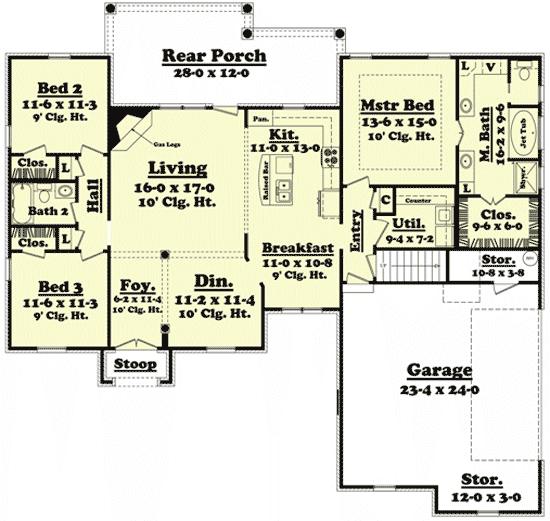

Main Level
floor plan image Main Level
Bonus
floor plan image Bonus
Plan Details

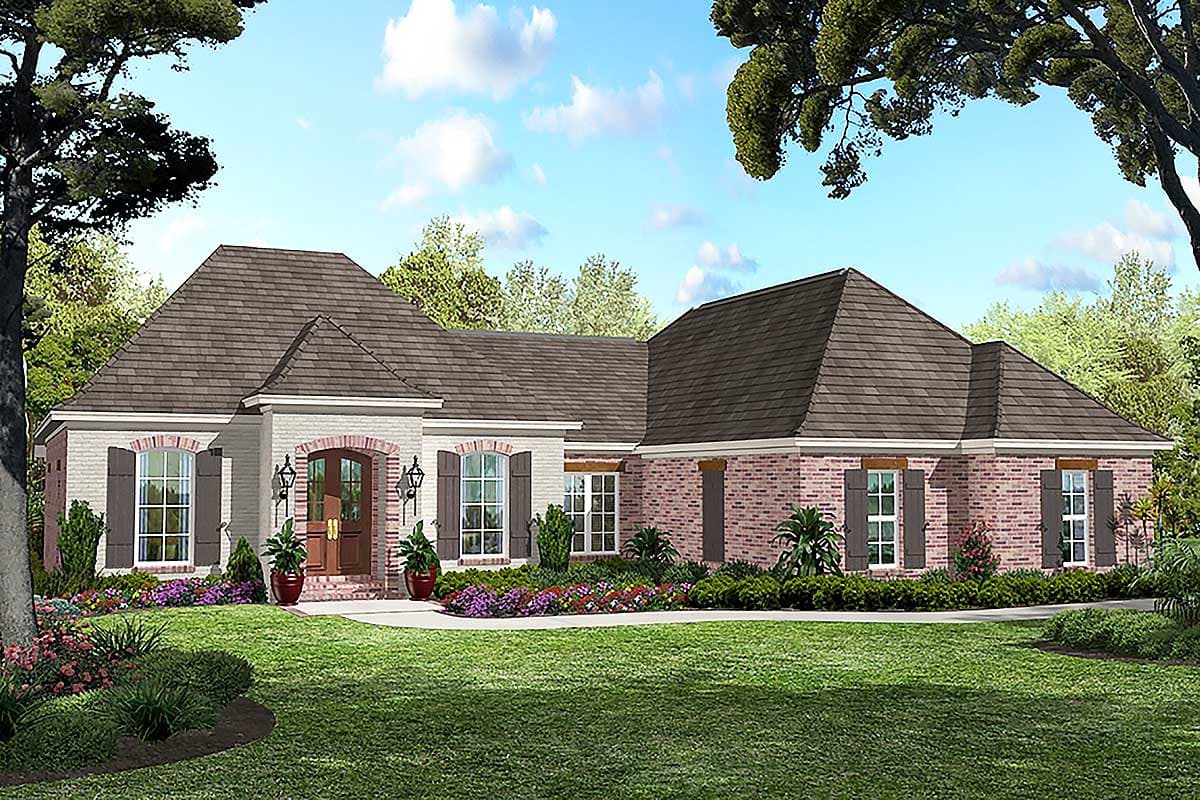

  • This elegant French Acadian inspired home plan offers 3 large bedrooms, 2 baths in an open floor plan with formal dining room and separate breakfast area.

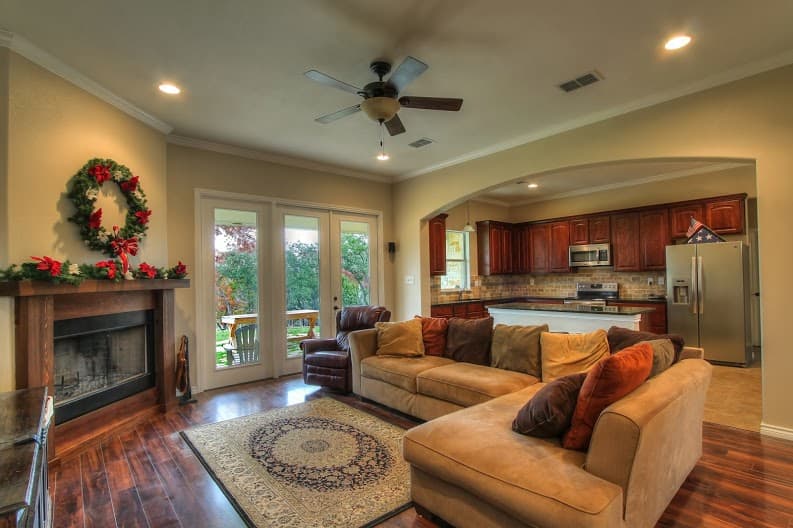

  • The oversized kitchen has a large island with raised bar, plenty of cabinets for storage and views into the great room and rear porch.
  • The covered rear porch offers a wonderful place for entertaining and cooking out with your family and friends.

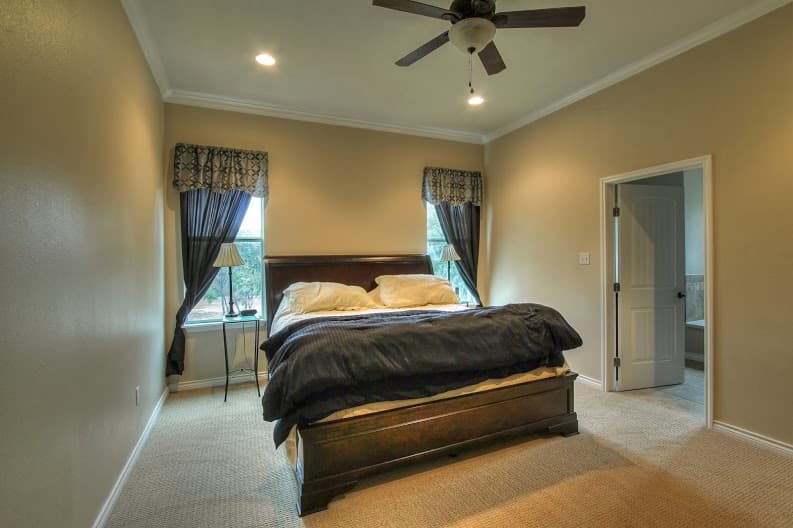

  • Raised ceilings in the master suite adds more elegance while the master bath offers dual sinks, jet tub, separate shower, vanity space and lots of linen storage.
  • Related Plan: For a slightly larger version, see house plan 11731HZ.
What's Included
  • Cover Sheet with abbreviations, rendering, sheet index
  • Foundation plan with details
  • Detailed floor plan (includes window sizes, ceiling joist directions, plumbing fixture locations, etc.)

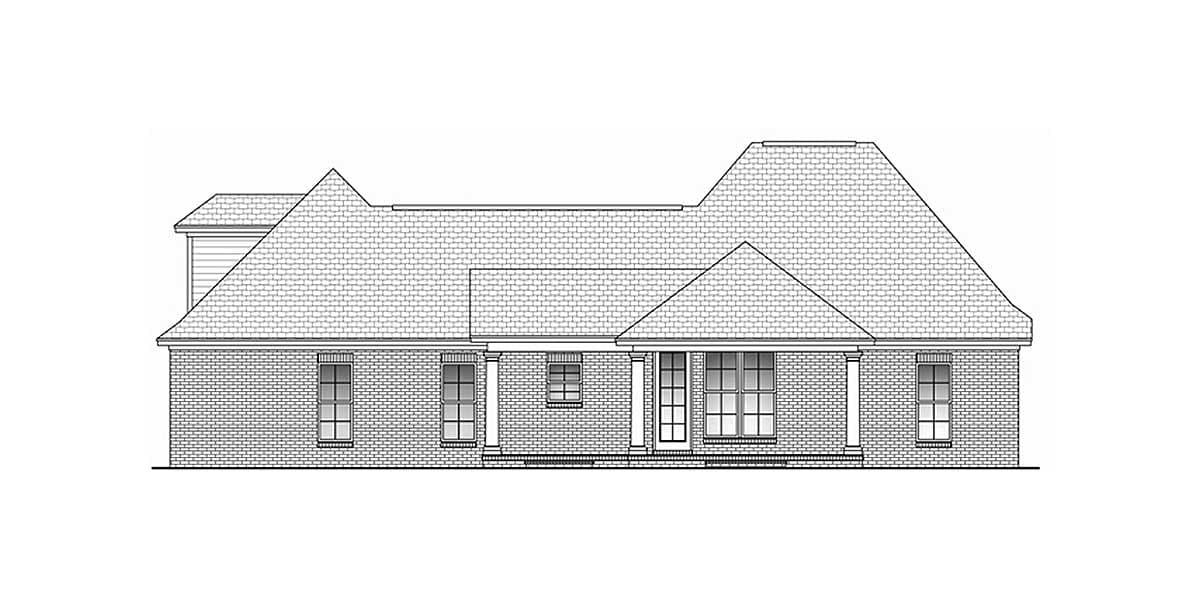

  • Four exterior views (front, rear, right, left)
  • Roof plan (birds eye view of roof)
  • Building section
  • Kitchen cabinet views
  • Electrical plan
  • Span charts and other misc details

View Sample Plan
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • REScheck or other energy related calculations are NOT included.
  • Wind load or seismic calculations are NOT included.
  • Framing plans or beam sizes are NOT included.
  • Other specific drawings that your local permit office may require
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

1,750 sq. ft.

1st Floor

1,750 sq. ft.

Bonus

340 sq. ft.

Porch, Combined

333 sq. ft.

Storage

82 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

63' 6"

Depth

60' 6"

Max Ridge Height

23' 4"

Garage

Type

Attached

Area

583 sq. ft.

Count

2 Cars

Entry Location

Side

Ceiling Heights

Lower Level

9' 4"

First Floor

9'

Roof Details

Primary Pitch

10 on 12

Secondary Pitch

14 on 12

Framing Type

Stick

Architectural Style

European

French Country

Southern

Special Features

Bedrooms - Split

Bonus Room

Formal Dining

Laundry - Main Level

Master Suite - 1st Floor

Plan Collections

USDA Approved
