Plan 5930ND
French Traditional House Plan with Large Study/Sun Room - 3568 Sq Ft
Heated S.F.
3,568
Beds
3
Baths
3.5+
Stories
1
Cars
3
Floor Plan

Plan 5930ND

Main Level
slide image 0
Bonus Room
slide image 1

Plan 5930ND

1-800-854-7852

1-262-521-4596

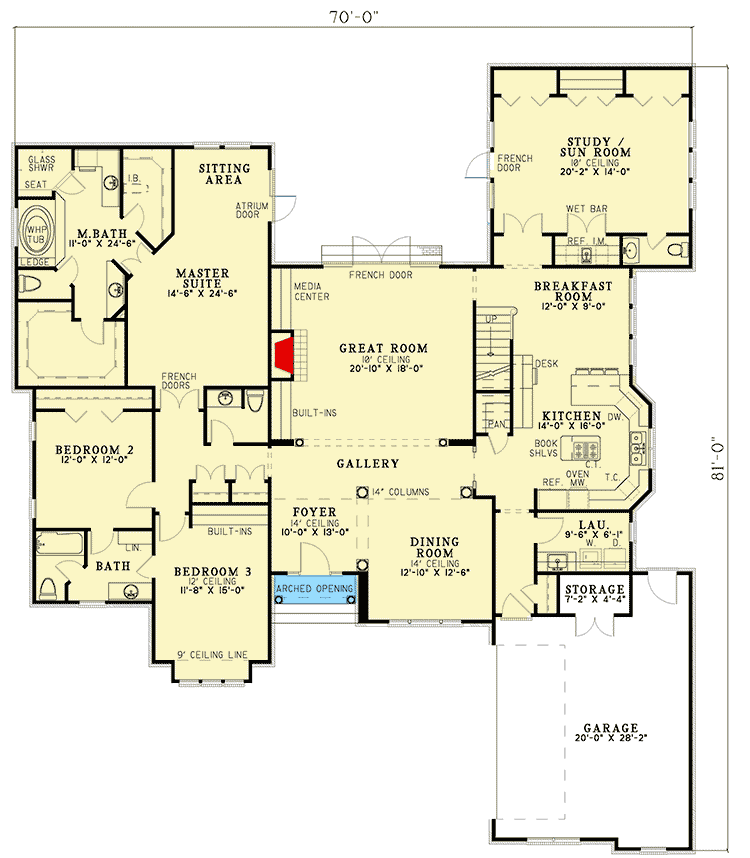

Main Level
floor plan image Main Level

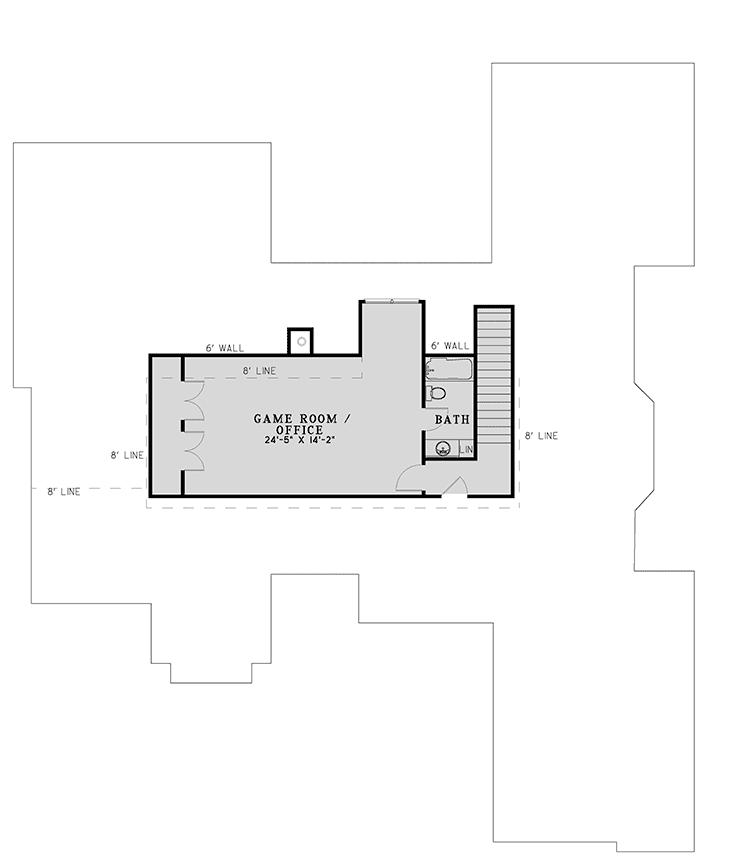

Bonus Room
floor plan image Bonus Room
Plan Details
  • The brick arched entry and front courtyard design give a formal introduction to this gracious home, but an open floor plan and expansive ceilings suit it to family living.
  • The 14' high foyer opens to a central gallery and the magnificent great room with fireplace and media center. The large kitchen features an island, desk and breakfast room.
  • The master suite has a sitting area, luxurious bath and two large walk-in closets.
  • Entertain family and friends in the inviting sun room with a wet bar.
  • The upper floor can be a game room, office or guest suite with its private bath.
  • Ceilings: 10' standard, unless noted.
  • Related Plan: Gain a fourth bedroom with house plan 5906ND.
What's Included
  • Foundation Plan (1/4″ or 1/2″ = 1′)
  • Floor Plans (1/4″= 1′)

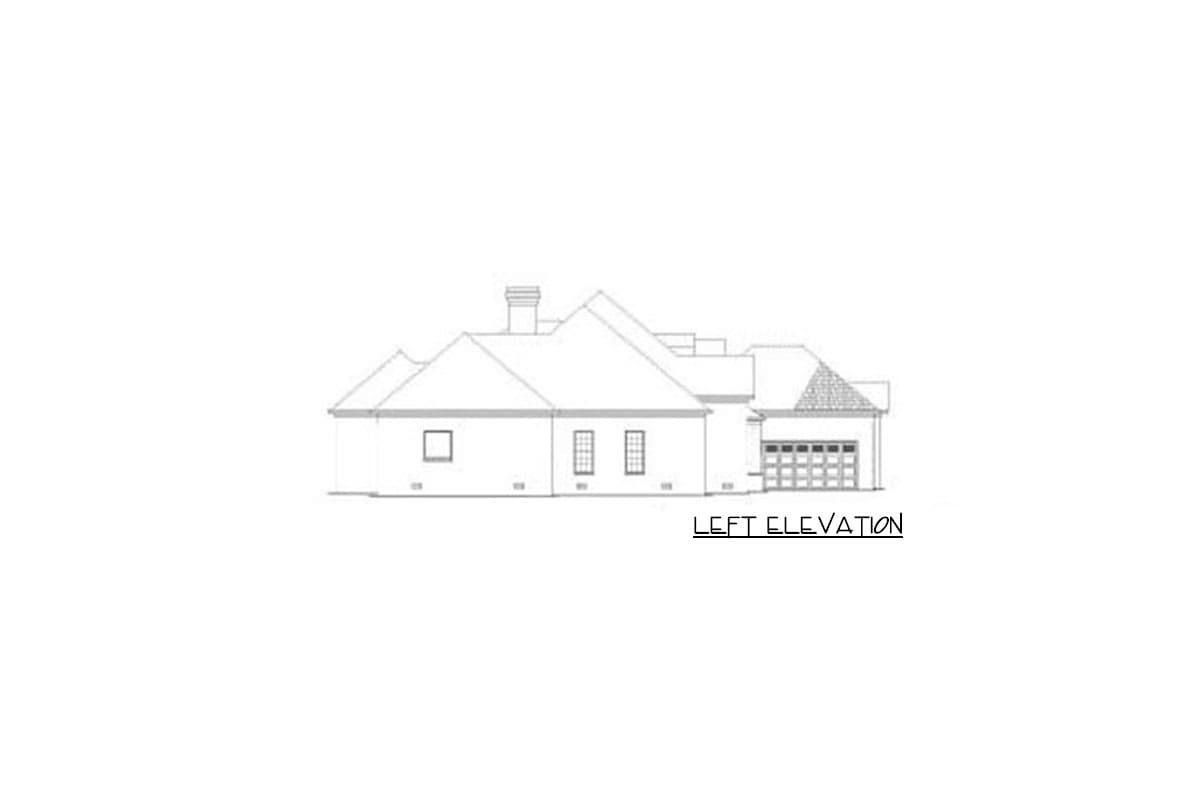

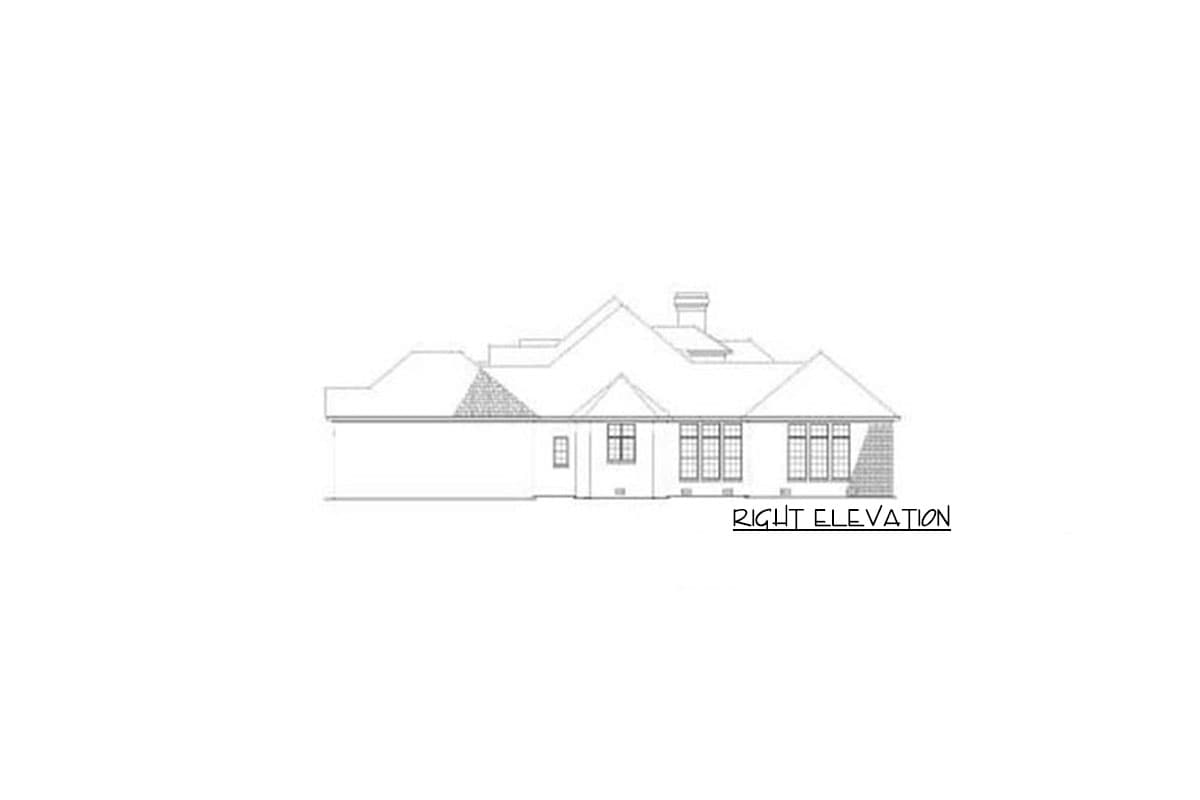

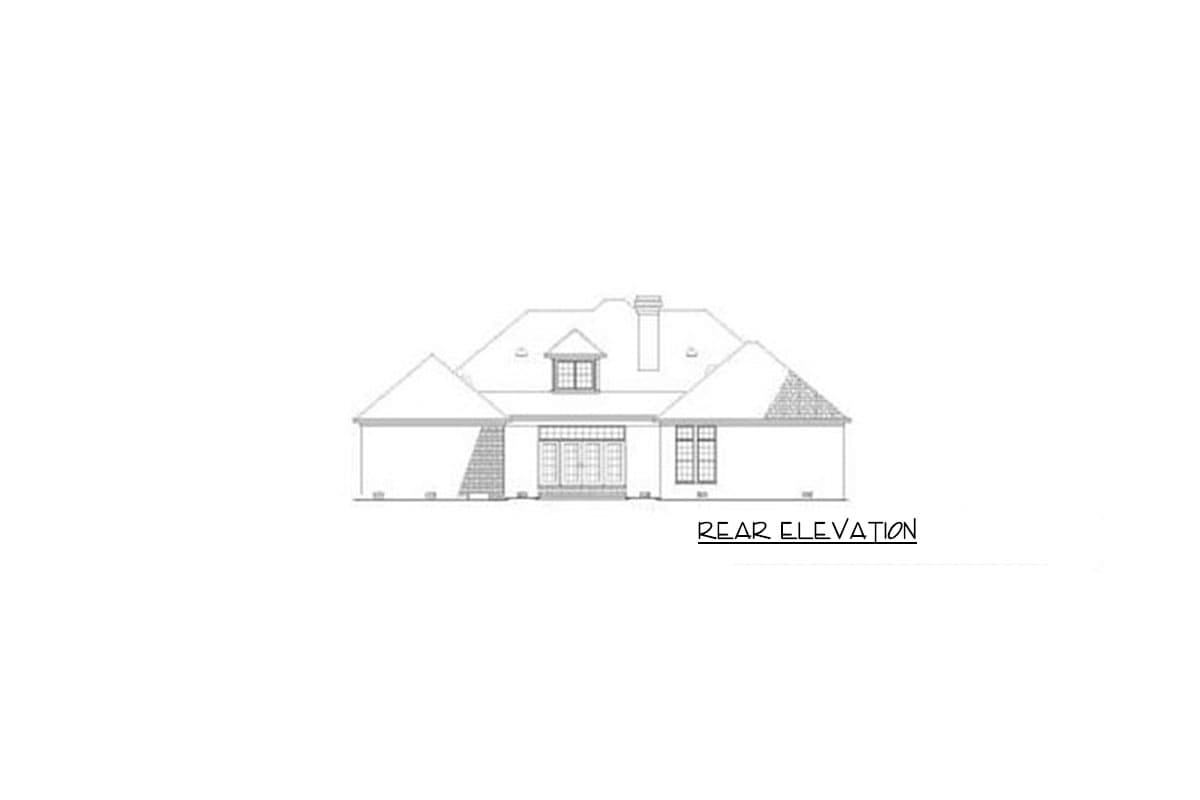

  • Set of Elevations (1/4″= 1′)
  • Miscellaneous Details (3/4″ = 1′)
  • An electrical diagram showing a bird's-eye view of rooms with lights, fans to switches
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

3,568 sq. ft.

1st Floor

3,051 sq. ft.

2nd Floor

517 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

3

Half bathrooms

2

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

70' 0"

Depth

81' 0"

Max Ridge Height

27' 4"

Garage

Type

Attached

Area

563 sq. ft.

Count

3 Cars

Entry Location

Courtyard

Ceiling Heights

First Floor

10'

Second Floor

10'

Roof Details

Primary Pitch

12 on 12

Framing Type

Stick

Architectural Style

Traditional

Special Features

Breakfast Nook

Butler Walk-in Pantry

Formal Dining

Game/Rec Room

Home Office

In-Law Suite

Jack & Jill Bath

Laundry - Main Level

Library/Study

Master Suite - 1st Floor

Master Suite - Sitting Area

Mudroom

Sunroom

Wet Bar
