Plan 24010BG
From Our Premium Collection
Heated S.F.
5,042
Beds
4
Baths
5
Stories
2
Cars
2
Floor Plan

Plan 24010BG

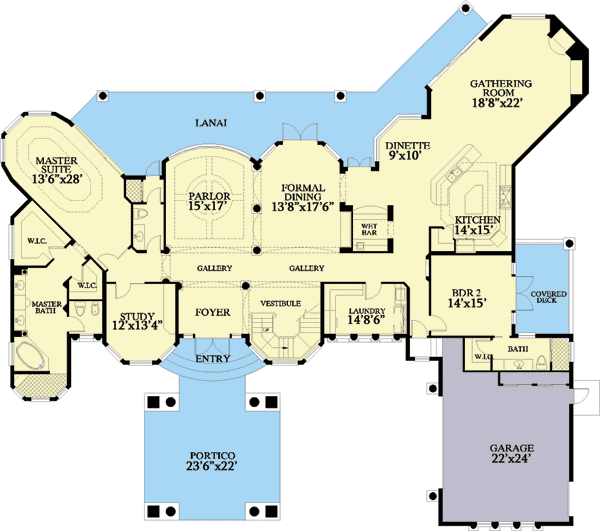

Main Level
slide image 0

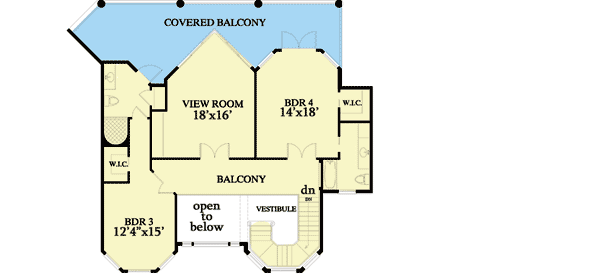

2nd Floor
slide image 1

Plan 24010BG

1-800-854-7852

1-262-521-4596

Main Level
floor plan image Main Level
2nd Floor
floor plan image 2nd Floor
Plan Details
  • This magnificent Mediterranean home from our Premium Collection offers a multitude of amenities for the discriminating buyer.
  • Unusual angles, an eye-catching portico and generously-sized rooms set this home apart.
  • Inside, attention has been paid to details such as arches, interior columns and special ceiling treatments.
  • A two-story foyer greets your guests with views extending to the formal dining room and parlor straight through to the covered lanai in back.
  • The extra-large master suite boasts a tray ceiling, two walk-in closets, a sumptuous bath and sliding glass doors to the covered lanai.
  • An enormous gathering room with a fireplace and built-in entertainment space, also accesses the covered lanai.
  • Two bedrooms, a view room and a covered balcony on the second floor provide space for family or guests.
What's Included
  • Cover page showing front elevation, contents and notes
  • Fully dimensioned floor plans including ceiling heights
  • Roof plan

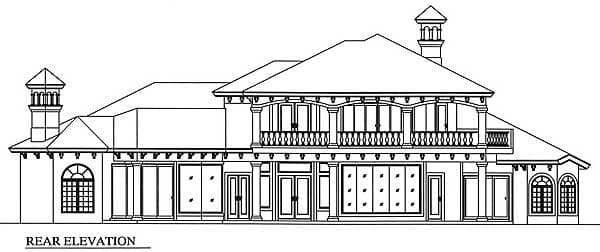

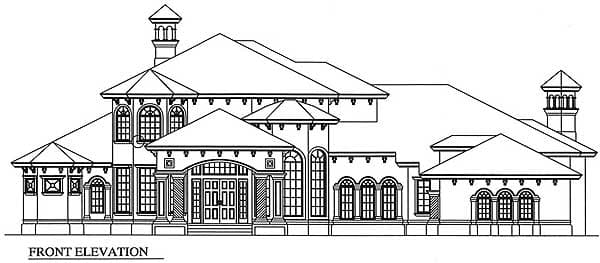

  • All four exterior elevations
  • Typical cross section
  • Suggested electrical schematic
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Framing - layouts with beam sizes and locations
  • Energy calculations - handled locally when required
  • Roof truss design - to be created by the truss manufacturer in accordance with local code requirements
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

5,042 sq. ft.

1st Floor

3,782 sq. ft.

2nd Floor

1,260 sq. ft.

Porch, Combined

1,608 sq. ft.

Beds/Baths

Bedrooms

4
