Plan 80664PM
Functional Charm
Heated S.F.
3,097
Beds
5
Baths
2.5
Stories
2
Cars
2
Floor Plan

Plan 80664PM

Main Level
slide image 0
2nd Floor
slide image 1

Plan 80664PM

1-800-854-7852

1-262-521-4596

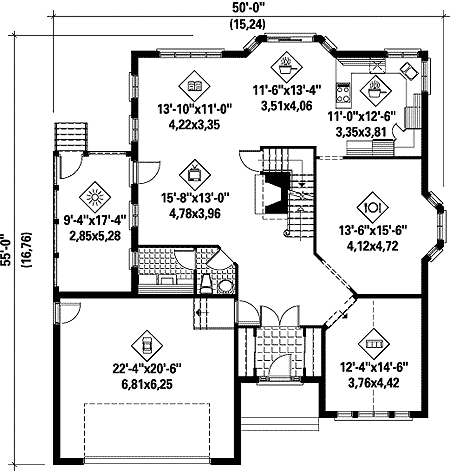

Main Level
floor plan image Main Level
2nd Floor
floor plan image 2nd Floor
Plan Details
  • The charm of a stone facade with arched windows combines with an open floor plan to showcase this stunning European home plan.
  • Only 50' wide, this gorgeous home plan would fit well on a narrow lot.
  • Family and friends can easily move from room to room and the views go on forever, thanks to the open floor plan.
  • Bay windows in the dining room and nook bring in extra light.
  • A delightful solarium will become your favorite place to spend time.
  • All the bedrooms reside on the second floor.
What's Included
Please note this plan is designed to the National Building Code of Canada.
  • Exterior Elevations – Four detailed exterior elevations views showing the final appearance of each side of the house.
  • Foundation Plans – Different isometric views with dimensions as well as relevant information to build the foundation.
  • Floor Plans – A drawing of each floor of the house. They are fully dimensioned showing the size of rooms and the location and size of windows, doors and staircases.
  • Cross-Section View – Vertical section of the house showing the structure, insulation, typical wall configuration as well as other details
  • The plans include the 4 elevations views, foundation plans, floor plans, cross section, staircase section, materials specifications and various construction details which aid in the house's construction.
  • The plan views, cross sections and front elevations are drawn to the scale of 1/4" = 1'-0"; the side and rear elevations are 1/8" = 1'-0" and some details are 1/2" = 1'-0".
  • Lintel, beam, post, footing sizes, etc. are calculated (may require local architect/ engineer stamp) and the plans are available in metric.

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

3,097 sq. ft.

1st Floor

1,570 sq. ft.

2nd Floor

1,527 sq. ft.

Beds/Baths

Bedrooms

5

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

50' 0"

Depth

55' 0"

Max Ridge Height

38' 4"

Garage

Type

Attached

Area

511 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

12 on 12

Secondary Pitch

12 on 12

Framing Type

Truss

Architectural Style

European

Southern

Traditional

Special Features

Breakfast Nook

Butler Walk-in Pantry

Master Suite - 2nd Floor

Sunroom

Plan Collections

Canadian House Plans

Metric

Square Footage Breakdown

Total Heated Area

3,097 sq. ft.

1st Floor

1,570 sq. ft.

2nd Floor

1,527 sq. ft.

Beds/Baths

Bedrooms

5

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

50' 0"

Depth

55' 0"

Max Ridge Height

38' 4"

Garage

Type

Attached

Area

511 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

12 on 12

Secondary Pitch

12 on 12

Framing Type

Truss

Architectural Style

European

Southern

Traditional

Special Features

Breakfast Nook

Butler Walk-in Pantry

Master Suite - 2nd Floor

Sunroom

Plan Collections

Canadian House Plans

Metric
