Plan 66246WE
Functional, Livable, Entertainable
Heated S.F.
2,660
Beds
3
Baths
3
Stories
1
Cars
3

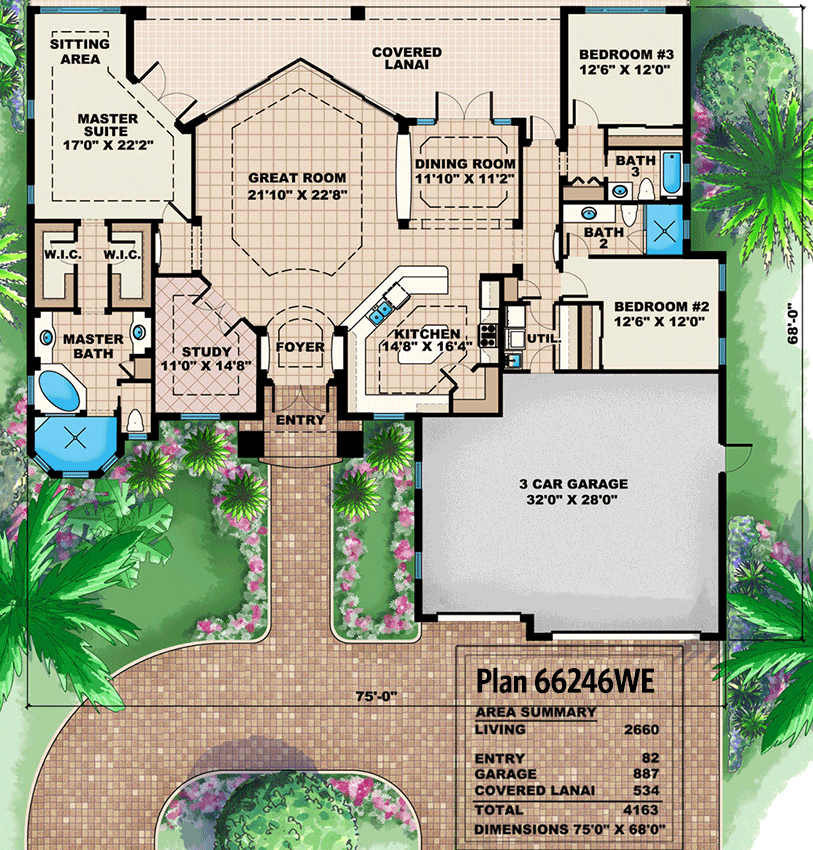

Floor Plan

Plan 66246WE

Main Level
slide image 0

Plan 66246WE

1-800-854-7852

1-262-521-4596

Main Level
floor plan image Main Level
Plan Details
  • Functional, Livable, Entertain-able. This home plan has it all! Stunning great room with zero corner pocket sliders creating a seamless flow to the outdoors.
  • Open and inviting kitchen and dining room, perfect for entertaining.
  • Three full bedrooms; all with their own bath.
What's Included
Elevations - Drawn at 1/8″ to 1/4″ = 1′-0″ Scale, and Includes:
  • Material Labels
  • Floor-to-Floor Heights
  • Roof Slope Indicators
Floor Plans - Drawn at 1/8″ to 1/4″ = 1′-0″ Scale, and Includes:
  • Door and Window Sizes
  • Completely Dimensioned Floor Plan
  • Room Labels and Interior Room Sizes
Electrical Layouts
  • Building Section Markers
  • All Electrical Outlets, Fixtures, and Switching
Foundation Plan - Drawn at 1/8″ to 1/4″ = 1′-0″ Scale, and Includes:
  • Floor and Deck Joist Size and Spacing
  • Electrical Locations (if applicable)

Roof Design Plan - Drawn at 1/8″ to 1/4″ = 1′-0″scale, and Includes:
  • All Beam and Header Heights and Locations
  • All Hips, Gables, Ridges, and Valleys
  • Building Section Markers
Building Sections - Drawn at 1/8″ to 1/4″ = 1′-0″ Scale, and Includes:
  • Floor Joist Size and Spacing
  • Floor-to-Floor Heights
  • Non-Typical Plate Heights Indicated
Typical Wall Sections - Drawn at 1/8″ to 1/2″ = 1′-0″ Scale, and Includes:
  • All Labels Indicating Wall Construction
  • Foundation Wall Thickness and Reinforcing
  • Insulation Type and Thickness
Miscellaneous Notes and Details
  • Miscellaneous General Notes
  • Stairway details (if applicable)
We do provide a slab plan, however, the structural foundation plan is to be provided by the structural engineer selected by your builder or yourself. This is done because our slab plan cannot anticipate the variations in soil, footings and other conditions per your specific site. We provide the design of the roof as well, however, the truss layouts need to be provided by a truss engineer or your lumber company. Your builder can provide these contacts for you.  Please keep in mind that these are additional expenses outside of the cost of the original plan that you purchase from us.
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

2,660 sq. ft.

1st Floor

2,660 sq. ft.

Entry

82 sq. ft.

Lanai

534 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

3

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

Block / CMU (main floor)

Optional Type(s)

2x6

Dimensions

Width

75' 0"

Depth

68' 0"

Max Ridge Height

24' 0"

Garage

Type

Attached

Area

887 sq. ft.

Count

3 Cars

Entry Location

Front

Ceiling Heights

First Floor

10'

Room

Ceiling Type

Height

Foyer

Coffered

15' 0''

Entry

Flat

18' 8''

Great Room

Coffered

13' 0''

Dining Room

Coffered

13' 0''

Kitchen

Coffered

13' 0''

Master Bedroom

Coffered

11' 0''

Master Bath

Flat

10' 0''

Study

Coffered

13' 0''

Bedroom 2

Flat

10' 0''

Bedroom 3

Flat

10' 0''

Lanai

Flat

10' 0''

Roof Details

Primary Pitch

6 on 12

Framing Type

Truss

Architectural Style

Florida

Mediterranean

Special Features

Bedrooms - Split

Butler Walk-in Pantry

Formal Dining

Laundry - Main Level

Library/Study

Master Suite - 1st Floor

Master Suite - Sitting Area

Mudroom
