Plan 4207MJ

Game Room and a Bonus Room

Heated S.F.

4,422

Beds

4

Baths

4

Stories

2

Cars

3

Floor Plan

Main Level

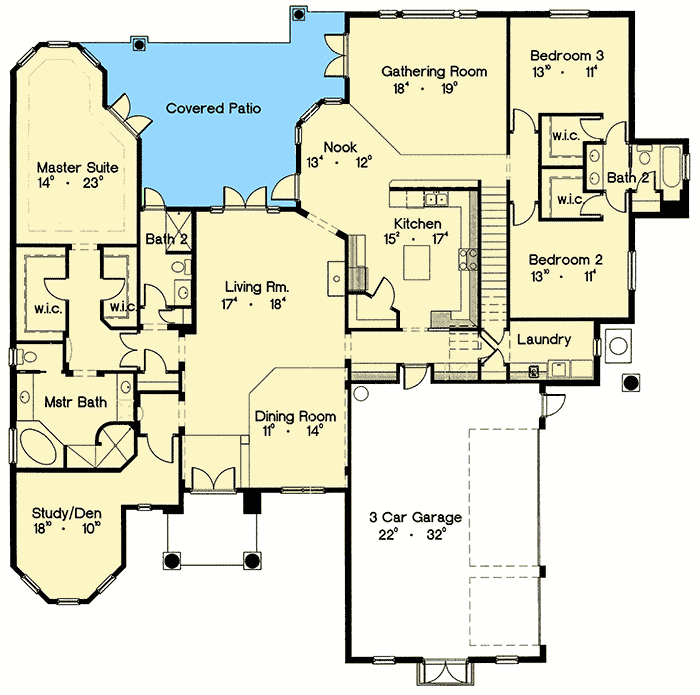

floor plan image Main Level

2nd Floor

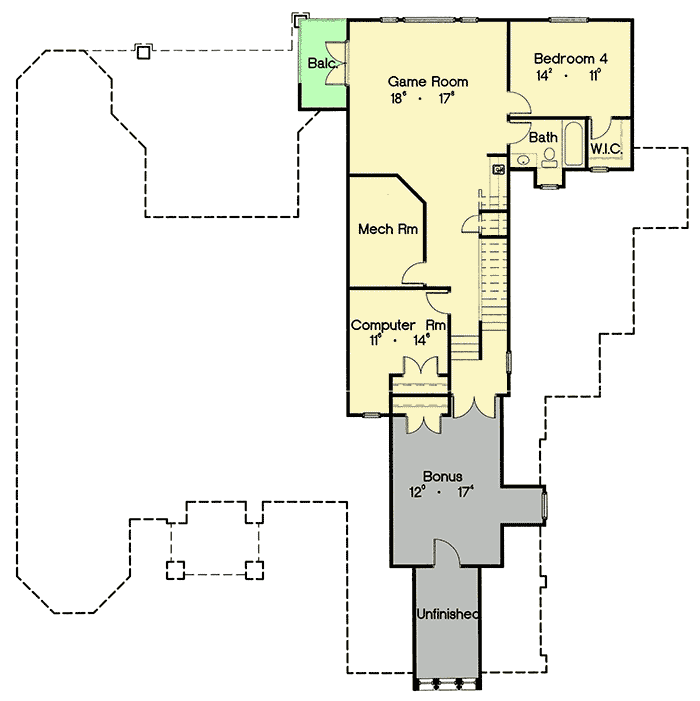

floor plan image 2nd Floor

Plan Details

This home mixes classic architecture with the charm and warmth of a Mediterranean villa.
Detailed recesses carry on from the foyer to an arched foyer for the large den with a bay window, then on to the living and dining rooms which can easily accommodate the larger furniture styles of today.
Thickened arches lead off the main welcoming spaces of this home. One leads to the double doors of the foyer to the master suite which is buffered from bathroom noise by his and her closets. The suite has a sitting room.
The master bath features his and her vanities, soaking tub, and a door-less shower.
The family spaces all enjoy the view of the rear yard and patio, and secondary bedrooms have walk in closets.
The second floor enjoys rear yard views from the game room and bedroom suite is complete with a walk-in closet. The computer room at the top of the stairs is perfect for the home office, and a large HVAC storage room in the attic space affords much desired storage.
Foundation: slab.
FLORIDA RESIDENTS: We can coordinate engineering for you. Contact us for pricing.

What's Included

Cover Sheet
Floor Plans
Slab Foundation Plan (plumbing layout)
Elevations
Sections
Stair Sections if applicable
Electrical Layout
Basic Details Sheet

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required

Some plans may not include sections. Please contact us for availability.

Modify This Plan

Need to make changes? We will get you a free price quote within 1 to 3 business days.

Square Footage Breakdown

Total Heated Area

4,422 sq. ft.

1st Floor

3,287 sq. ft.

2nd Floor

1,135 sq. ft.

Bonus

265 sq. ft.

Deck

459 sq. ft.

Entry

83 sq. ft.

Storage

114 sq. ft.

Balcony / Veranda

61 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

4

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

78' 10"

Depth

76' 4"

Max Ridge Height

29' 3"

Garage

Type

Attached

Area

754 sq. ft.

Count

3 Cars

Entry Location

Side

Ceiling Heights

First Floor

12'

Second Floor

10'

Roof Details

Primary Pitch

7 on 12

Framing Type

Stick

Architectural Style

Special Features

Bedrooms - Split

Butler Walk-in Pantry

Jack & Jill Bath

Laundry - Main Level

Master Suite - 1st Floor

Master Suite - Sitting Area

Plan Collections

Square Footage Breakdown

Total Heated Area

4,422 sq. ft.

1st Floor

3,287 sq. ft.

2nd Floor

1,135 sq. ft.

Bonus

265 sq. ft.

Deck

459 sq. ft.

Entry

83 sq. ft.

Storage

114 sq. ft.

Balcony / Veranda

61 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

4

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

78' 10"

Depth

76' 4"

Max Ridge Height

29' 3"

Garage

Type

Attached

Area

754 sq. ft.

Count

3 Cars

Entry Location

Side

Ceiling Heights

First Floor

12'

Second Floor

10'

Roof Details

Primary Pitch

7 on 12

Framing Type

Stick

Architectural Style

Special Features

Bedrooms - Split

Butler Walk-in Pantry

Jack & Jill Bath

Laundry - Main Level

Master Suite - 1st Floor

Master Suite - Sitting Area

Plan Collections
