  • With room for one car plus storage and a shop this compact cottage-style garage plan is a great addition to any property.
  • The single garage door is 9' wide and 8' tall and the single car bay has additional space on the right for extra storage.
  • A set of double doors from the garage or a separate man door on the exterior leads to a generous shop space.
  • This room could also be used for hobbys, crafts or outdoor gear storage.
What's Included
Each plan set is drawn at 1/4"=1' scale and includes the following drawings:
  • Cover Sheet/Artist's Rendering: An artist's drawing of the home, usually viewed from the front, and general construction notes.

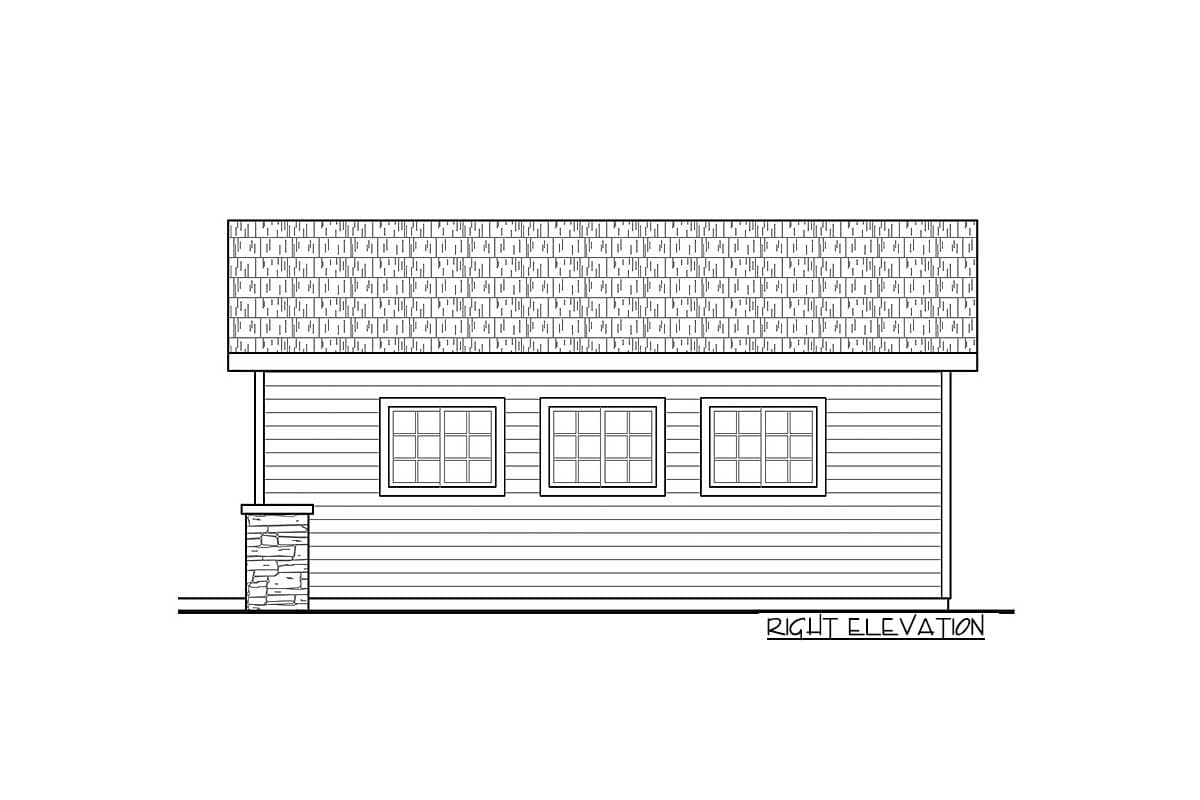

  • Elevations: Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.
  • Main Floor Plan: Shows placement and dimensions of walls, doors, & windows. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc.
  • Second Floor Plan (if any): Shows the second floor in the same detail as the main floor. Includes second floor framing and details.
  • Foundation Plan: Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details. Foundation types vary; please call to confirm the foundation type of the plan you are interested in.
  • Roof Framing Plan: Shows roof outlines, conventional framing/trusses, beams, roof framing details, etc. Specific details such as fireplaces, stairways, decks, etc. Details are drawn at 1/2" = 1' scale, and appear as needed throughout the prints.
  • Building Section: Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation.
  • Electrical Plan: A schematic layout of all lighting, switches, and electrical outlets.
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

0 sq. ft.

Workshop

368 sq. ft.

Beds/Baths

Bedrooms

0

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

32' 0"

Depth

26' 0"

Max Ridge Height

15' 0"

Garage

Type

Detached

Area

464 sq. ft.

Count

1 Cars

Entry Location

Front

Roof Details

Primary Pitch

3 on 12

Architectural Style

Carriage

Square Footage Breakdown

Total Heated Area

0 sq. ft.

Workshop

368 sq. ft.

Beds/Baths

Bedrooms

0

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

32' 0"

Depth

26' 0"

Max Ridge Height

15' 0"

Garage

Type

Detached

Area

464 sq. ft.

Count

1 Cars

Entry Location

Front

Roof Details

Primary Pitch

3 on 12

Architectural Style

Carriage
