Plan 80834PM
Good-Looking Ranch Home with Finished Lower Level
Heated S.F.
4,230
Beds
4
Baths
2.5+
Stories
1
Cars
2
Floor Plan

Plan 80834PM

Main Level
slide image 0
Basement
slide image 1

Plan 80834PM

1-800-854-7852

1-262-521-4596

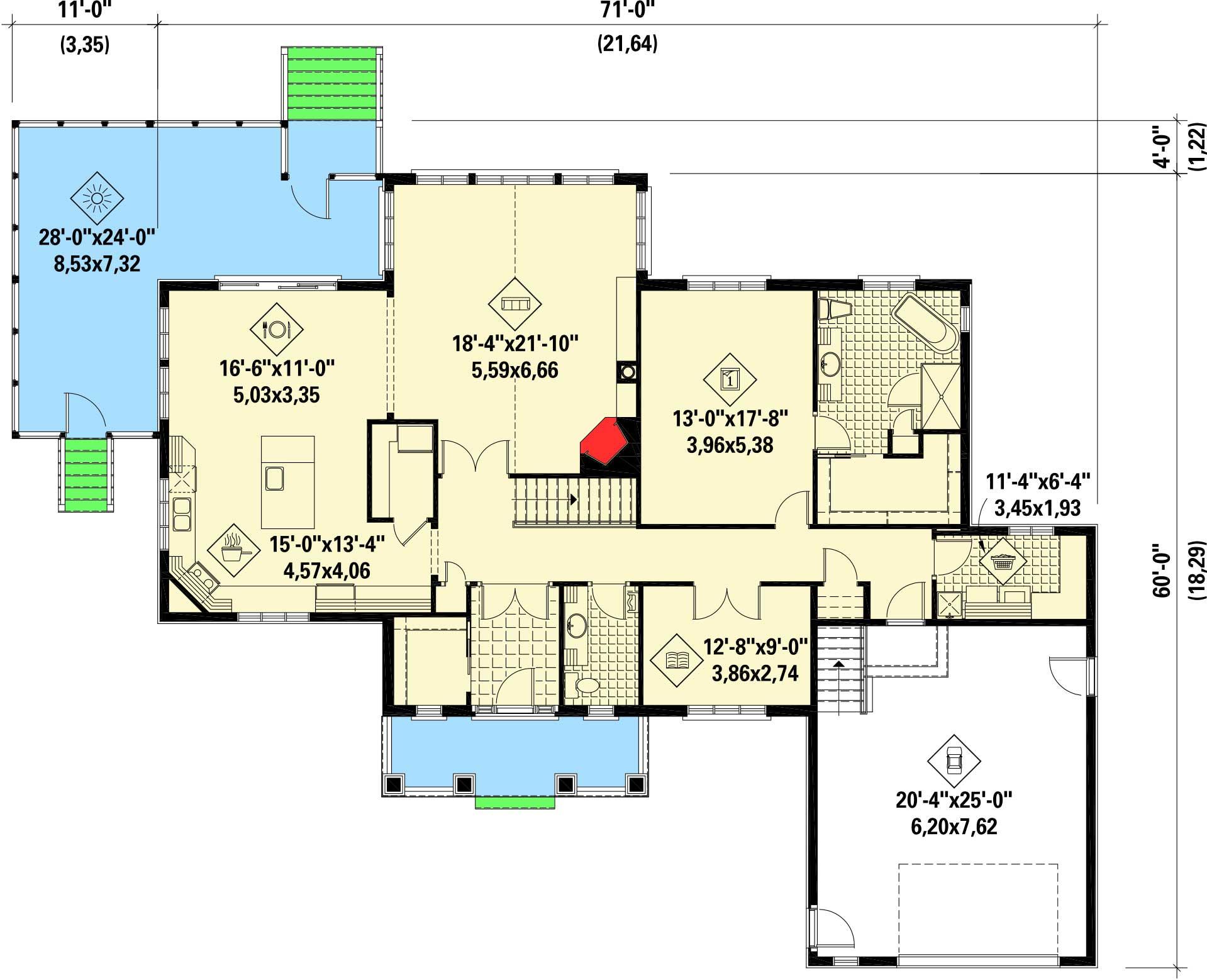

Main Level
floor plan image Main Level

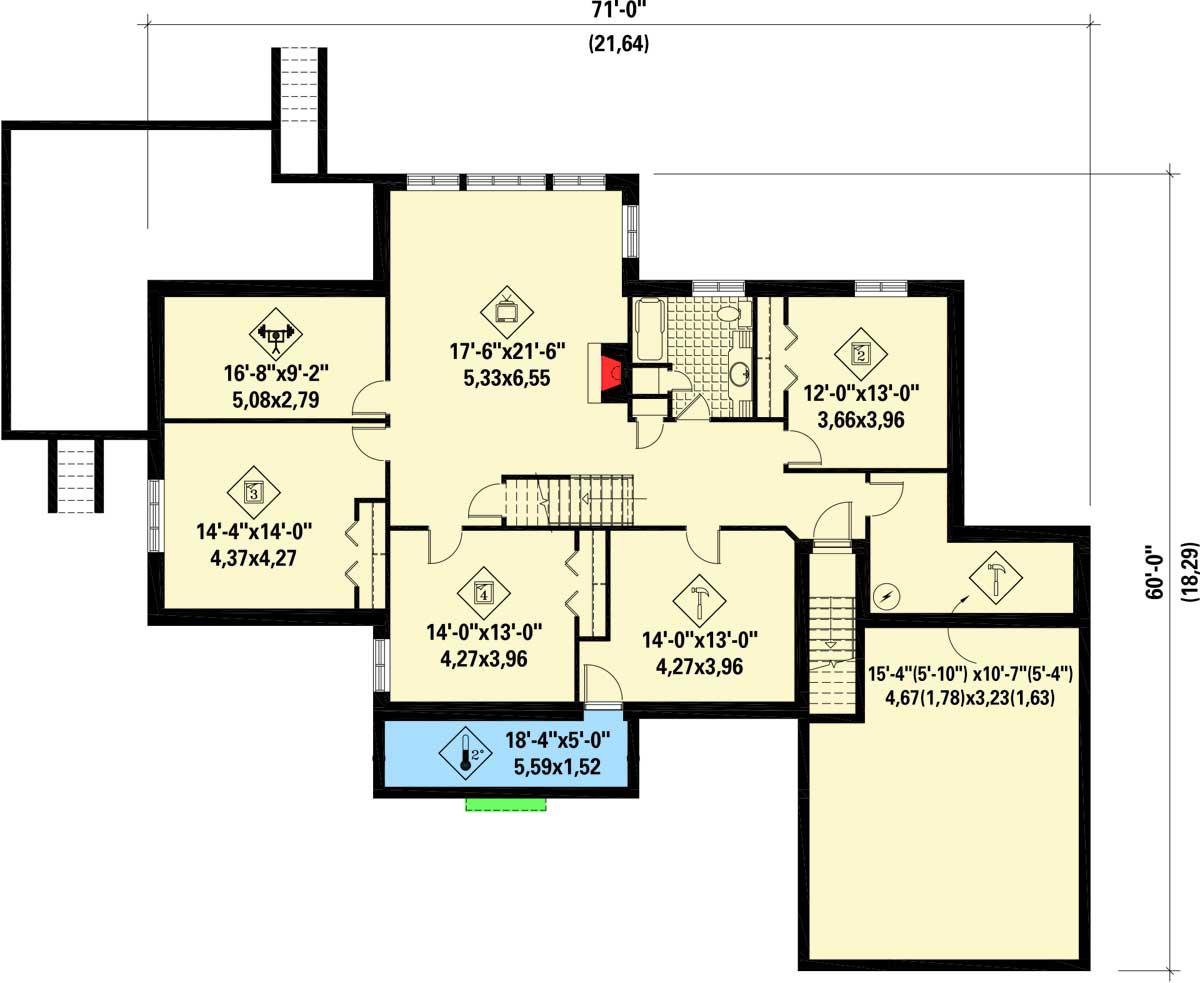

Basement
floor plan image Basement
Plan Details
  • Designed for a lot that slopes, this good-looking Ranch house plan comes with a finished lower level with hobby rooms and a home theater room.
  • The main level offers a huge vaulted living room that sweeps around to the dining area and kitchen.
  • An enormous screened porch flows in an L-shape, making this a delightful outdoor mecca.
  • The master suite is the only bedroom on the main floor so you have privacy.
  • Three more bedrooms are down on the lower level along with a giant rec room with fireplace, two hobby rooms and a room with no windows that makes an ideal home theater.
What's Included
Please note this plan is designed to the National Building Code of Canada.
  • Exterior Elevations – Four detailed exterior elevations views showing the final appearance of each side of the house.
  • Foundation Plans – Different isometric views with dimensions as well as relevant information to build the foundation.
  • Floor Plans – A drawing of each floor of the house. They are fully dimensioned showing the size of rooms and the location and size of windows, doors and staircases.
  • Cross-Section View – Vertical section of the house showing the structure, insulation, typical wall configuration as well as other details
  • The plans include the 4 elevations views, foundation plans, floor plans, cross section, staircase section, materials specifications and various construction details which aid in the house's construction.
  • The plan views, cross sections and front elevations are drawn to the scale of 1/4" = 1'-0"; the side and rear elevations are 1/8" = 1'-0" and some details are 1/2" = 1'-0".
  • Lintel, beam, post, footing sizes, etc. are calculated (may require local architect/ engineer stamp) and the plans are available in metric.

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

4,230 sq. ft.

Lower Level

2,165 sq. ft.

1st Floor

2,065 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

2

Half bathrooms

1 or 2

Foundation Type

Standard Foundations

Walkout

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

71' 0"

Depth

60' 0"

Max Ridge Height

28' 6"

Garage

Type

Attached

Area

563 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

Lower Level

9'

First Floor

9'

Roof Details

Primary Pitch

10 on 12

Secondary Pitch

10 on 12

Framing Type

Truss

Architectural Style

Ranch

Traditional

Special Features

Bedrooms - Clustered

Butler Walk-in Pantry

Game/Rec Room

Home Theater

Master Suite - 1st Floor

Wrap Around Porch

Plan Collections

Canadian House Plans

Metric

Sloping Lot

Square Footage Breakdown

Total Heated Area

4,230 sq. ft.

Lower Level

2,165 sq. ft.

1st Floor

2,065 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

2

Half bathrooms

1 or 2

Foundation Type

Standard Foundations

Walkout

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

71' 0"

Depth

60' 0"

Max Ridge Height

28' 6"

Garage

Type

Attached

Area

563 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

Lower Level

9'

First Floor

9'

Roof Details

Primary Pitch

10 on 12

Secondary Pitch

10 on 12

Framing Type

Truss

Architectural Style

Ranch

Traditional

Special Features

Bedrooms - Clustered

Butler Walk-in Pantry

Game/Rec Room

Home Theater

Master Suite - 1st Floor

Wrap Around Porch

Plan Collections

Canadian House Plans

Metric

Sloping Lot
