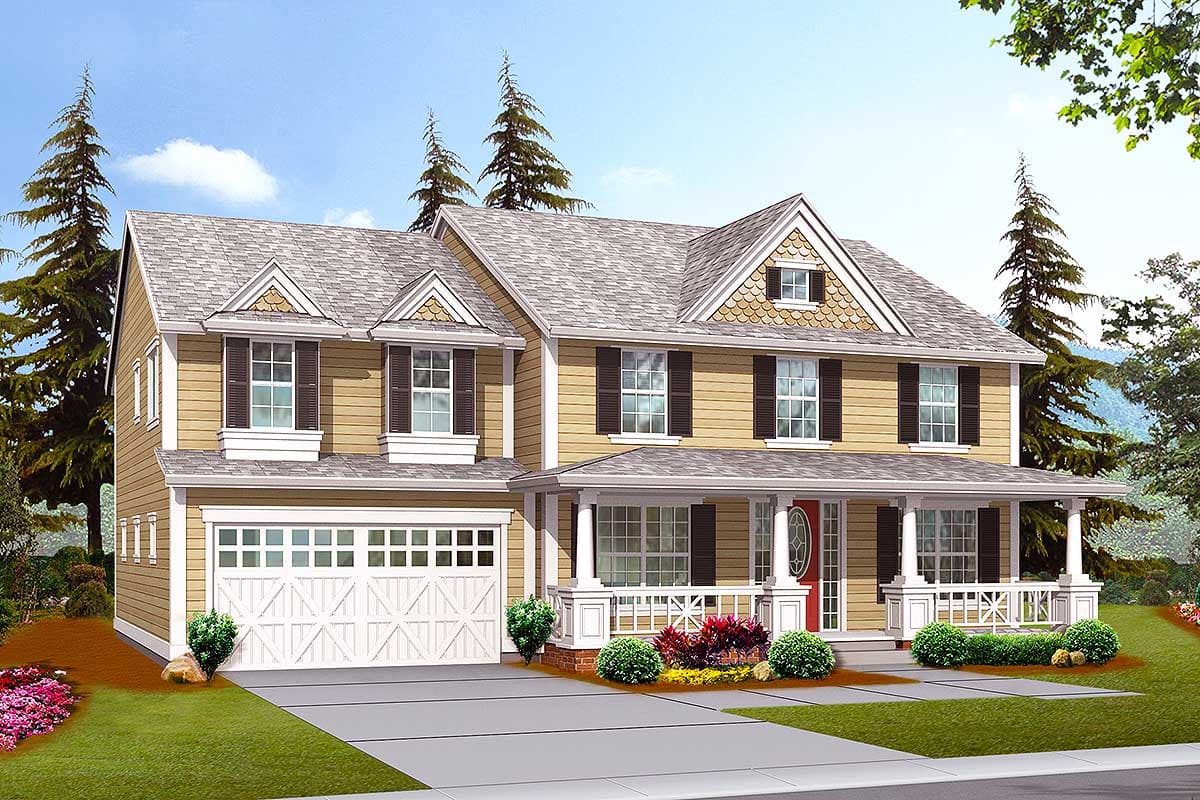

Plan 23136JD
Gourmet Kitchen Open to Large Living Spaces
Heated S.F.
3,445
Beds
4
Baths
2.5
Stories
2
Cars
3
Floor Plan

Plan 23136JD

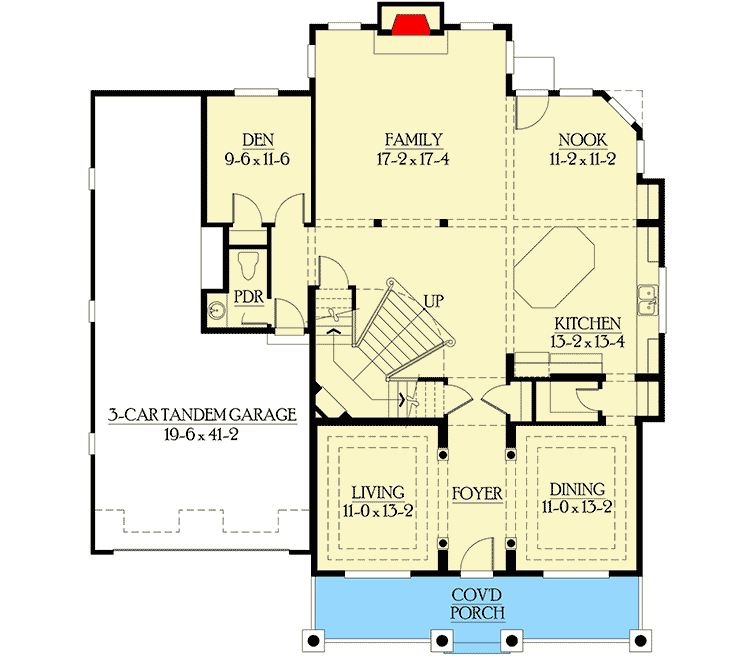

Main Level
slide image 0

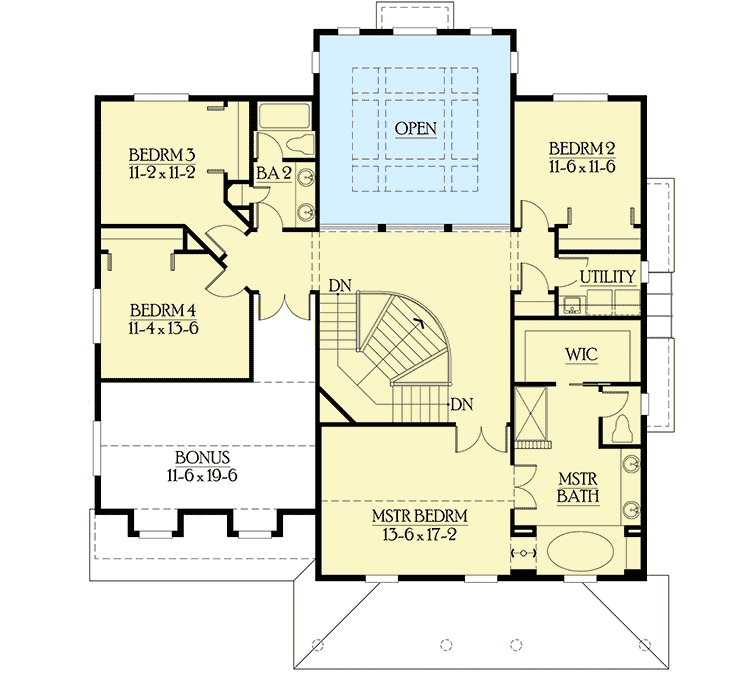

2nd Floor
slide image 1

Plan 23136JD

1-800-854-7852

1-262-521-4596

Main Level
floor plan image Main Level
2nd Floor
floor plan image 2nd Floor
Plan Details
  • This spacious house plan features a dramatic split staircase and it comes in multiple exterior and garage options.
  • Columns introduce the formal living and dining rooms, placed on either side of the foyer, as well as the two-story family room with its fireplace.
  • Completing the first floor are the open kitchen, informal dining nook, den and powder room.
  • The utility room is conveniently placed upstairs. Here, the sumptuous master suite features a cathedral ceiling, spa garden tub and a wonderful see-through fireplace between the tub and bedroom.
  • Three family bedrooms share a hall bath and a bonus room offers extra space.
  • Related Plans: Get a 3-car-wide garage with house plan 23135JD (same exterior) and 23138JD (alternate exterior).
  • Get a 3-car-tandem garage and alternate exteriors with these plans: 23133JD (walkout basement) and 2319JD (crawl space); 2352JD, 23137JD and 23139JD.
  • We even have a version with a side-entry garage. See 23134JD.
  • NOTE: Additional fees apply when building in the State of Washington. Contact us for more information.
What's Included
  • Cover Sheet - The cover sheet includes the general notes and building code information, design standards and structural materials specifications required to construct your home.
  • Schedule Sheet - The schedule sheet includes the roof and foundation ventilation schedules, insulation and vapor barrier specifications, and exhaust fan ventilation schedule.
  • Detail Sheet - The detail sheet shows building components at large scale as required to explain construction of footings, foundation walls, concrete slabs, framed floors and walls, posts, beams, insulation, eaves, roofs, vents, stairs, skylights, and connections.
  • Foundation Plan Sheet - The foundation plan sheet shows the layout of the crawl space, walk-out basement or slab foundation. The foundation plan includes all necessary notes, dimensions, concrete walls, footing pads, posts, beams, bearing walls, crawlspace vents, footing schedule, steel reinforcing, and structural information. If you require a different foundation type, please contact us for modifications to your plan.
  • Floor Plan Sheet - Floor plans are horizontal cuts through each floor level of the home, usually at 5' above the floor. The floor plan shows the location of interior and exterior walls, doors, windows, stairs, closets, cabinets, flooring, appliances, plumbing fixtures, fireplaces, posts and beams. Floor plans also indicate vaulted, coffered, or box beam ceilings, cased openings and areas with ceiling soffits.
  • Roof Framing Plan Sheet - The roof framing plan shows the geometry of the hips, ridges, valleys, dormers, roof pitches, wall and plate heights, and overhangs. The plan also shows all individual roof framing members, trusses, rafters, beams, skylights, roof vents, gutters, downspouts, skylights, bearing walls under framing members, and point loads.

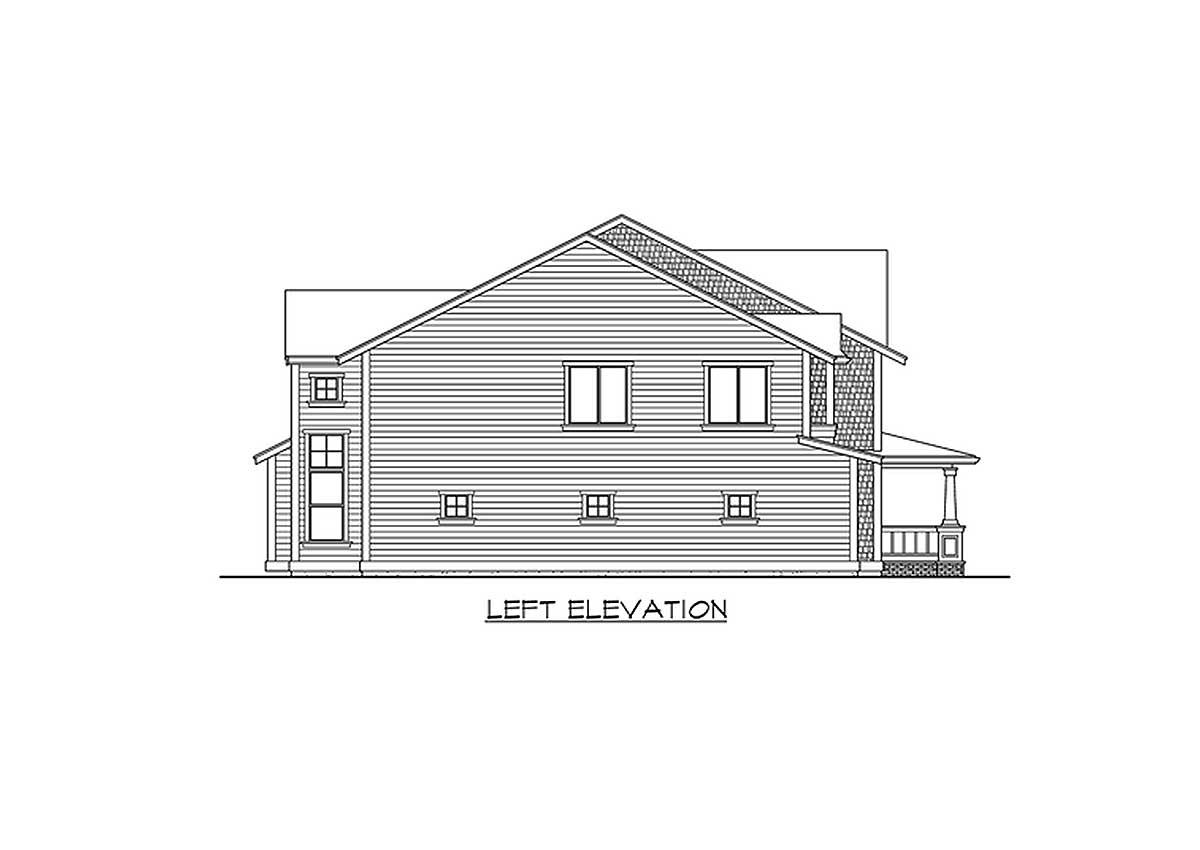

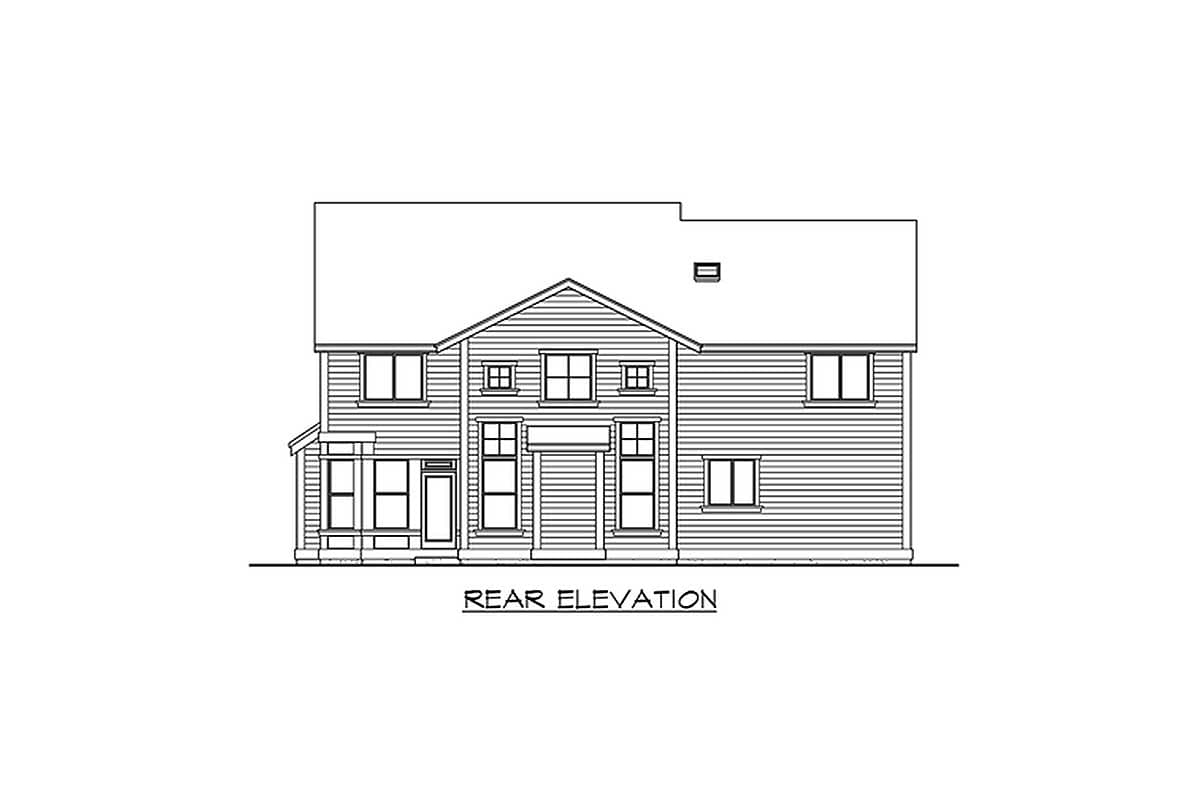

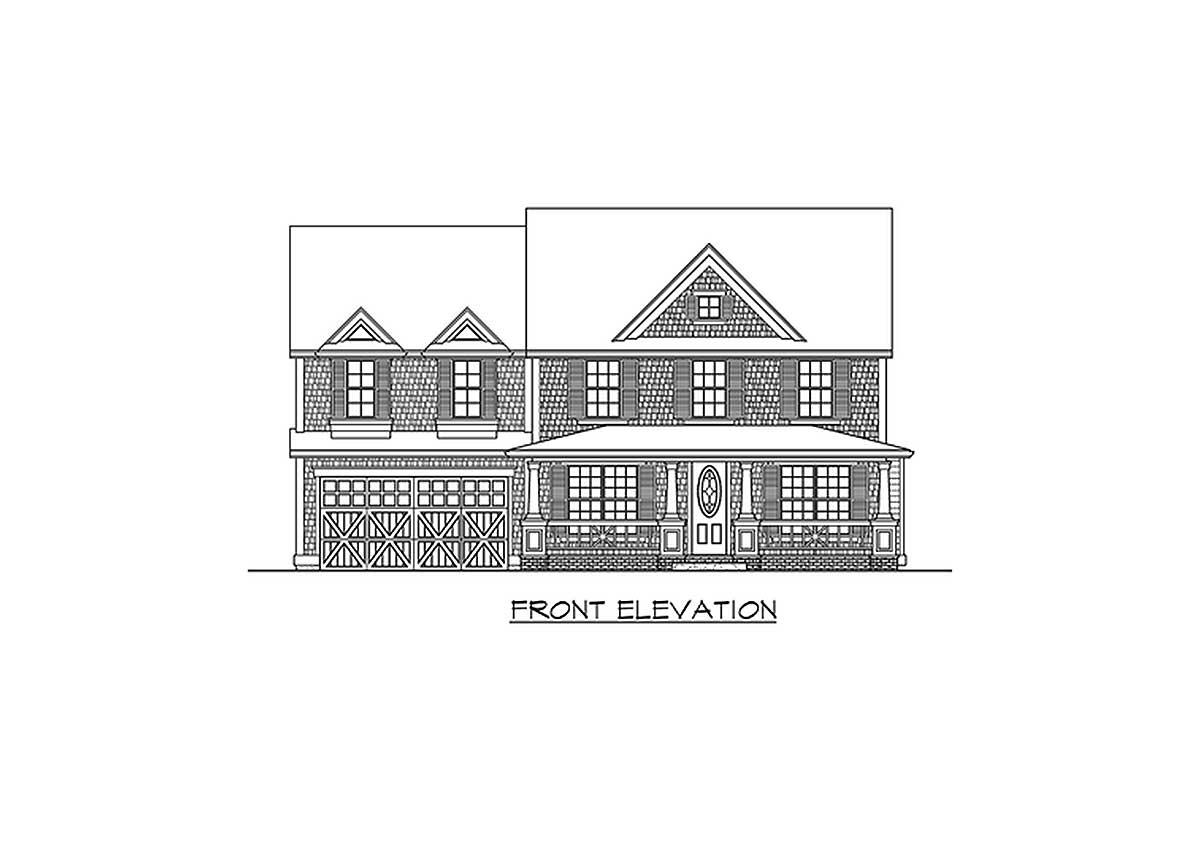

  • Elevation Sheet - Exterior elevations show all four sides of the house, describing the roofing, siding, and trim materials, doors, windows, roof pitches, skylights, gutters, chimneys, wall heights, finish grade and overall building height.
  • Building Section Sheet - Building sections are vertical cuts through the house from the roof to the foundation. The sections illustrate the construction sequence from bottom to top starting with excavation, proceeding up through the foundation, drainage, wall and floor framing, stair framing, roof framing, windows, doors, venting, and exterior and interior finishes. Wall plate heights for each floor are also delineated.
What's Not Included
  • Electrical Plan - handled by your subcontractor to match your individual needs
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

3,445 sq. ft.

1st Floor

1,675 sq. ft.

2nd Floor

1,770 sq. ft.

Porch, Front

180 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

52' 0"

Depth

57' 0"

Max Ridge Height

29' 6"

Garage

Type

Attached

Area

620 sq. ft.

Count

3 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

6 on 12

Secondary Pitch

12 on 12

Framing Type

Truss

Architectural Style

Country

Northwest

Special Features

Bonus Room

Breakfast Nook

Butler Walk-in Pantry

Den

Laundry - Main Level

Master Suite - 2nd Floor

Two Story Great Room

Workshop
