Plan 530010UKD
Graceful Craftsman Cottage
Heated S.F.
1,385
Beds
2
Baths
2
Stories
1
Floor Plan

Plan 530010UKD

Main Level
slide image 0

Plan 530010UKD

1-800-854-7852

1-262-521-4596

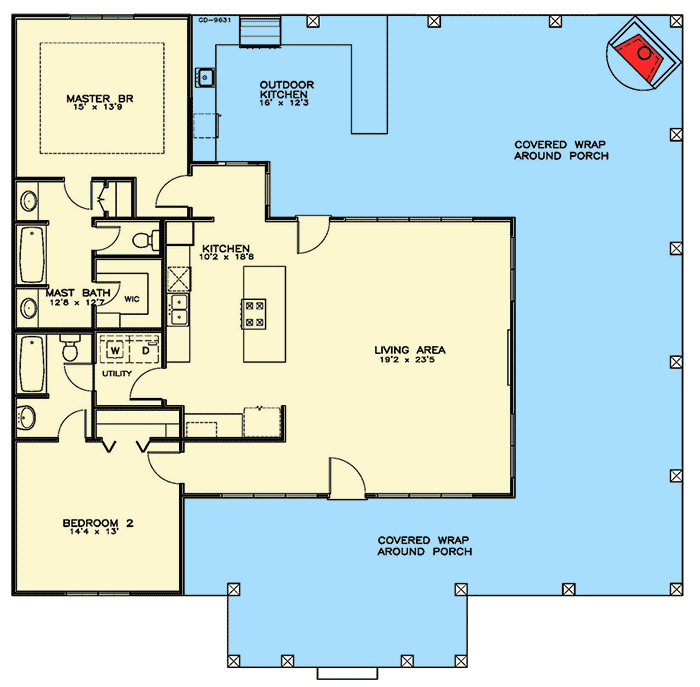

Main Level
floor plan image Main Level
Plan Details

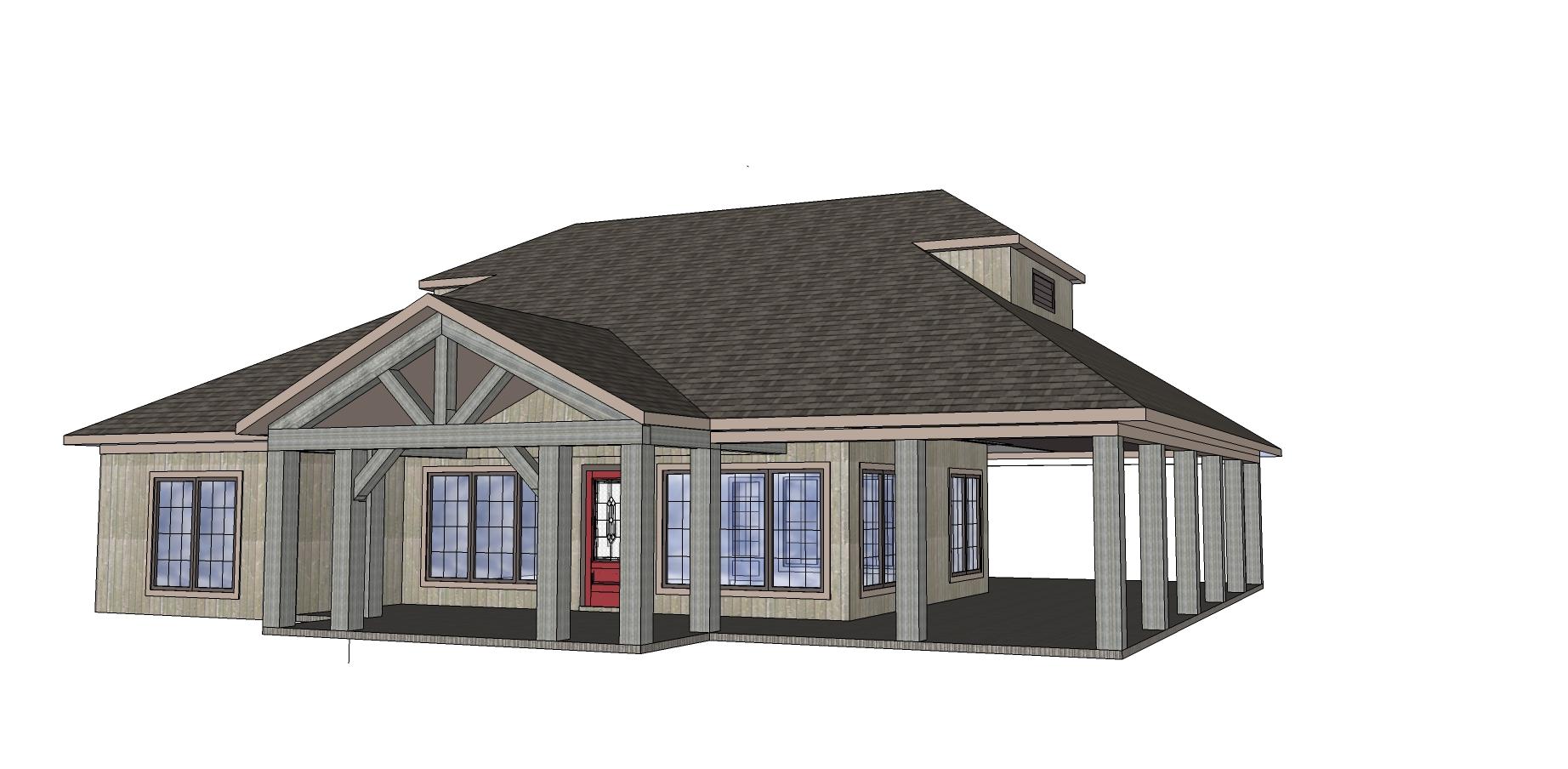

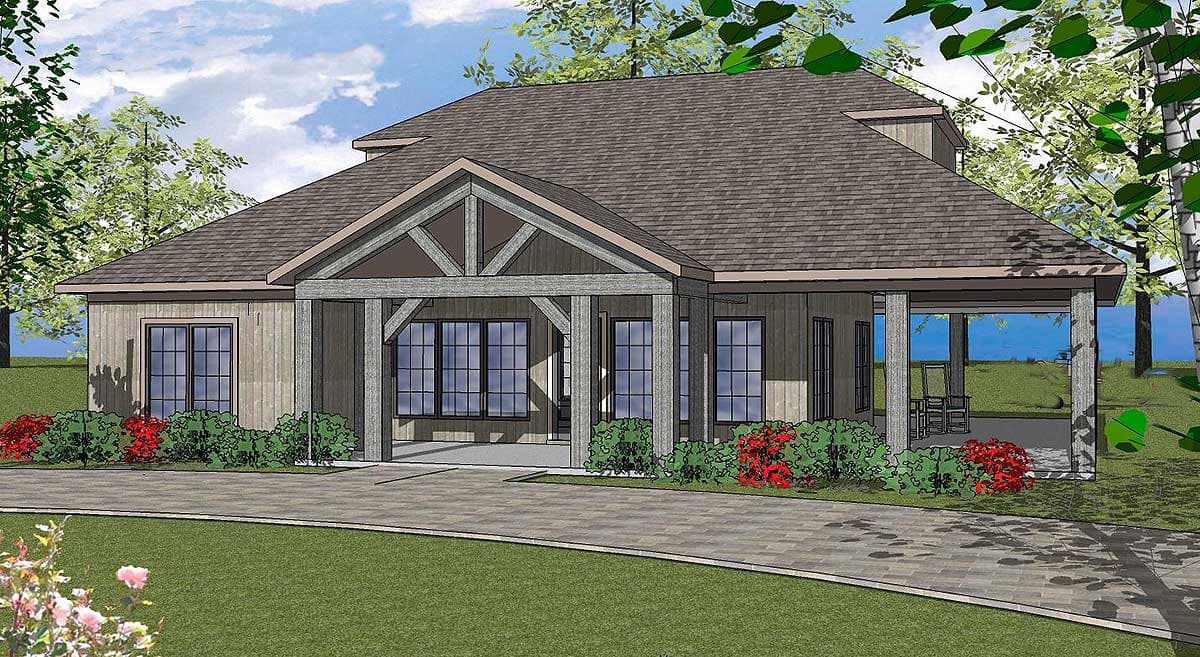

  • With a gorgeous wrap-around porch that's almost as big as the house itself, this graceful Craftsman Cottage will give you indoor and outdoor living.
  • The main living area inside has a huge open layout that makes the home feel bigger.
  • Windows on all sides open up with views of the covered porch.
  • The outdoor kitchen and outdoor fireplace ensure you'll be spending lots of time enjoying the fresh air.
  • Each of the two bedrooms has a private bathroom and the master suite in back has a lovely tray ceiling plus a walk-in closet.
  • Related Plans: See other versions of this plan with 530007UKD, 530008UKD and 530009UKD.
What's Included
  • Title Sheet - Isometric of Front Elevation
  • Foundation Plan ‐ shows the foundation plan and details. ¼” = 1’-0
  • Floor Plan ‐ shows the placement of interior walls and the dimensions for rooms, doors, windows, stairways, etc. of each level of the house. ¼” = 1’-0 scale
  • Exterior Elevations ‐ shows the front, rear and sides of the house, including exterior materials, details, applicable dimensions and roof pitches. ¼” = 1’-0
  • Building Cross Section ‐ shows details of the house as though it were cut in slices from the roof to the foundation. The cross sections shows the construction of the home, insulation, flooring and roofing.
  • Interior Elevations ‐ show the details of cabinets such as those found in the kitchen, bathroom and utility room, fireplaces and other special interior/exterior features.
  • Roof Plan ‐ provides a bird’s eye view of the roof's valleys, ridges and dormers. Roof Framing Plan - provides guideline for rafters, ridges, hip framing
  • Electrical Plan ‐ shows the suggested locations for fixtures, outlets, switches, etc.
  • Notes & Details ‐ per IRC 2015
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

1,385 sq. ft.

1st Floor

1,385 sq. ft.

Porch, Combined

1,451 sq. ft.

Beds/Baths

Bedrooms

2

Full bathrooms

2

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

56' 0"

Depth

55' 0"

Max Ridge Height

24' 0"

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

8 on 12

Architectural Style

Cottage

Craftsman

Northwest

Vacation

Special Features

Laundry - Main Level

Master Suite - 1st Floor

Outdoor Fireplace

Outdoor Kitchen

Wrap Around Porch

Plan Collections

Pool House
