Plan 66019WE
Gracious Courtyard Design
Heated S.F.
5,841
Beds
4
Baths
4.5
Stories
1
Cars
3
Floor Plan

Plan 66019WE

Main Level
slide image 0
2nd Floor
slide image 1

Plan 66019WE

1-800-854-7852

1-262-521-4596

Main Level
floor plan image Main Level

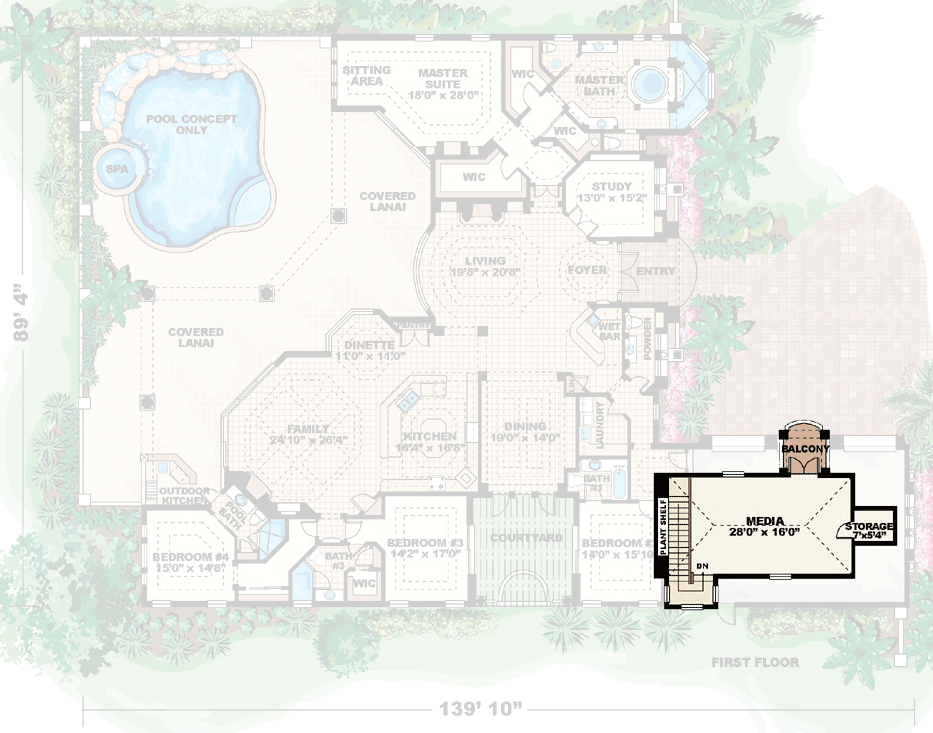

2nd Floor
floor plan image 2nd Floor
Plan Details
  • This house plan's rear-oriented view reveals a gracious courtyard with a fountain view from the dining room and bedrooms so whether dining or waking, you'll enjoy the benefits of a pastoral courtyard.
  • The master suite features a built-in TV hutch and drawers as well as a large sitting area, giving a feel of roomy elegance. A six-foot radial tub with pass-through shower adds to the suite's design.
  • Elsewhere, the amenities continue with an outdoor kitchen, wet bar, mitered glass in the living room and dinette, oversized media room, grand fireplace and bookshelves combining to add personality.
What's Included
Elevations - Drawn at 1/8″ to 1/4″ = 1′-0″ Scale, and Includes:
  • Material Labels
  • Floor-to-Floor Heights
  • Roof Slope Indicators
Floor Plans - Drawn at 1/8″ to 1/4″ = 1′-0″ Scale, and Includes:
  • Door and Window Sizes
  • Completely Dimensioned Floor Plan
  • Room Labels and Interior Room Sizes
Electrical Layouts
  • Building Section Markers
  • All Electrical Outlets, Fixtures, and Switching
Foundation Plan - Drawn at 1/8″ to 1/4″ = 1′-0″ Scale, and Includes:
  • Floor and Deck Joist Size and Spacing
  • Electrical Locations (if applicable)

Roof Design Plan - Drawn at 1/8″ to 1/4″ = 1′-0″scale, and Includes:
  • All Beam and Header Heights and Locations
  • All Hips, Gables, Ridges, and Valleys
  • Building Section Markers
Building Sections - Drawn at 1/8″ to 1/4″ = 1′-0″ Scale, and Includes:
  • Floor Joist Size and Spacing
  • Floor-to-Floor Heights
  • Non-Typical Plate Heights Indicated
Typical Wall Sections - Drawn at 1/8″ to 1/2″ = 1′-0″ Scale, and Includes:
  • All Labels Indicating Wall Construction
  • Foundation Wall Thickness and Reinforcing
  • Insulation Type and Thickness
Miscellaneous Notes and Details
  • Miscellaneous General Notes
  • Stairway details (if applicable)
We do provide a slab plan, however, the structural foundation plan is to be provided by the structural engineer selected by your builder or yourself. This is done because our slab plan cannot anticipate the variations in soil, footings and other conditions per your specific site. We provide the design of the roof as well, however, the truss layouts need to be provided by a truss engineer or your lumber company. Your builder can provide these contacts for you.  Please keep in mind that these are additional expenses outside of the cost of the original plan that you purchase from us.
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

5,841 sq. ft.

1st Floor

5,290 sq. ft.

2nd Floor

551 sq. ft.

Entry

95 sq. ft.

Balcony / Veranda

60 sq. ft.

Lanai

1,229 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

4

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

Block / CMU (main floor)

Optional Type(s)

2x6

Dimensions

Width

89' 4"

Depth

129' 10"

Max Ridge Height

33' 4"

Garage

Type

Attached

Area

973 sq. ft.

Count

3 Cars

Entry Location

Courtyard

Ceiling Heights

First Floor

10'

Room

Ceiling Type

Height

All Bedrooms

Coffered

9' 0''

Foyer

Volume

13' 8''

Family Room

Coffered

11' 9''

Master Bedroom

Coffered

10' 10''

Dining Room

Coffered

8' 10''

Lanai

Flat

14' 0''

Breakfast Room

Coffered

11' 10''

Master Bath

Flat

12' 0''

Living Room

Coffered

11' 8''

Roof Details

Primary Pitch

6 on 12

Framing Type

Truss

Architectural Style

Florida

Mediterranean

Special Features

Bedrooms - Clustered

Breakfast Nook

Courtyard

Formal Dining

Laundry - Main Level

Master Suite - 1st Floor

Master Suite - Sitting Area

Media Room

Outdoor Kitchen

Wet Bar

Plan Collections

Luxury

Photo Gallery

Premium Collection
