Plan 60501ND
Gracious French Country Manor
Heated S.F.
5,835
Beds
4
Baths
4.5+
Stories
2
Cars
4
Floor Plan

Plan 60501ND

Main Level
slide image 0
2nd Floor
slide image 1

Plan 60501ND

1-800-854-7852

1-262-521-4596

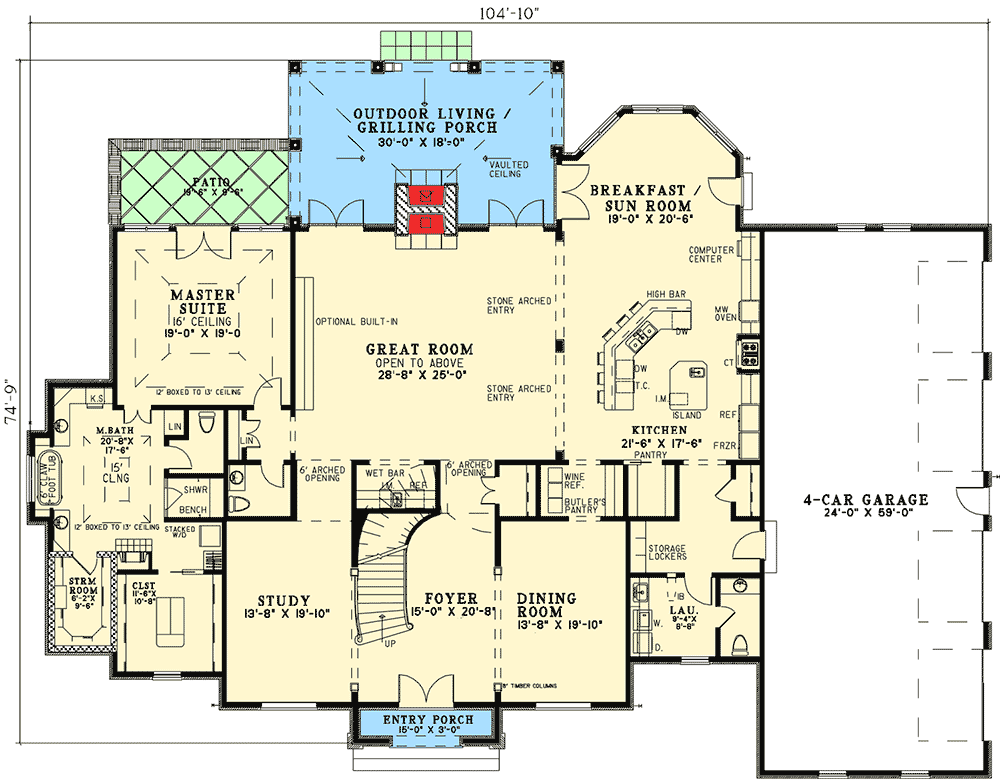

Main Level
floor plan image Main Level

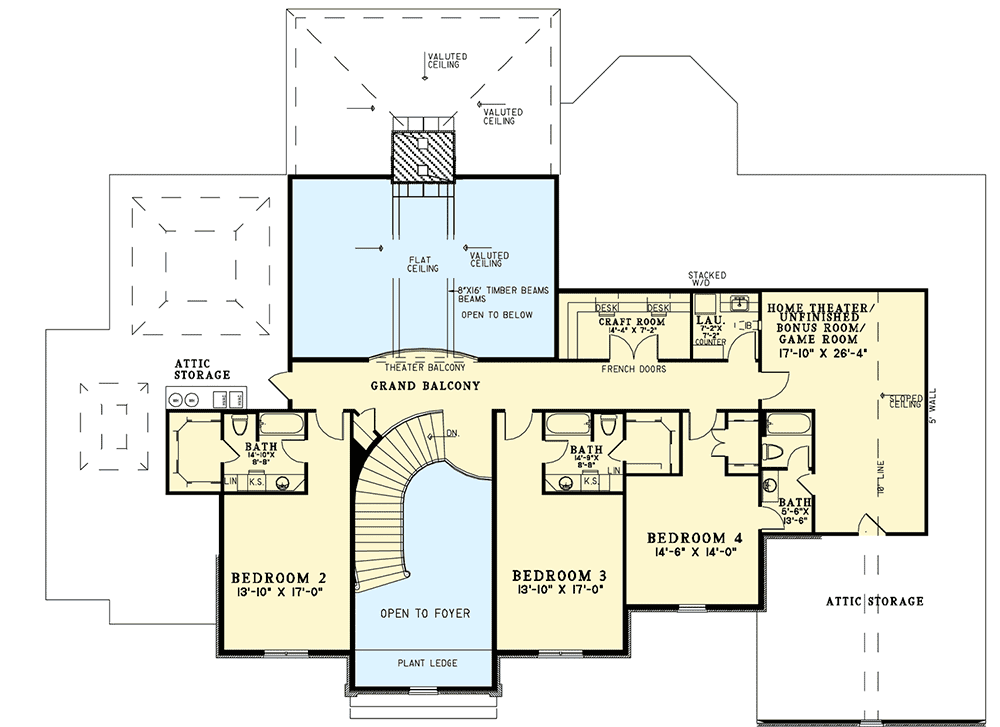

2nd Floor
floor plan image 2nd Floor
Plan Details

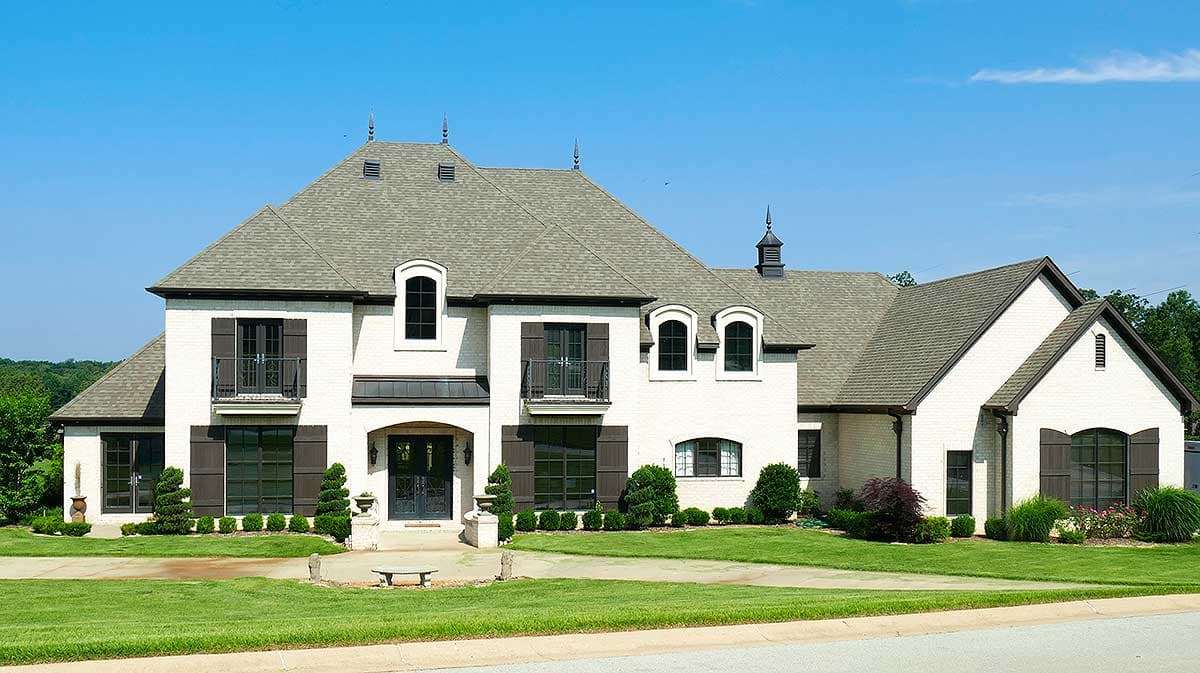

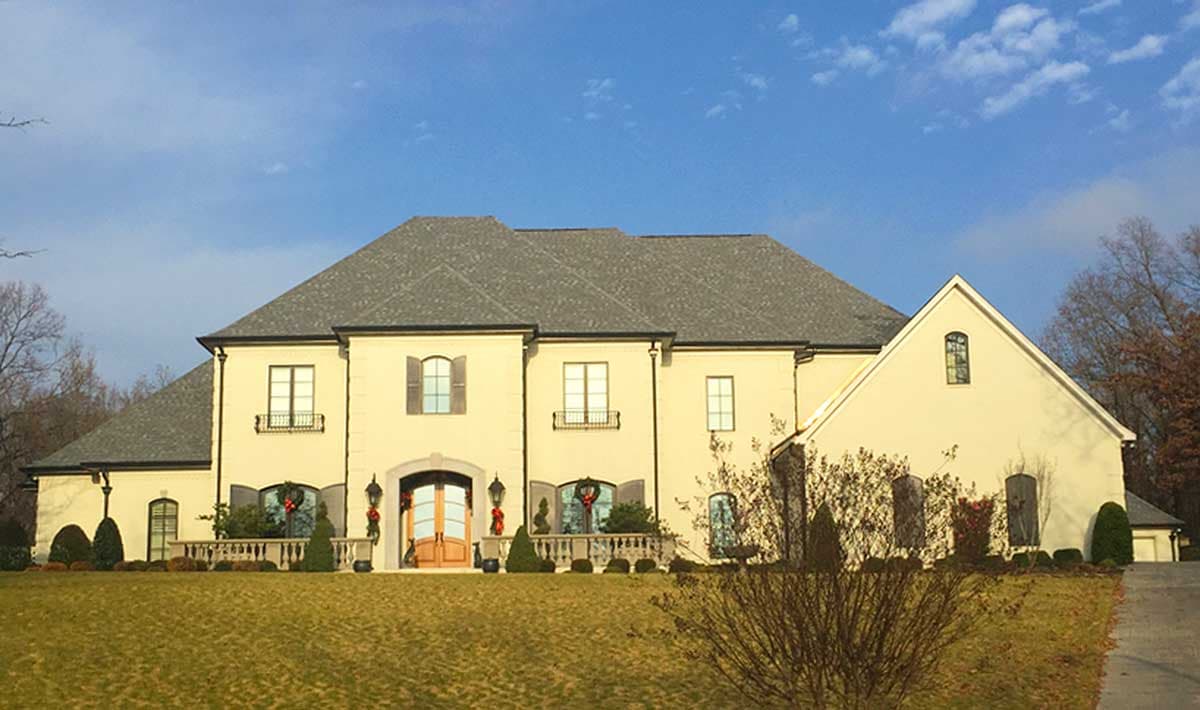

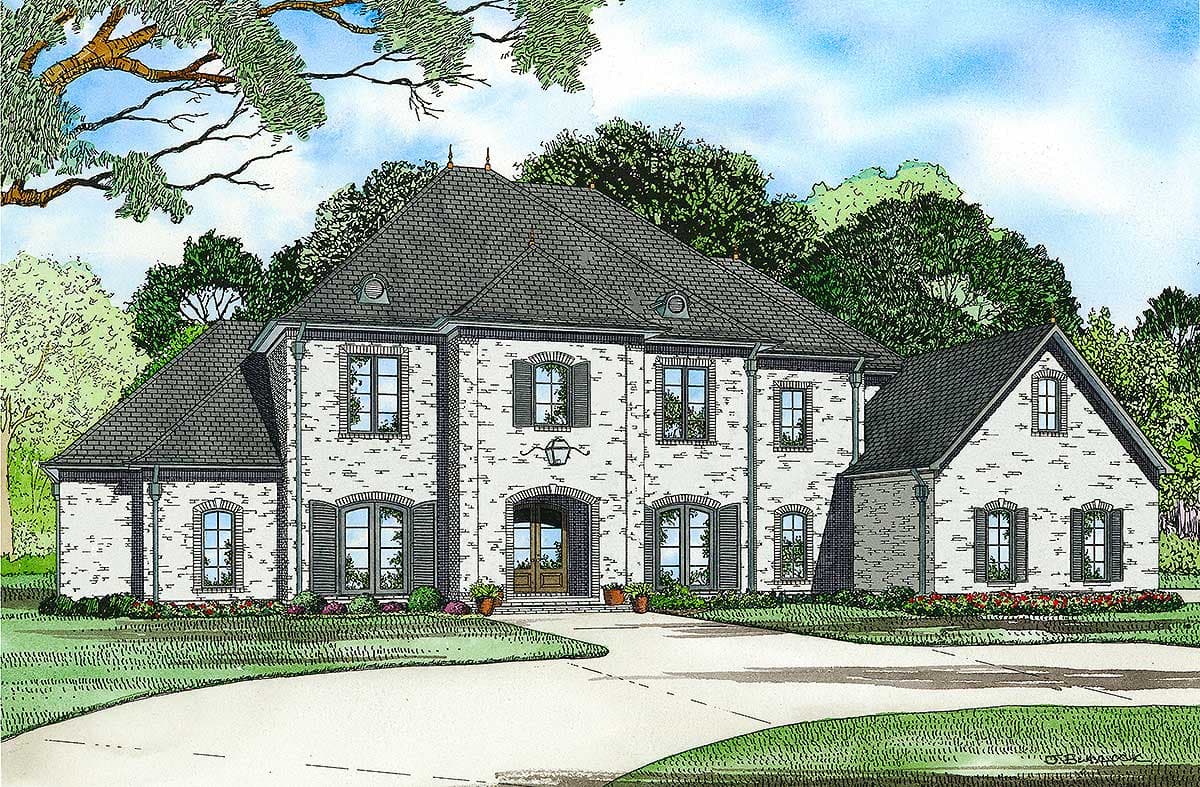

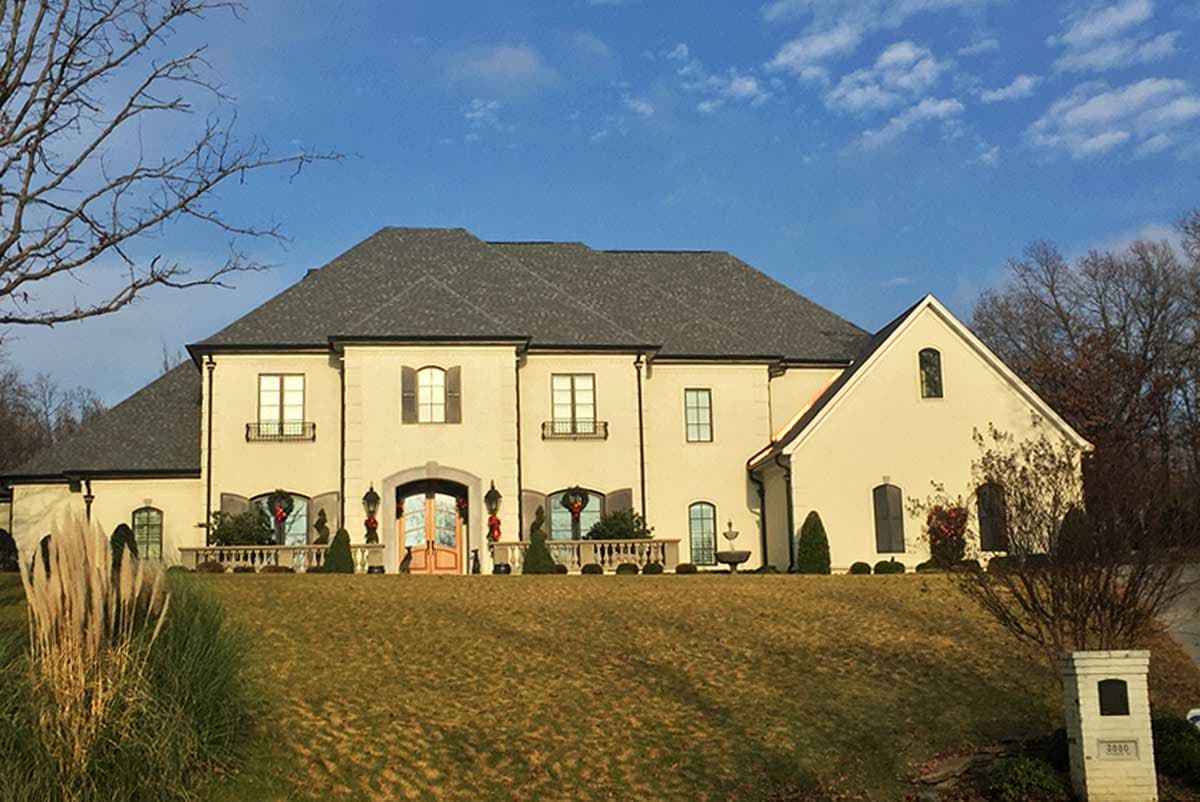

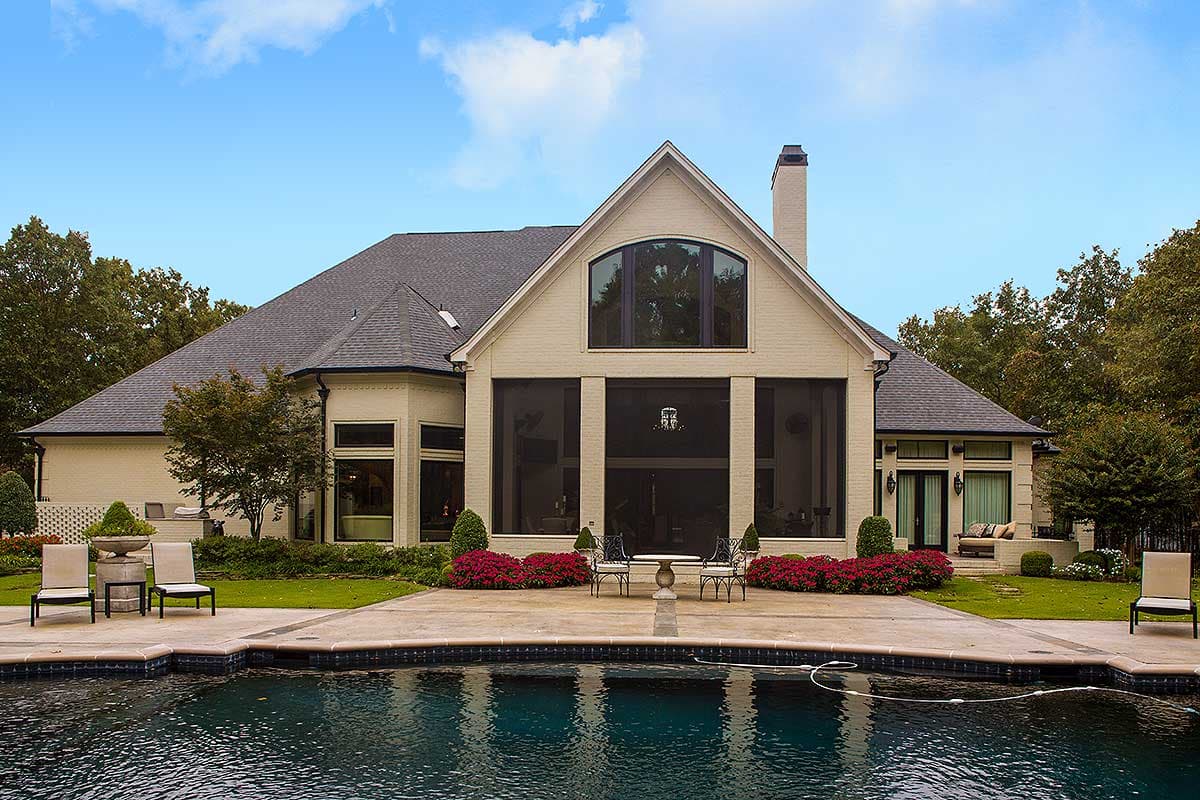

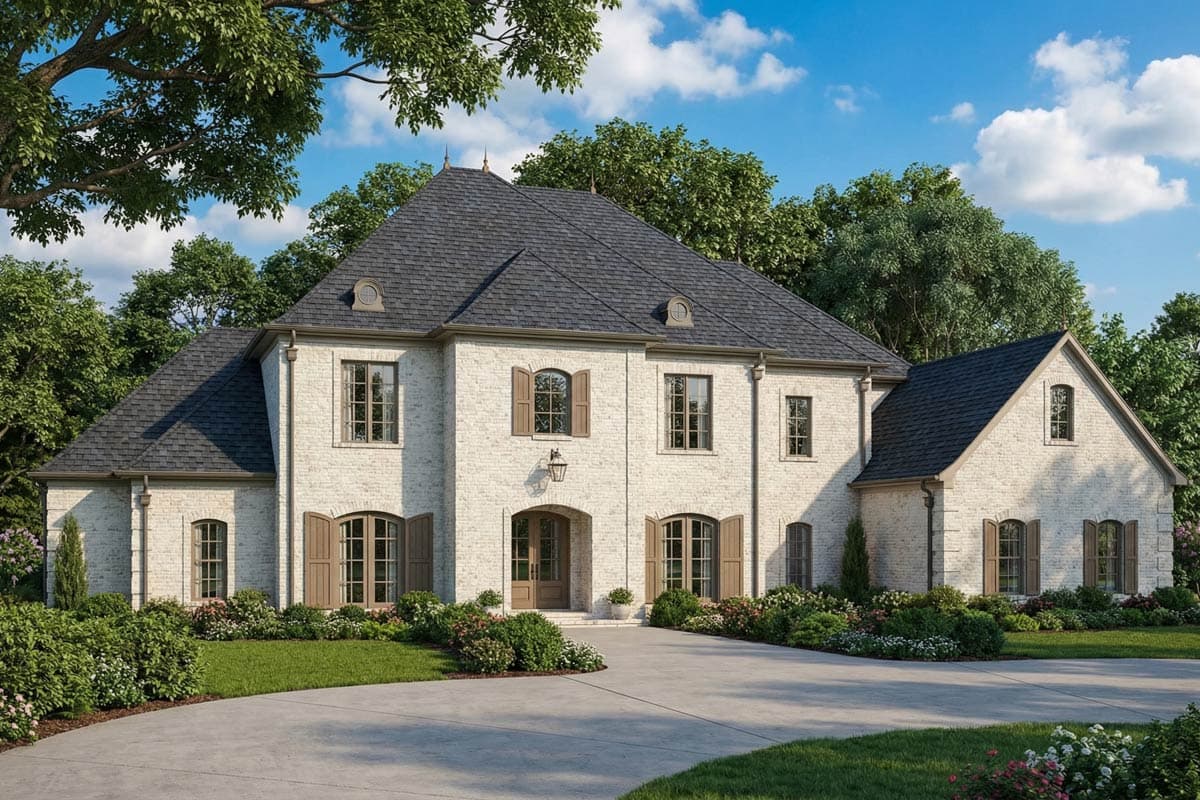

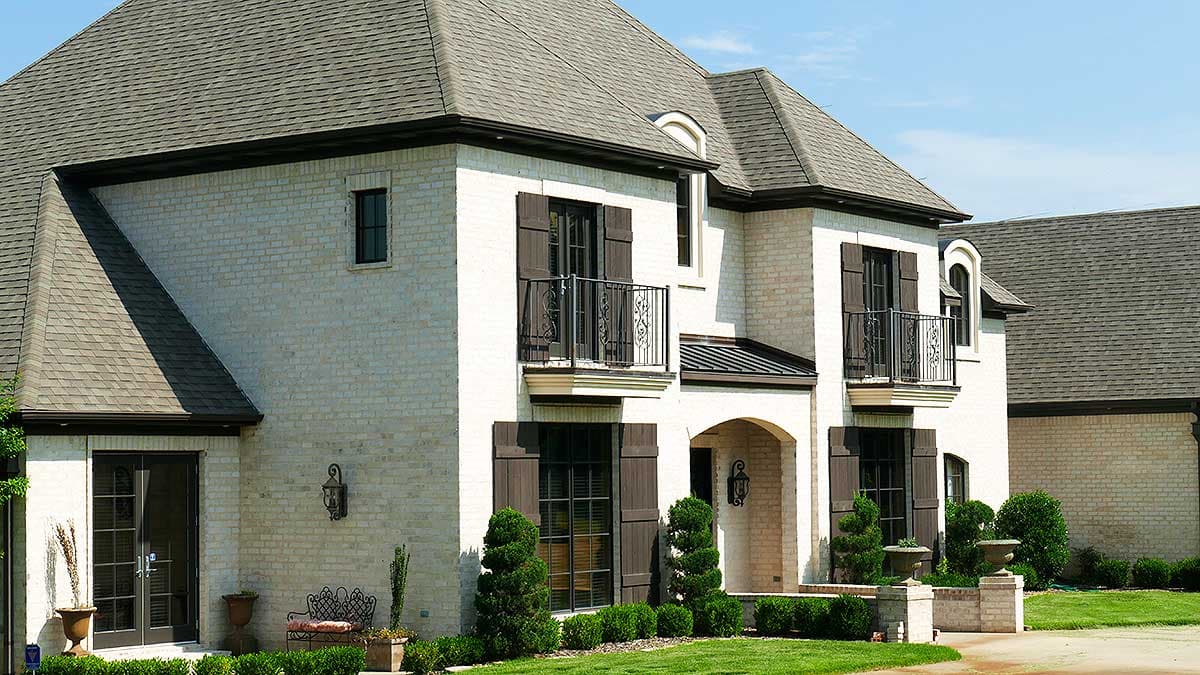

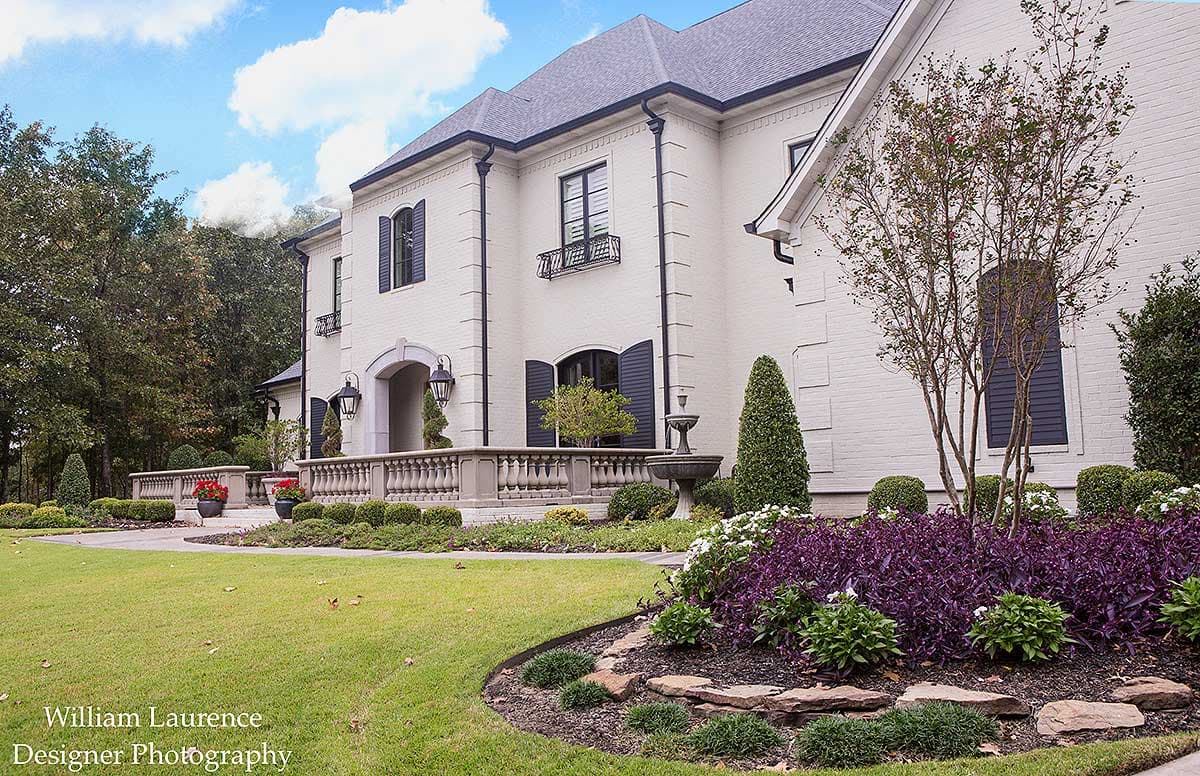

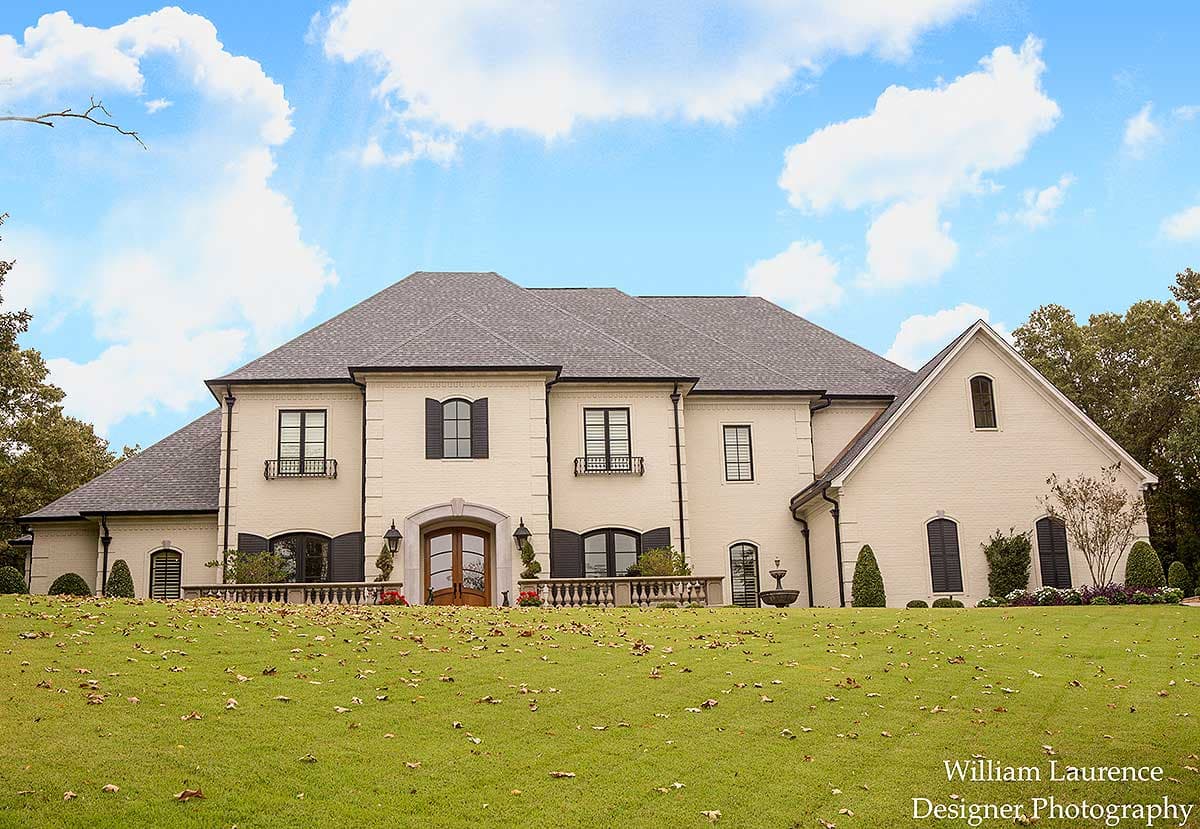

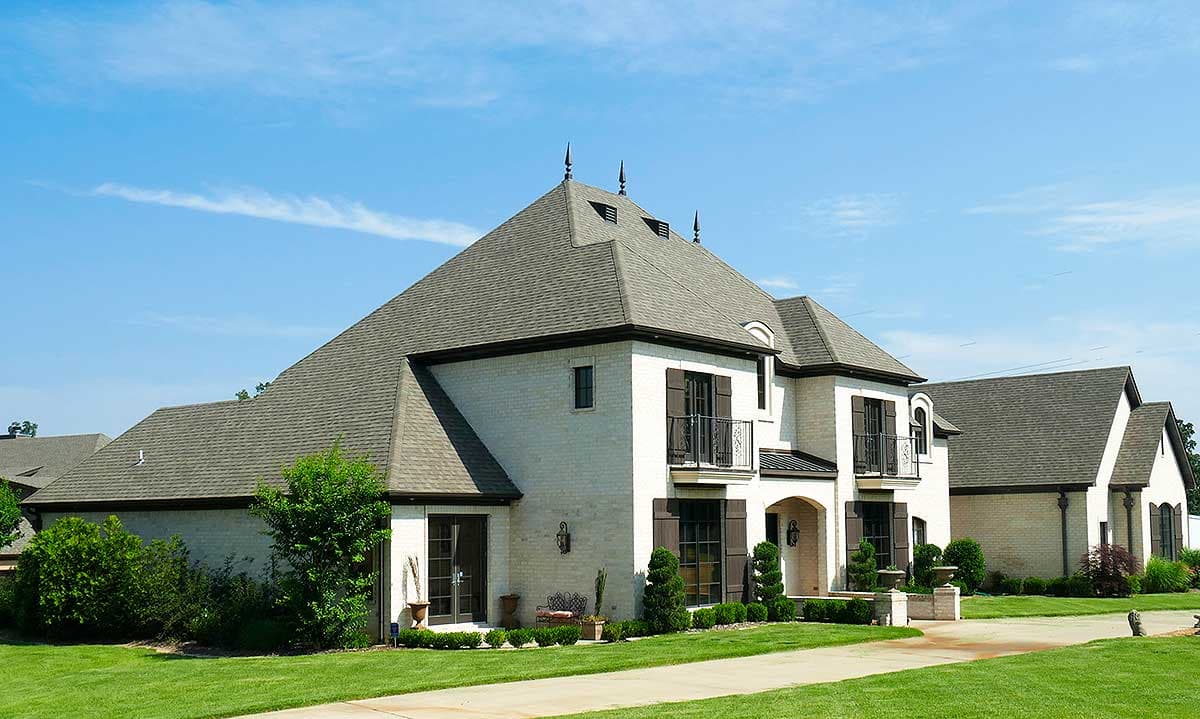

  • An elegant and intricate roof line caps this French Country manor house plan that has a substantial appearance.

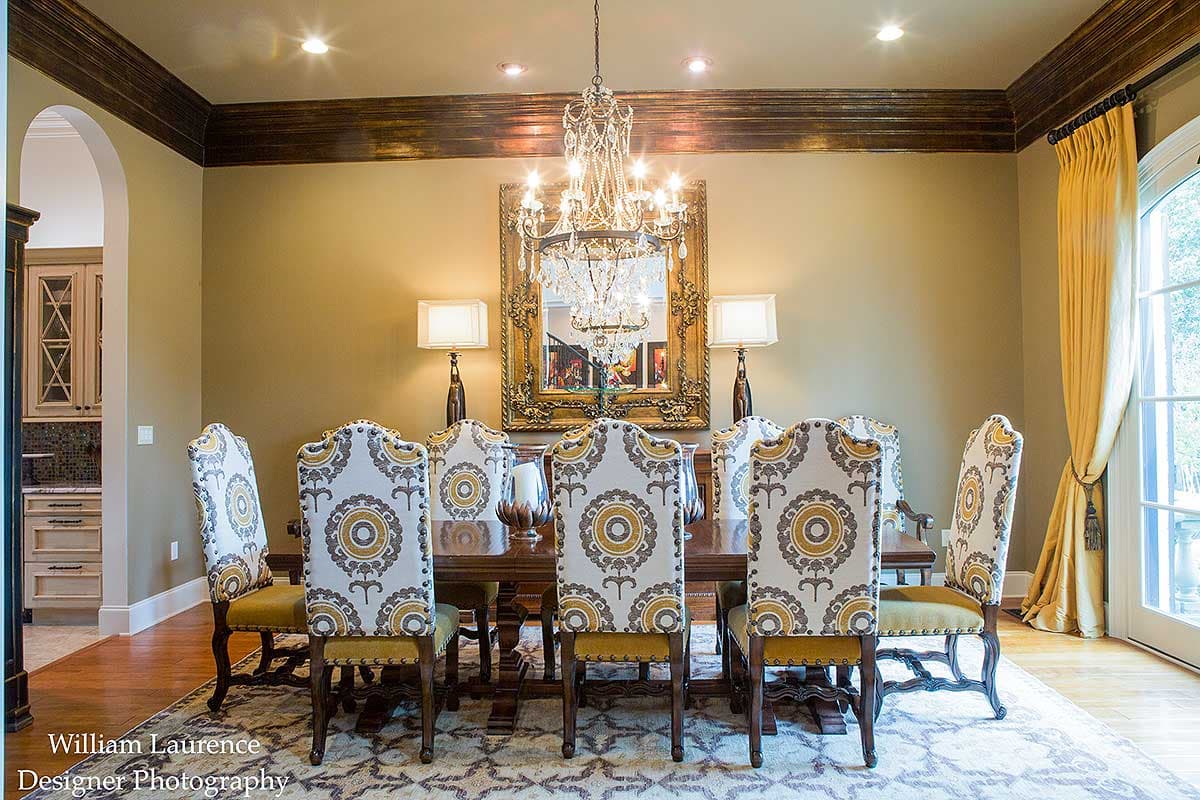

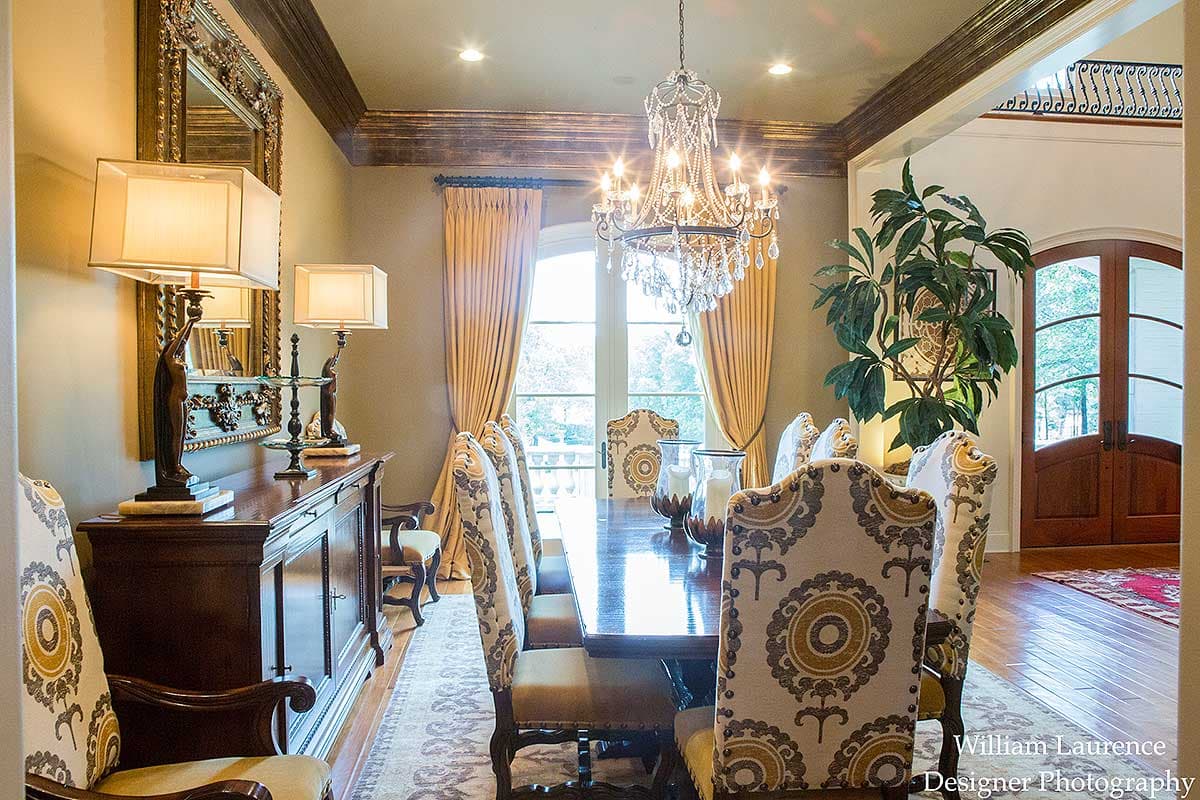

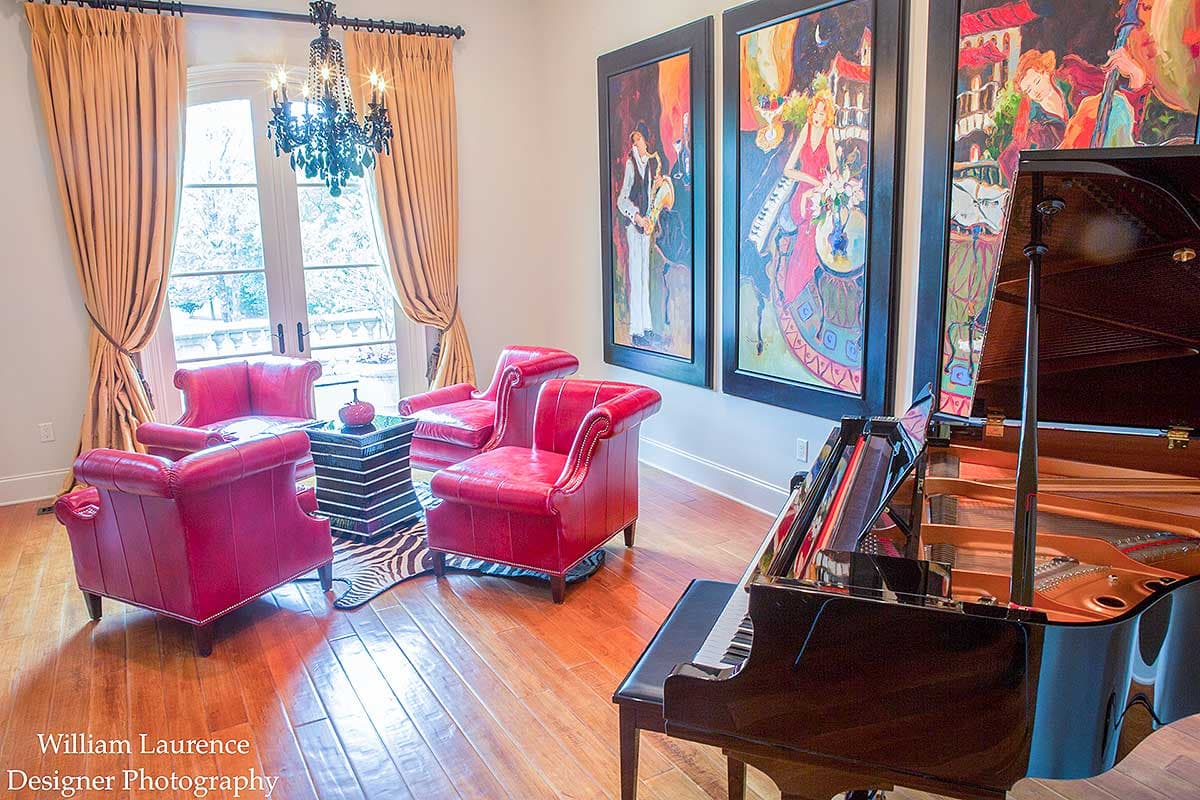

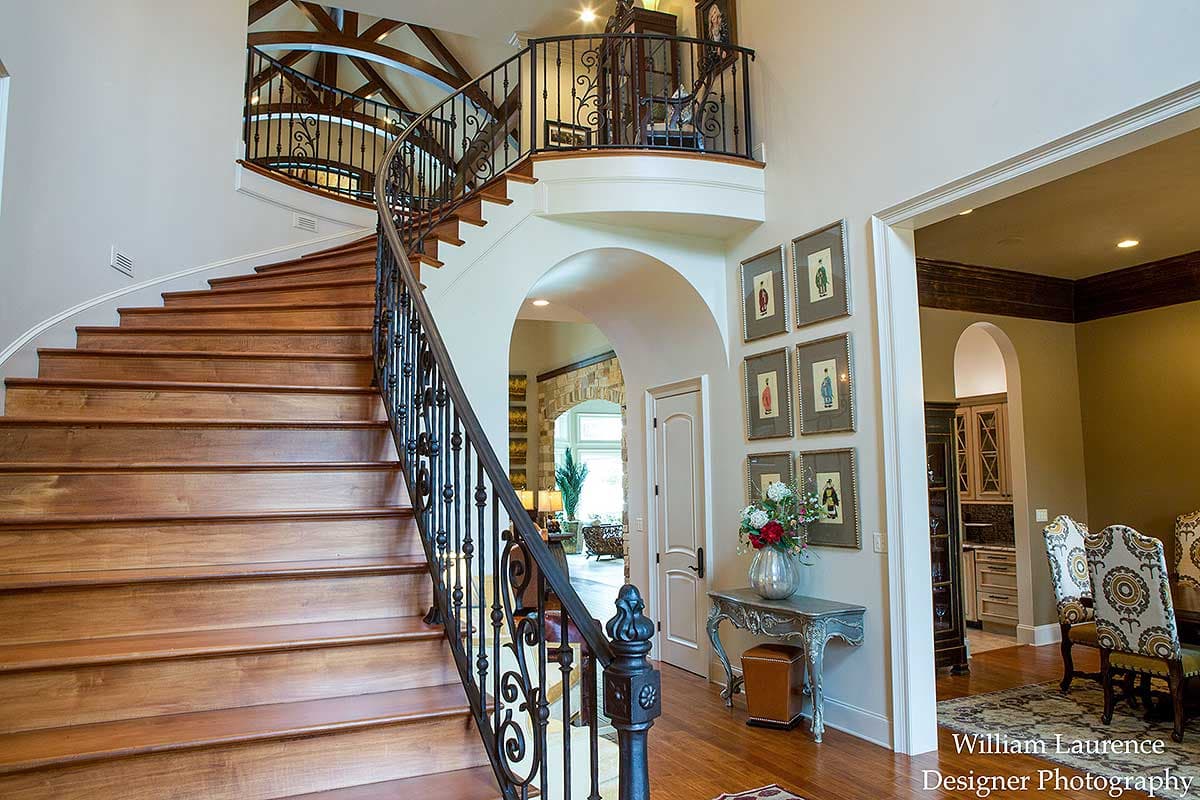

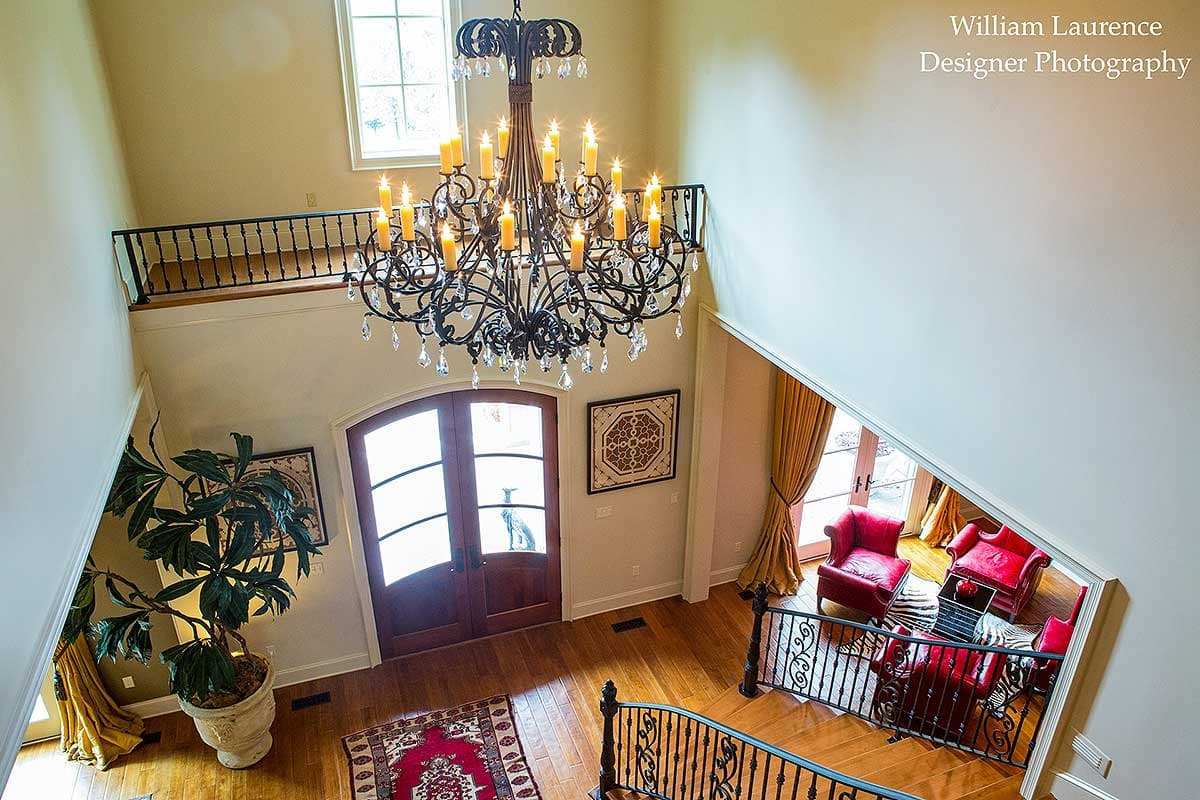

  • The giant two-story foyer is flanked by a study on one side and the large formal dining room on the other where your sparkling chandelier can be seen as soon as you enter the home.

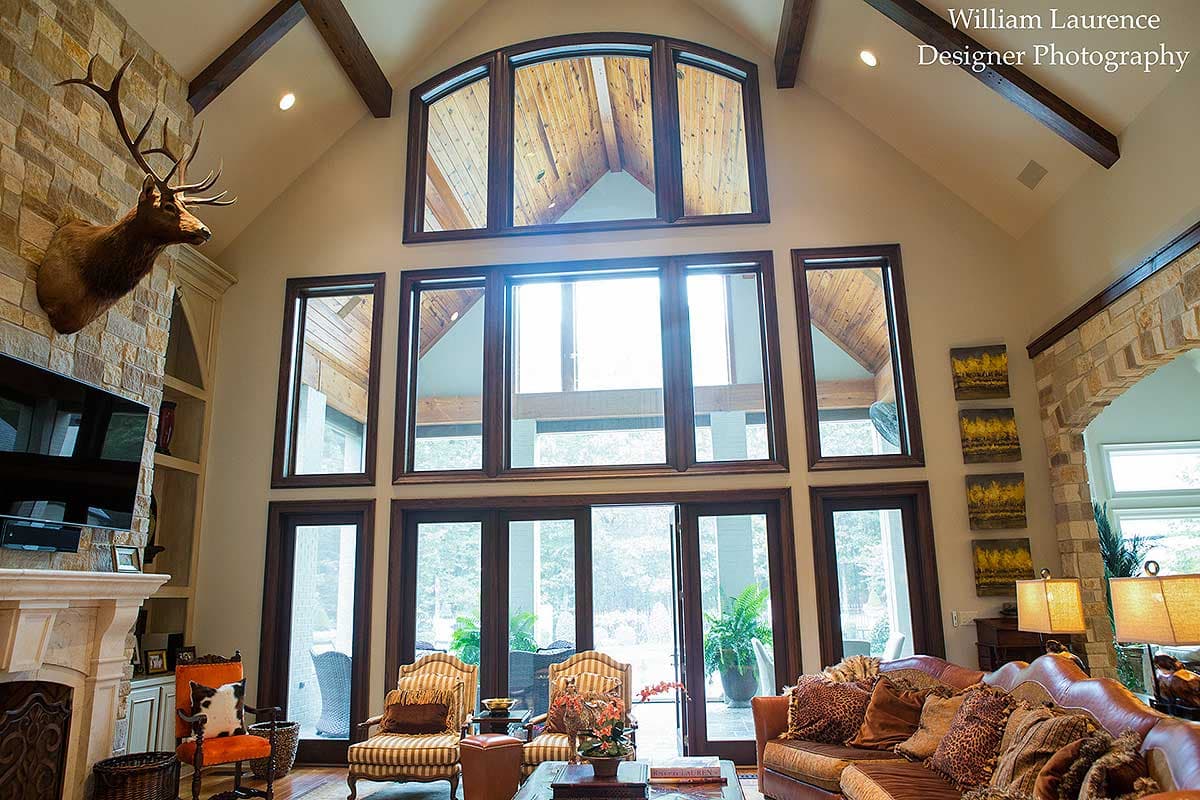

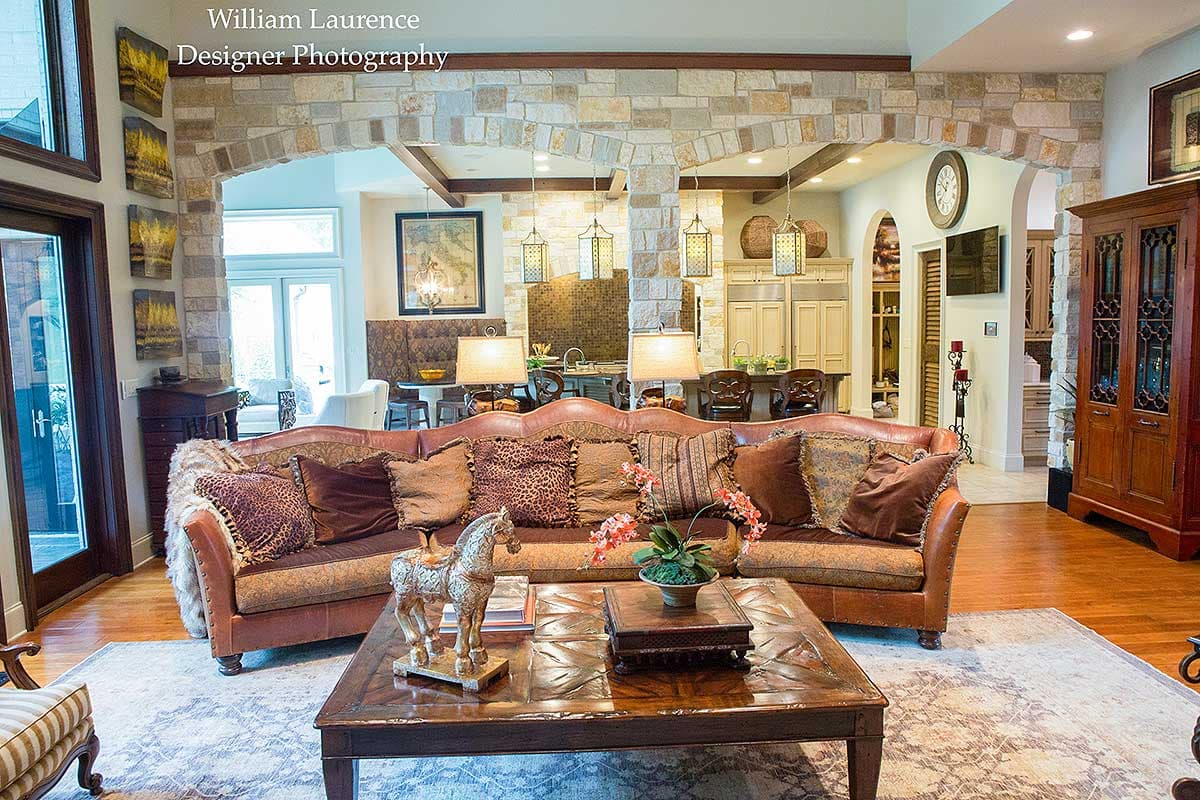

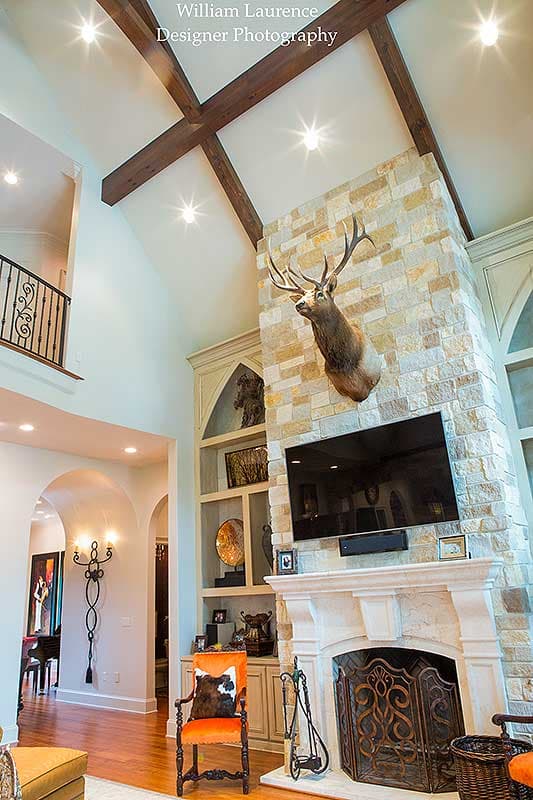

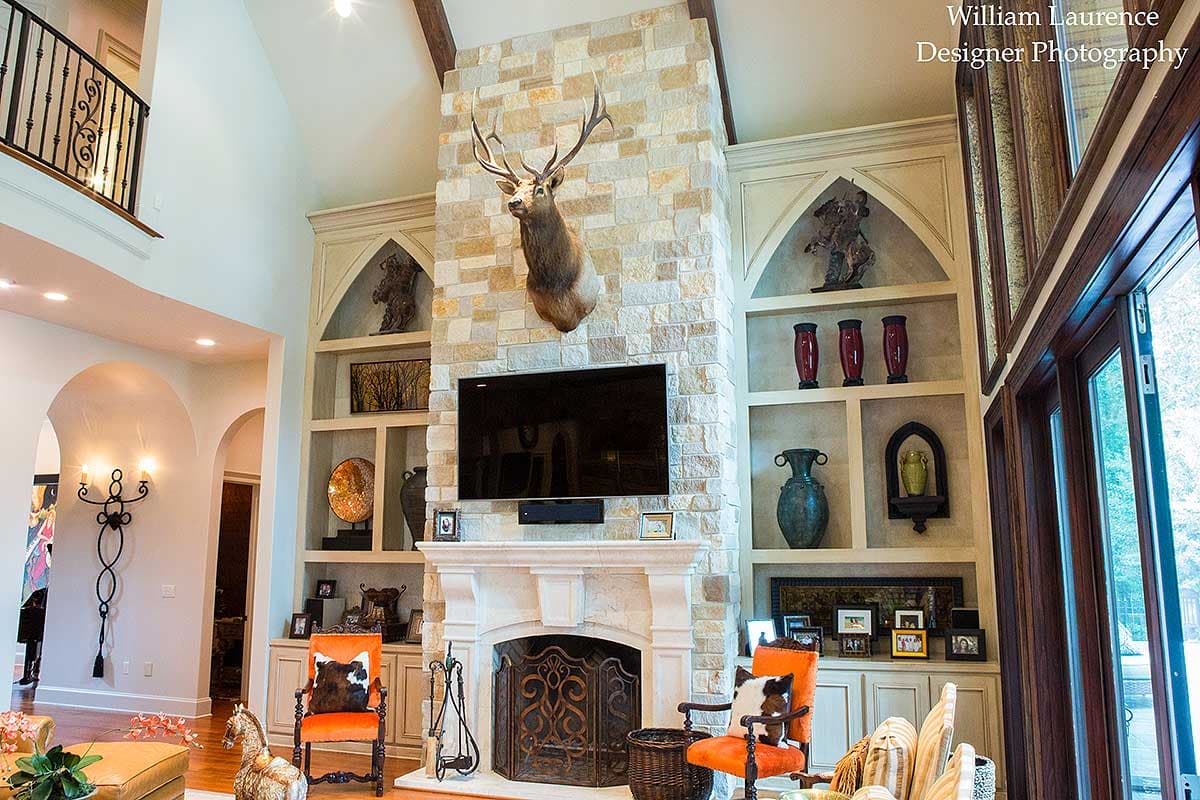

  • The main living area in back is massive with a big fireplace as the focal point.

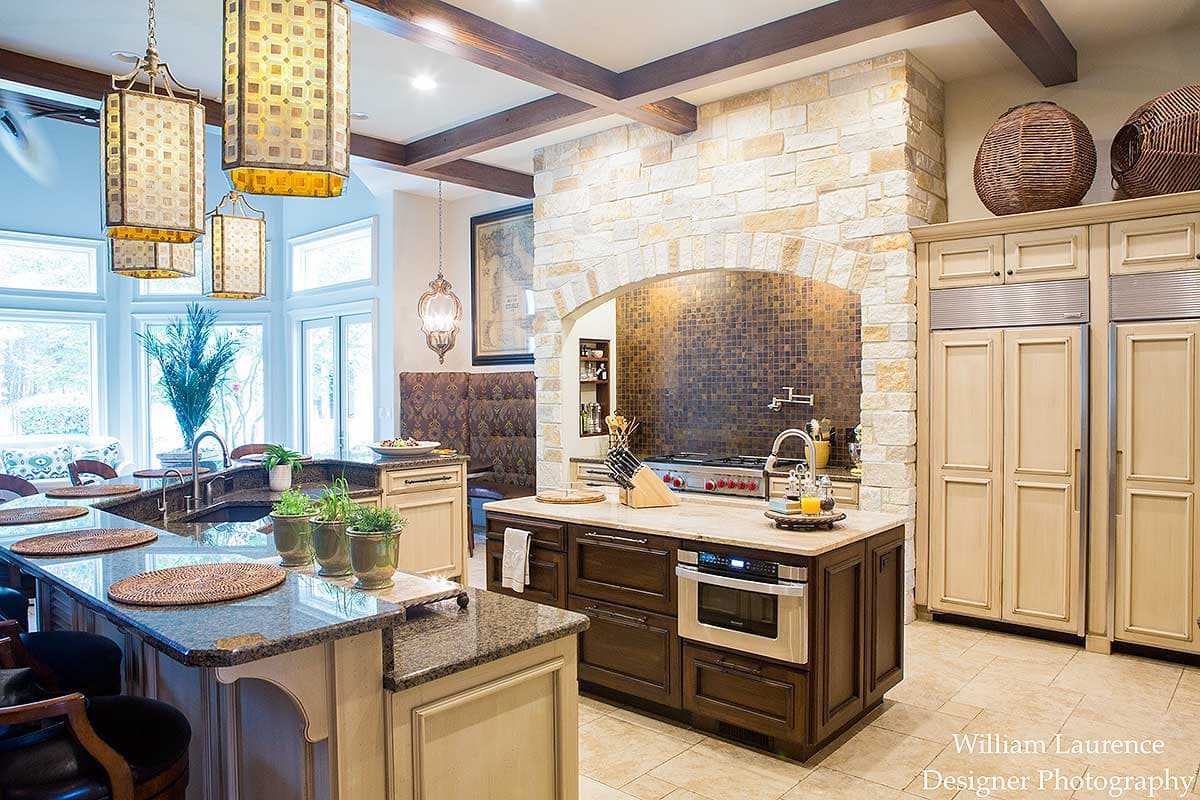

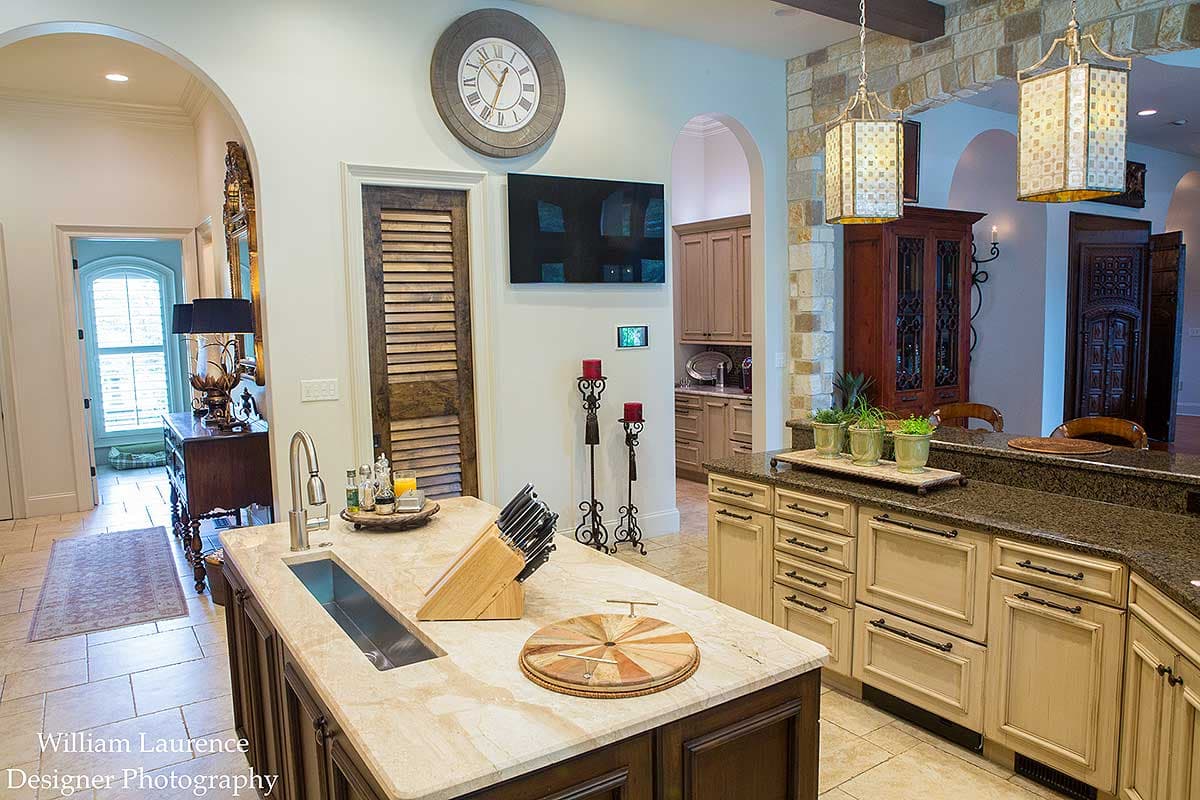

  • The gourmet chef's kitchen has both an island and a huge peninsular eating bar that seats six people.

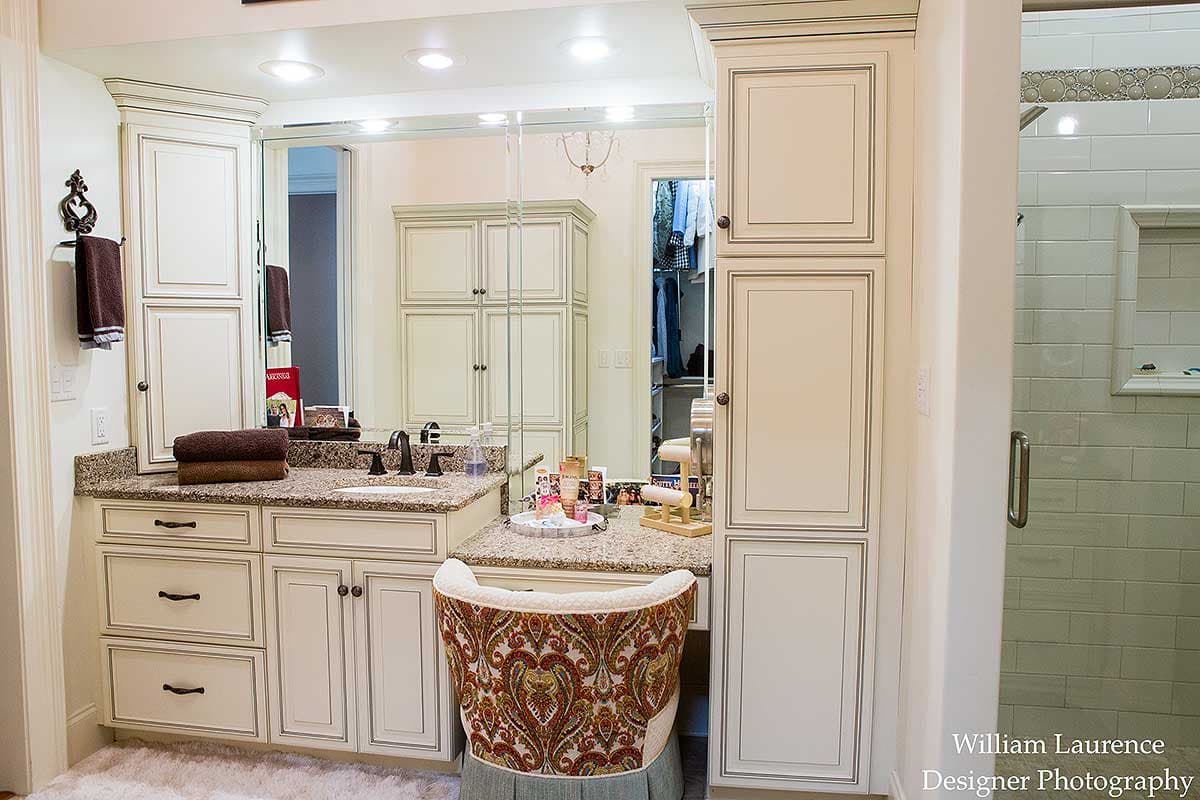

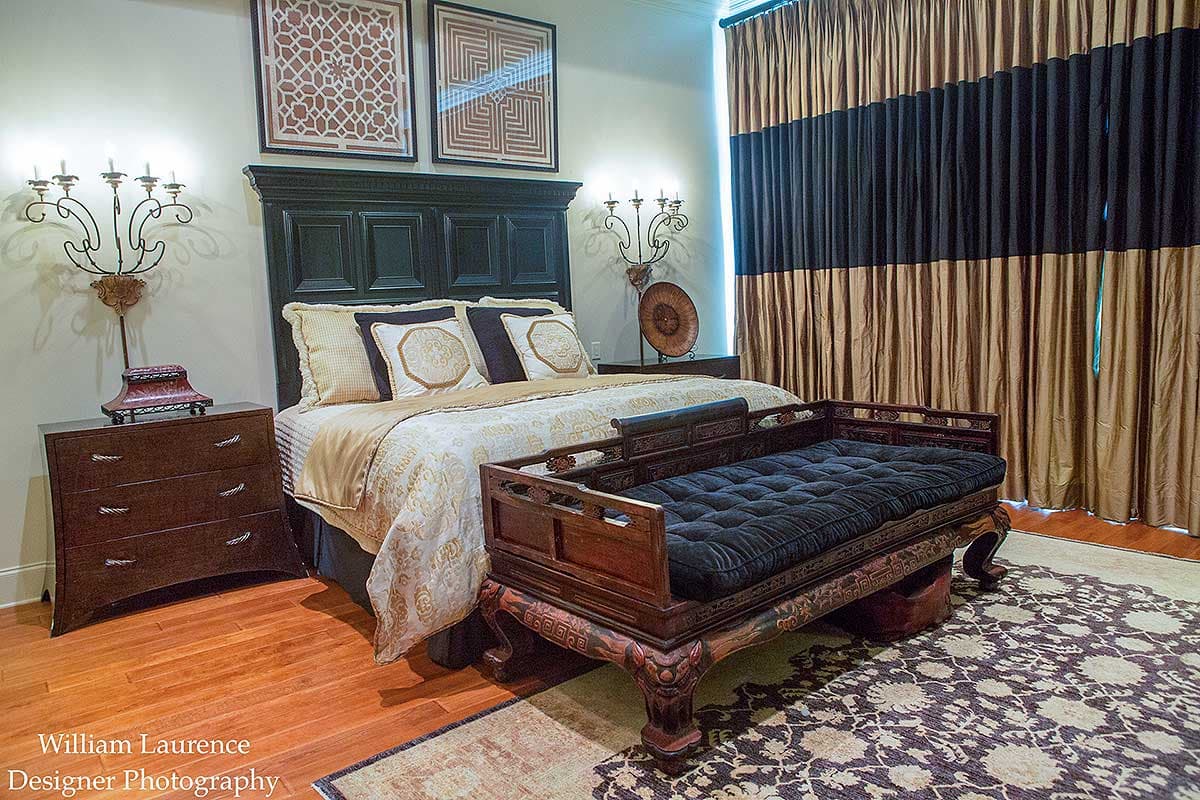

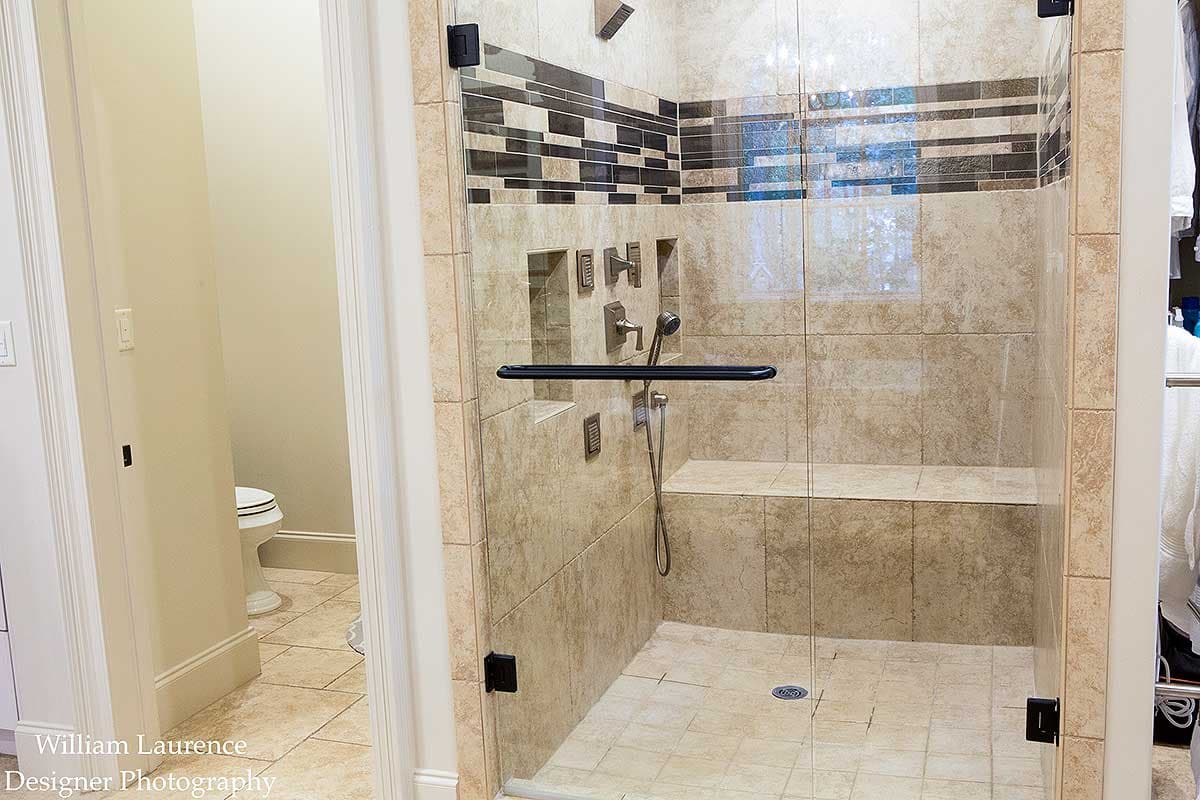

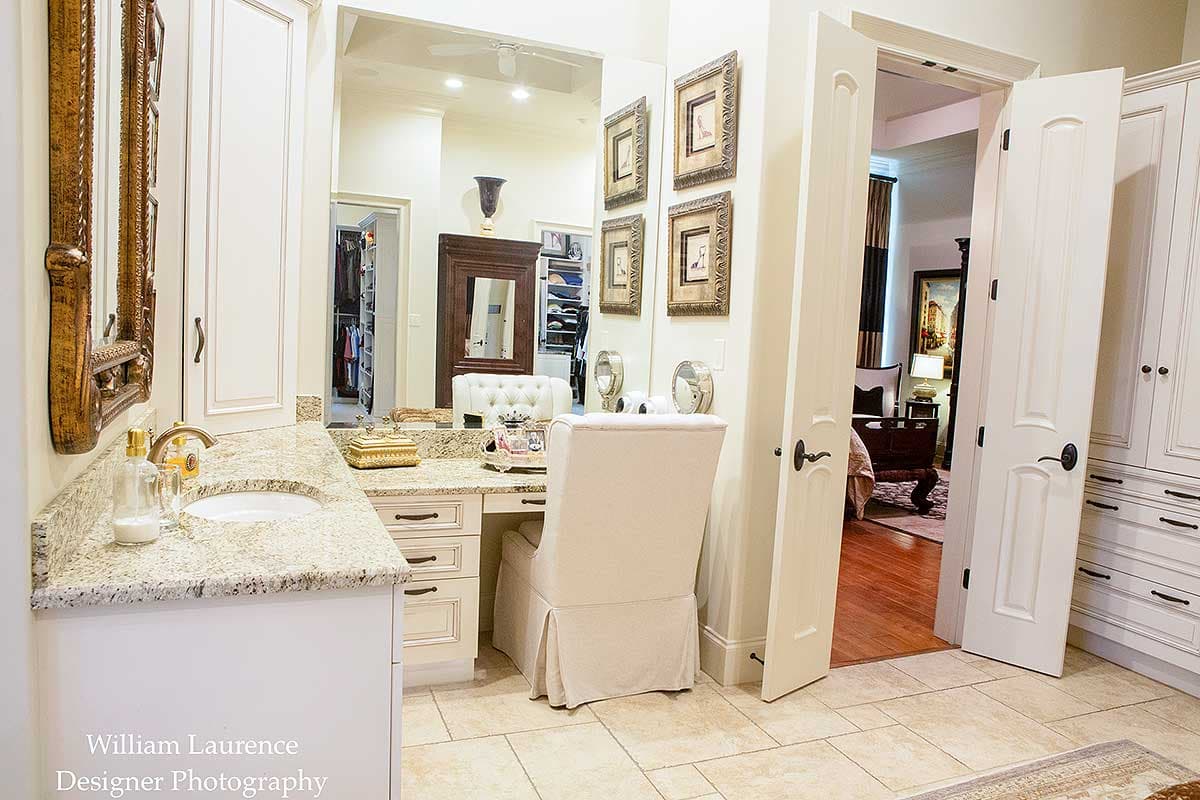

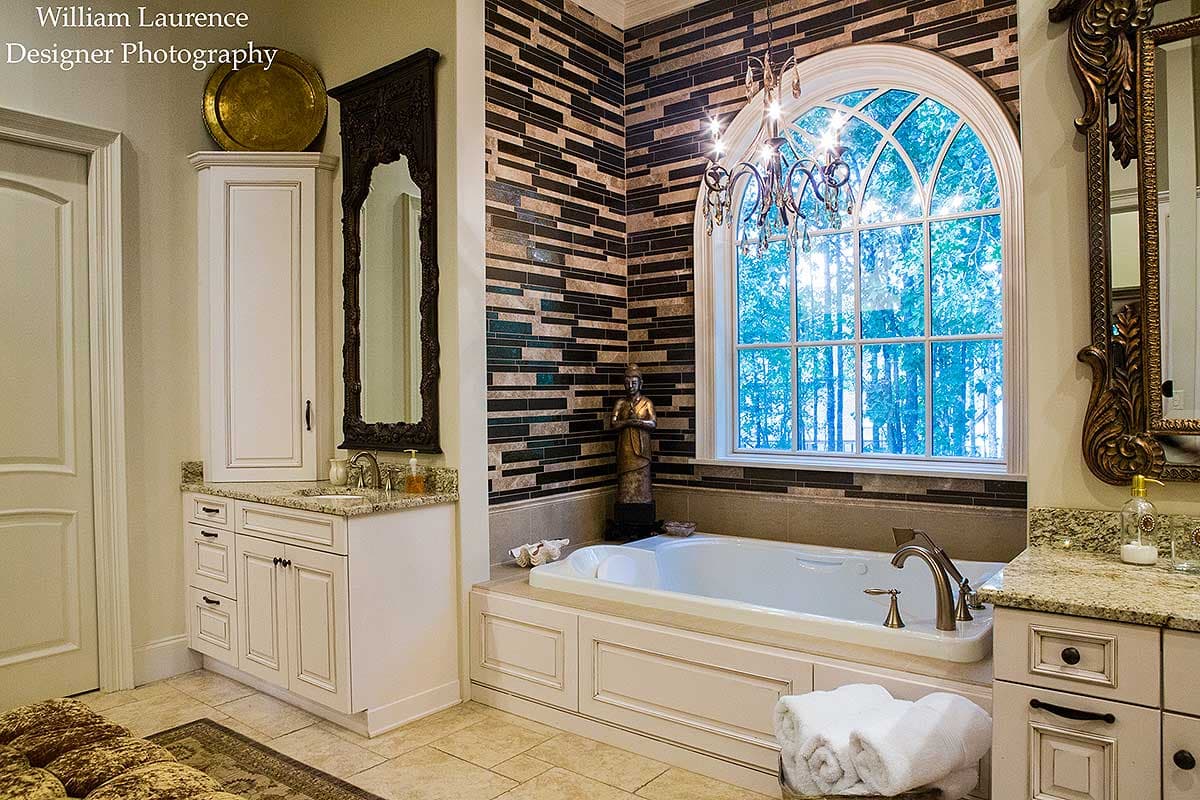

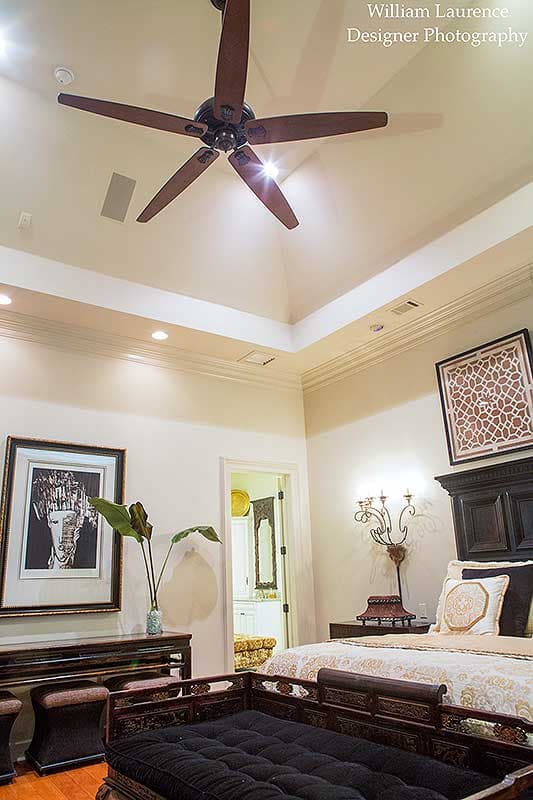

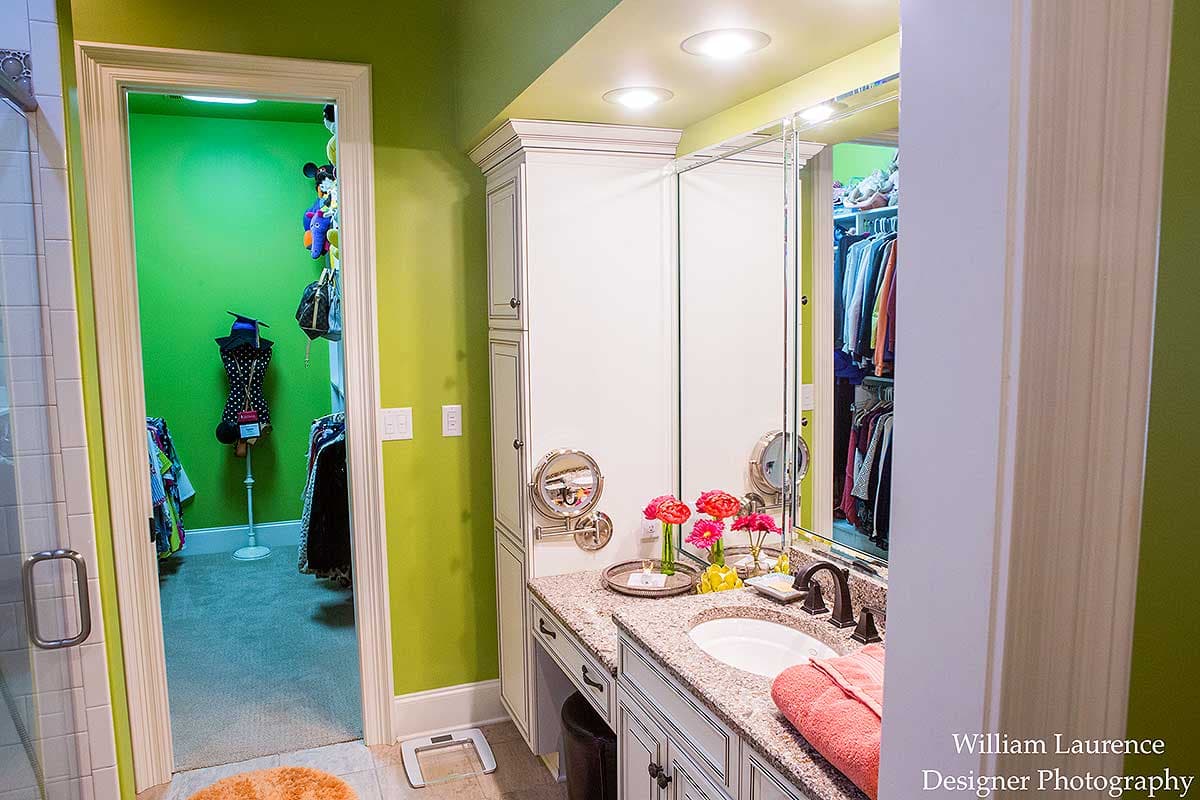

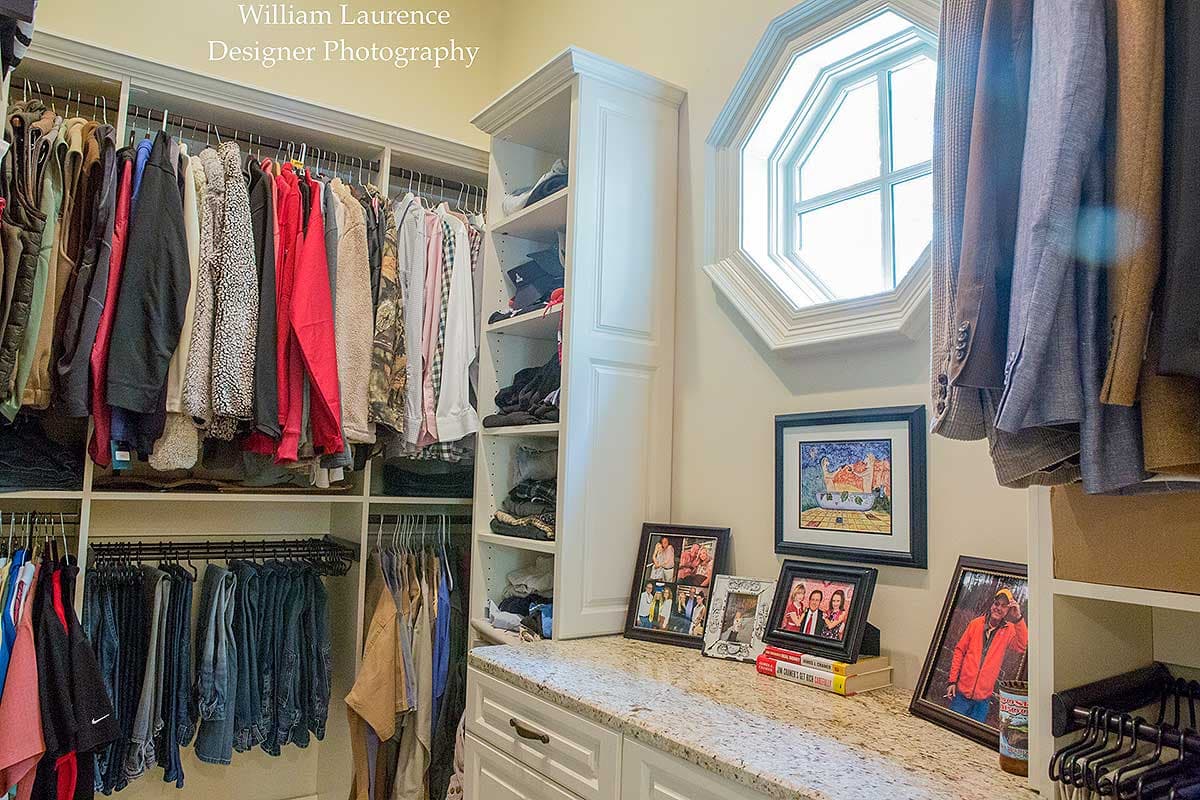

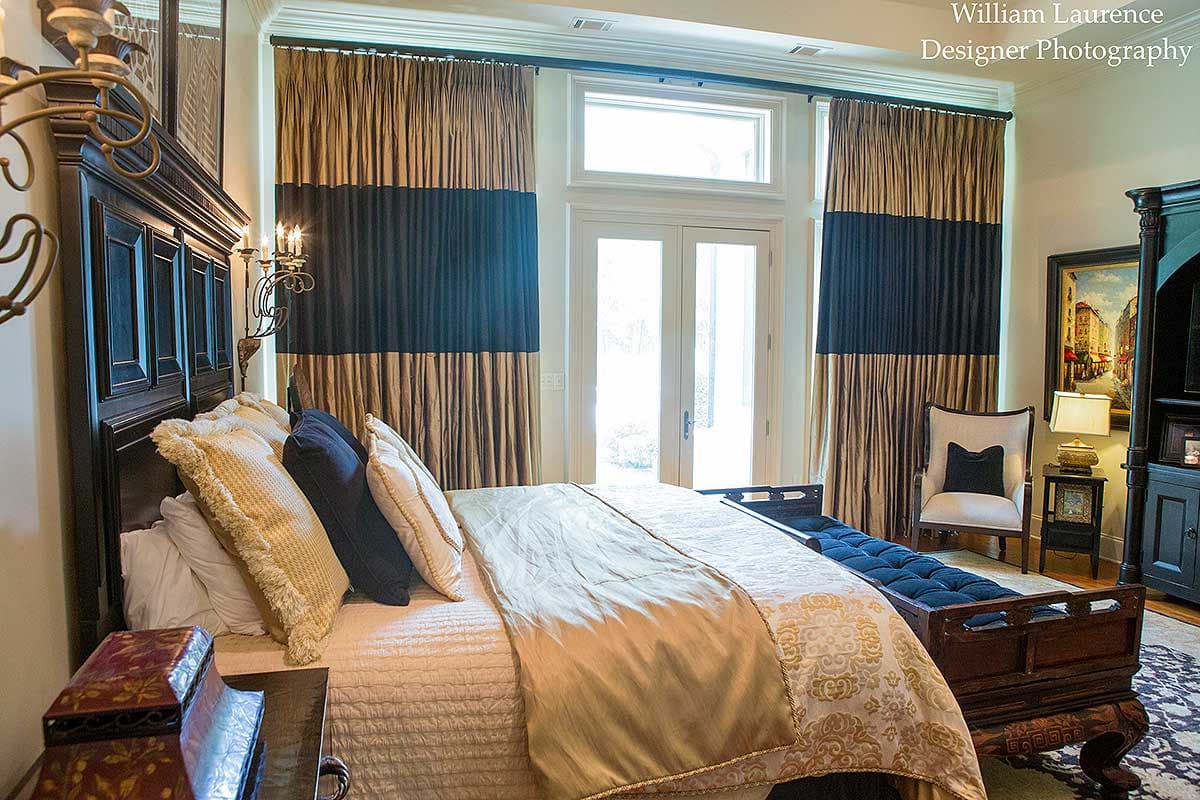

  • Homeowners get a first floor master suite with its own private patio and a spacious, luxurious master bathroom.
  • There's even a storm room, a fireplace in the bathroom and a stack washer/dryer for the ultimate in convenience.

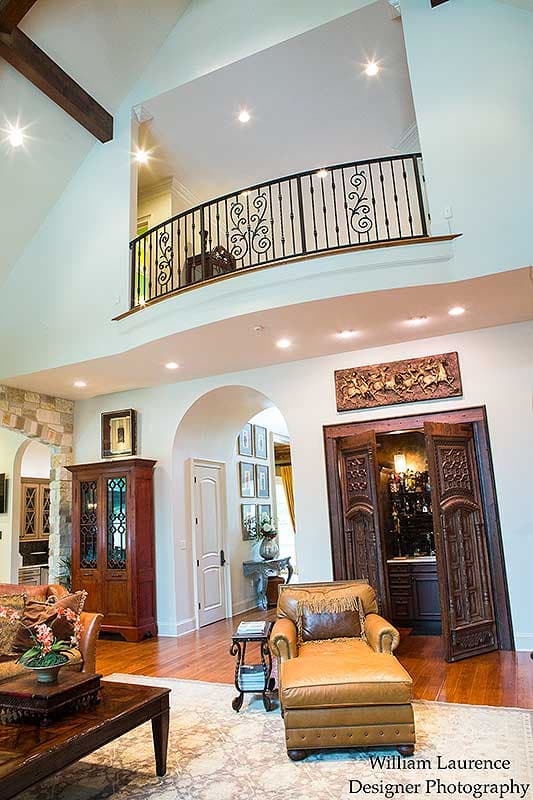

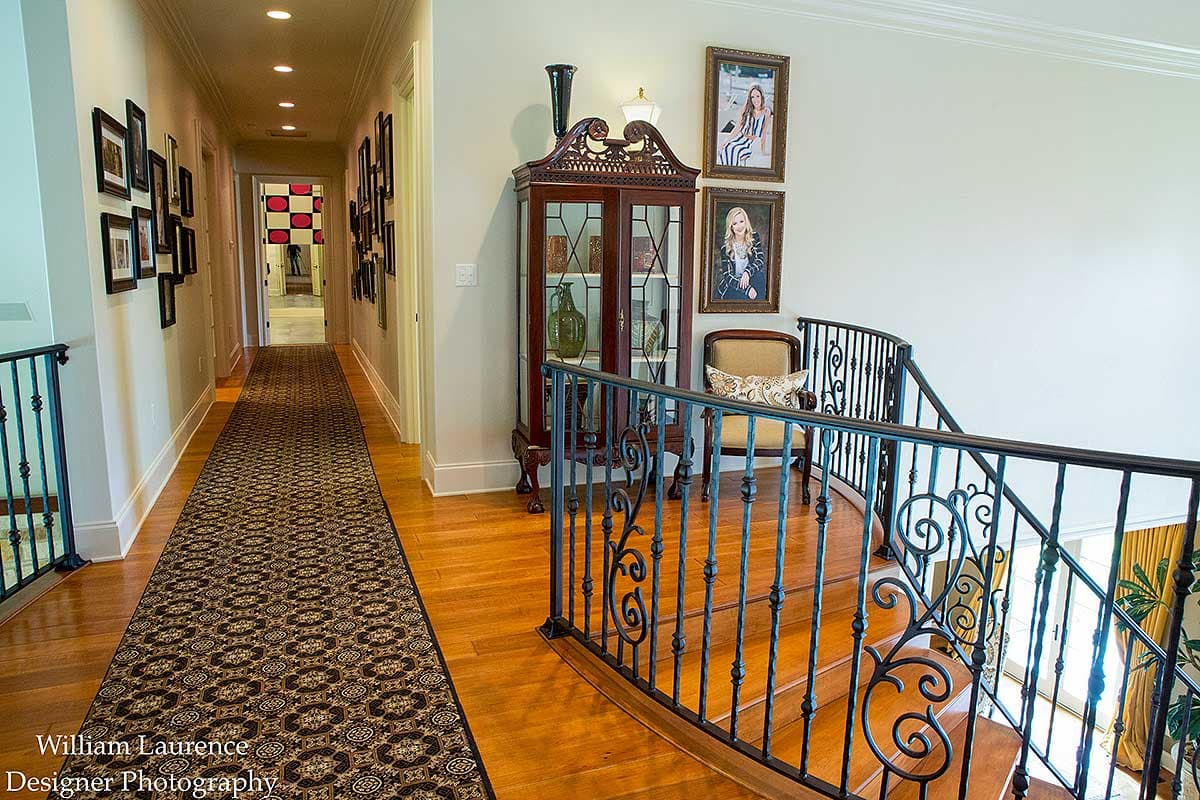

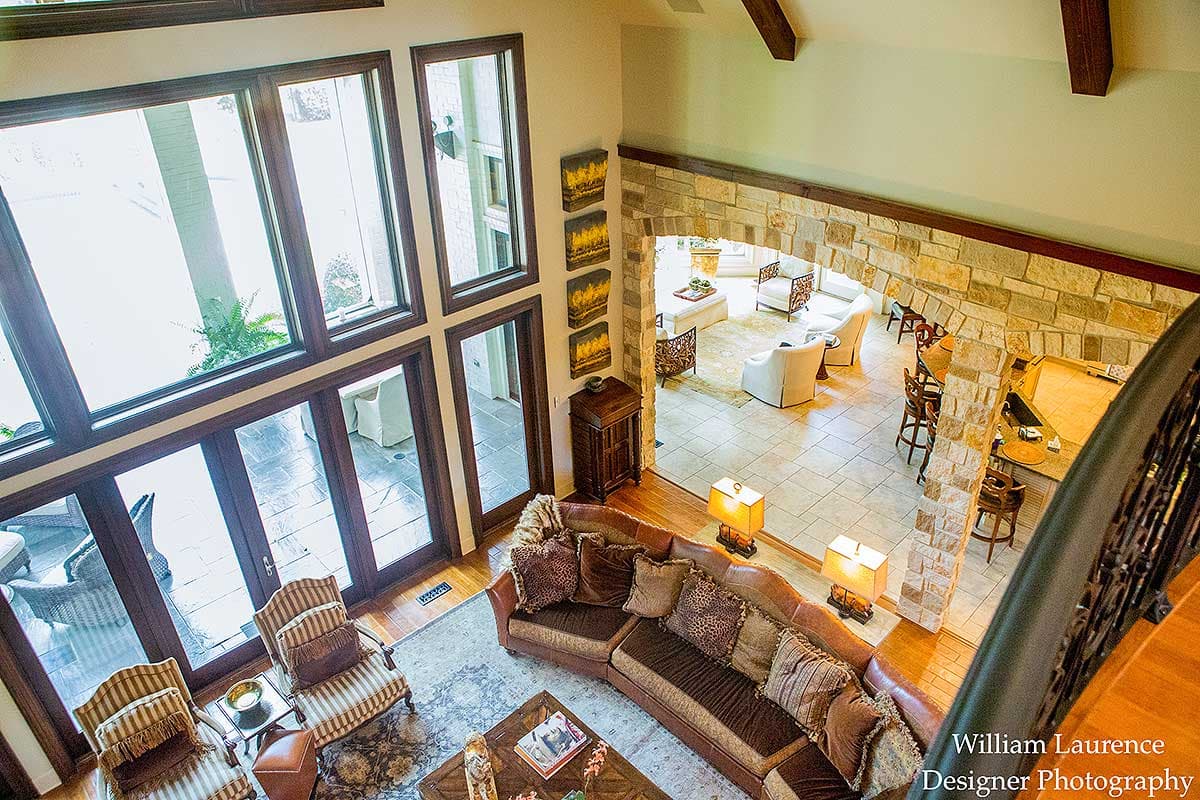

  • A balcony overlook on the upper floor lets you look down into the vaulted great room on one side and the foyer on the other.

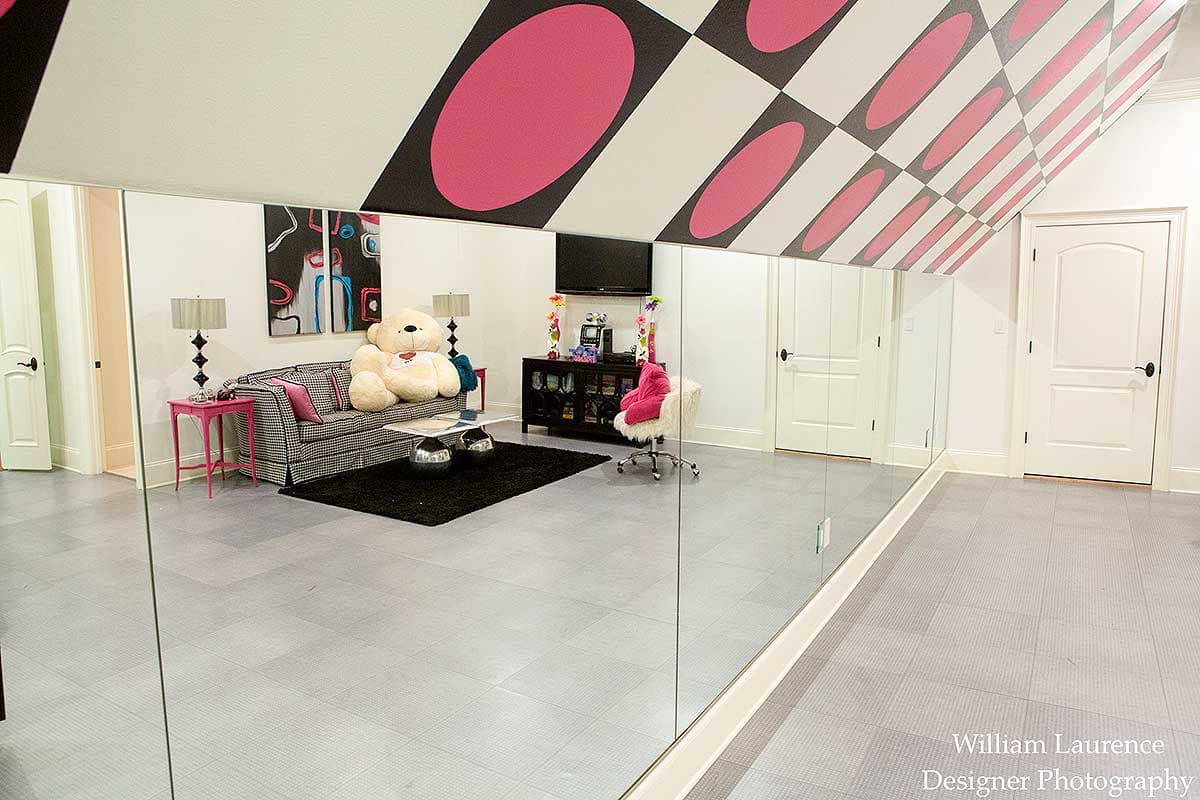

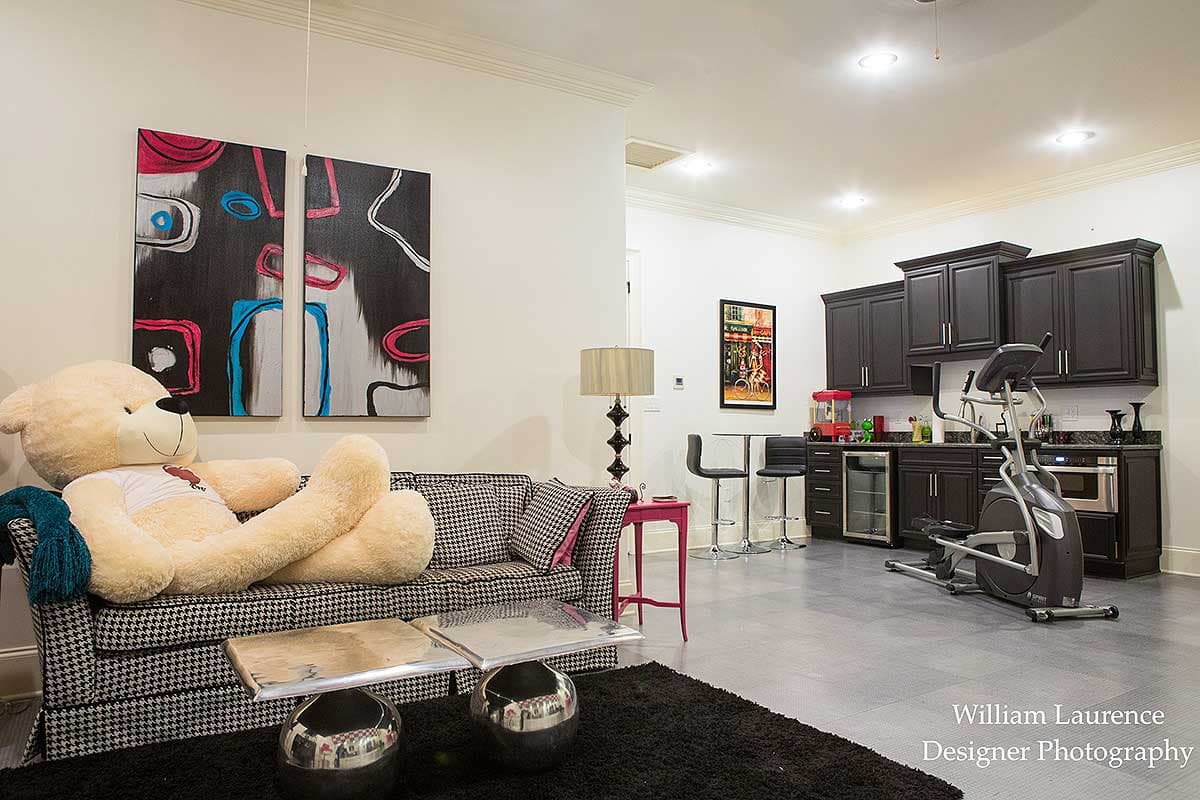

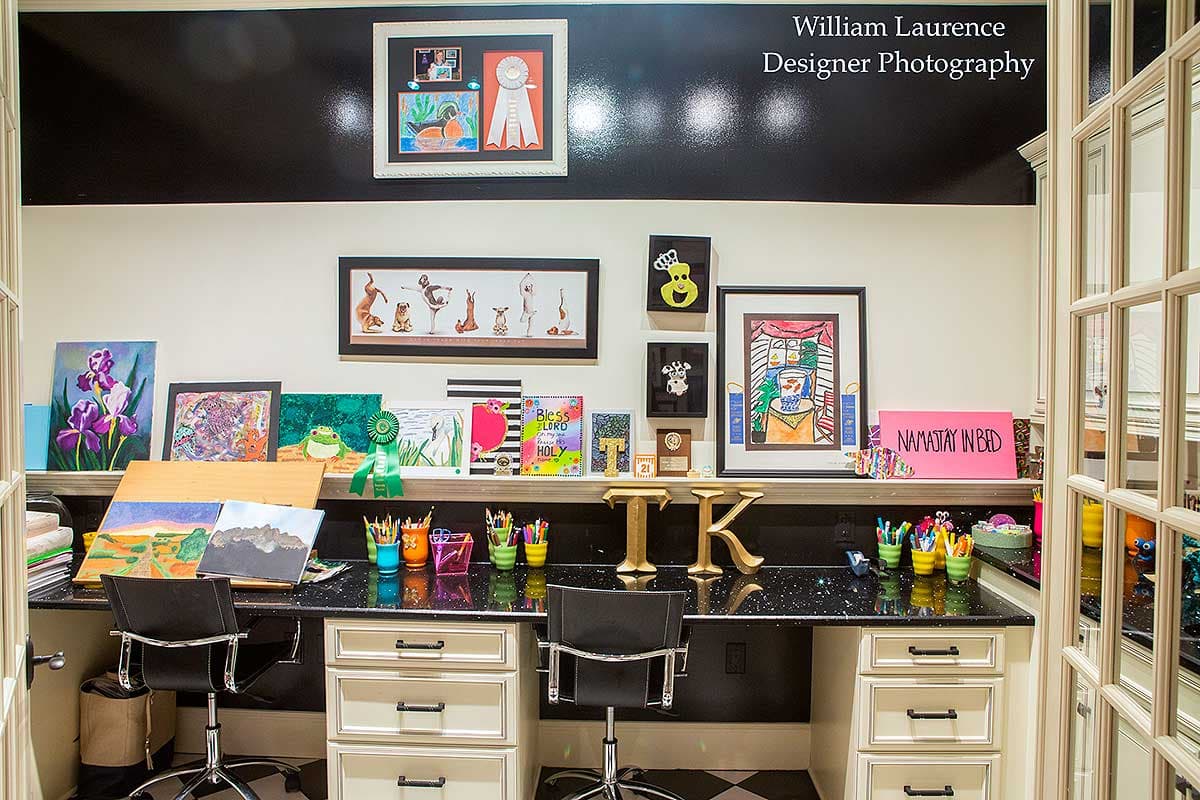

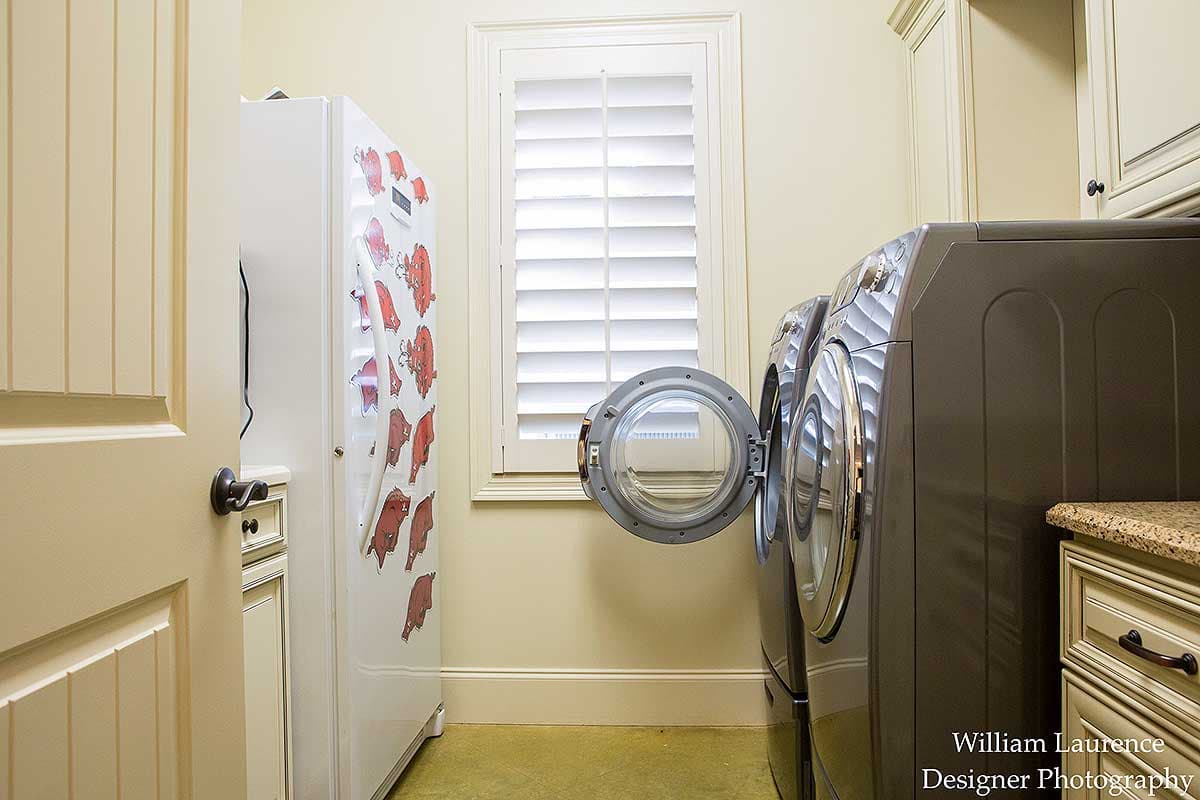

  • There's unfinished bonus space, a craft room and a second laundry room too.
What's Included
  • Foundation Plan (1/4″ or 1/2″ = 1′)
  • Floor Plans (1/4″= 1′)

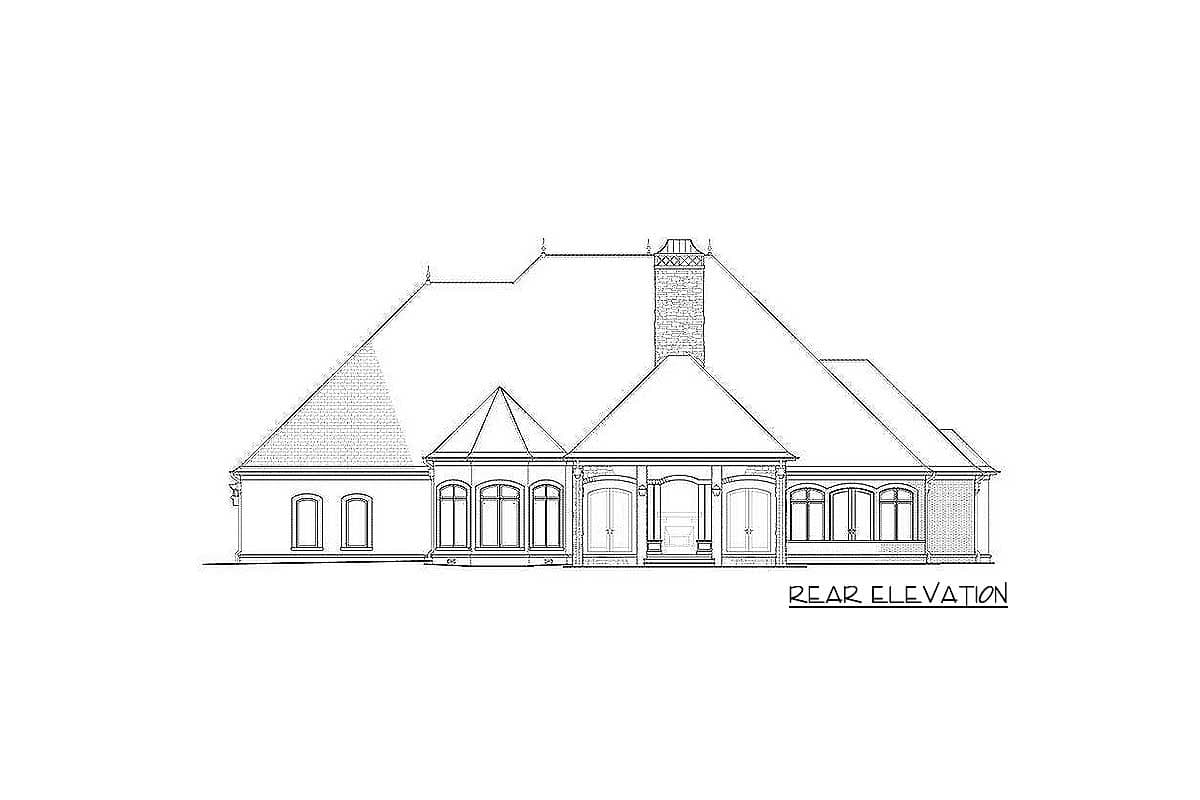

  • Set of Elevations (1/4″= 1′)
  • Miscellaneous Details (3/4″ = 1′)
  • An electrical diagram showing a bird's-eye view of rooms with lights, fans to switches
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

5,835 sq. ft.

1st Floor

4,060 sq. ft.

2nd Floor

1,775 sq. ft.

Bonus

451 sq. ft.

Porch, Combined

579 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

4

Half bathrooms

2

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

104' 1"

Depth

74' 9"

Max Ridge Height

42' 7"

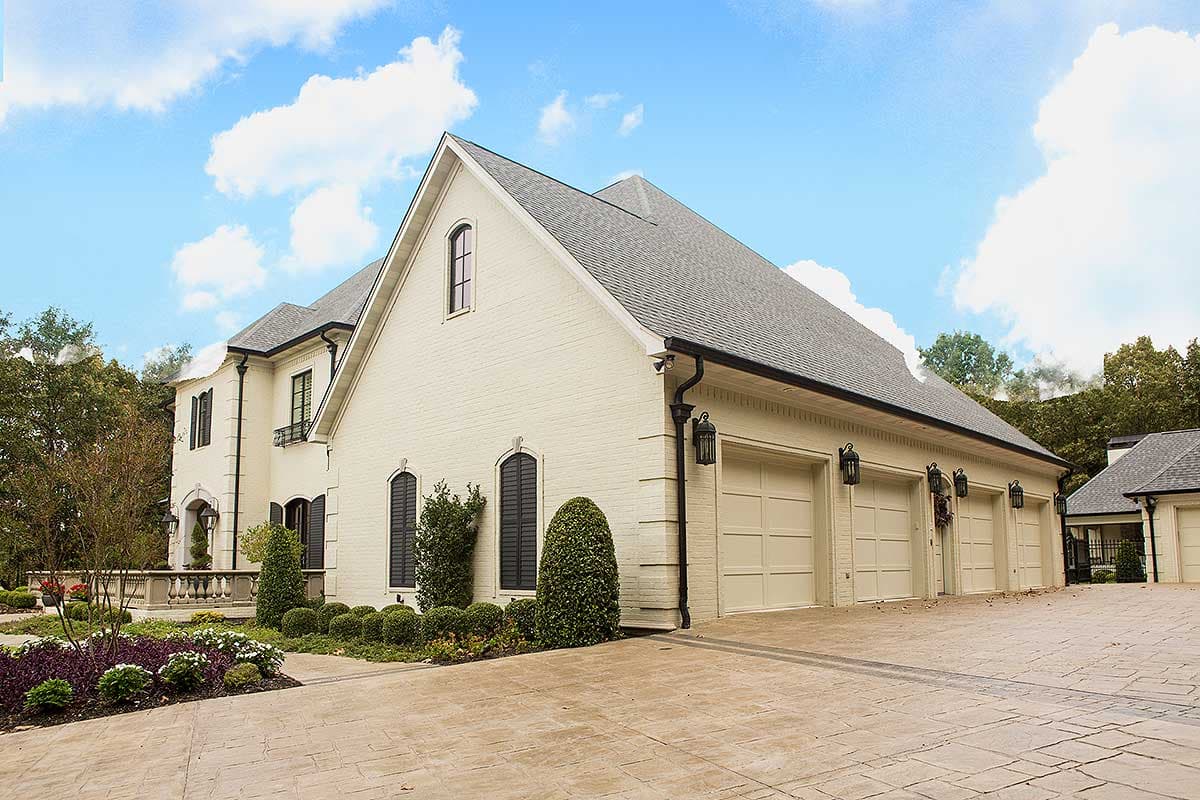

Garage

Type

Attached

Area

1476 sq. ft.

Count

4 Cars

Entry Location

Side

Ceiling Heights

First Floor

12'

Second Floor

10'

Roof Details

Framing Type

Stick

Architectural Style

European

French Country

Special Features

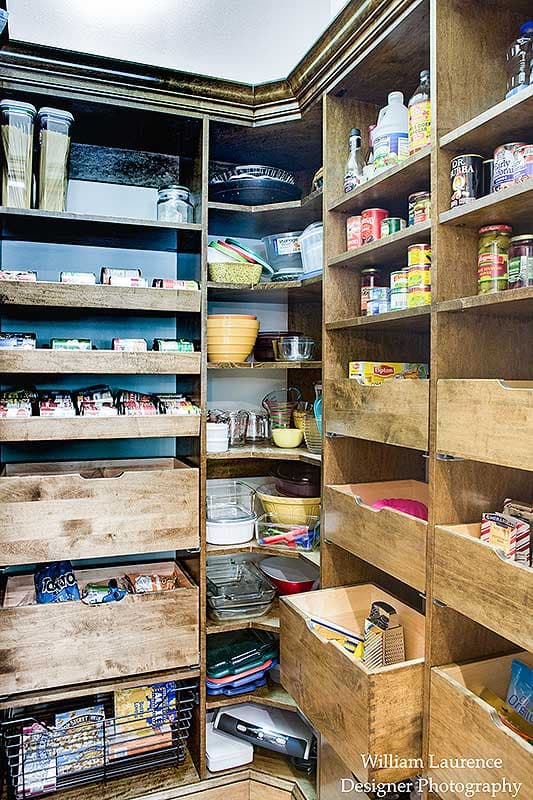

Butler Walk-in Pantry

Formal Dining

Jack & Jill Bath

Laundry - Main Level

Library/Study

Master Suite - 1st Floor

Plan Collections

Luxury

Photo Gallery

Premium Collection
