Plan 39143ST
Gracious Multi-Leveled Villa
Heated S.F.
5,071
Beds
2
Baths
2.5+
Stories
3
Cars
2
Floor Plan

Plan 39143ST

Main Level
slide image 0
2nd Floor
slide image 1
3rd Floor
slide image 2

Plan 39143ST

1-800-854-7852

1-262-521-4596

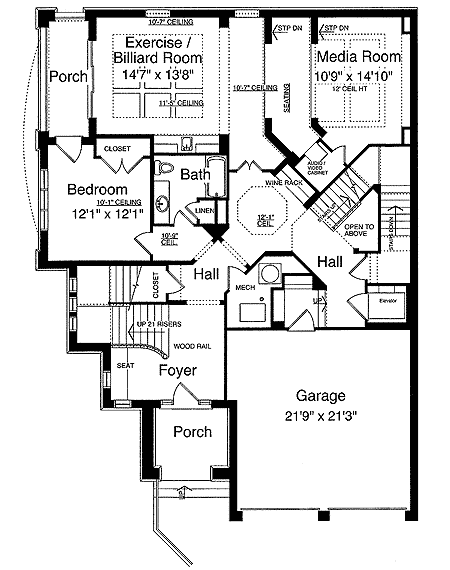

Main Level
floor plan image Main Level
2nd Floor
floor plan image 2nd Floor

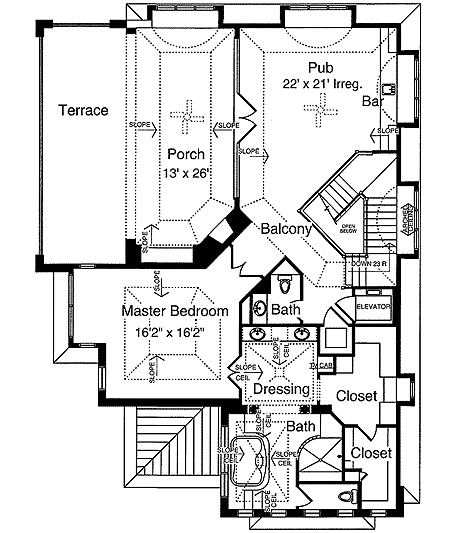

3rd Floor
floor plan image 3rd Floor
Plan Details
  • Multiple levels of enjoyment are easily accessed by the indoor elevator. Exterior living spaces and views are provided at each level.
  • The lower level offers a home theatre, billiards room and bedroom. Two staircases lead to the main level where a spectacular dining room, great room and beautiful kitchen are adorned by columns, decorated ceiling treatment and arches. A wall of doors offers a view and access to the outdoors.
  • One staircase leads to the third level where the master bedroom with raised ceiling, dressing area, spacious shower, and whirlpool tub pamper the homeowner. A plush pub with wet bar and covered porch makes this an exciting place to spend time and enjoy friendships.
What's Included
  • General notes and specifications
  • Front, rear and side elevations at (1/4" scale)
  • Foundation plan (1/4" scale) indicating beam and column sizes along with lower level framing
  • Reinforced foundation and footing details
  • First floor plan (1/4" scale) includes all necessary framing information, window rough openings, beam sizes and framing details for specialized areas
  • Stairs, sections, cabinet layouts, window flashing and miscellaneous details necessary for understanding of construction methods
  • Roof plan (1/8" scale) indicating pitches and wall height as well as truss profiles indicating heel heights and raised ceiling areas
  • Wall section indicating standard materials and detailing for typical wall construction
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

5,071 sq. ft.

1st Floor

1,720 sq. ft.

2nd Floor

1,740 sq. ft.

3rd Floor

1,611 sq. ft.

Beds/Baths

Bedrooms

2

Full bathrooms

2

Half bathrooms

2

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

45' 0"

Depth

60' 0"

Garage

Type

Attached

Area

462 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

10'

Second Floor

12'

Roof Details

Framing Type

Truss

Architectural Style

European

Special Features

Butler Walk-in Pantry

Elevator

Formal Dining

Game/Rec Room

Laundry - Upstairs

Library/Study

Master Suite - 2nd Floor

Master Suite - Sitting Area

Media Room

Multiple Stairs

Outdoor Fireplace

Wet Bar

Plan Collections

Luxury

Photo Gallery

Premium Collection
