Plan 48163FM
Gracious Proportions with Options
Heated S.F.
2,279
Beds
4
Baths
3
Stories
1
Cars
3
Floor Plan

Plan 48163FM

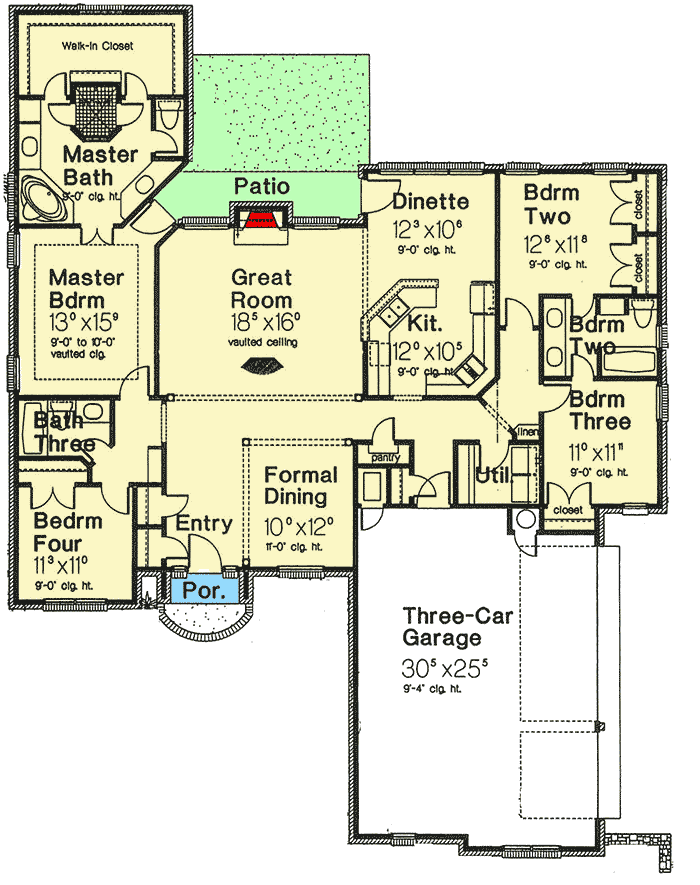

Main Level
slide image 0

Plan 48163FM

1-800-854-7852

1-262-521-4596

Main Level
floor plan image Main Level
Plan Details
  • Stately stone, gables, a narrow dormer and a covered entry grace the exterior of this appealing house plan. It has proven to be popular and consequently comes in multiple versions.
  • A covered entry ushers you into the foyer that is open to the formal dining room and great room with fireplace. Double coat closets are conveniently tucked away to the left.
  • The family chef will enjoy views over the snack bar of both the breakfast nook and the great room.
  • Two family bedrooms lie on the right side of the home, away from the secluded master suite on the left. A tray ceiling, pampering master bath and access to the rear covered patio create a relaxing retreat for the homeowners. A fourth bedroom can easily be converted into a home office.
  • A utility room is conveniently located adjacent to the three-car garage.
  • Related Plans: Building in reverse? Be sure to look at house plan 48178FM.
  • For an alternate garage configuration (two plus one), see house plan 48101FM and 48028FM.
What's Included
  • Cover Sheet
  • Floor Plans
  • Electrical Plan
  • Foundation Plan
  • Front and Left Elevation

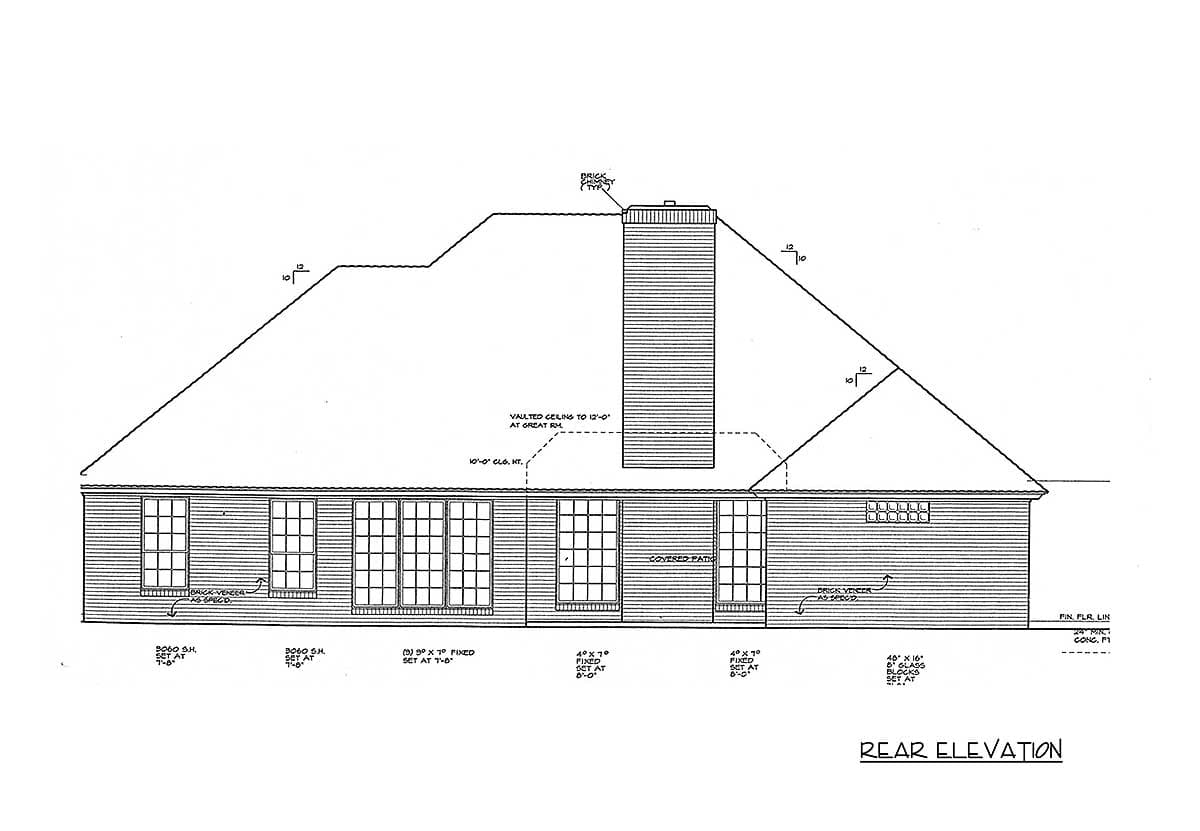

  • Rear and Right Elevation
  • Roof Plan
  • Cabinets and Section
  • Building Section

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

2,279 sq. ft.

1st Floor

2,279 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

3

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

60' 0"

Depth

78' 0"

Max Ridge Height

27' 0"

Garage

Type

Attached

Area

660 sq. ft.

Count

3 Cars

Entry Location

Side

Ceiling Heights

First Floor

9'

Room

Ceiling Type

Height

Great Room

Vaulted

0' 0''

Dining Room

11' 0''

Master Bedroom

Tray

10' 0''

Roof Details

Primary Pitch

10 on 12

Framing Type

Stick

Architectural Style

European

Special Features

Bedrooms - Clustered

Breakfast Nook

Formal Dining

Home Office

Jack & Jill Bath

Laundry - Main Level

Master Suite - 1st Floor

Plan Collections

Home Office
