Plan 19204GT
Gracious Veranda
Heated S.F.
2,312
Beds
3
Baths
2.5
Stories
2
Cars
2
Floor Plan

Plan 19204GT

Main Level
slide image 0
2nd Floor
slide image 1

Plan 19204GT

1-800-854-7852

1-262-521-4596

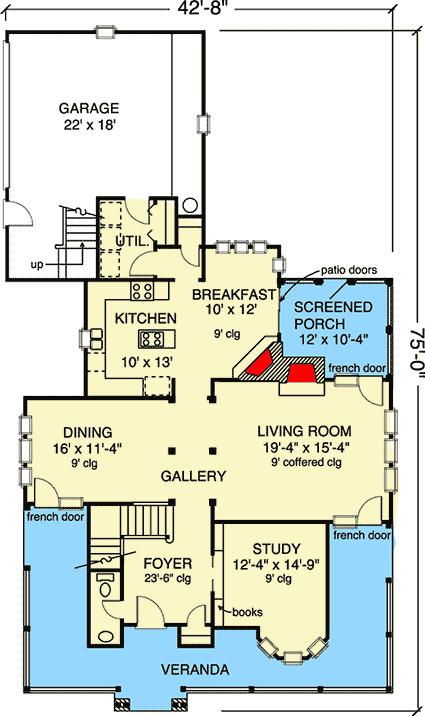

Main Level
floor plan image Main Level

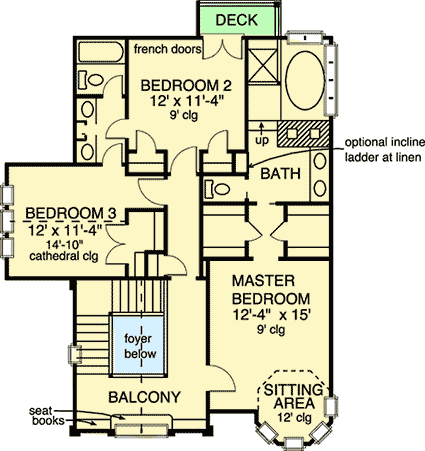

2nd Floor
floor plan image 2nd Floor
Plan Details
  • This wonderful traditional home plan features a wide veranda and magnificent detailing.
  • The spacious foyer leads to a hallway that separates the dining room and the living room. Both rooms have French doors to the veranda. The living room has a fireplace and a coffered ceiling.
  • The large U-shaped island kitchen boasts an adjoining breakfast nook with a fireplace.
  • What a wonderful way to wake up on cold winter days! The master bedroom features a romantic octagonal sitting area.
What's Included
  • Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
  • Exterior Elevations: A blueprint picture of all four sides showing exterior elevations with roof pitches, elements and measurements drawn to 1/4” scale.
  • Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
  • Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
  • Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

2,312 sq. ft.

1st Floor

1,233 sq. ft.

2nd Floor

1,079 sq. ft.

Porch, Front

124 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

42' 8"

Depth

75' 0"

Max Ridge Height

37' 0"

Garage

Type

Attached

Area

396 sq. ft.

Count

2 Cars

Entry Location

Side

Ceiling Heights

First Floor

9'

Second Floor

9'

Architectural Style

Country

Victorian

Special Features

Breakfast Nook

Jack & Jill Bath

Laundry - Main Level

Loft

Master Suite - 2nd Floor

Master Suite - Sitting Area

Wrap Around Porch
