Plan 80839PM
Grand Farmhouse House Plan
Heated S.F.
3,066
Beds
4
Baths
2.5+
Stories
2
Cars
2
Floor Plan

Plan 80839PM

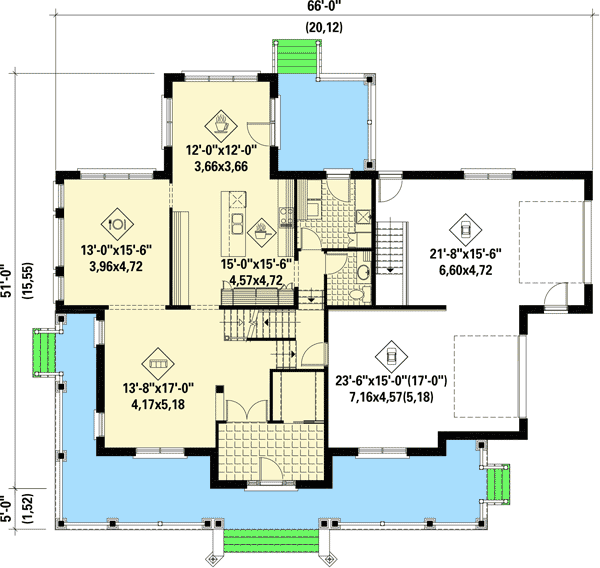

Main Level
slide image 0

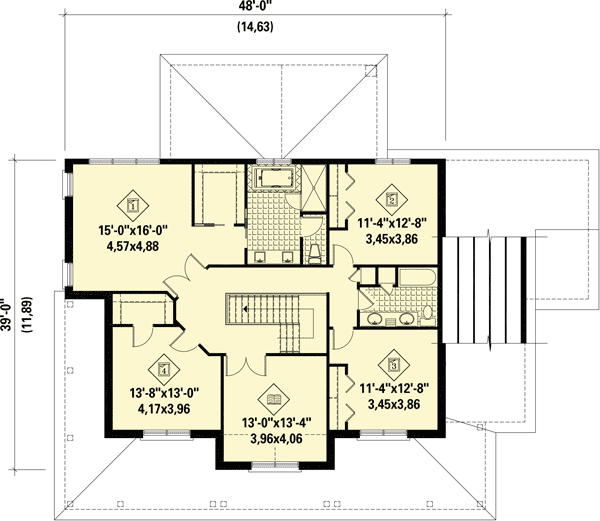

2nd Floor
slide image 1

Plan 80839PM

1-800-854-7852

1-262-521-4596

Main Level
floor plan image Main Level
2nd Floor
floor plan image 2nd Floor
Plan Details
  • This big two-story Farmhouse house plan has a large front porch and decorative trim on the front gable.
  • A half wall as you enter the home lets you see right into the living room.
  • There's a big walk-in coat closet too in the air lock entry foyer.
  • The garage entry is three steps down from the main living area.
  • Dine in the formal dining room that has windows on two walls or in the eat-in kitchen that has a door to the back porch.
  • The spacious second floor has a front-facing reading room that vaults at the front.
  • Homeowners get a private bathroom and a hall bath serves the remaining bedrooms.
What's Included
Please note this plan is designed to the National Building Code of Canada.
  • Exterior Elevations – Four detailed exterior elevations views showing the final appearance of each side of the house.
  • Foundation Plans – Different isometric views with dimensions as well as relevant information to build the foundation.
  • Floor Plans – A drawing of each floor of the house. They are fully dimensioned showing the size of rooms and the location and size of windows, doors and staircases.
  • Cross-Section View – Vertical section of the house showing the structure, insulation, typical wall configuration as well as other details
  • The plans include the 4 elevations views, foundation plans, floor plans, cross section, staircase section, materials specifications and various construction details which aid in the house's construction.
  • The plan views, cross sections and front elevations are drawn to the scale of 1/4" = 1'-0"; the side and rear elevations are 1/8" = 1'-0" and some details are 1/2" = 1'-0".
  • Lintel, beam, post, footing sizes, etc. are calculated (may require local architect/ engineer stamp) and the plans are available in metric.

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

3,066 sq. ft.

1st Floor

1,413 sq. ft.

2nd Floor

1,653 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

2

Half bathrooms

2

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

66' 0"

Depth

51' 0"

Max Ridge Height

38' 1"

Garage

Type

Attached

Area

878 sq. ft.

Count

2 Cars

Entry Location

Side

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

10 on 12

Secondary Pitch

12 on 12

Framing Type

Truss

Architectural Style

Country

Farmhouse

Special Features

Formal Dining

Loft

Master Suite - 2nd Floor

Wrap Around Porch

Plan Collections

Canadian House Plans

Metric
