Plan 24009BG
Grand Florida Manor
Heated S.F.
4,702
Beds
4
Baths
4.5+
Stories
2
Cars
3
Floor Plan

Plan 24009BG

Main Level
slide image 0
2nd Floor
slide image 1

Plan 24009BG

1-800-854-7852

1-262-521-4596

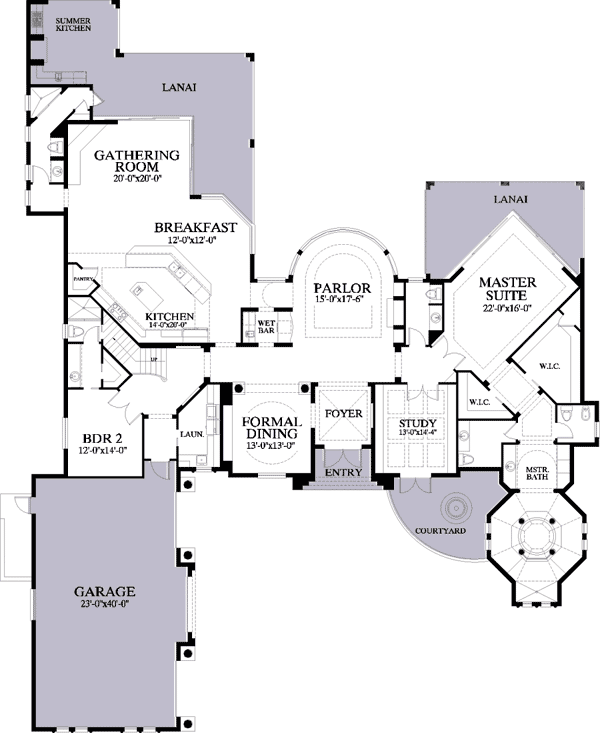

Main Level
floor plan image Main Level

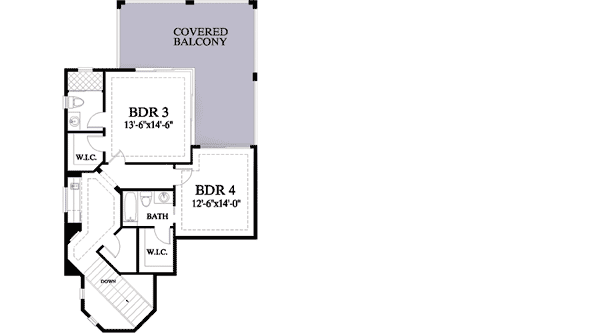

2nd Floor
floor plan image 2nd Floor
Plan Details
  • This grand Florida manor home offers an open floor plan, plenty of space and luxurious features such as special ceiling treatments, interior columns, built-ins and walls of glass to take in the views.

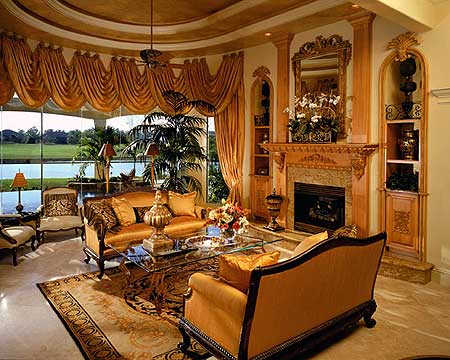

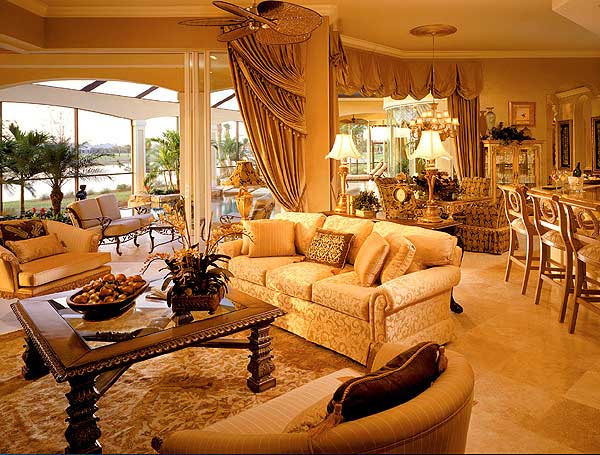

  • Double entry doors usher your family and friends into the foyer and the semi-circular parlor beyond. A tray ceiling, wet bar and built-in shelves that flank the fireplace, add to the ambiance of the formal parlor.

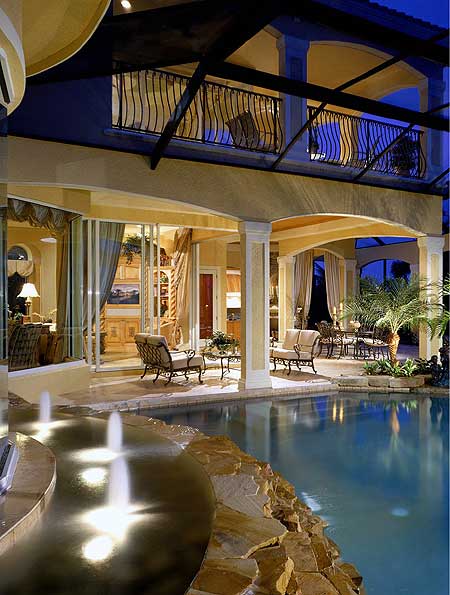

  • A large gourmet kitchen with walk-in pantry provides views of the breakfast nook, gathering room and covered lanai. A pool bath and the summer kitchen extend the living space to the outdoors.

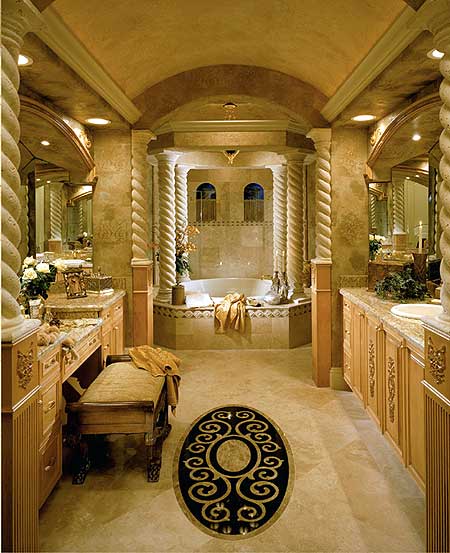

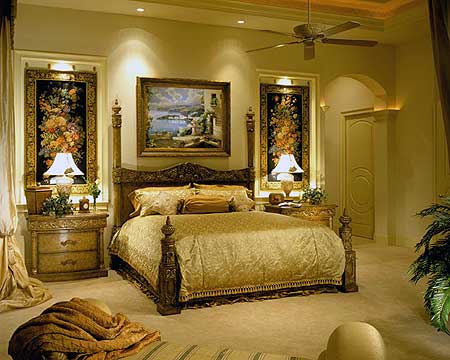

  • The spectacular master bedroom suite has two large walk-in closets, floor-to-ceiling windows, a private lanai, his and her water closets, a sumptuous circular tub with four columns and a walk-in shower beyond.

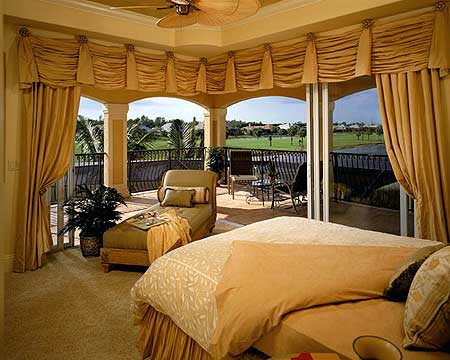

  • Two large bedrooms on the second floor, each with their own large walk-in closet and bath, share a covered balcony.
What's Included

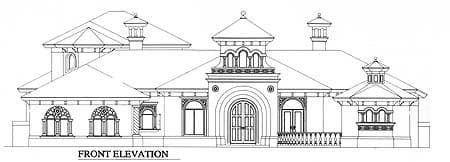

  • Cover page showing front elevation, contents and notes
  • Fully dimensioned floor plans including ceiling heights
  • Roof plan
  • All four exterior elevations
  • Typical cross section
  • Suggested electrical schematic
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Framing - layouts with beam sizes and locations
  • Energy calculations - handled locally when required
  • Roof truss design - to be created by the truss manufacturer in accordance with local code requirements
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

4,702 sq. ft.

1st Floor

3,898 sq. ft.

2nd Floor

804 sq. ft.

Porch, Combined

1,493 sq. ft.

Entry

74 sq. ft.

Balcony / Veranda

366 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

4

Half bathrooms

2

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

Block / CMU (main floor)

Dimensions

Width

92' 4"

Depth

117' 8"

Max Ridge Height

31' 1"

Garage

Type

Attached

Area

1026 sq. ft.

Count

3 Cars

Entry Location

Courtyard

Ceiling Heights

First Floor

10'

Second Floor

10'

Roof Details

Primary Pitch

6 on 12

Framing Type

Truss

Architectural Style

Florida

Mediterranean

Special Features

Bedrooms - Split

Breakfast Nook

Laundry - Main Level

Master Suite - 1st Floor

Wet Bar

Plan Collections

Luxury

Photo Gallery

Premium Collection
